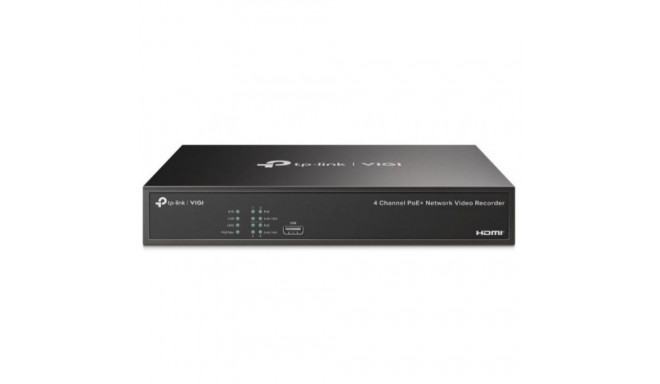

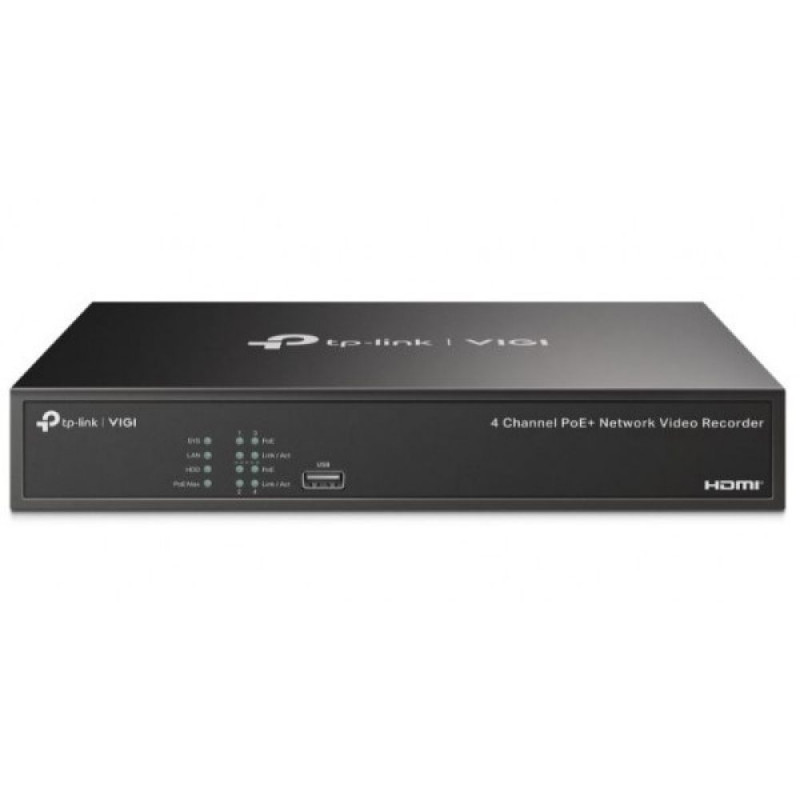

TP-Link IPCam VIGI NVR1004H Channel Network Video Recorder

Main info

Product has been archived


Warranty 24 (F)
Supported resolutions 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
DC-in jack Yes
Maximum resolution 3840 x 2160 pixels
Storage relative humidity (H-H) 10 - 90%
Wi-Fi No
Power over Ethernet (PoE) ports quantity 1
HDD interface SATA
VGA (D-Sub) output ports 1
AC adapter included Yes
Operating temperature (T-T) -10 - 55 °C
Ethernet LAN (RJ-45) ports 1
Maximum frame rate 30 fps
Storage temperature (T-T) -40 - 70 °C
Video motion detection Yes
Video input channels 4 channels
Depth 148.2 mm
Product colour Black
Quick installation guide Yes
LED indicators Yes
Supported network protocols UPnP (Plug and Play), NTP (Network Timing)
USB 2.0 ports quantity 2
Weight 590 g
Operating relative humidity (H-H) 10 - 90%
Maximum storage capacity 10 TB
Height 45 mm
HDD capacity 0 GB
Output bandwidth 60 Mbit/s
Audio RCA inputs 1
Recording modes Manual, Schedule
Power consumption (typical) 4.25 W
Backup function Yes
HDMI output Yes
Audio RCA outputs 1
Browser supported Chrome (57+), Firefox (52+), Edge (91+)
Package weight 950 g
Input bandwidth 80 Mbit/s
Width 246.2 mm
Reset button Yes
HDMI ports quantity 1
Resolution at capture speed 1920x1080@60fps
Mobile operating systems supported Android
Video formats supported H.265
Audio formats supported G.711u
Video recording modes 1080p
Warnings The appliance should be installed by a qualified professional.

Dimensions and weights

Package width
295 cm
Package height
280 cm
Package length
65 cm

Product codes

EAN
8885020620412
Manufacturer code
32278728
