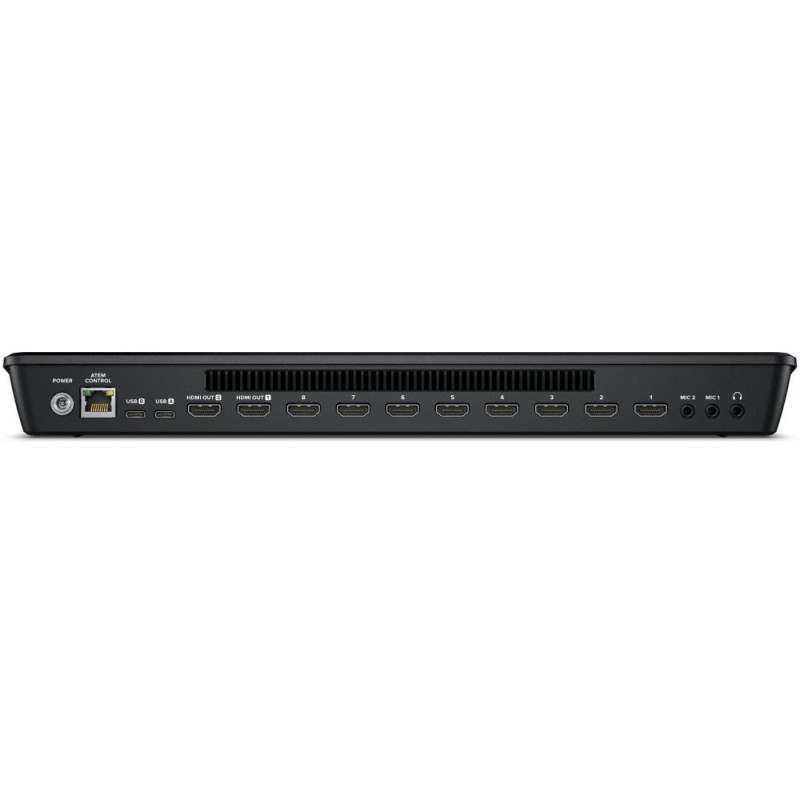

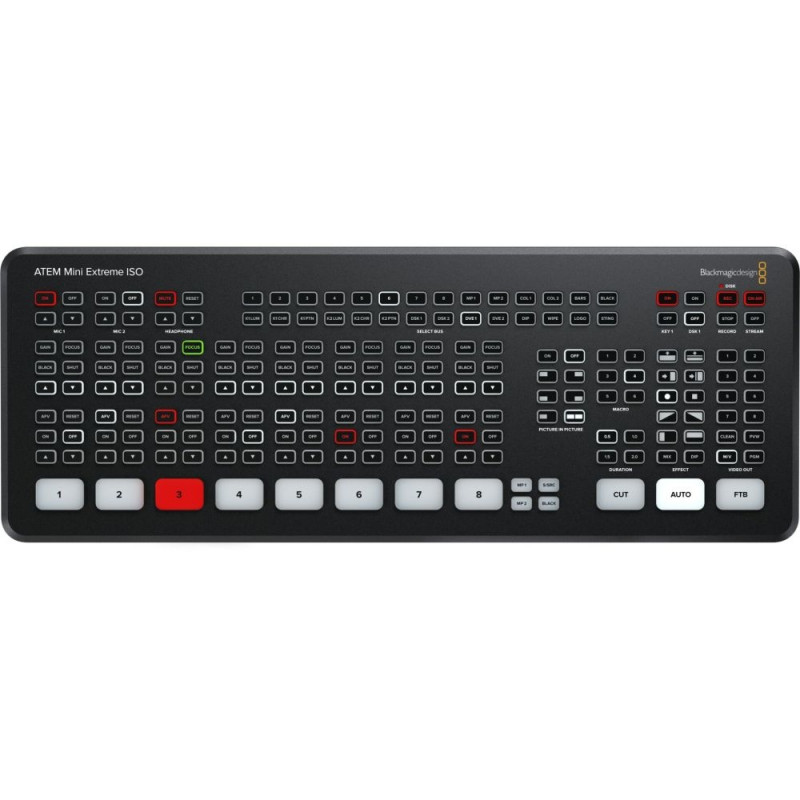

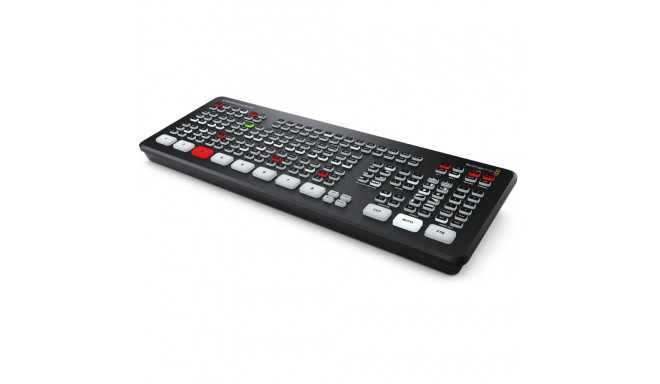

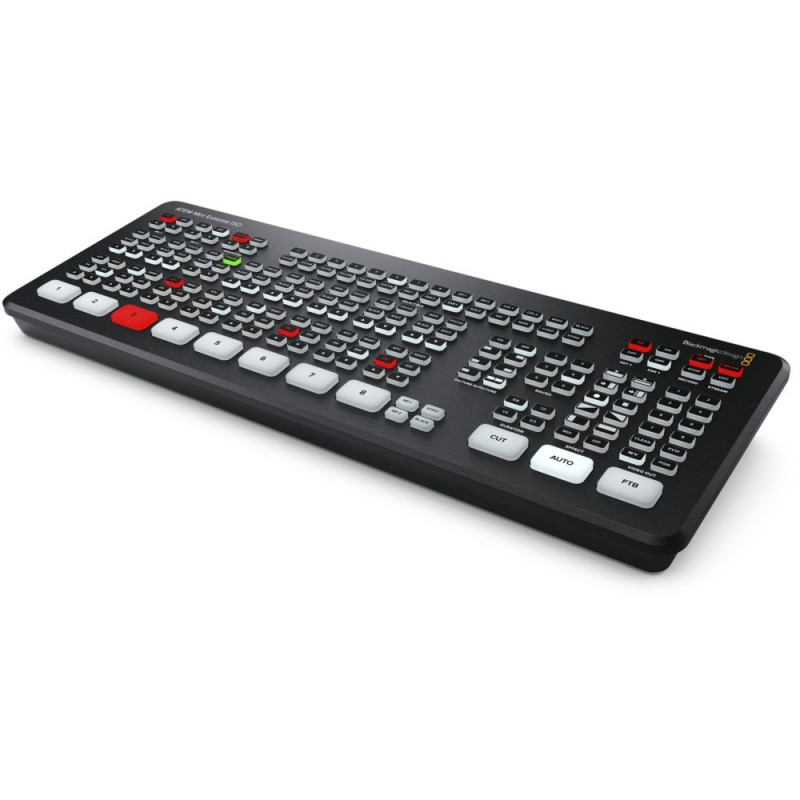

Blackmagic Design ATEM Mini Extreme ISO

The ATEM Mini Extreme ISO from Blackmagic Design is a sophisticated mixer for true professionals. You benefit from all the features of the ATEM Mini Pro plus an additional 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports and a headphone jack. In addition, this model has 4 chromakeys, 6 DVE for picture-in-picture displays, 2 media players and a multiviewer with up to 16 views.

In addition, the ATEM Mini Extreme ISO can record nine separate H.264 video streams in real time. In addition to the programme video, you can also capture eight clean feeds. It also saves a DaVinci Resolve project file, which you can use to restore and edit a project.

Connectivity:

  • Total video inputs: 8
  • Total video outputs: 2
  • Total Aux outputs: 2
  • Total audio inputs: 2x 3.5mm stereo mini jacks
  • Total audio outputs: 1x 3.5mm stereo mini jack
  • Time code ports: none
  • HDMI video inputs: 8 HDMI type A, 10-bit HD, switchable. 2 embedded audio channels
  • Video inputs with resync: on all 8 HDMI inputs
  • Frame rate and format converter: on all 8 HDMI inputs
  • HDMI program outputs: 2
  • Ethernet: Ethernet supports 10/100/1000BaseT for live streaming, software control, software updates and to connect a control panel directly or via a network connection
  • Computer interface: 2 USB port type C 3.1 of generation 1 for recording on external hard disks as well as for webcam output, software control, software updates and for connecting a control panel

Standards:

  • HD video input standards:
    • 720p/50; 720p/59,94; 720p/60
    • 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60
    • 1080p/50; 1080p/59,94; 1080p/60
  • HD video output standards: 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60
  • Video standards for streaming: 1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30; 1080p/50; 1080p/59,94; 1080p/60
  • Video sampling frequency: 4:2:2 YUV
  • Color accuracy: 10 Bit
  • Colour gamut: Rec.709
  • HDMI input resolution from computers:
    • 1280 x 720p 50Hz; 59.94Hz und 60Hz
    • 1920 x 1080p 23.98; 24; 25; 29,97; 30; 50, 59.94 und 60Hz
    • 1920 x 1080i 50; 59.94Hz and 60Hz
  • Colour space conversion: hardware-based in real time

Features:

  • Upstream keyer: 4
  • Downstream keyer: 2
  • Advanced chroma keyer: up to 4
  • Linear/luma keyer: up to 4
  • Transition keyer: DVE only
  • Total number of levels: 9
  • Sample generators: 5
  • Colour generators: 2
  • DVE with borders and shadows: 2
  • Interface: Screen resolution of at least 1366 x 768

Audio:

  • Audio mixer: 11 inputs x 2 channel mixer. Channel-by-channel preset for audio-follow-video on or off and separate gain control for each channel. Level and peak level metering. Plus new Fairlight audio functions: Compressor, gate, limiter, 6-band parametric EQ. Main gain control
  • Analogue input: unbalanced stereo
  • Analogue input delay: up to 8 frames
  • Input impedance: 1.8 k
  • Maximum input level: +6 dBV
  • Power for connected microphones: available on both 3.5mm minijacks
  • Streaming: The ATEM Mini Extreme supports direct live streaming via Ethernet using Real Time Messaging Protocol (RTMP) or via USB-C over a shared mobile internet connection.

Recording:

  • Direct video and audio recording: Record directly to external media via the USB-C 3.1 Gen 1 expansion port
  • Video recording: 8 HDMI ISO inputs for recording H.264 MP4 files in 70 Mbps quality according to ATEM video standard with AAC audio.
  • 1 programme output for recording an H.264 MP4 file in the set streaming quality and according to ATEM video standard with AAC audio
  • Audio recording: 10x 2 channels for audio inputs recorded in separate WAV files with 24-bit in 48 kHz. Includes 2 analogue audio inputs with 2 channels and 8 HDMI inputs with 2 channels for embedded audio
  • Mixing: Programme mix is recorded as DaVinci Resolve project file (.drp)
  • Storage medium format: supports media formatted in the ExFAT (Windows/Mac) or HFS+ (Mac) file systems

Multi View Monitoring:

  • Multi View Monitoring: configurable for 16, 13, 10, 7 or 4 views, including programme, preview, 8 HDMI inputs, SuperSource, clean feed, media player, streaming status, recording status and audio level meter
  • Multiview video standard: HD
  • Media Player:
  • Media Player: 2
  • Channels: Fill-and-key for each media player
  • Media Pool capacity for still images: 20 with fill-and-key
  • Media Pool Still image formats: PNG, TGA, BMP, GIF, JPEG and TIFF

Control:

  • Control panel: Integrated control panel. Software control panel with camera control function included. Supports optional hardware control panel
  • Control panel connection: Ethernet supports 10/100/1000BaseT. The Ethernet port is used for direct or network connection of a control panel to the mixer. The ATEM Mini Extreme also supports direct connection via USB-C. Software updates via Ethernet or USB-C
  • Compatibility with control panels: ATEM Software Control included. Compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel consoles. The ATEM Mini Extreme can be configured via the Blackmagic Videohub Setup utility for hardware panels to allow signal distribution to destinations using Videohub Smart Control Pro and Videohub Master Control Pro control panels
  • Operating software included: free included ATEM Software Control Panel for Mac 10.14 Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or higher and for Windows 10 in 64 bit only

Software:

  • Software updates: Via direct connection to Mac OS X or Windows computers via USB or Ethernet. ATEM Switcher Utility included
  • Configuration: Is done via ATEM Software Control. However, the IP address of the ATEM mixer is configured using the ATEM Switcher Utility via the USB port on the housing

More Specs:

  • Power supply: 1x external 12V PSU
  • Power consumption: 36 W
  • Dimensions: 370 x 136.6 x 39.6 mm
  • Weight: 1.235 kg
  • Operating temperature: 5-40 °C
  • Storage temperature: -10-60 °C
  • Relative humidity: 0-90 % non-condensing

Items delivered:

  • ATEM Mini Extreme ISO
  • External 12V DC power supply with suitable plug adapters for all countries

Type Live Production Mixer
Information Live Streaming via Ethernet
Energy Supply Mains
Colour Black
