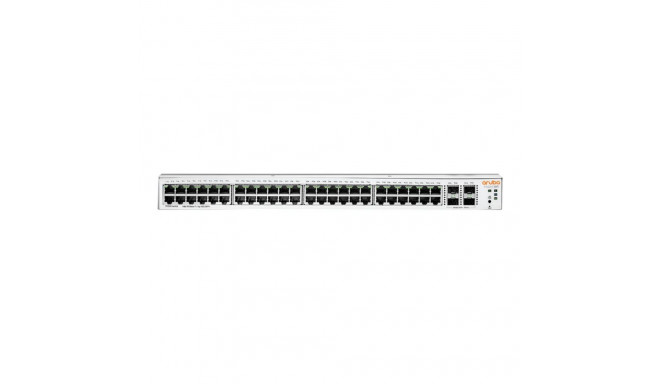

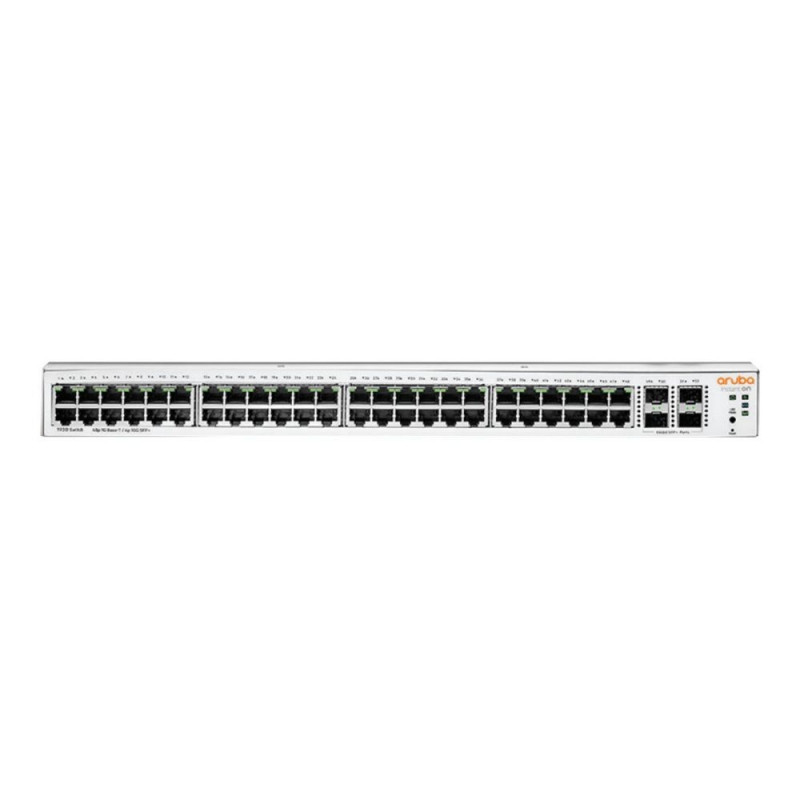

HPE Aruba IOn 1930 48G 4SFP+ 370W Sw
Device Type |
Switch - 52 ports - L3 - Managed |
Enclosure Type |
Rack-mountable 1U |
Subtype |
Gigabit Ethernet |
Ports |
48 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
Power Over Ethernet (PoE) |
PoE |
PoE Budget |
370 W |
Performance |
Switching capacity: 176 Gbps
Throughput: 130.95 Mpps
Latency (1 Gbps): 2.2 µs
Latency (10 Gbps): 1.2 µs |
MAC Address Table Size |
16000 entries |
Jumbo Frame Support |
9216 bytes |
Routing Protocol |
Static IP routing |
Remote Management Protocol |
SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
Power |
AC 100-127/200-240 V (50/60 Hz) |
Dimensions (WxDxH) |
44.25 cm x 32.26 cm x 4.39 cm |
Weight |
4.52 kg |
Localisation |
English / Europe |
Manufacturer Warranty |
Limited lifetime warranty |
Product Description |
HPE Networking Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch - switch - 52 ports - Managed - rack-mountable |
Capacity |
Link aggregation ports: 8
IPv4 routes (static): 32
VLANs supported: 256
Access Control Entries (ACEs) per ACL: 480
|
Features |
Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, STP support, MSTP support, ACL support, QoS, TPM, LLDP support, LACP, Energy Efficient Ethernet, CoS, BPD |
