Home page » Computers & IT»Accessories»Video repeaters»PremiumCord HDMI extender + 2xUSB, 60m, with audio, over cat5e/Cat6

PremiumCord HDMI extender + 2xUSB, 60m, with audio, over cat5e/Cat6

58,99 €

Monthly payment starting from 1,76 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

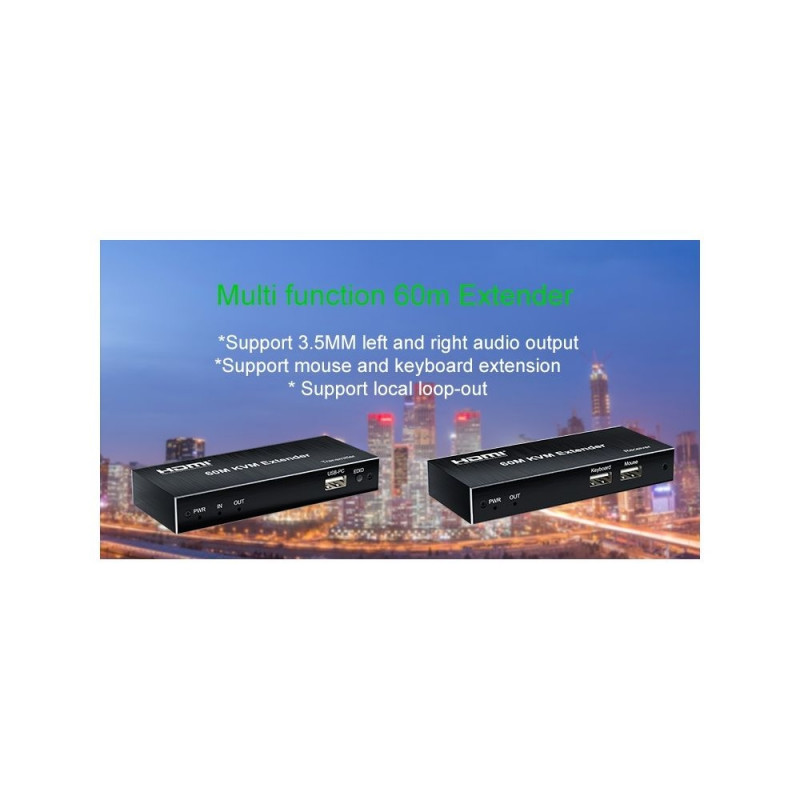

PremiumCord HDMI KVM extender with 2xUSB at 60m with audio via one Cat5 / 6 cable The device allows you to transmit HDMI FULL HD 1080p signal and USB up to a distance of 60m on one network cable without delay. The extender is equipped with audio output
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

PremiumCord HDMI KVM extender with 2xUSB at 60m with audio via one Cat5 / 6 cable The device allows you to transmit HDMI FULL HD 1080p signal and USB up to a distance of 60m on one network cable without delay. The extender is equipped with audio outputs. - KVM extender (keyboard, video and mouse) allows you to transmit the signal together over a greater distance and remotely control a computer or server. - Supports FULL HD 1080p up to 60m when using high quality UTP cable CAT6 with copper wires AWG23 (we recommend our cable code: sutpd6c3) - We recommend for connecting a quality UTP cable Cat5e, Cat6, Cat7 with copper conductors, preferably AWG23, it does not have to be shielded - For resolutions: 1080p / 1080i720p / 576p / 576i / 480p / 480i - Bandwidth: 150MHz - Data rate: 4.5Gbps - Maximum range: 60m when using CAT6 cable AWG23 - HDMI input cable max. 10m when using HDMI cable with AWG24 wires - HDMI output cable max. 15m when using HDMI cable with AWG24 wires - Transmitter and receiver are connected to each other with a quality CAT6 / CAT5e cable. Both units have an RJ45 connection connector - The transmitter has one HDMI input connector. The receiver has one HDMI output for a remote monitor. - Extender also transmits USB, the transmitter has one USB port for connection to a computer, the receiver has two USB connectors for connecting, for example, a mouse and keyboard - Extender transmits IR signals to control IR devices - Extender is equipped with audio outputs stereo jack 3.5 mm where it is possible to connect headphones or an audio amplifier. - The transmitter and receiver are powered by the included power adapters 230V / 5V, 1A - Transmitter dimensions: length: 122mm, šířka: 50mm, výška:19mm - Receiver dimensions: length: 122mm, šířka: 50mm, výška:19mm - Weight: 108g + 108g - Working temperature: 0 do 45 ° C Connecting and Operating: 1.Connect one HDMl cable between source device and TX Extender,the max cable distance is 10 meters; 2.Connect one HDMI cable between display device and RX Extender,the max cable distance is 15 meters; 3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 60 meters; 4.Connect 5V power supply to the TX and RX; 5.LED indicator light:TX LED indicator light: When there is signal input, it turns blue; RX LED indicator light: When there is signal input, it turns blue; 6.EDID button: The button can support the switch of EDID between 720P and 1080P.(1080P is the default EDID when the power is on). 7.Plug the IR receiver cable into the receiver,and IR transmitter cable plug into the transmitter if you need the IR receiver cable,aim at the equipment which needs to control. 8. Plug the mouse and keyboard into the two USB port of the receiver,and connect the USB port of the transmitter with the computer if you need the KVM control function. Set consists: 1x TX Extender 1x .RX Extender 1x IR receiver cable 1x IR transmitter cable 2x 5V power adapter 1x User Manual
Supports FULL HD 1080p up to 60m when using high quality UTP cable CAT6 with copper wires AWG23 (we recommend our cable code sutpd6c3)
For resolutions 1080p / 1080i720p / 576p / 576i / 480p / 480i
Bandwidth 150MHz
Data rate 4.5Gbps
Maximum range 60m when using CAT6 cable AWG23
Weight 108g + 108g
working temperature 0 do 45 ° C
EDID button The button can support the switch of EDID between 720P and 1080P.(1080P is the default EDID when the power is on).

Dimensions and weights

Gross weight
0.21 kg

Product codes

EAN
8592220023003
Manufacturer code
8592220023003
