Revopoint Reference Block Set

The Revopoint Reference Block Set is a practical solution that significantly improves the accuracy and stability of 3D scanning. By using markers with specific dimensions and varying geometries, the scanner receives more reference points, which translates to better object tracking and more accurate alignment of successive frames. In practice, this means fewer errors, fewer corrections, and a more predictable final result—especially when scanning smooth, symmetrical, or featureless surfaces.

Greater precision thanks to more reference points

Each marker type in the set has a specific size and point layout, allowing the scanner to more easily recognize its position in space. Larger elements, such as pyramid markers (67 × 55 mm), are clearly visible even from a greater distance, making them ideal for larger objects. Smaller markers—spherical (30 mm) and dome-shaped (41 × 22 mm)—enable accurate detail capture during close-up scanning. This allows you to tailor your workflow to a specific project.

Different marker types = greater flexibility

The kit combines point, spatial, and linear markers. Spheres and domes allow you to quickly create a grid of reference points around an object, pyramids stabilize tracking in more challenging conditions, and marker strips (205 mm long) assist with elongated elements or those requiring axis preservation. Additional self-adhesive markers (6 mm / 10 mm) allow for denser point coverage where even greater accuracy is required.

Magnetic Mounting and Stability

Spherical, dome, and pyramid markers are equipped with 8 mm diameter magnets. This allows them to be quickly and securely placed on metal surfaces without additional mounts. Stable mounting reduces the risk of markers shifting during operation, which directly impacts scan quality.

Compatibility and application

The set is compatible with most Revopoint 3D scanners, including the POP, POP 2, POP 3, RANGE, RANGE 2, INSPIRE, MIRACO, MIRACO Pro, and MetroX series (including laser modes). It works well for both quick overview scans and precise engineering projects where alignment accuracy and tracking stability are critical.

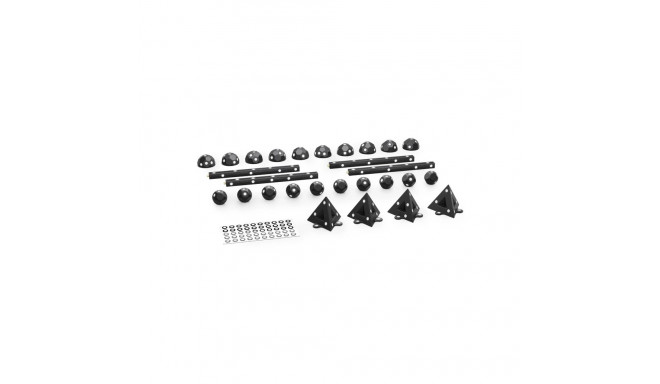

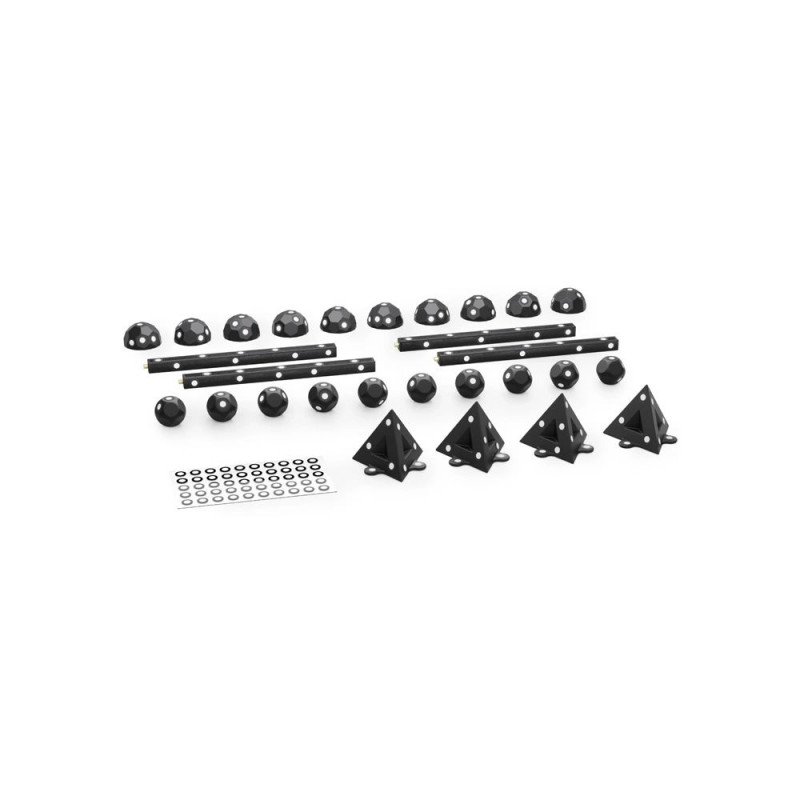

Included
  • 10 × spherical marker (magnetic)
  • 10 × dome marker (magnetic)
  • 4 × pyramid marker (magnetic)
  • 4 × marker strip (205 mm)
  • 500 × adhesive marker (6 mm)
Manufacturer Revopoint
Model Marker Block Kit
Material PP plastic
Compatibility Revopoint POP, POP 2, POP 3, RANGE, RANGE 2, INSPIRE, MIRACO, MIRACO Pro, POP 3 Plus, MIRACO Plus, MetroX, MetroY, MetroY Pro, INSPIRE 2, Trackit, MetroX Pro, MetroY Ultra
Ball Marker (magnetic) - diameter 30 mm
Ball Marker - weight 15 g / pc.
Ball Marker - magnet diameter 8 mm
Dome Marker (magnetic) - dimensions 41 mm (diameter) × 22 mm (height)
Dome Marker - weight 10 g / pc.
Dome Marker - magnet diameter 8 mm
Pyramid Marker (magnetic) - dimensions 67 mm (base) × 55 mm (height)
Pyramid Marker - weight 40 g / pc.
Pyramid Marker - magnet diameter 8 mm
Bar Marker - dimensions 12 × 12 × 205 mm
Bar Marker - weight 45 g / pc.
Self-adhesive markers - inner diameter 6 mm
Self-adhesive markers - outer diameter 10 mm

Dimensions and weights

Gross weight
1.18 kg
Package width
16.5 cm
Package height
9 cm
Package length
43.5 cm

Product codes

EAN
6975577880918
Manufacturer code
MARKER-BLOCK-KIT
