USB Audio Interface - Behringer Umc1820

Main info

8 XLR combo mic preamps with 48V phantom power and 12 TRS output jacks (8 unbalanced, 4 balanced). 24-bit/192kHz audio AD/DA converter and MIDI I/O via DIN connectors.

Product has been archived

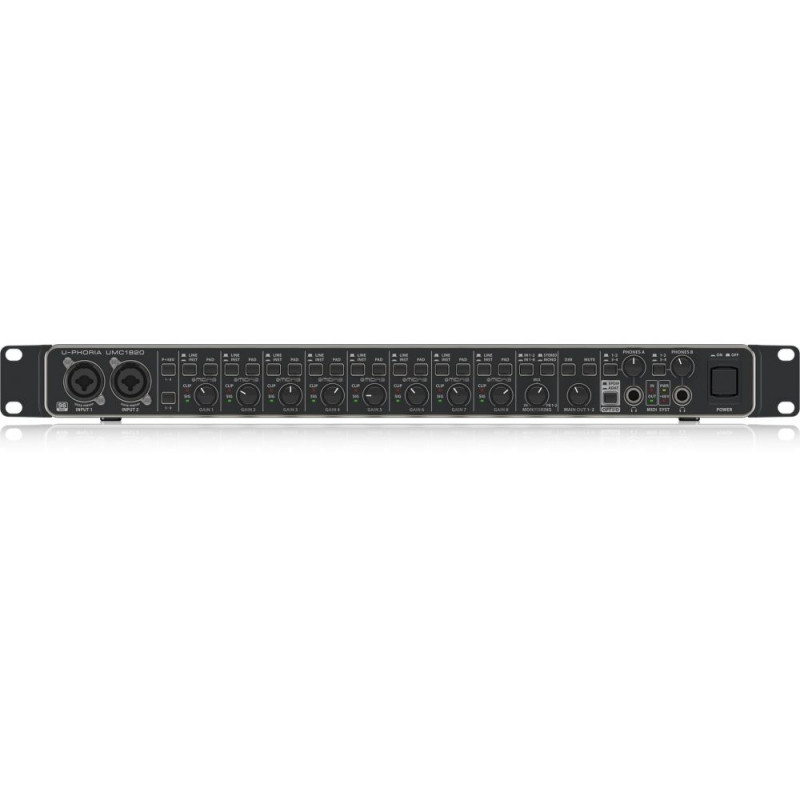

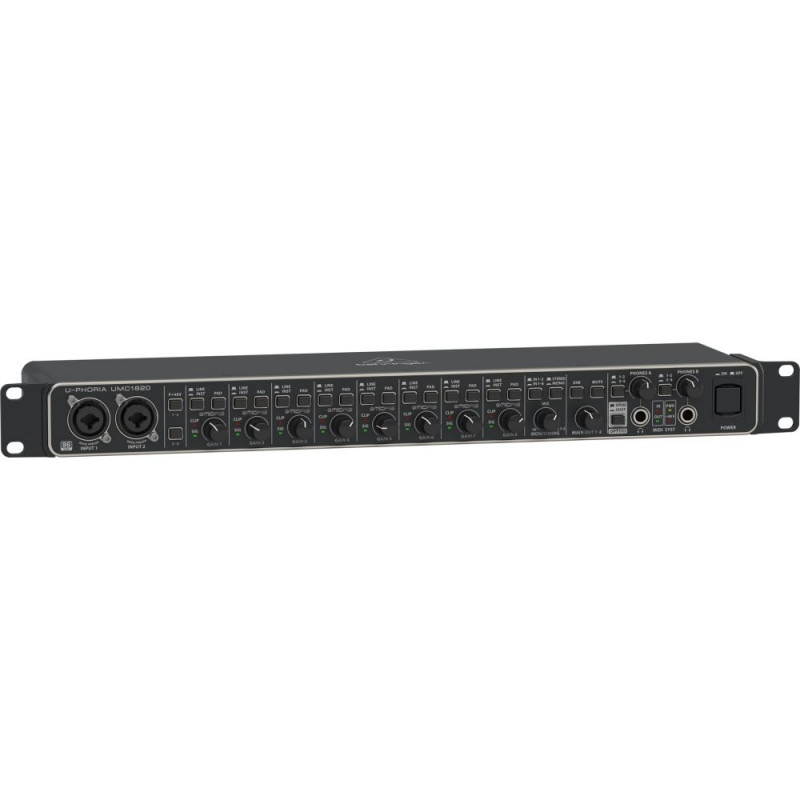

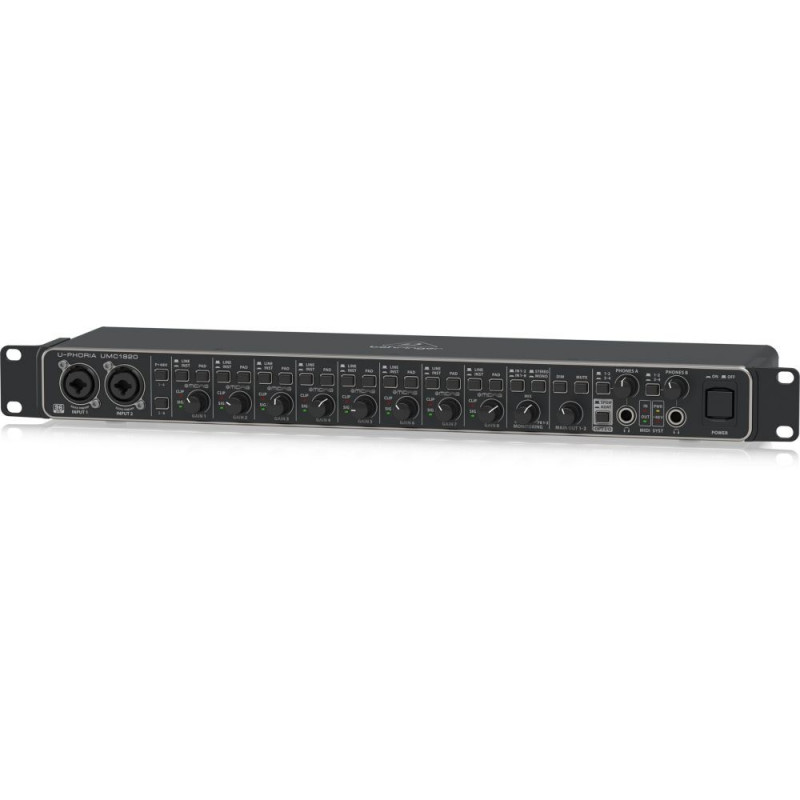

Behringer UMC1820 - USB Audio Interface

The Behringer UMC1820 is a professional-grade, 18x20 USB audio interface with XLR combo and 6.35mm inputs, metal housing, and a 24-bit/192kHz AD/DA converter.

Key Features
  • 8 XLR combo mic preamps with 48V phantom power
  • 12 6.35mm (1⁄4-inch) TRS output jacks (8 unbalanced, 4 balanced)
  • S/PDIF I/O (coaxial and optical)
  • MIDI I/O via DIN connectors
Technical Specs
  • 24-bit/192kHz audio AD/DA converter
  • Supported sample rates: 44.1, 48, 88.2, 96 kHz
  • Power consumption: 20W AC power source

Features
Audio output 20
Product type Audio interface
Audio input 18
Form factor Desktop/rackmounted
Housing material Metal
Product colour Black
Power
Power consumption (typical) 20 W
Power source AC
Weight & dimensions
Width 483 mm
Depth 130 mm
Weight 1.8 kg
Height 46 mm
System requirements
Mac operating systems supported Mac OS X 10.7 Lion, Mac OS X 10.6 Snow Leopard, Mac OS X 10.11 El Capitan, Mac OS X 10.8 Mountain Lion, Mac OS X 10.5 Leopard, Mac OS X 10.13 High Sierra, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Windows operating systems supported Windows Vista, Windows XP, Windows 8, Windows 10, Windows 7
Ports & interfaces
S/PDIF out port Yes
S/PDIF in port Yes
USB version 2.0
Device interface USB
USB ports quantity 1
6.35 mm (1⁄4-inch) output 12
6.35 mm (1⁄4-inch) balanced outputs 8
XLR combo inputs 8
MIDI out Yes
MIDI in Yes
Microphone preamp
Number of preamps 8
Microphone preamp input level (max) 11 dBu
Microphone preamp input impedance 3000 Ω
48V phantom power Y
Built-in microphone preamp Yes
AD/DA converter
Audio A/D Converter (ADC) 24-bit/192kHz
Supported sample rates 44.1,48,88.2,96 kHz

Width 483 mm
Height 46 mm
Length 130 mm
Product Weight 1800 g
Country DE

Dimensions and weights

Gross weight
2.56 kg
Package width
10 cm
Package height
62 cm
Package length
17 cm

Product codes

EAN
4033653170918
Manufacturer code
27000609
