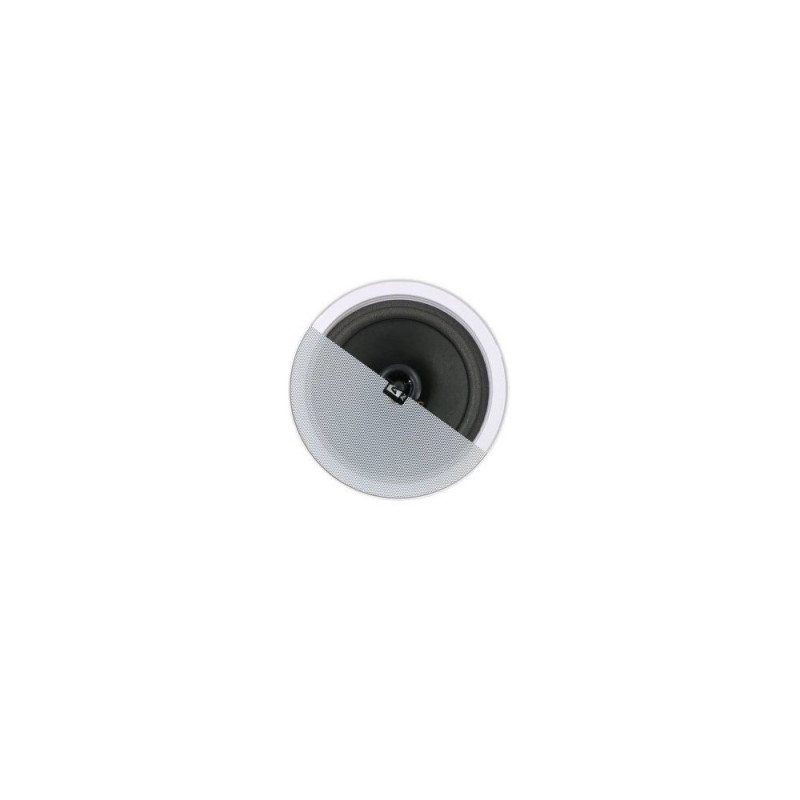

Avtek CS 606 is a coaxial ceiling speaker equipped with a 100 V / 70 V transformer with selectable power taps (10W6W3W). Thanks to its discreet, frameless design, white ABS housing, and metal grille, the device blends aesthetically and unobtrusively into the architecture of any interior.

This model is an ideal solution for delivering clear voice announcements and background music playback. It ensures reliable operation and high sound quality, making it an excellent choice for public and commercial spaces it works perfectly in modern educational facilities, business environments, as well as shopping centers and hotels.

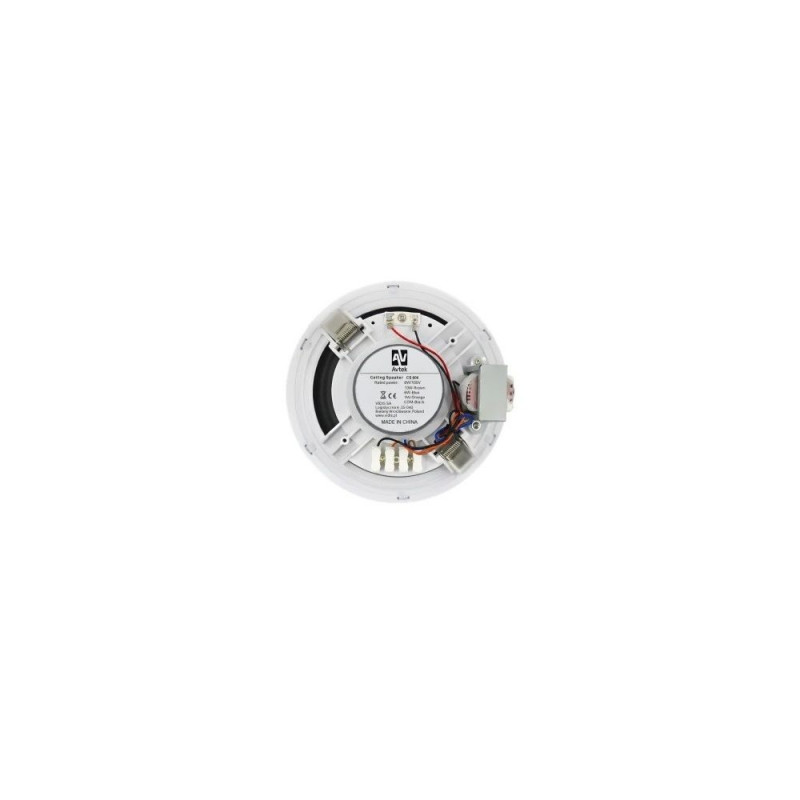

The speaker terminals have been designed with maximum installer convenience in mind. The use of tool-free connectors allows for quick and secure connection of the speaker cable, significantly reducing the time required to set up the entire audio system.

Installation in a suspended ceiling is exceptionally quick and easy thanks to the spring clamp mechanism. The speaker simply needs to be inserted into a prepared mounting cut-out with a diameter of 165 mm sturdy spring-loaded clamps will automatically lock the enclosure in place, ensuring stability and secure mounting without the need for a single screw.

At the heart of the device is a 6.5-inch paper cone coaxial driver with an integrated tweeter. This two-way design, combining a woofer and tweeter, allows for a wide frequency response range of 70-20 kHz. This directly contributes to improved sound clarity and enhanced speech intelligibility.


Type Ceiling/wall
Purpose Music
Purpose pa system/Sound equipment
Max speaker power (total) 10
Pass band (min) 70
Pass band (max) 20000
Color white

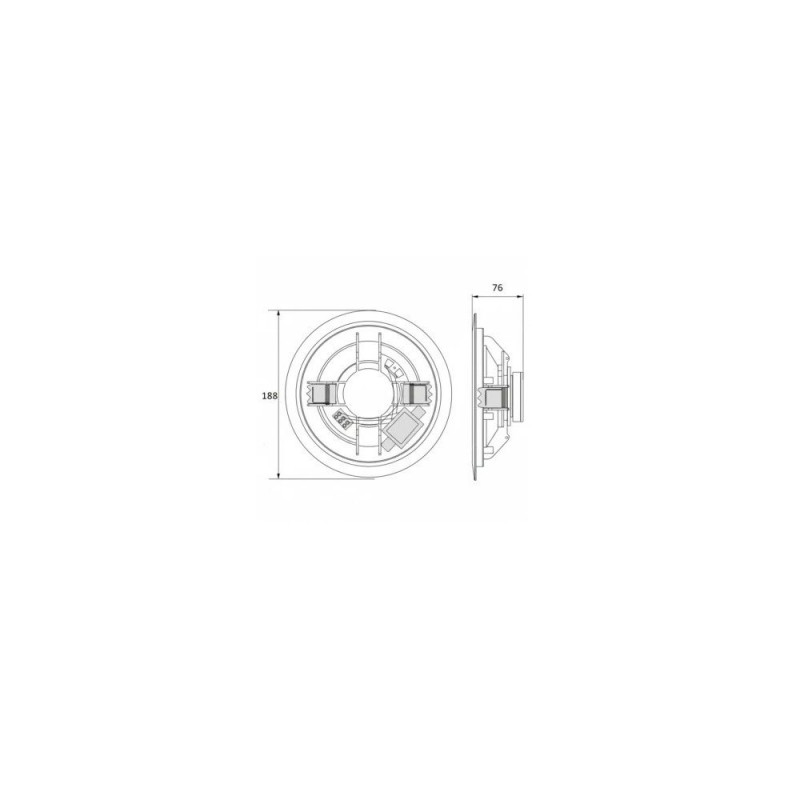

Dimensions 188 x 76 mm
Other features Impedance: 8 100V Woofer/Full-Range Driver Diameter: 6.5 inches Tweeter Diameter: 1 inch SPL: 94 dB Speaker Type: 2-Way Material: ABS Warranty: 3 years
Designation

Dimensions and weights

Gross weight
0.99 kg
Package width
20 cm
Package height
10 cm
Package length
20 cm

Product codes

EAN
5907731310918
Manufacturer code
UGAUAGBAVTCS606
