PremiumCord HDMI modulátor DVB-T

Addional discount of 10%
will be applied in shopping cart
(min. 4€ purchase)
158,99 €

Monthly payment starting from 5,42 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

PremiumCord HDMI modulator DVB-T It is used to convert an uncompressed video and audio signal in digital format connected to the HDMI interface into a compressed MPEG-2 FULL HD (H.264) video signal and modulate it into an output DVB-T channel. The mod
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

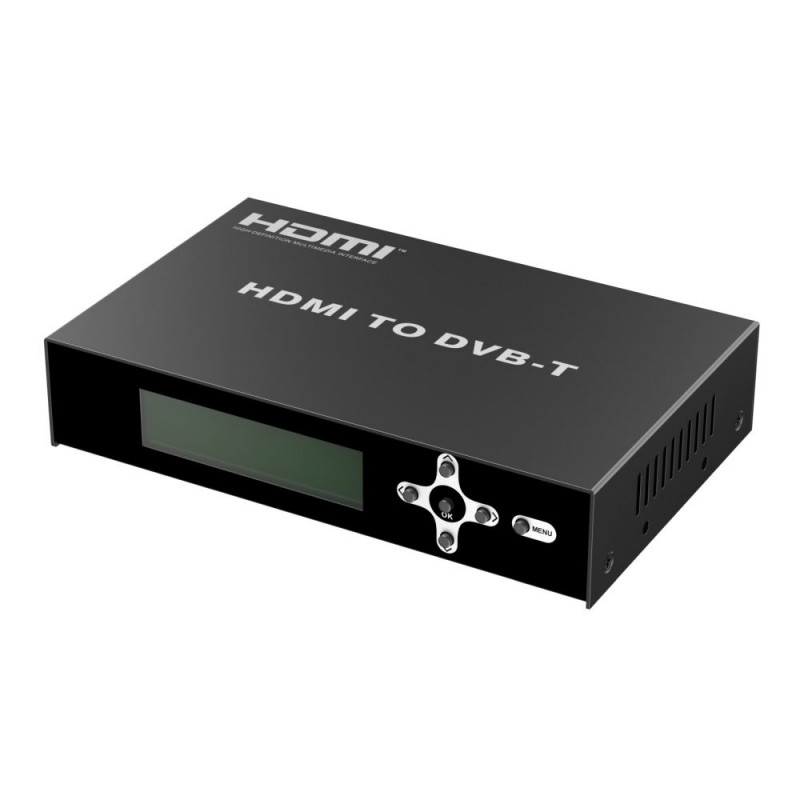

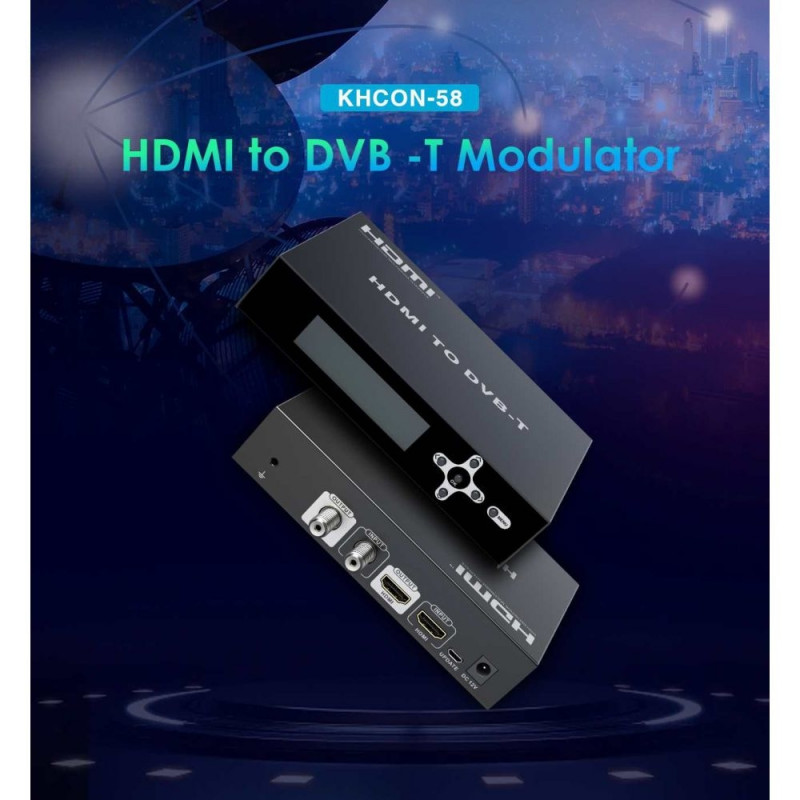

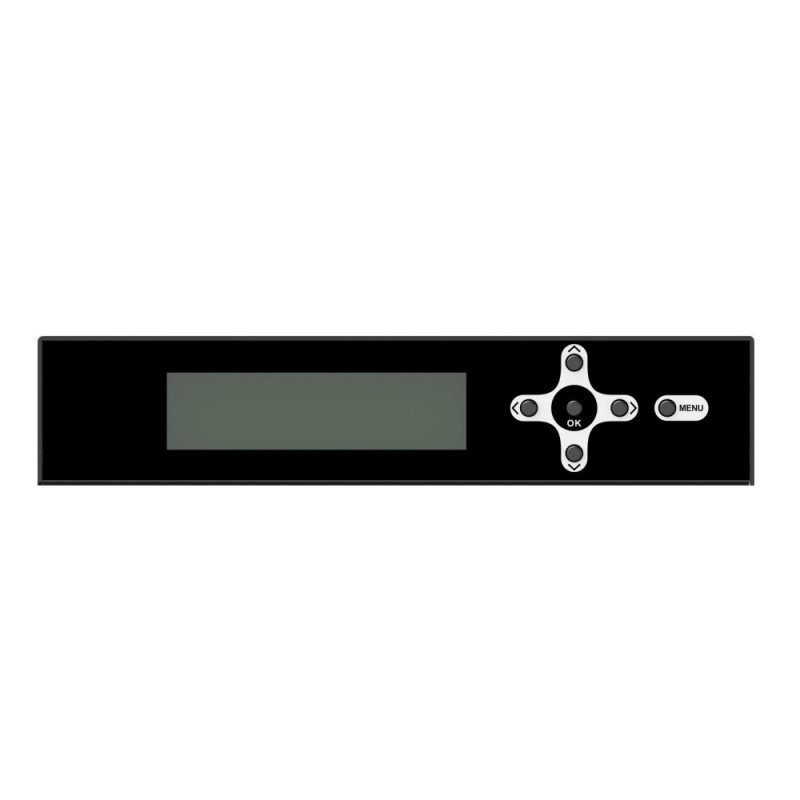

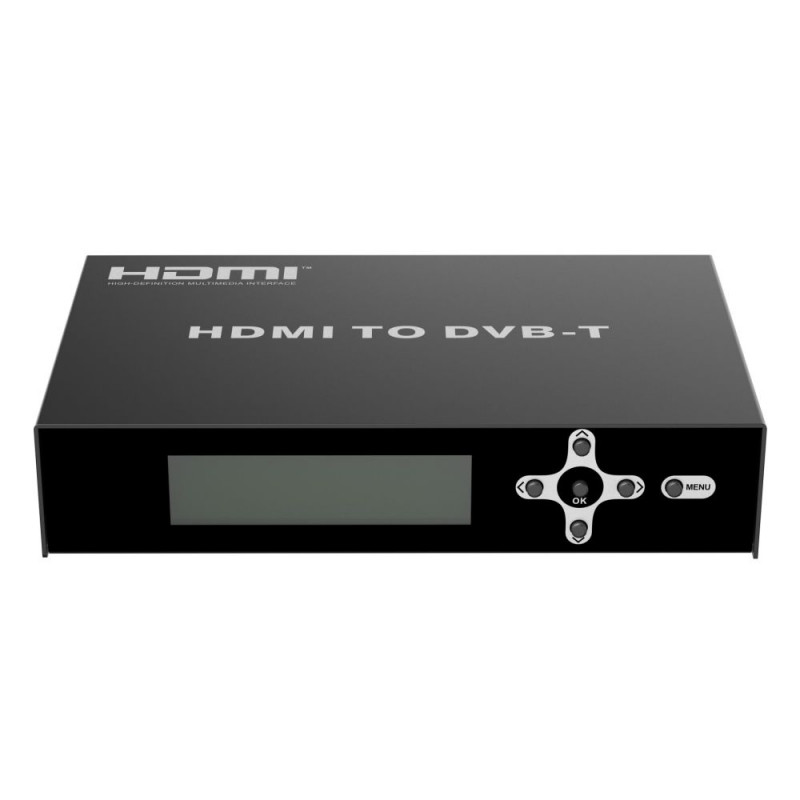

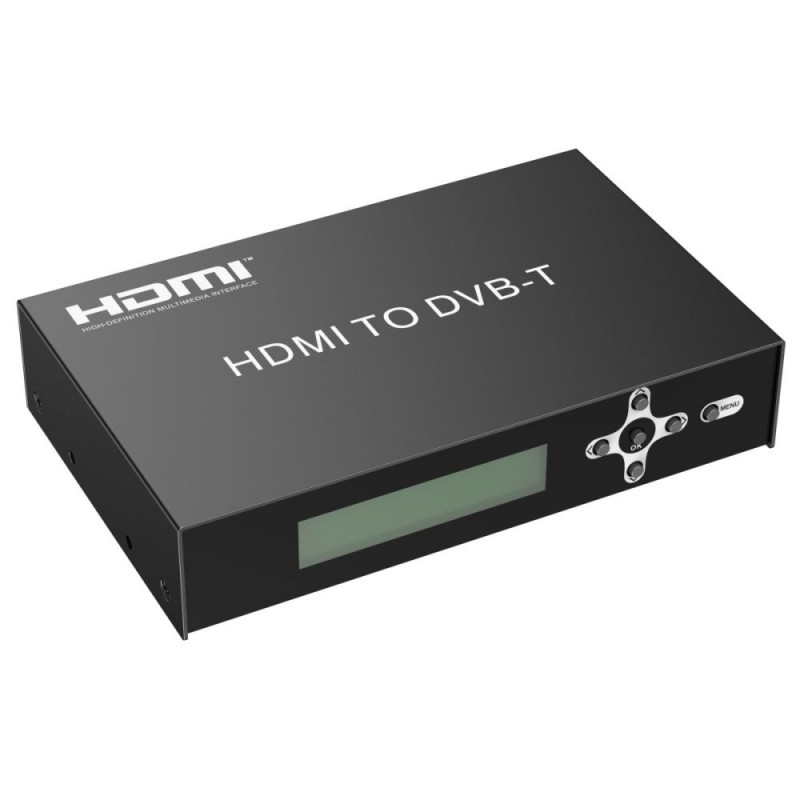

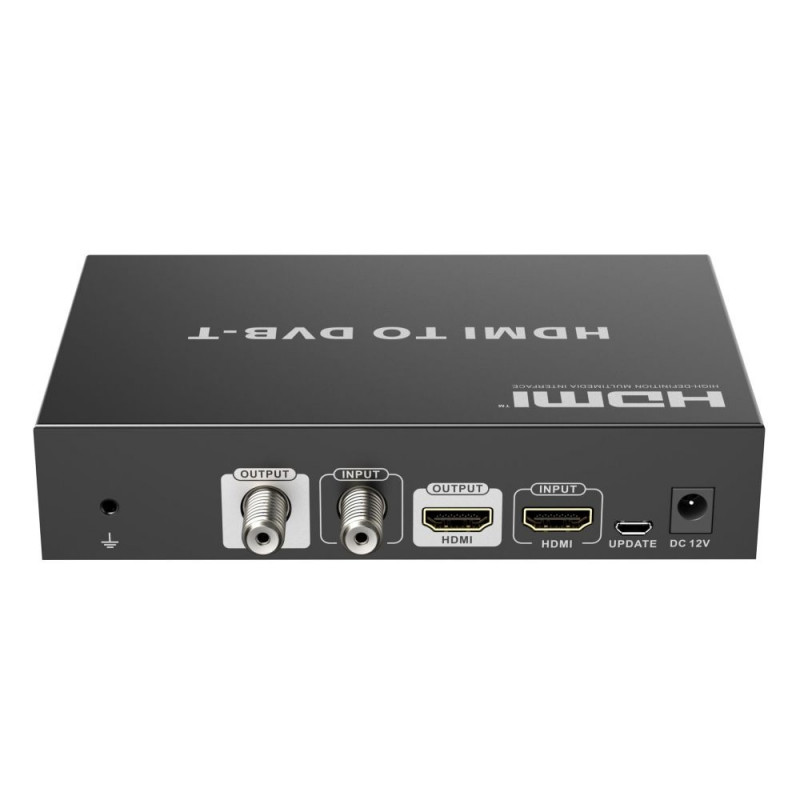

PremiumCord HDMI modulator DVB-T It is used to convert an uncompressed video and audio signal in digital format connected to the HDMI interface into a compressed MPEG-2 FULL HD (H.264) video signal and modulate it into an output DVB-T channel. The modulator is set using the control buttons on the front panel, which is displayed on the clear LED display. it is characterized by a very simple setup. HDMI DVB-T LTE USB is an autonomous device used to modulate the HDMI signal into one output DVB-T channel in the TV band - Input HDMIx1 - HDMI Loop-out Supports HDMIx1 - Signal RF Signal - Coaxial output Standard DVB-T - MER 37dB - Input HDMI Resolution Supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz - Video Encoding H.264 - Video Bitrate 1~24Mbps - Audio Format MPEG and AAC (44.1kbps, 48kbps) - Audio Encoding MPEG2 - Audio Bitrate 64, 96 128, 192, 256,320 Kbit/s - Editable fields TSID(Transport Stream ID),ONID (Original Network ID), Network ID, Service Name, Service ID, LCN Mode and LCN ID (Logical channel number) - Standard DVB-T COFDM - Guard Interval 1/4, 1/8, 1/16, 1/32 - Constellation 16QAM, 64QAM and QPSK - Bandwidth 6M, 7M and 8M - FEC 1/2, 2/3, 3/4, 5/6, 7/8 - Carrier Rate 2K and 8K - TMDS Signal 0.5?1.5Vp-p(TMDS) - DDC Signal 5Vp-p(TTL) - ESD protection IEC61000-4-2 - Frequency 177.5 to 866MHz - Effective Bitrate Max:24M bits - Insertion Loss <2dBm - RF output Wattage(TX) -10dBm -13dBm - RF Interface 75 Ohm type F - Coaxial Cable reqired RG6, RG7, RG11 - MODE control button control - Delay Time 200~300ms (Depends on the decoding ability of receivers) - Housing ferroalloy + PC panel - Product Dimension (L×W×H mm) 158x115x33mm - Net weight 520g - Power supply 12V/1A - Power consumption <7W - Operation temperaure 0~50 °C - Storage temperature 10~70 °C - Relative humidity 0%-90% no condensation
Input HDMI Resolution Supported 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz

Dimensions and weights

Gross weight
0.1 kg

Product codes

EAN
8592220023416
Manufacturer code
8592220023416

Photopoint offers free shipping for orders over 99 € delivered to Estonia. Take a look in the tab "Delivery" for a more precise delivery estimate.

For this product you can select the desired delivery method at the shopping cart:

Photopoint store Pick-up


Place your order from Photopoint web store and pick your goods up from one of Photopoint`s brick and mortar stores. The delivery to Photopoint store is free even for orders less than 99 €. You will be noticed by e-mail when your order is ready for pick-up.

The Photopoint stores are located in Tallinn and Tartu. See the exact locations from here.

Omniva parcel terminal

You can order the goods to one of the Omniva Parcel terminals. Choose the desired terminal at the shopping cart. As the shipment arrives to the selected terminal, you will be sent an SMS-notification with an unique code. Go to the terminal within a week, enter the code and take your package. It is as simple as that.

See Omniva Parcel terminal locations here.

SmartPOST parcel terminal

Did not find an Omniva terminal at suitable location? Try SmartPost. Choose the desired terminal at the shopping cart. As the shipment arrives to the selected terminal, you will be sent an SMS-notification with an unique code. Go to the terminal within a week, enter the code and take your package. This method actually works for all parcel terminals.

See SmartPOST parcel terminal locations here.

DPD parcel locker

Make sure you check out also the locations of DPD parcel lockers. These are located all over Estonia. The delivery is the same. As the shipment arrives to the selected locker, you will be sent an SMS with a unique code. Go to the locker, enter the code and take your package.

See DPD parcel locker locations here.

Smartpost Finland parcel terminal

SmartPOST Finland is the best way to order goods to Finland. These terminals work the same way as in Estonia. As the shipment arrives to the selected terminal in Finland, you will be sent an SMS-notification with an unique code. Go to the terminal, enter the code and take your package.

See SmartPOST Finland parcel terminal locations here.

Matkahuolto parcel service

Matkahuolto is easy way to order goods to Finland. These are located also in smaller Finnish towns. As the shipment arrives to the selected Matkahuolto outlet, you will be sent an SMS-notification or an e-mail. Go to the outlet, show your ID and take your package.

See Matkahuolto outlet locations here.

Omniva courier delivery

The courier will transport your goods from Photopoint straight to the provided address. The delivery will take place at workdays from 08:00 to 17:00. Hold your phone near you as the courier will call you prior to its arrival. Please make sure there is someone at the destination, eligible to receive the shipment.

The product can only be ordered from our online store and it takes from 7-10 working days for delivery within Estonia.
