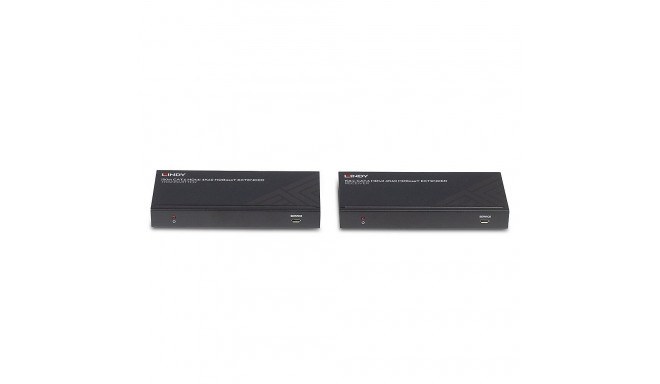

AV Extender - 150m Cat.6 HDMI 4K60 IR RS-232 HDBaseT 18Gbps

Addional discount of 5%
will be applied in shopping cart
(min. 15€ purchase)
1 399 €

Monthly payment starting from 47,68 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Extends HDMI resolutions up to 150m with support for 4K60 and IR & RS-232 control. Compatible with HDMI 2.0 and offers a bandwidth of 18Gbps.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

150M Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Extender

Extends HDMI resolutions up to 150m with support for 4K60 and IR & RS-232 control. Compatible with HDMI 2.0 and offers a bandwidth of 18Gbps.


  • Supports 4K resolution at 60Hz with a maximum distance of 150m using Cat.6 cable.
  • Features bi-directional RS-232 control and IR support for seamless integration.
  • Includes HDMI loop-out port and Power over Cat.6 (PoC) for added convenience.
  • Compliant with CE, UKCA, FCC, RoHS, and REACH standards for safety and reliability.

Features
Product Type AV Extender
Model 150m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Extender
Specifications
AV Interface HDMI®
Interface Standard 2.0
Supported Bandwidth 18Gbps
Maximum Resolution 3840x2160@60Hz 4:4:4 8bit
HDCP Support 2.2
EDID Pass Through Pass-through
IR Support 20KHz - 60KHz
Serial Interface RS-232 (Bi-directional)
Transmission Protocol HDBaseT
Transmission Medium 1 x Cat.6
Chipset VS010-A0
Special Features HDMI® Loop Out Port, PoC (Power over Cat.6)
Connectors
Transmitter Input HDMI® Type A (Female), IR (Female)
Transmitter Output HDMI® Type A (Female), RJ-45 (Female), IR (Female)
Receiver Input RJ-45 (Female)
Receiver Output HDMI® Type A (Female), 3.5mm (Female)
Bi-directional Ports RS-232 (Female)
Power Connector 5.5/2.1mm
Physical Properties
Dimensions (approx.) 140x65x18mm (5.51x2.56x0.71in)
Housing Material Metal
Net Weight 0.76kg (1.68lb)
Operating Temperature 0°C - 40°C (32°F - 104°F)
Storage Temperature -20°C - 60°C (-4°F - 140°F)
Humidity 20 - 90% RH (non-condensing)
Power Requirements 24VDC 1A
Colour Black
Additional Information
Product Compliance CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Width 75 mm
Height 185 mm
Length 245 mm
Product Weight 760 g
Country CN

Dimensions and weights

Gross weight
0.97 kg
Package width
7.5 cm
Package height
18.5 cm
Package length
25 cm

Product codes

EAN
4002888382175
Manufacturer code
38217
