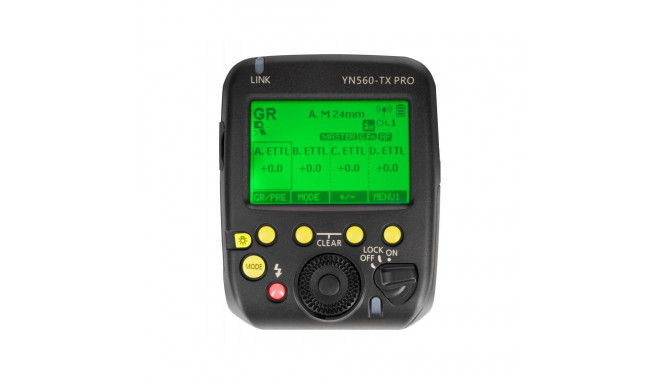

Yongnuo YN560-TX Pro Transmitter for Nikon
YN560-TX Pro is Yongnuo's innovative radio controller for remote control of reporter lights. This upgrade version of YN560-TX II combines the older RF602/603/605 and YN622 II wireless trigger systems in a way. Among other things, the device allows you to control lamps in five groups: flash power adjustment, torch zoom, TTL automation and HSS sync. Controller for Canon cameras.
Awesome capabilities
- Full support for TTL / M / Multi / GR flash modes
- 16 working channels, 5 independent groups and 10,000 configurable photographer IDs
- First and second curtain sync
- Sync with short HSS shutter speed
- Ability to compensate flash power, exposure lock and exposure bracketing
- Remote lamp torch zoom setting operation
- 2.4GHz radio signal frequency enables communication at a distance of 100 meters !
Compatible lamps
The YN560-TX Pro radio controller can control reporter lamps that have a built-in radio.
The following models can be activated in manual mode:
- YN560 III
- YN560 IV
- YN660
- YN720
- YN860Li
In Auto Mode (TTL):
- YN200
- YN685C
- YN685N
– YN862C
– YN968C
– YN968N II
* a complete list of compatibility and supported features is provided in a separate section table
Compatible receivers
Lamps without a built-in system-compatible radio can be connected to one of the following models.
- RF-602 -RX
– RF-603 II
– RF-605
– YN622C II
– YN622N II
Specification
- Model: Yongnuo YN560-TX Pro
- Signal Frequency: 2.4GHz
– signal range: up to 100 m
– available working channels: 16
– available lamp groups: 5
– available photographer ID: 10000
- TTL flash output compensation: +/-3 EV in 1/3 EV steps
- Manual flash output adjustment: 1/128 - 1/1 with 1/ 3 EV steps
- Trigger modes:
- Manual M
- Stroboscopic Multi
- Auto TTL
- GR group

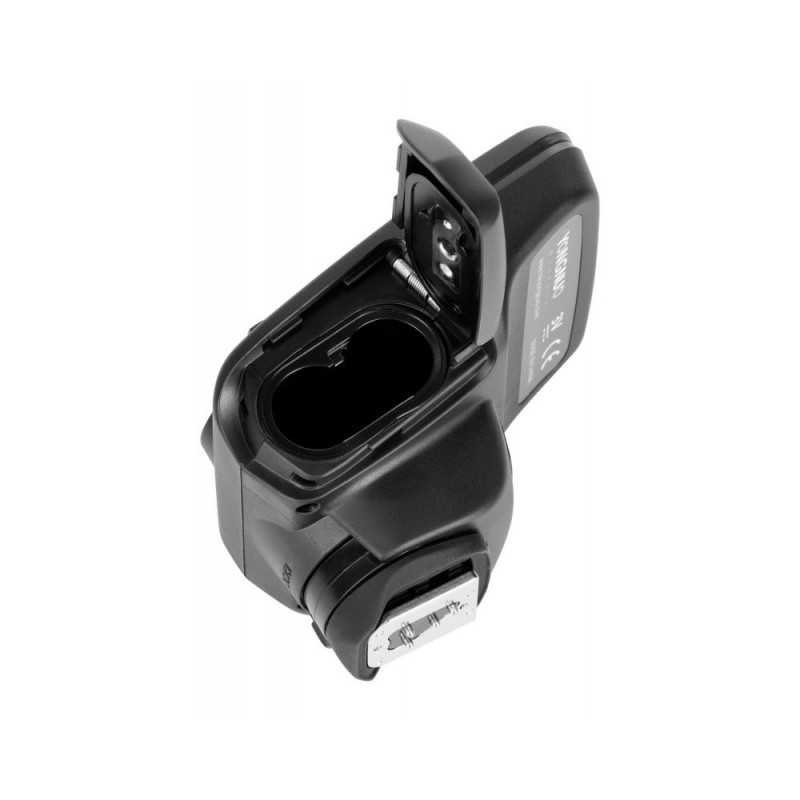

- Power supply: 2x alkaline battery / AA type rechargeable battery
- Dimensions: 6.8 x 6.7 x 8.1 cm
- weight: 110 g
- other features:

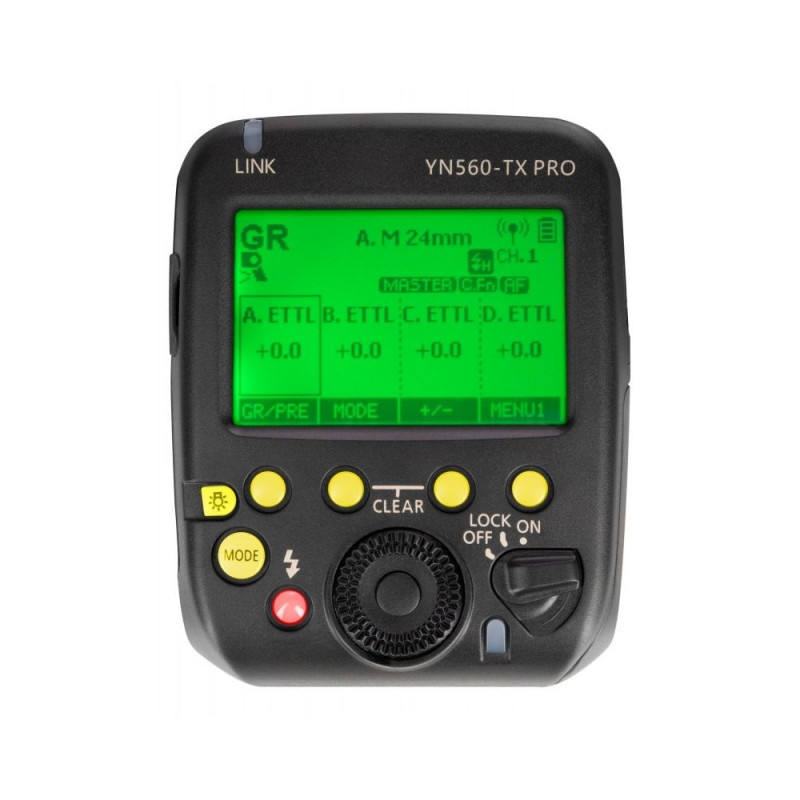

- large, illuminated LCD display
- transparent, illuminated buttons
- intuitive interface
- sync with first or second shutter curtain
- sync with short shutter speed (HSS)
- AF system support
- Micro USB slot for software updates
Compatibility
- Canon Camera
- Flashing:
- YN200
- YN560 III
- YN560 IV
– YN660
– YN685
– YN720
– YN860Li
– YN862C
– YN968C
– YN968N II
– Radio Triggers:
– RF602-RX
– RF603 II
– RF605
– YN622C II
– YN622N II
In the kit
- Yongnuo YN560-TX Pro Radio Controller Canon
- Handle
