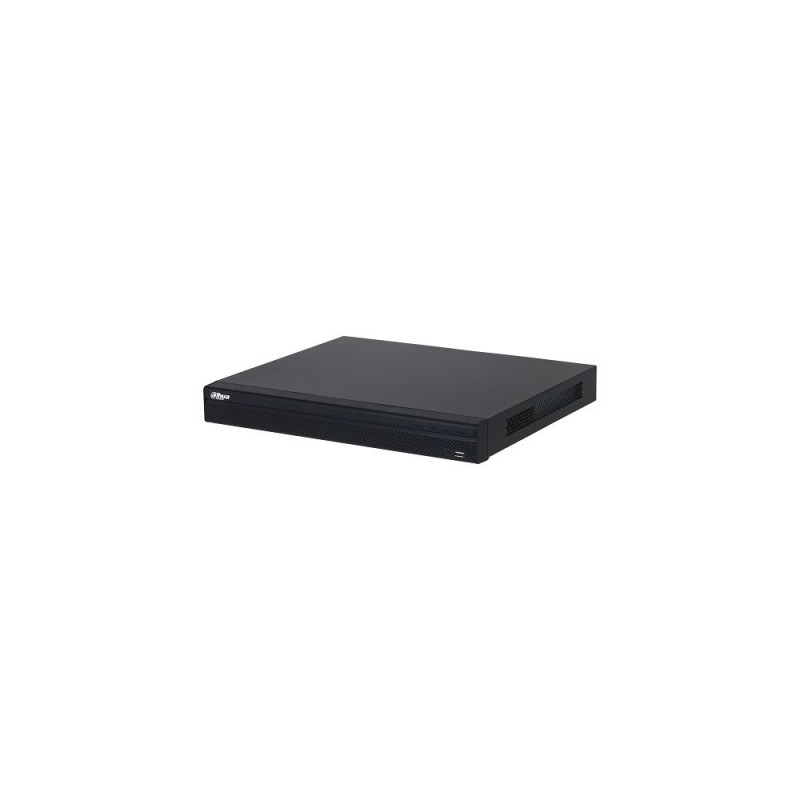

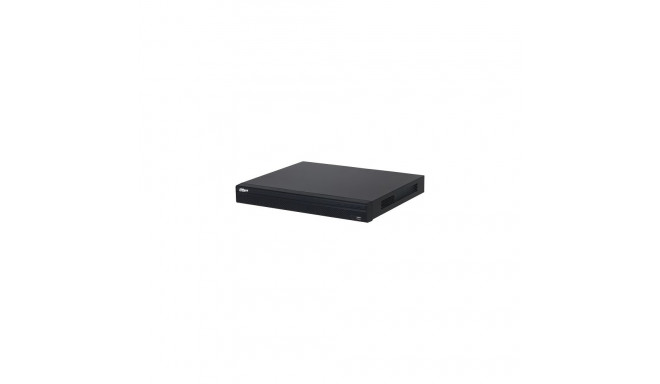

IP Network recorder 16 ch NVR4216-16P-4KS3

Main info

16 channel IP camera 4K video recorder. Integrated PoE hub - 16 PoE interfaces. Available recording resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF, QCIF. The maximum speed of data flow is up to 160Mbps.

Product has been archived

Short description:

  • 16 channel IP camera 4K video recorder. Integrated PoE hub - 16 PoE interfaces.
  • Available recording resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF, QCIF.
  • The maximum speed of data flow is up to 160Mbps.
  • Compression H.265+/H.265/Smart H.264+/H.264/MJPEG. 2HDD up to 20TB available. 1-Can. VGA, 1-channel HDMI (up to 3840×2160); RS-232 connection. SMD Plus.
  • Supports ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK standard.
  • Model: NVR4216-16P-4KS3.


Brief technical characteristics:

• Digital 16-channel IP recorder 16Mp 160Mbps; integrated PoE hub.
• Integrated PoE hub - 16 PoE interfaces, 10/100Mbps, standard IEEE802.3 af/at (25.5W for each camera), possibility to connect the power supply of 16 cameras.
• High quality industrial grade processor.
• AI functions via recorder: SMD Plus.
• AI functions through the camera: face detection; facial recognition; perimeter protection; SMD Plus; stereo analysis; counting people; heat map.
• Number of AI channels: face detection and recognition - 6 channels only through the camera; perimeter protection - 6 channels only through the camera; 4 channels SMD Plus per recorder (6 channels per camera).
• IVS functions: crossing the line, invading the perimeter, changing the image, capturing the missing object, capturing the appearing object (works with cameras that have the IVS function).
• Convenient graphical user interface. Software Linux, GUI system.
• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG Video Compression Technology.
• Audio compression: PCM; G.711A; G.711U; G.726.
• The following operations are performed simultaneously: recording, live image display, recording review, recording copying, device control, remote access via network.
• Remote control and live monitoring via Ethernet (WEB): IE9 or higher, Chrome, Firefox, Safari, Edge.
• Free software for device management, video viewing and archiving using a computer network or the Internet.
• Free software for monitoring via mobile phone or handheld, tablet computer (DMSS mobile phone surveillance software) suitable for phones: Sybian, iPhone, Windows Mobile, Windows Phone 8, Kindle Fire, Blackberry, Android, iPad, Galaxy TAB, etc.
• Resolution: 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF, QCIF.
• Network bandwidth: 160 Mbps for access, 160 Mbps for storage and 80 Mbps for forwarding.
• Decodeable camera resolution without AI: 1 channel. x12MP@25fps; 2 can. x8MP@25fps; 3 can. x5MP@25fps; 4 can. x4MP@25fps; 8 Kan. x1080p@25fps.
• Decodeable camera resolution with AI: 1 channel. x12MP@25fps; 1 can. x8MP@25fps; 2 can. x5MP@25fps; 3 can. x4MP@25fps; 7 kan. x1080p@25fps.
• Max IP camera inputs 16.
• Automatic search for IP cameras.
• Supported IP cameras: Dahua, Arecont Vision, AXIS, CANON, Panasonic, PELCO, Bosh, SAMSUNG, Sanyo, Hanwha, Sony, ONVIF22.12.
• HDMI connection: 1 pc. Resolution: 3840×2160, 1920×1080, 1280×1024, 1280×720.
• VGA connector: 1 pc. Resolution: 1920×1080, 1280×1024, 1280×720.
• Split screen: main screen 1/4/8/9/16, second screen 1/4/8/9/16.
• Record playback channels: 1/4/9/16 synchronous viewing.
• Audio input: 1 channel RCA.
• Audio output: 1 channel RCA.
• Alarm inputs: 4.
• Alarm outputs: 2 (12V, 1A).
• Hard disk: max. 2 pcs. SATA drives.
• Maximum capacity of one HDD: 16TB.
• HDD management: HDD group, HDD sleep technology.
• USB connection: 2 pcs. (1x USB2.0, 1x USB3.0).
• Record copying: USB 2.0 / network.
• RS-232 connector 1pc. (for keyboard connection or computer connection).
• Record copying: USB 2.0 / network.
• 10/100/1000 Mb/s network socket 1 pc. (Ethernet RJ-45) for connecting to the Internet.
• Network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (supports Dahua IP cameras, DVR, CIS and others); ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK.
• P2P iCloud technology (IE): No need for static IP address, no need to open ports.
• Control options: LAN, remote control, front device control panel, computer mouse.
• Recording modes: General, motion detection; intelligent; alarm signal.
• Smart alarm: face detection; facial recognition; perimeter protection; SMD Plus; stereo analysis; counting people; heat map.
• General alarm: Motion detection; privacy masking; loss of image; change of scene; PIR alarm; IPC external alarm.
• Anomaly alarm: camera disconnection; storage error; full HDD disk; IP conflict; MAC conflict; login blocked; cyber security exception.
• Alarm transmission methods: recording; snapshot SNAPSHOT (panoramic); IPC external alarm output; sound; sound signal BUZZER; magazine, by default; email mail (sends a photo).
• Record search: by date/time or events (eg motion detection, alarm).
• Playback functions: instant playback, general playback, event playback, bookmark playback, smart playback.
• OSD: Camera name, time, video loss, motion detection, recording.
• Supports EPTZ and one-touch on/off security system.
• Color, brightness and contrast settings for each IP camera.
• Unlimited number of users (possibility to grant different rights to each user).
• Time synchronization: automatic. Automatic summer/winter time adjustment.
• System recovery after power failure.
• Possibility to update IP camera software (firmware) via NVR.
• Power supply: 100-240V AC, 50/60 Hz.
• Power consumption: <10W (without HDD), PoE total 130W, max. one can. 25.5W.
• Operating humidity 10~93%RH (non-condensing).
• Operating temperature: -10°C ~ +55°C.
• Weight: 2.6 kg without hard disk.
• Dimensions: 1U, 375.0 mm × 327.9 mm × 53.0 mm.


Width 375 mm
Height 327.9 mm
Length 53 mm
Product Weight 2600 g

Dimensions and weights

Gross weight
1.7 kg
Package width
45 cm
Package height
10 cm
Package length
35 cm

Product codes

EAN
6923172572578
