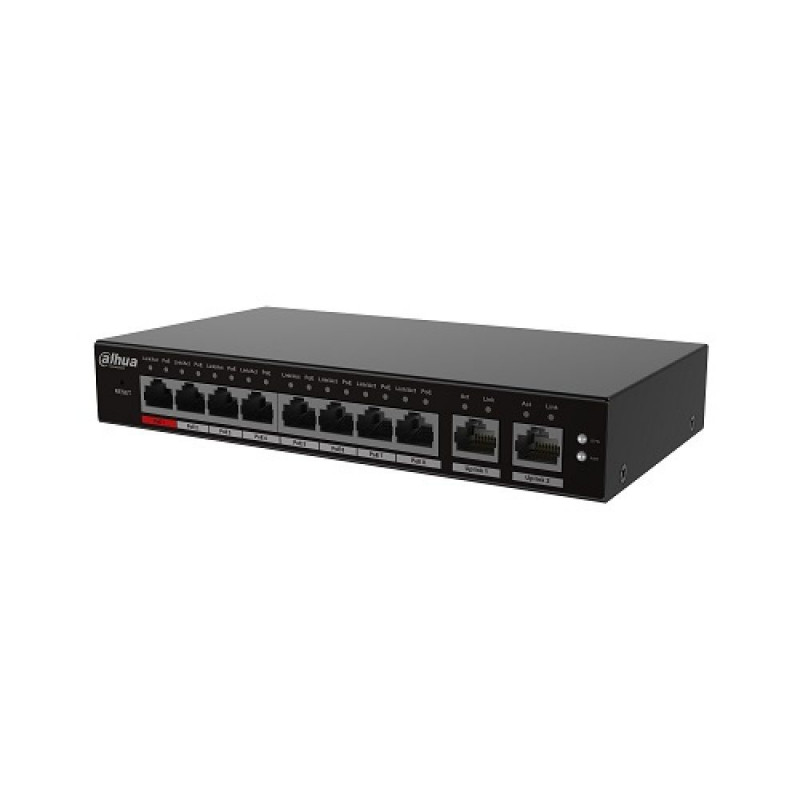

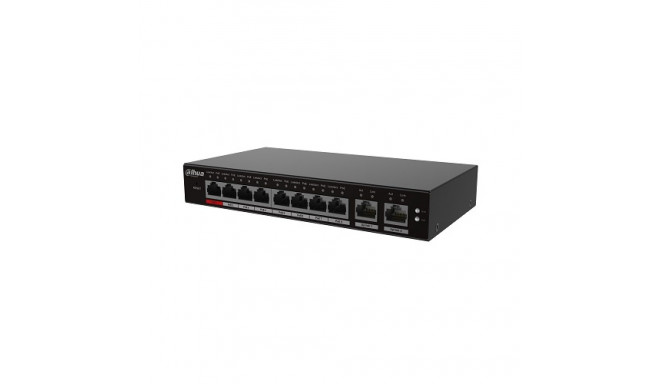

The PoE hub is controlled by 100Mbps 8-port + 2G uplink, Hi-PoE

204,99 €

Monthly payment starting from 6,99 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Cloud Managed Switch is a layer 2 commercial switch with long distance PoE function. It can power devices up to 250 meters away. The red PoE port delivers up to 90W. The Switch can be controlled using the DoLynk Care app, which provides access to a network topology diagram feature that can be used to quickly troubleshoot problems. The DoLynk Care app is built on top of the DoLynk Care Cloud Server. The switch is suitable for use in a variety of applications such as homes, factories and offices. Model: S4100-8ET2GT-96-C.
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

10-port managed hub with 8-port PoE, 250m, 96W.

Cloud Managed Switch is a layer 2 commercial switch with long distance PoE function. It can power devices up to 250 meters away. The red PoE port delivers up to 90W. The Switch can be controlled using the DoLynk Care app, which provides access to a network topology diagram feature that can be used to quickly troubleshoot problems. The DoLynk Care app is built on top of the DoLynk Care Cloud Server. The switch is suitable for use in a variety of applications such as homes, factories and offices. Model: S4100-8ET2GT-96-C.

Features:

· Supports LLDP protocol and automatically generates network topology for quick setup problems.
· Cloud management: you can control and maintain the switch by mobile terminal APP, greatly reducing the cost of operation and maintenance.
· PoE port transmission distance can be up to 250m, which meets the requirement of wired transmission (reduced bandwidth to 10Mbps).
· Supports visualized management and remote monitoring.
· Supports automatic generation of network topology.
· 250m power supply distance.
· 8-pin PoE offers better compatibility and reduced cable loss.
· PoE monitoring software monitors the status of terminals in real time.
· Supports power management policy.
· Red port 90W: Red ports support IEEE802.3af , IEEE802.3at, IEEE802. 3bt and Hi-PoE standards with a maximum output power consumption of 90W per port. Suitable for powering high-power devices.
· PoE Watchdog: Enables the switch to automatically detect the port status and restart failed ports to restore communication in IPC in case of connection exception. It enables intelligent operation and maintenance management in the true sense and effectively reduces manual maintenance costs.

Technical specification:

  • Included power adapter: Yes.
  • PoE: Yes.
  • Ethernet port: 8.
  • Ethernet port speed 10/100 Mbps.
  • Optical port Uplink speed: 10/100/1000 Mbps.
  • Description of functional slots: Port 1–8: 8 × RJ–45 10/100 Mbps; Uplink1-2: 2 × RJ-45 10/100/1000 Mbps.
  • Power supply: 53 VDC, 1.81 A.
  • Operating temperature: -10°C to +55 °C.
  • Operating humidity: 5%-95% (RH), non-condensing.
  • Storage temperature -40°C to +70°C.
  • Storage humidity 5%-95% (RH), non-condensing.
  • Power consumption idle: <5W, full: 96W.
  • Smart control switch: yes.
  • MTBF: 864,663 hours
  • Switch capacity: 7.2 Gbps.
  • Packet transfer rate: 4.17 Mps.
  • Packet buffer size: 4 Mbit.
  • MAC table size: 16K.
  • PoE protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt.
  • Communication standard: IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab.
  • PoE Power: 1 port <90W; Port 2-8 <30W; Total <96 W.
  • PoE Power Management: Yes.
  • PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 ( V–).
  • Long distance PoE transmission: Yes.
  • Static protection: Air discharge: 8 kV; Contact discharge: 6 kV.
  • Lighting Protection: General mode: 4 kV; Differential mode: 2 kV.
  • Weight: 0.5 kg.
  • Product dimensions: 190 mm × 100 mm × 30 mm.
  • Certificates CE; FCC.


Transmission performance:

  • Switching supply voltage 53V.
  • CAT5E/CAT6. Max. DC resistance < 10ohm/100m
  • Cable(m) Load(W) Bandwidth(Mbps)
  • IEEE802.3bt 90W:
  • 100m Cable; 71.3 W load; 100 Mbps bandwidth.
  • 150 m cable; 62W load; 10Mbps bandwidth.
  • 200m cable; 51W load; 10Mbps bandwidth.
  • 250m cable; 40W load; 10Mbps bandwidth.
  • Hi-PoE 60W:
  • 100m cable; 53W load; 100 Mbps bandwidth.
  • 150 m cable; 50W load; 10Mbps bandwidth.
  • 200m cable; 47W load; 10Mbps bandwidth.
  • 250m cable; 37W load; 10Mbps bandwidth.
  • IEEE802.3at 30W:
  • 100m cable; 25.5 W load; 100 Mbps bandwidth.
  • 150 m cable; 25.5W load; 10Mbps bandwidth.
  • 200m cable; 25.5W load; 10Mbps bandwidth.
  • 250m cable; 25.5W load; 10Mbps bandwidth.

Note: Actual transmission distance may vary due to power consumption of connected devices or cable type and condition.


Width 200 mm
Height 40 mm
Length 300 mm
Product Weight 500 g

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 59,99 €
  • Additional warranty (2 years) - 39,99 €
  • Insurance (1 year) - 39,99 €
  • Insurance (2 years) - 69,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
0.8 kg
Package width
17.8 cm
Package height
4.4 cm
Package length
14 cm

Product codes

EAN
6923172500397
