ePoE hub 100Mbps 24 ports+2G uplink + 2SFP, ePoE up to 800m, Hi-PoE

Addional discount of 8%
will be applied in shopping cart
(min. 12€ purchase)
699 €

Monthly payment starting from 23,82 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

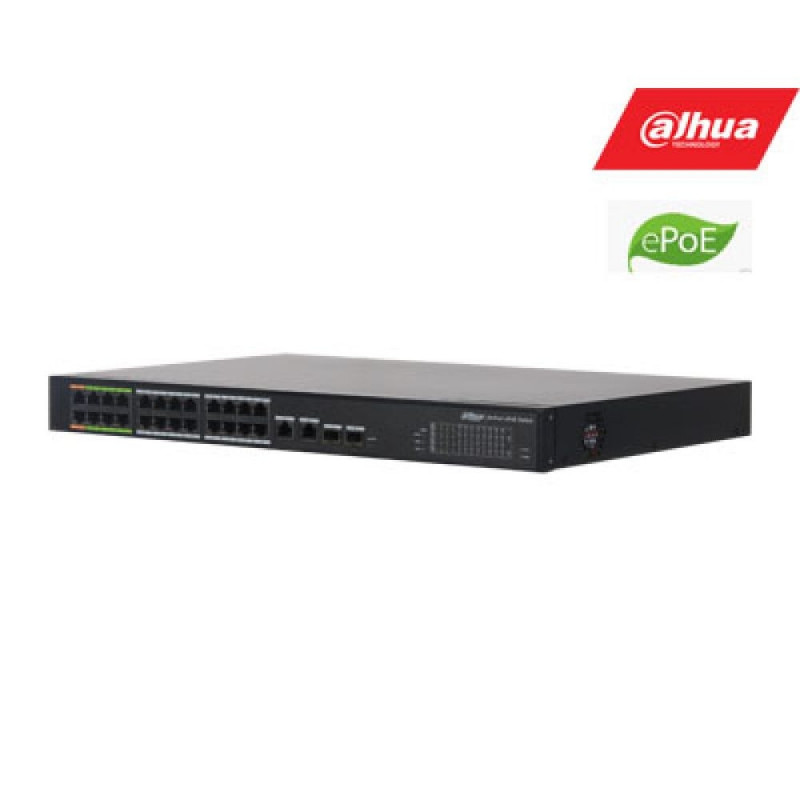

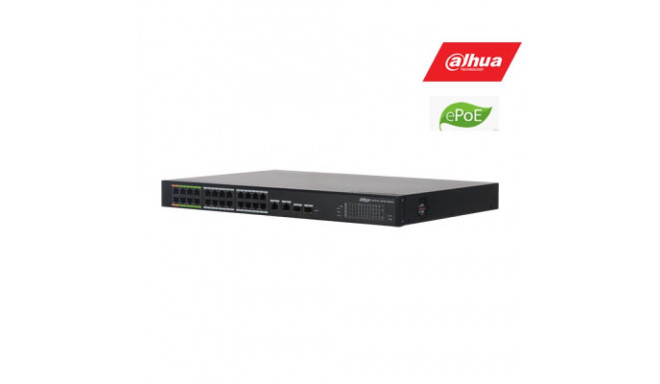

DH-LR2226-24ET-360 is a 24-port web-managed ePoE switch that can transmit PoE over 800 meters of Ethernet cable at a speed of 10 Mbps or 300 meters at a speed of 100 Mbps. By the way, it supports PoE and PoC power technology, which very

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Product overview:

  • DH-LR2226-24ET-360 is a 24-port web-managed ePoE switch that
  • can transmit PoE over 800 meters of Ethernet cable< br /> at a speed of 10 Mbps or 300 meters at a speed of 100 Mbps. In addition,
  • it supports PoE and PoC power technology, which has greatly
  • simplified the construction and wiring. Dahua ePoE technology offers a new
  • way to transmit long distances between an IP camera and a
  • network switch. This allows for more flexible design of monitoring systems,
  • increases reliability and saves construction and electrical installation costs.



Features:

• Supports long-distance PoE transmission up to 800m using Dahua ePoE technology
• Two-layer web-managed ePoE switch
• Ports 1-8 support three self-adaptive transmission modes, which are IEEE, E100 and E10< br /> • Ports 1-8 support both twisted pair and coaxial cable transmission
• Support Web Management: Port Control, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS
• Support PoE Management, Green PoE, legacy support
• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards

Technical specifications:

• Model DH-LR2226-24ET-360
Ethernet port
• 2*10/100/1000 Base-T
• 2*1000 Base-X ( Combined ports)< br /> • 24*10/100 Base-T (PoE power supply)
• PoE power consumption port 1 and port 2 support Hi-PoE 60W
• Each power = 30W, Total= 360 W
• PoE protocol IEEE802.3af, IEEE802.3at, Hi-PoE
• Switching capacity 8.8 Gbps
• Packet forwarding speed 6.55 Mpps
• Packet buffer memory 2.75 Mb /> • Usage humidity 10%~90%
• Power AC100-240V, 50/60Hz
• Lightning protection Common mode 4KV
• Differential mode 2KV
• Operating temperature -10°C~55°C
• Weight 3.12kg
• Dimensions (L×W×H) 440mm x300mm x44mm
Transmission performance:
ePoE switch power supply voltage 48V, CAT5E/CAT6, max. DC resistance < 10O/100m
• Cable (m) 100, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 53, working mode IEEE/E100
• Cable ( m) 200, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 47, working mode E100
• Cable (m) 300, bandwidth 100, PoE load (W) 25, 5, Hi-PoE load (W) 32, working mode E100
• Cable (m) 400, bandwidth 10, PoE load (W) 23, Hi-PoE load (W) 26, working mode E10
• Cable (m) 500, bandwidth 10, PoE load (W) 20, Hi-PoE load (W) 20, working mode E10
• Cable (m) 800, bandwidth 10, PoE load (W) 13 , Hi-PoE load (W) 13, working mode E100
ePoE switch supply voltage 53V, CAT5E/CAT6, max. DC resistance < 10O/100m
• Cable (m) 100, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 53, working mode IEEE/E100
• Cable ( m) 200, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 48, working mode E100
• Cable (m) 300, bandwidth 100, PoE load (W) 25, 5, Hi-PoE load (W) 30, working mode E100
• Cable (m) 400, bandwidth 10, PoE load (W) 20, Hi-PoE load (W) 23, working mode E10
• Cable (m) 500, bandwidth 10, PoE load (W) 16 Hi-PoE load (W) 26, working mode E10
• Cable (m) 800, bandwidth 10, PoE load (W) 8, Hi-PoE load (W) 8, working mode E10


Width 440 mm
Height 44 mm
Length 300 mm
Product Weight 1500 g
