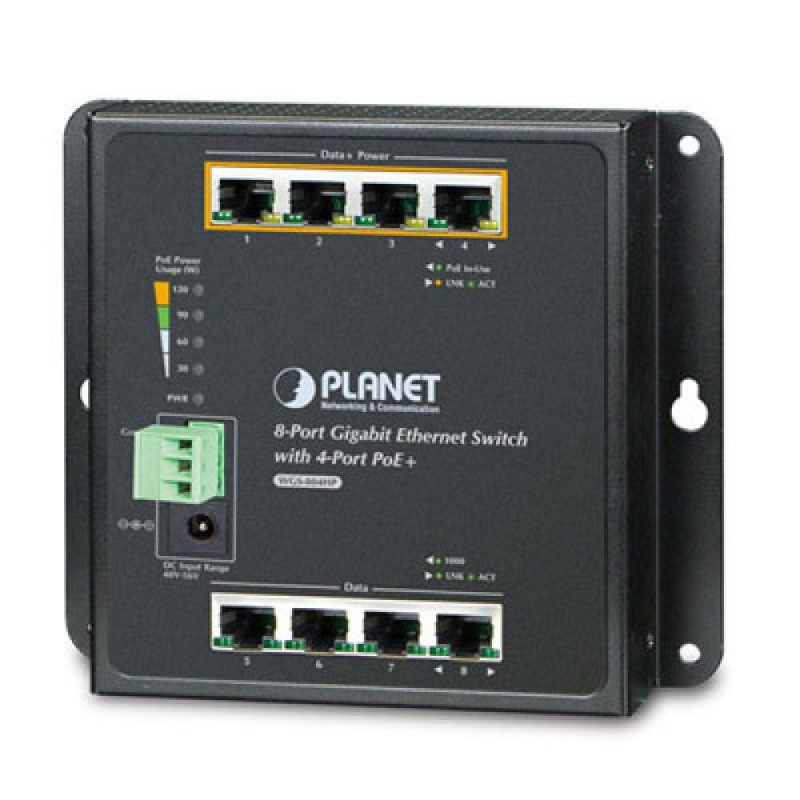

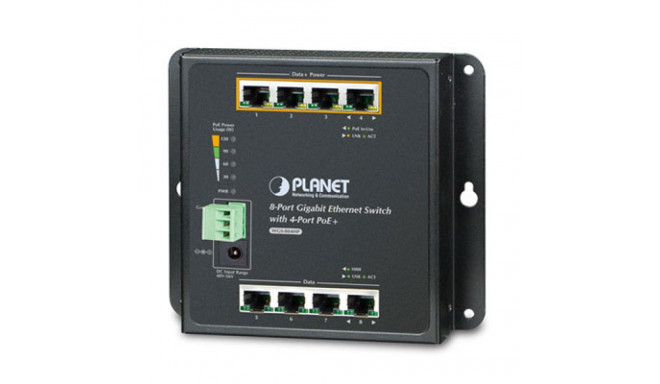

PoE switch 1G 4ch. + 4 uplink, indust.

369 €

Monthly payment starting from 12,58 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

• Compliant with IEEE 802.3at High Power over Ethernet rear PSE • Backwards compatibility with IEEE 802.3af Power over Ethernet rear PSE • Up to 4 port powered IEEE 802.3af / 802.3at devices • Supports PoE power up to 30.8 watts per PoE port
Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

Features:

• Compliant with IEEE 802.3at High Power over Ethernet back-end PSE
• Backwards compatible with IEEE 802.3af Power over Ethernet back-end PSE
• Up to 4-port powered IEEE 802.3af / 802.3at devices
• Supports PoE power up to 30.8 watts per PoE port
• Automatically detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power supply up to 100 meters
• High performance Store and Forward architecture; Runt/CRC filtering removes erroneous packets to optimize network throughput
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 9K Jumbo frame support in 1000 Mb/s duplex mode
• Automatic address learning and address aging
• Compact size, wall mounting, magnetic wall mount and DIN rail design
• IP30 metal chassis
• Supports -10-60 degrees C operating temperature< br / > • Supports EFT 6000VDC protection for power line
• Supports ESD 6000VDC Ethernet protection
• LED indicators for real-time PoE
• 48V ~ 56V DC input range for reverse polarity start Protection function

Technical specifications:

• Network connector: 8-port RJ45 for 10/100/1000BASE-T
• PoE injection port: 4-port with 802.3af / 802.3at PoE injector function (port-1 to port-4)
• Switching architecture: store and forward
• MAC address table: 8K MAC address table with auto-learning function
• Data buffer: 1 Mbit
• Switch fabric: 16 Gbps / non-blocking
• Switching throughput: 11.9 Mpps@64 bytes
• Jumbo Frame: 9 Kbytes
• Flow control: IEEE 802, 3x pause frame for full duplex
• Half duplex
• LED indicators: Power LED: Power (Green), PoE Power Usage LED: 30W, 60W, 90W, 120W (Green ), PoE Port (Port) -1 to Port 4): Used PoE (Orange), LNK/ACT (Green), 10/100/1000BASE-TX Port (Port 5 to Port 8): 1000 (Green), LNK/ ACT (Green)
• Connector: Detachable 3 pin terminal block for power input - 1/2 pin for DC power - 3 pin for ground, DC power jack with 2.0mm center pole
• Power requirements: 48 ~56V DC, 3A (max)
• Power consumption: 140 W / 478BTU
• ESD protection: 6KV DC
• EFT protection: 6KV DC
• Housing: IP30 metal
• Dimensions: (L x W x H): 148 x 134 x 25 mm
• Weight 510 g
• Installation: Wall bracket, magnetic wall bracket and DIN rail kit


Width 220 mm
Height 44 mm
Length 300 mm
Product Weight 1200 g

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 69,99 €
  • Additional warranty (2 years) - 49,99 €
  • Insurance (1 year) - 59,99 €
  • Insurance (2 years) - 99,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
0.8 kg
Package width
20 cm
Package height
4.4 cm
Package length
15 cm

Product codes

EAN
4711605280563
