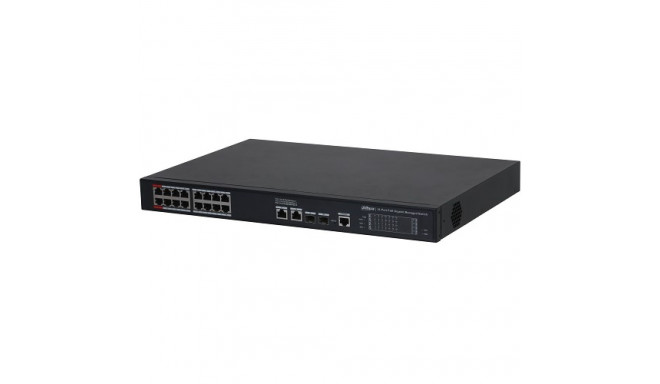

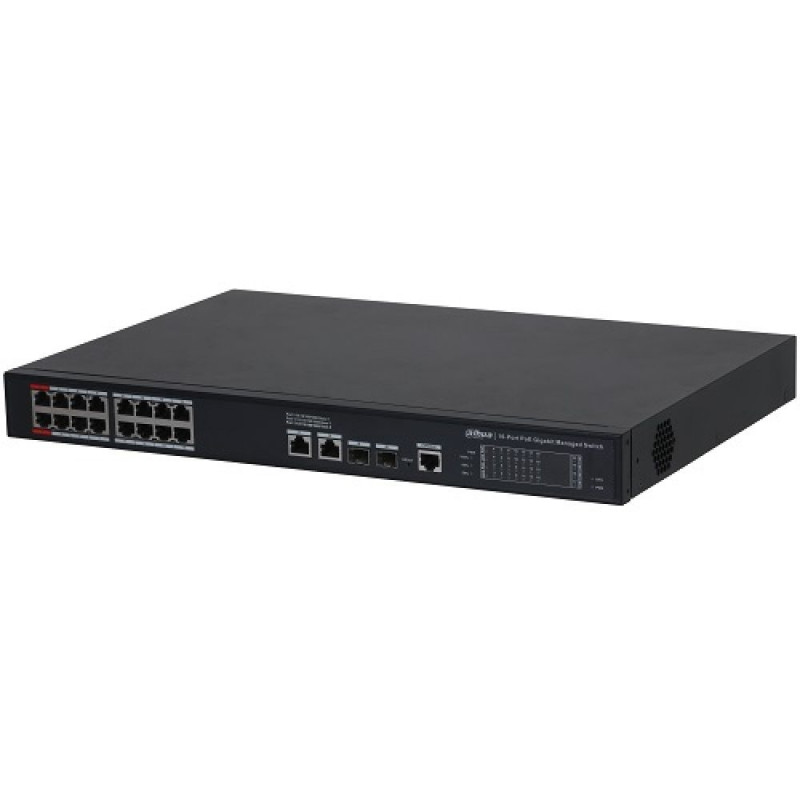

PoE hub 1000Mbps 16-port PoE +2G uplink + 2SFP, Hi-PoE

609 €

Monthly payment starting from 20,76 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

• 20-port managed gigabit switch with 16-port PoE. • Transfers data at high speed via USB 3.0. • Layer 2 network management PoE switch. • Supports web and network management software based on SNMP. • Network redundancy: STP/RSTP.

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

PoE hub 16x 1000Mbps PoE ports, 2x SFP 1000Mbps, total -190W

Features:

• 20-port managed gigabit switch with 16-port PoE.
• High-speed data transfer via USB 3.0.
• Layer 2 network management PoE switch.
• Supports web and network management by software based on SNMP .
• Network redundancy: STP/RSTP.
• Supports PD live mode.
• Red ports support t IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, max . 90 W.
• Smart PoE manages power consumption and offers real-time monitoring.
• Non-blocking video transmission thanks to large buffer memory.
• Supports desktop mount installation.
• Supports IEEE 802.3 , IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad standards.
• Complies with IEEE802.802 power supply and IEEE802.3af3 standard. .

Technical specifications:

• Model S4220-16GT-190.
• Ethernet port: 18x 10/100/1000Mbps, SFP 2x 1000Mbps; PoE ports: 16x 10/100/1000Mbps.
• Ports 1-16: RJ45 10/100/1000 Mbps(PoE); Ports 17-18: RJ45 10/100/1000 Mbps; Ports 19-20: SFP 1000 Mbps.
• PoE Power consumption: Full load = 190W, Idle: <20W; Port 1-2 = 90W, Port 3-16 = 30W.
• Power consumption management: Yes.
• PoE PIN assignment: 1, 2, 4, 5 (V+), 3, 6 , 7, 8 (V-).
• Communication standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad.
• PoE8 protocol: IEEE 802.2 3af (PoE); IEEE802.3at (PoE+); Hi-PoE; IEEE802.3bt (PoE++).
• Switching capacity: 56 Gbps.
• Packet transfer speed: 29.76 Mps.
• Packet buffer memory: 4.1 Mbit.
• MAC table size : 8K.
• Jumbo Frame: 10K bytes.
• VLAN number: 4K.
• VLAN interface: 10.
• Dynamic ARP: 512.
• MTBF : 467125.73 hours
• Long-distance PoE: 250m distance PoE transmission.
• Spanning tree protocol: STP; RSTP.
• Link Aggregation: static link aggregation; LACP.
• Multicast: IGMP Snooping.
• DHCP function: DHCP client; DHCP server; DHCP-Snooping.
• Security: IEEE 802.1x ACL.
• Equipment management: WEB (http and https); Telnet; SNMP V1/V2C/V3.
• Usage humidity: 5%~95%.
• Power supply: 48V - 57V DC.
• Lightning protection general mode: 4 kV.
• Differential mode: 2 kV.
• ESD protection Air discharge: 8 kV.
• Contact discharge: 6 kV.
• Operating temperature: -10°C~55°C.< br /> • Weight: 3.405 kg.
• Dimensions (L × W × H): 440 mm × 300 mm × 44 mm.

Drive performance:
Switching power supply voltage 53V.
CAT5E/CAT6. Max. DC resistance <10ohm/100m

Cable (m) - Load (W) - Bandwidth (Mbps)
IEEE802.3bt 90W:
100m cable; 71.3 W load; 1000 Mbps bandwidth.
150 m cable; 62W load; 10Mbps bandwidth.
200m cable; 51W load; 10Mbps bandwidth.
250m cable; 40W load; 10Mbps bandwidth.
Hi-PoE 60W:
100m cable; 53W load; 1000 Mbps bandwidth.
150 m cable; 50W load; 10Mbps bandwidth.
200m cable; 47W load; 10Mbps bandwidth.
250m cable; 37W load; 10Mbps bandwidth.
IEEE802.3at 30W:
100m cable; 25.5 W load; 1000 Mbps bandwidth.
150 m cable; 25.5W load; 10Mbps bandwidth.
200m cable; 25.5W load; 10Mbps bandwidth.
250m cable; 25.5W load; 10Mbps bandwidth.

Note: Actual transmission distance may vary due to power consumption of connected devices or cable type and condition.


Width 440 mm
Height 44 mm
Length 300 mm
Product Weight 1500 g

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 129,99 €
  • Additional warranty (2 years) - 79,99 €
  • Insurance (1 year) - 119,99 €
  • Insurance (2 years) - 189,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
2.5 kg
Package width
44 cm
Package height
4.4 cm
Package length
22 cm

Product codes

EAN
6923172591159
