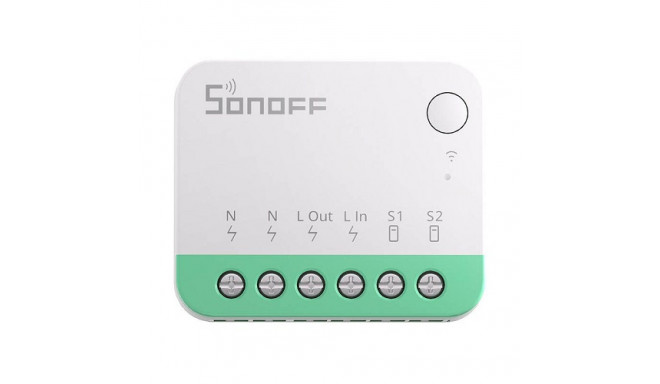

SONOFF MINIR4M Smart Two-Way 1-Channel Switch Wi-Fi (Matter)

Main info

The SONOFF smart home system allows you to control electrical appliances remotely with the EWeLink app or by voice with Amazon Alexa or Google Home. It allows you to create various scenarios, group devices by turning on / off several devices in your home with one touch, set the desired timers and schedules, monitor the status of your home and devices in real time, share their control. Linking the EWeLink app with the digital automation platform IFTTT allows for even more scripting possibilities. Sonoff smart home system devices have a built-in ability to operate on a local LAN without a cloud server.

Product has been archived

Smart 1-channel switch for electrical appliances, supporting remote control via Wi-Fi 2.4GHz; intended for various household appliances. Upgraded R4 version of Sonoff Mini switch, MATTER support.


The SONOFF smart home system allows you to control electrical appliances remotely with the EWeLink app or by voice with Amazon Alexa or Google Home. It allows you to create various scenarios, group devices by turning on / off several devices in your home with one touch, set the desired timers and schedules, monitor the status of your home and devices in real time, share their control. Linking the EWeLink app with the digital automation platform IFTTT allows for even more scripting possibilities. Sonoff smart home system devices have a built-in ability to operate on a local LAN without a cloud server.


Features:

  • The smart switch is easy to attach and control remotely with a smart device using the eWeLink mobile app (Android, iOS) or by connecting to Matter and using Matter-enabled apps.
  • This is a Matter-certified device that ensures seamless compatibility with multiple devices and platforms such as Alexa, Apple Home, Google Home, and more.
  • The relay signal is transmitted via Wi-Fi network 2.4GHz. LAN mode is supported.
  • R4 version has improved build quality, ESP32 chip with BT support is installed.
  • MINI R4 version switch is also called Sonoff Mini Extreme because it supports external switch control. It can easily be connected to a momentary switch, door exit switch, SPDT switch, lock switch or even dry contact sensors.

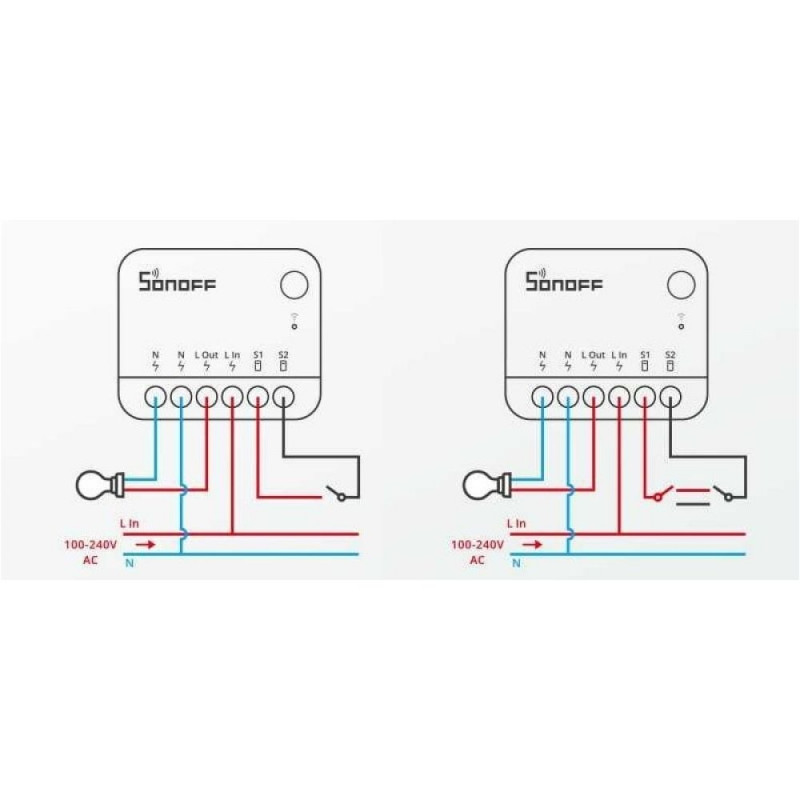

  • By connecting a pair of two-way switches, it is possible to turn on/off the light at the bottom of the stairs from the top of the stairs and vice versa.
  • Compatible with the Sonoff S-MATE switch, the MINIR4 can be locally controlled via the eWeLink-Remote signal at a distance of up to 50m and activate other smart script devices. Sonoff S-MATE is purchased separately.
  • A new function of the MINI R4 is the "detach relay" mode, i.e. external switches and relay states can be separated, then pressing the external switch button will not affect the relay. When this mode is activated, the smart device will work according to the setting or smart control and then will not respond to the mechanical button. The external switch will still be able to be used in smart scenarios to activate another device or groups of devices.
  • Like other eWeLink relay modules, it supports on/off, power on/off/memory (last state), smart scenes (auto) and auto on/off functions.
  • Allows you to set a delay in turning on devices after a power outage to protect the network from overloading.
  • Small and compact switch, 40% smaller than MINIR2 and even 60% smaller than MINIR3. Thanks to its extremely small size (only 33 x 40 mm), it fits even in the smallest EU type/type 86/type 120 distribution boxes.
  • Made of PC fireproof plastic, class V0.
  • This switch can be combined with various other products to complete smart home scenarios.



Technical data:

  • Compatible with: Sonoff S-MATE, Sonoff R5.
  • Voltage: AC 100-240V.
  • Current max.: 10A.
  • Frequency: 50/60Hz.
  • Wi-Fi frequency: 2.4 GHz.
  • Wi-Fi standard: IEEE802.11b/g/n.
  • Number of channels: 1.
  • Cost accounting: none.
  • App: eWeLink (Android, iOS).
  • Remote reception distance "eWeLink Remote": up to 50 m (in open space).
  • Works with Matter, Amazon Alexa, Google Assistant, Google Home, Apple Home, Smarthings.
  • Body material: PC V0 (non-flammable).
  • Working temperature: -10°C~40°C.
  • Moisture resistance: 5%-95% (non-condensing).
  • Dimensions: 39.5 x 33 x 16.8 mm.
  • Color: white.
  • Certificates: CE/ FCC/ RoHS / TUV.

Dimensions and weights

Gross weight
0.15 kg
Package width
10 cm
Package height
5 cm
Package length
15 cm

Product codes

EAN
6920075740516
