Home page » Cameras»Car DVRs»Dahua Analog Recorder. 128 Mbps, H.265/H.265+ compression, AI encoding, 16 analog channels (HDCVI, A

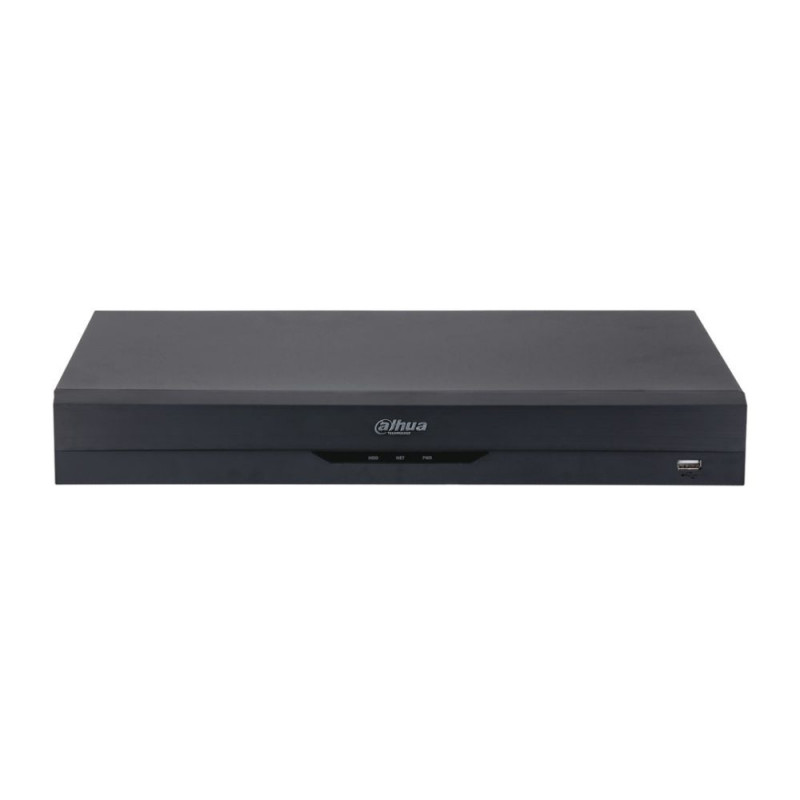

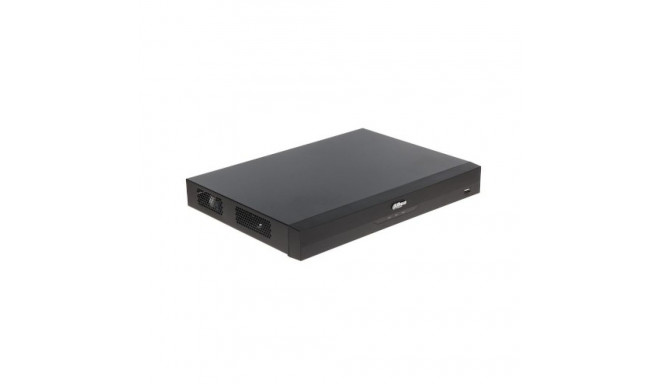

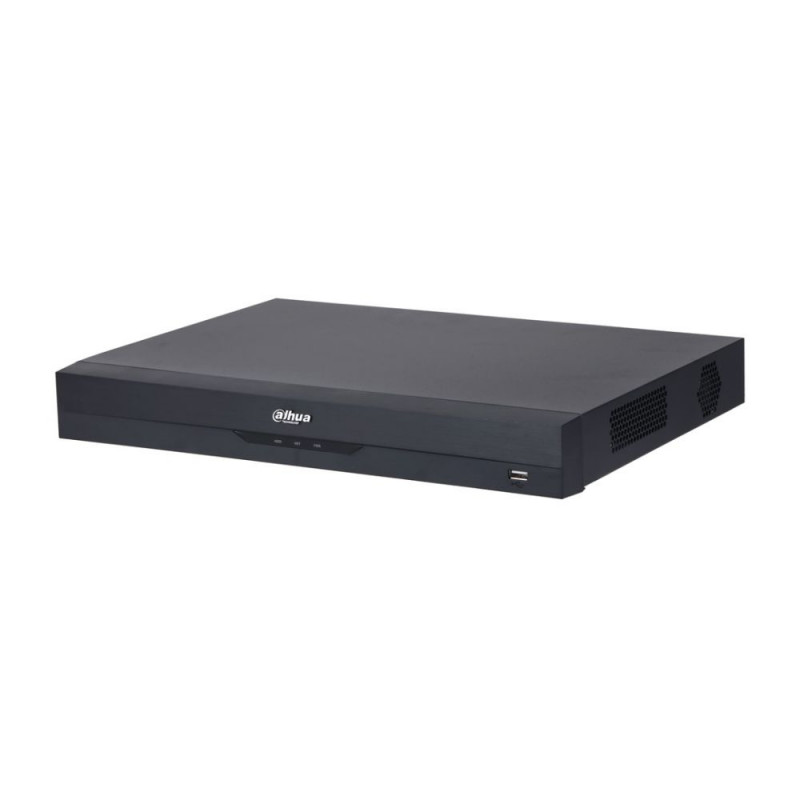

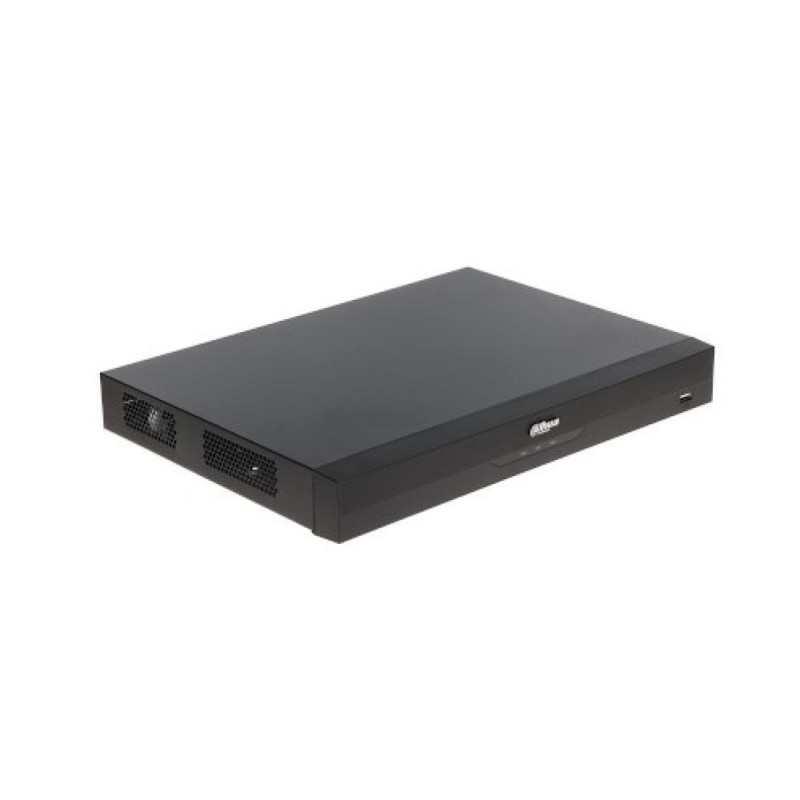

Dahua Analog Recorder. 128 Mbps, H.265/H.265+ compression, AI encoding, 16 analog channels (HDCVI, A

Main info

Product has been archived


Warranty 36 (G)
Certification CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
Playback resolutions supported 1920 × 1080, 1280 × 1024, 1280 × 720
Power consumption (typical) 12 W
Ethernet LAN Yes
Supported network protocols HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Video loss detection Yes
Depth 289 mm
Package height 366 mm
Channels quantity 16 channels
Operating system installed Embedded LINUX
HDMI ports quantity 1
Backup function Yes
Package depth 433 mm
Power supply type DC
HDD interface SATA
PTZ control Yes
Width 375 mm
Number of HDDs supported 1

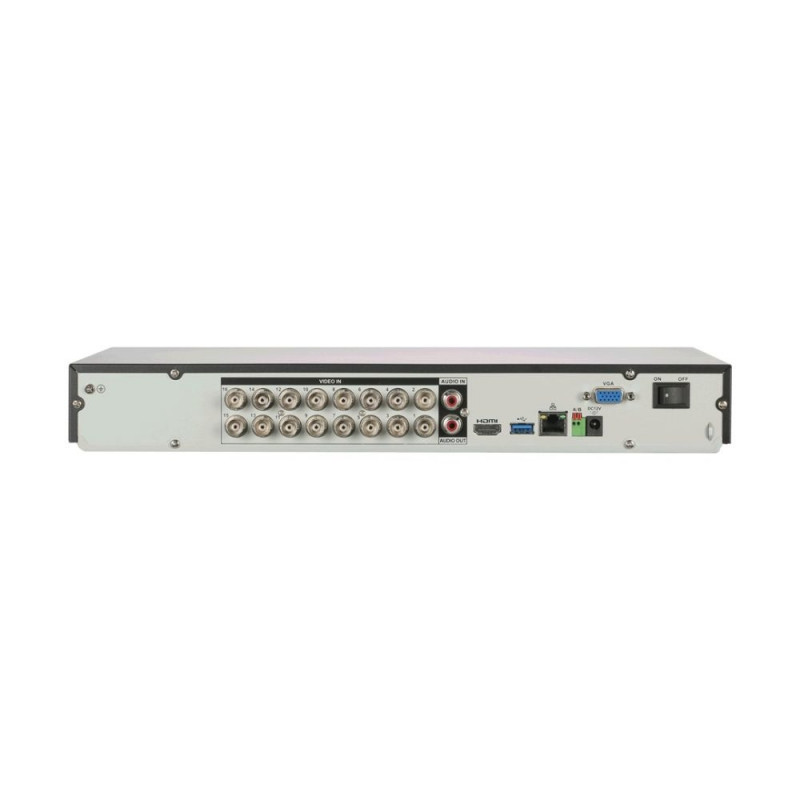

BNC input ports 16
Video motion detection Yes
Audio input 1
RS-485 ports 1
VGA (D-Sub) output ports 1
Internal No
Ethernet interface type Fast Ethernet
Height 53 mm
Maximum video resolution 1920 x 1080 pixels
Audio output 1
DC voltage 12 V
Optical drive included No
Video capturing speed (NTSC) 30 fps
Maximum HDD capacity 16 TB
Video capturing speed (PAL) 25 fps
USB 2.0 ports quantity 2
Package weight 2.86 kg
Rack capacity 1U
Package width 141 mm
Operating relative humidity (H-H) 10 - 90%
Product colour Black
Ethernet LAN (RJ-45) ports 1
Operating temperature (T-T) -10 - 55 °C
Weight 1.56 kg
Analog signal format system PAL
Video compression formats H.264+
Audio formats supported PCM

Other

Height (mm)
53
Width (mm)
375
Depth (mm)
289

Dimensions and weights

Package width
430 cm
Package height
140 cm
Package length
370 cm

Product codes

EAN
6923172534132
Manufacturer code
XVR5216AN-I3
