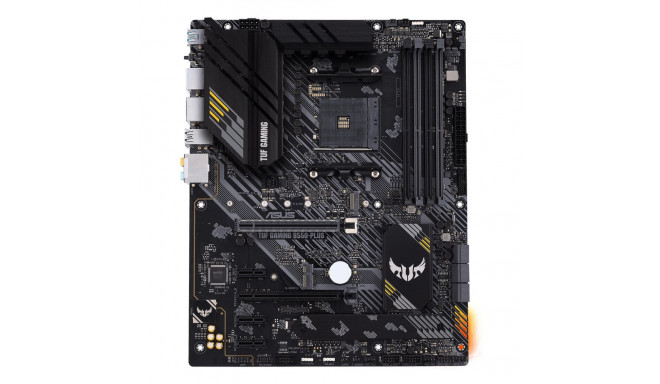

Mainboard|ASUS|AMD B550|SAM4|ATX|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0

Main info

Product has been archived

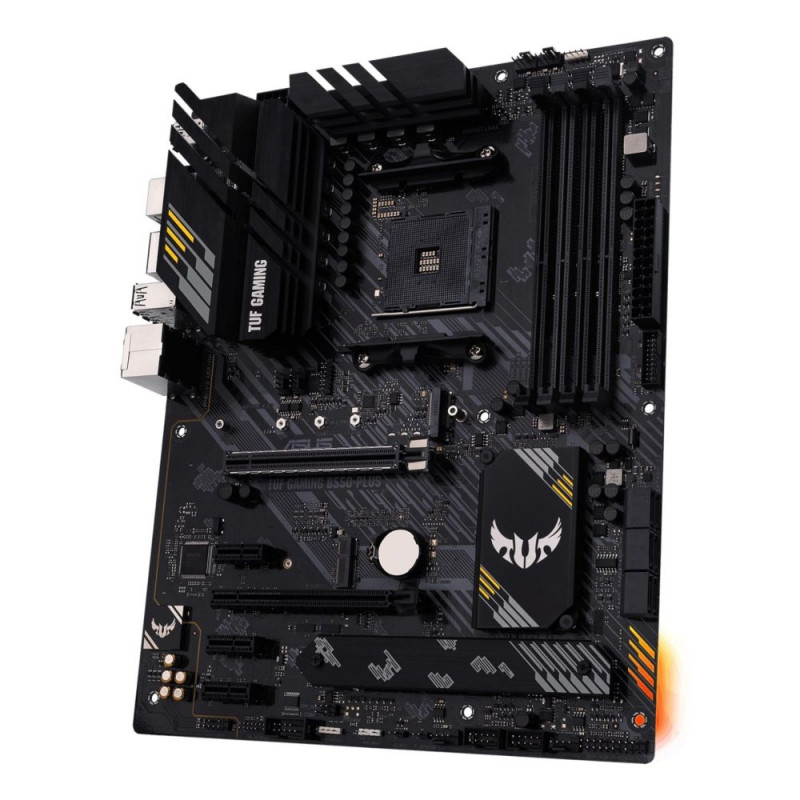

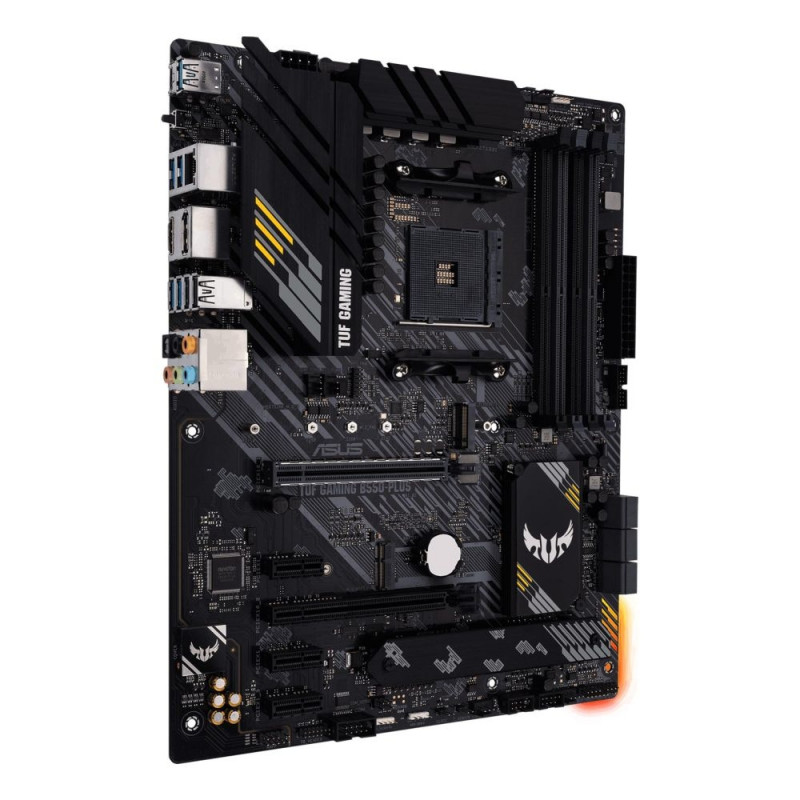

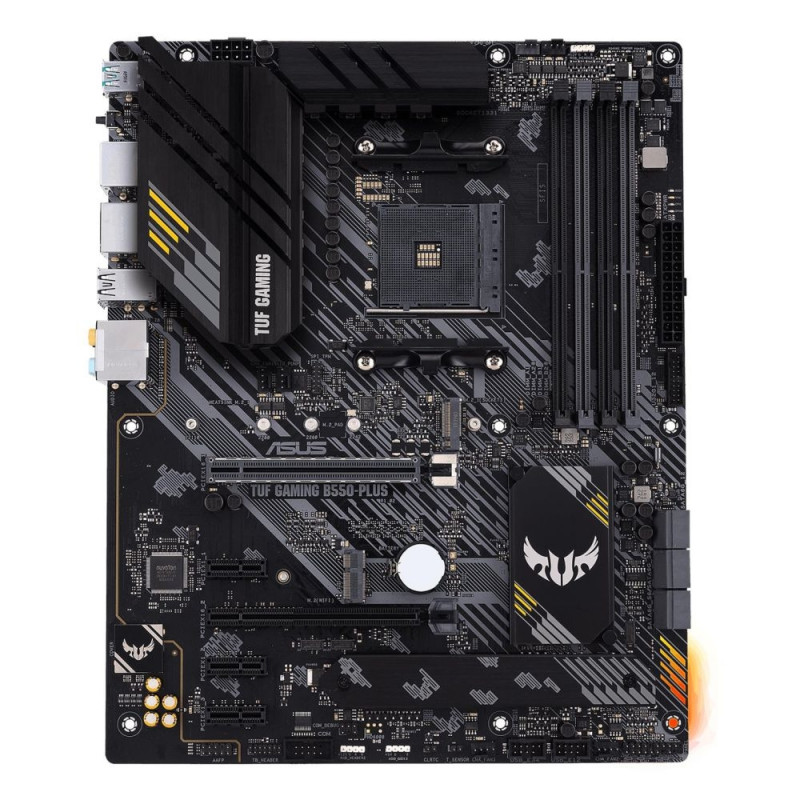

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support - AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: provides crystal-clear in-game voice communication


Infot ka tootja kodulehelt.
Chipset AMD B550
Socket SAM4
Form Factor ATX
Memory type DDR4
Memory slots 4
Integrated video Depending on CPU
Integrated audio Yes
Integrated LAN Gigabit
RAID SATA 0, 1, 10
Frequency speed 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800 MHz
Expansion slots M.2 - 2, PCI-Express 3.0 16x - 1, PCI-Express 3.0 1x - 3, PCI-Express 4.0 16x - 1

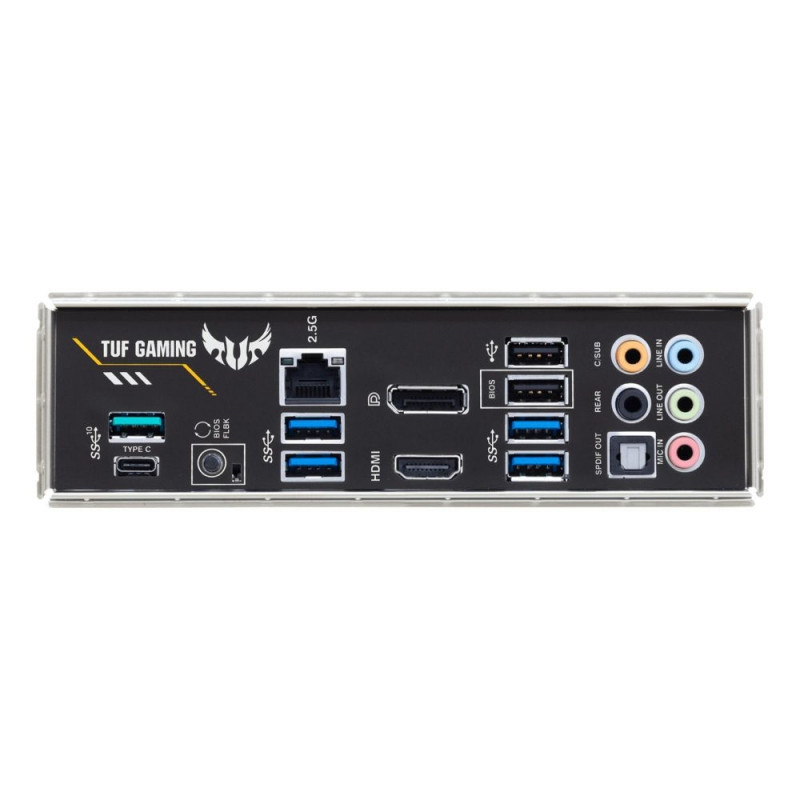

Input/Output connectors Audio port - 5, DisplayPort - 1, HDMI - 1, Optical S/PDIF - 1, RJ45 - 1, USB-C - 1
Interface USB 3.2 - Yes, SATA 3.0 - Yes, Serial - Yes, USB 2.0 - Yes
Units per Shipping Box 1
Unit Calculated Volume 0.006426 cubm
Product Net Weight 1.3 kg
Unit Calculated Weight 1.47 kg
Included Accessories User's manual; I/O Shield; 2 x SATA 6Gb/s cable(s); Supporting DVD; TUF Gaming Sticker; TUF Certification card(s); M.2 SSD screw package(s); M.2 Rubber Package(s)

Dimensions and weights

Gross weight
1.47 kg
Package width
27 cm
Package height
7 cm
Package length
34 cm

Product codes

EAN
4718017749435
Manufacturer code
TUFGAMINGB550-PLUS
