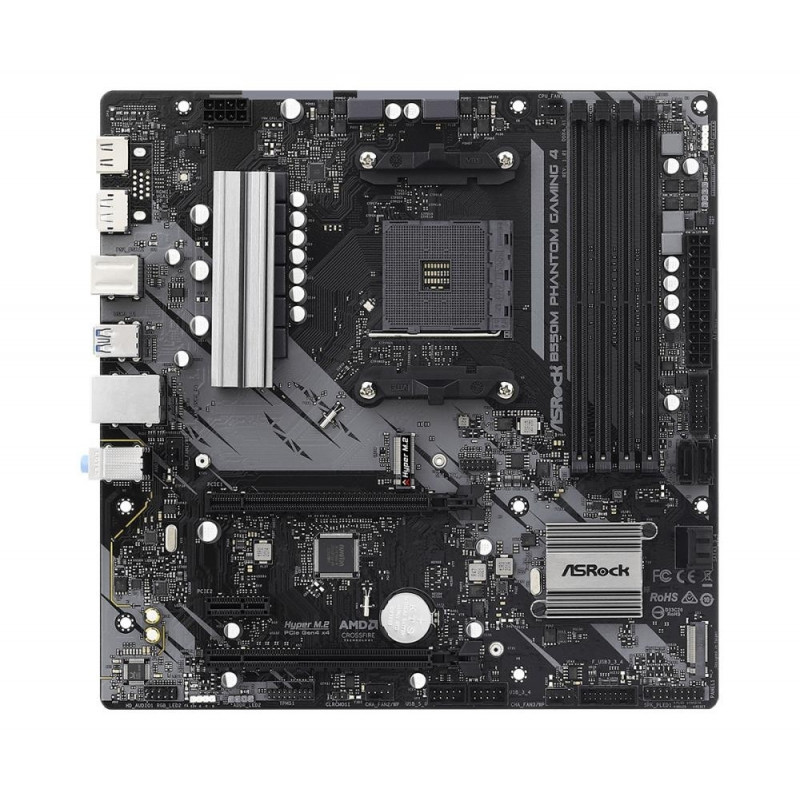

ASRock mainboard AMD B550 SAM4 MicroATX

Main info

B550M Phantom Gaming 4 Toetab 3. põlvkonna AMD AM4 Ryzen™ / tulevasi AMD Ryzen™ protsessoreid (3000 ja 4000 seeria protsessorid) 8 võimsusfaasi disain Toetab DDR4 4733+ (OC) 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Toetab AMD CrossFireX™

Product has been archived

B550M Phantom Gaming 4 Toetab 3. põlvkonna AMD AM4 Ryzen™ / tulevasi AMD Ryzen™ protsessoreid (3000 ja 4000 seeria protsessorid) 8 võimsusfaasi disain Toetab DDR4 4733+ (OC) 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Toetab AMD CrossFireX™ Graafika väljundvalikud: HDMI, DisplayPort 7.1 CH HD heli (Realtek ALC887/897 helikoodek) 4 x SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3) 8 x USB 3.2 Gen1 (4 esipaneelil, 4 tagapaneelil) 6 x USB 2.0 (4 esipaneelil, 2 tagapaneelil) Realtek Gigabit LAN AMD B550 | SAM4 | Micro-ATX | DDR4 | Mälu sagedused 4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz | Mälupesad 4 | 1xPCI-Express 3.0 1x | 1xPCI-Express 3.0 4x | 1xPCI-Express 4.0 16x | 2xM.2 | 1xHDMI | 1xDisplayPort | 2xAudio-In | 1xAudio-Out | 2xUSB 2.0 | 4xUSB 3.2 | 1xPS/2 | 1xRJ45 | SATA | Videoväljund sõltuvalt protsessorist | Heli Realtek ALC887 | LAN Realtek (Gigabit) | RAID SATA 0, 1, 10 | TPM pesa
Chipset AMD B550
Form Factor Micro-ATX
Frequency speed 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533
Expansion slots M.2 - 2, PCI-Express 3.0 1x - 1, PCI-Express 3.0 4x - 1, PCI-Express 4.0 16x - 1

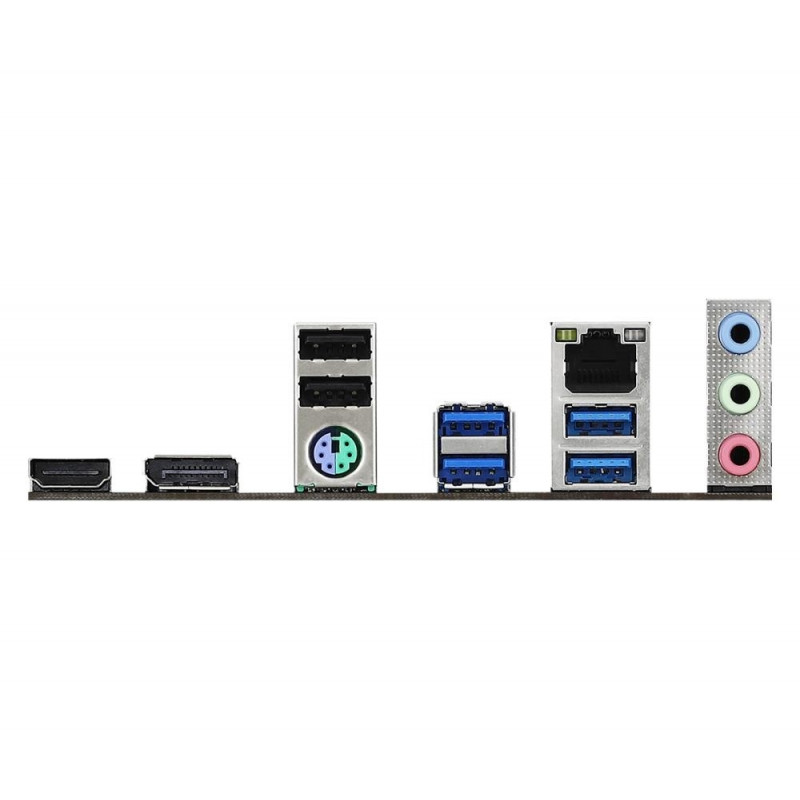

Input/Output connectors Audio-In - 2, Audio-Out - 1, DisplayPort - 1, HDMI - 1, PS/2 - 1, RJ45 - 1, USB 2.0 - 2, USB 3.2 - 4
Interface SATA - Yes
Integrated video Depending on CPU
Integrated audio Realtek ALC887
Integrated LAN Realtek (Gigabit)
TPM Header
Socket SAM4
Memory type DDR4
Memory slots 4
RAID SATA 0, 1, 10

Dimensions and weights

Gross weight
1.1 kg
Package width
6 cm
Package height
26 cm
Package length
27.5 cm

Product codes

EAN
4710483932755
Manufacturer code
B550MPHANTOMGAMING4
