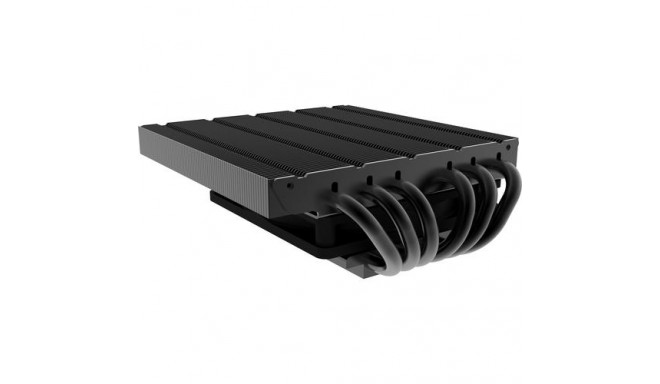

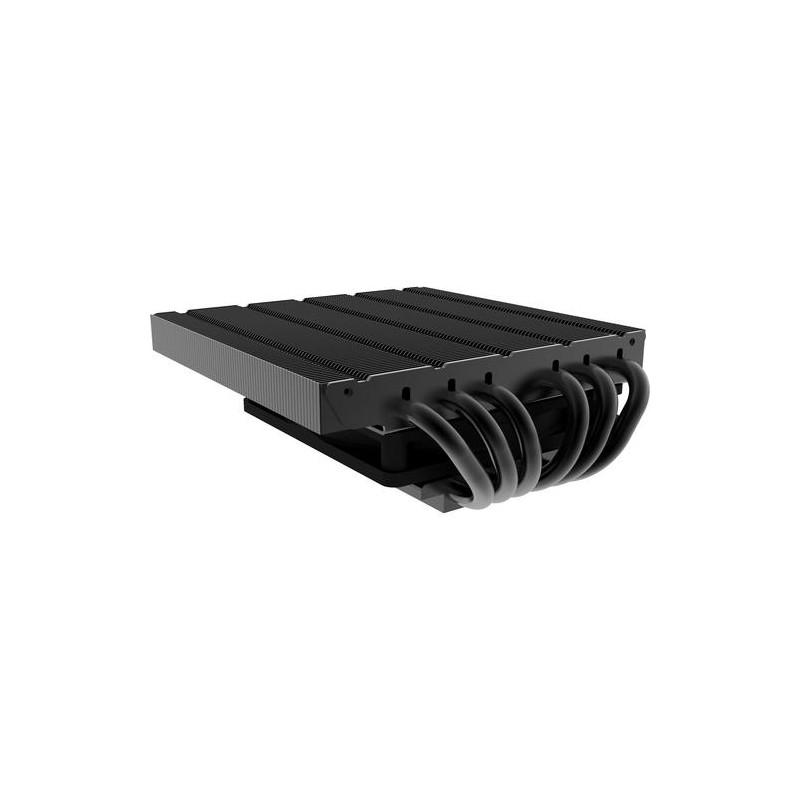

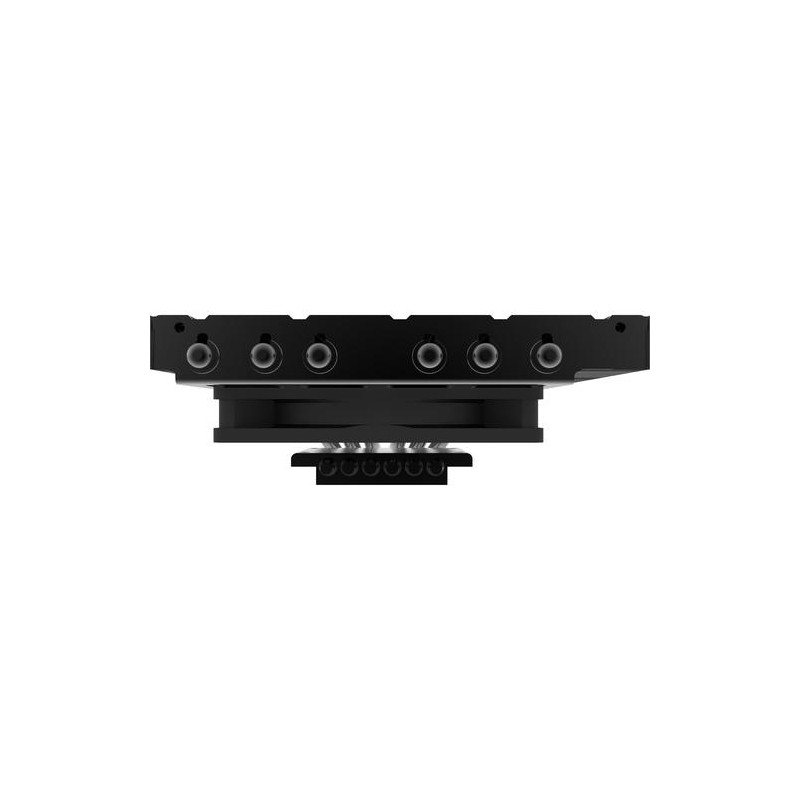

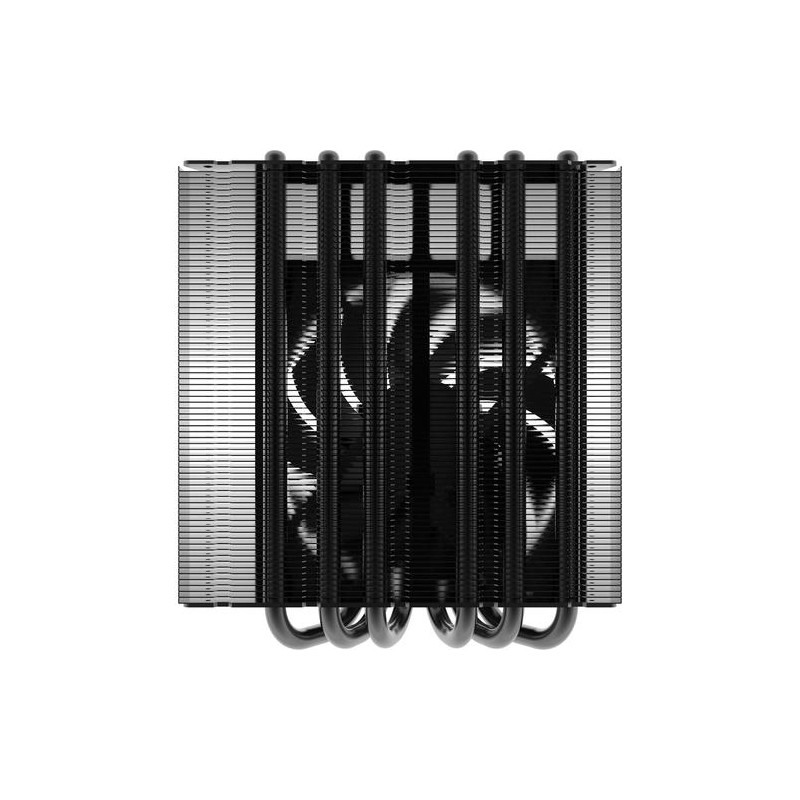

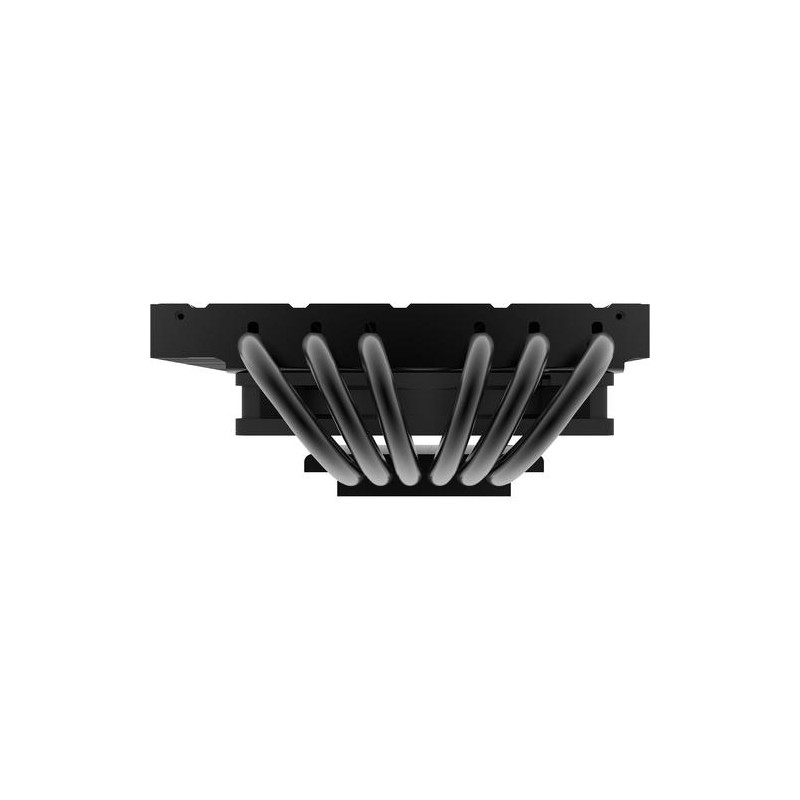

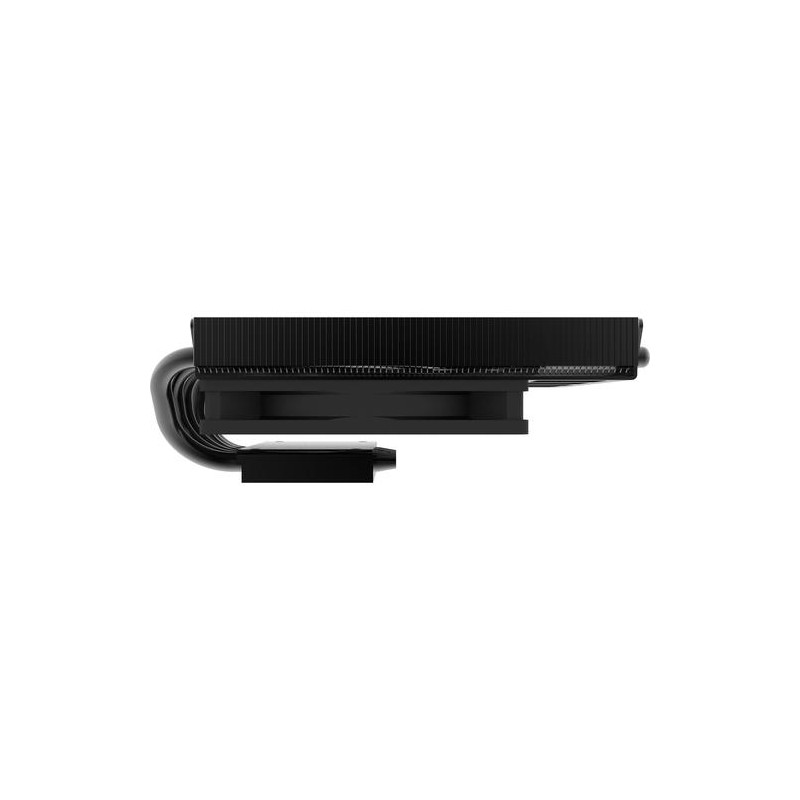

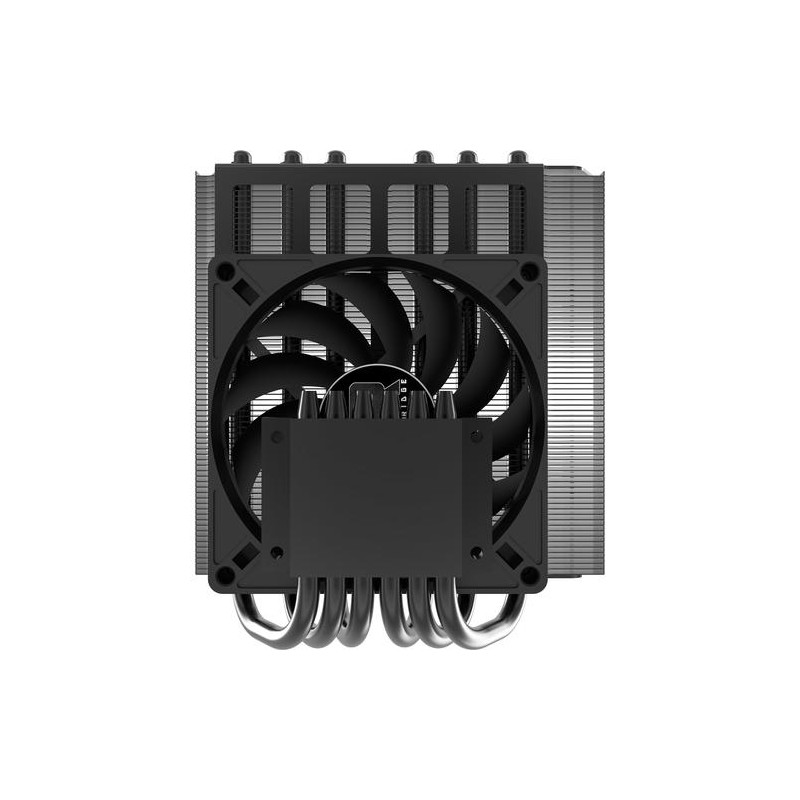

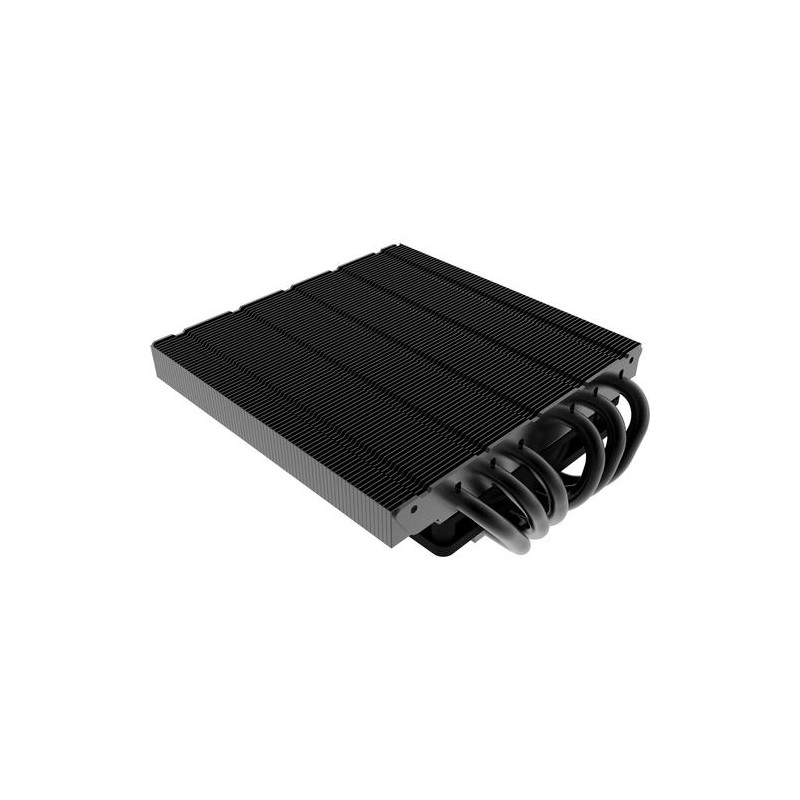

EKL Alpenföhn Black Ridge Processor Cooler 9.2 cm 1 pc(s)

Main info

low-profile cooler in cooperation with DAN CasesBlack nickel plated, 6x6mm heatpipes, large heatsink, and a design that supports up to 33mm of maximum memory height - Black Ridge delivers pure performance in a minimum of space.For the necessary airfl

Product has been archived

low-profile cooler in cooperation with DAN CasesBlack nickel plated, 6x6mm heatpipes, large heatsink, and a design that supports up to 33mm of maximum memory height - Black Ridge delivers pure performance in a minimum of space.For the necessary airflow, the included 92mm PWM fan is mounted on the bottom of the heat sink. This not only reduces the dimensions in small systems, but also achieves a maximum height of just 47mm.The included screw mounting system has been designed to ensure the best possible compatibility on mini-ITX motherboards.Supported sockets (max 95W):Intel: Socket LGA 115x / 1200AMD: Socket AM4GPU compatibility:100% compatibility on some mainboards only with riser cable.Note for AMD-based systems: Mini ITX motherboards from the manufacturers ASrock, Gigabyte and MSI may cause assembly problems due to the arrangement of the components.German engineeringThe intelligent use of materials and a complex design create the perfect balance between performance and compatibility. In addition, the cooler with a maximum height of 47mm is ideal for use in cases of DAN Cases.VGA compatibility on mini-ITXAn asymmetric heatsink design allows full VGA compatibility on most mini-ITX motherboards.Heatpipes6 Heatpipes quickly and efficiently convey the heat of the CPU to the soldered aluminum fins of the heatsink.Extensible fan assembly "Performance and Overclocking Mode"For even more flexibility in the realization of your project there 2 different mounting brackets included. A pair of brackets is suitable for mounting a 120x120x12/15mm fan on the bottom of the heatsink. In conjunction with VLP memory, the performance of the heat sink can be increased again. Furthermore, a pair of brackets for mounting a 120x120x25mm fan on the top of the heatsink is included. In this configuration, the Alpenföhn Black Ridge offers the highest performance.PWM fanThe built-in 92x92x15mm PWM fan has a 4-pin PWM connector and can be controlled via the motherboard. This allows a speed adjustment between 800 and 2800 rpm, allowing a minimum of 14 dB(A) and a maximum of 80.03 m³/h.Secure mounting system for AMD/IntelThe included screw mounting system has been designed to ensure maximum compatibility on mini-ITX motherboards.Important note for the use of the Alpenföhn Black RidgePlease note that the Alpenföhn Black Ridge is a powerful cooler with a max. 95W TDP for use in compact cases. The cooler has a 92x92x15mm fan for the best possible compatibility and overclocking of your CPU is not recommended. Increases in performance can be achieved by the "Performance" or "Overclocking" mode with alternative fan assembly. How much the cooling capacity can be increased depends on the fan used in each of these two modes and can not be precisely specified by Alpenföhn®.Nevertheless, it may happen that despite the supported TDP of your CPU, the performance of the heat sink is not sufficient. This problem can occur with K, X, and C processor series when TDP limitation is disabled, or the board overclocks the CPU automatically due to improper settings. This can e.g. lead to higher power consumption.
EKL Alpenföhn Black Ridge. Type: Cooler, Fan diameter: 9.2 cm, Rotational speed (min): 800 RPM, Rotational speed (max): 2800 RPM, Noise level (low speed): 14 dB, Noise level (high speed): 37.6 dB, Airflow: 80.03 m³/h. Voltage: 12 V. Width: 140 mm, Depth: 120 mm, Height: 47 mm. Product colour: Black

Product codes

EAN
4250280374810
Manufacturer code
84000000156
