Zalman Z8 MS ATX, ARGB fan x3, Mesh

Main info

Z8 MS ATX MID TOWER COMPUTER CASE Easy-to-use Hinged Glass Side Panel & Tempered Glass An edgeless premium tempered glass side panel of 3mm provides a panoramic view of your system Hinged glass panel provides easy interior access by simply unscrewi

Product has been archived

Z8 MS
ATX MID TOWER COMPUTER CASE

Easy-to-use Hinged Glass Side Panel & Tempered Glass

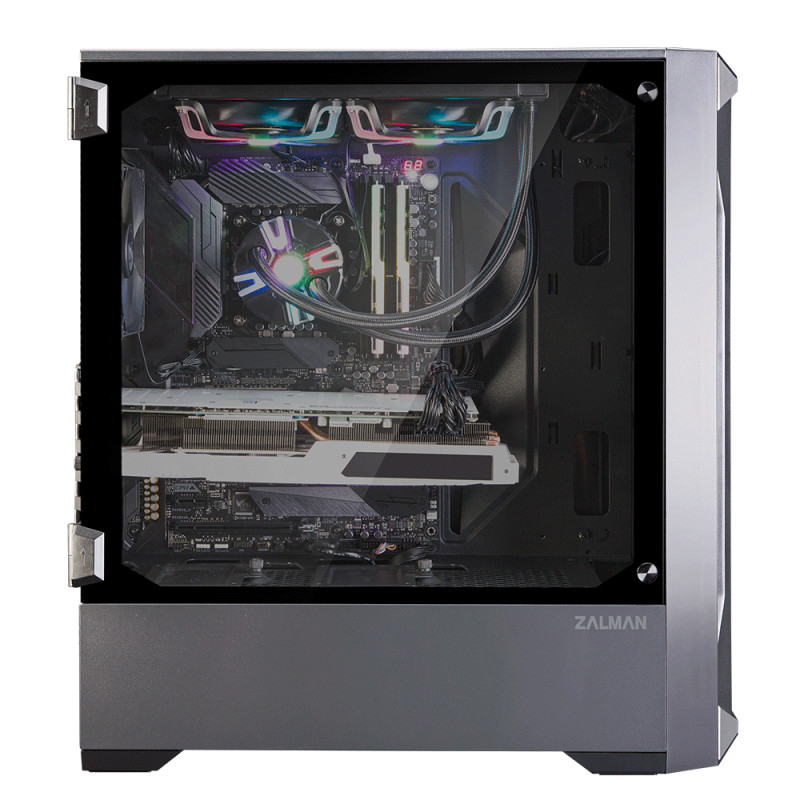

An edgeless premium tempered glass side panel of 3mm
provides a panoramic view of your system

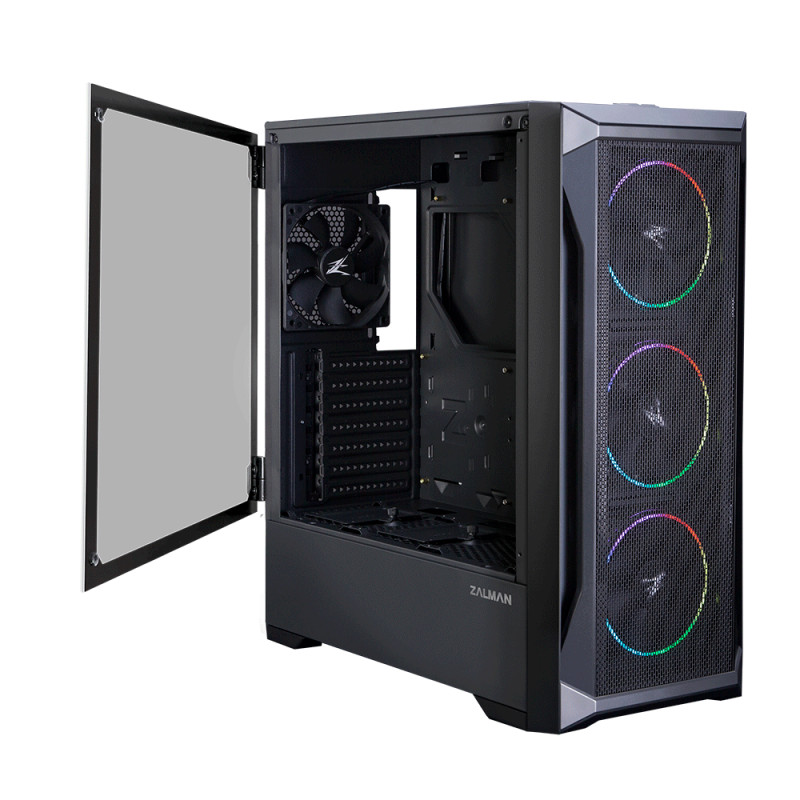

Hinged glass panel provides easy interior access by simply
unscrewing thumb screws

Front Mesh Design & Addressable RGB fans
Front mesh panel and RGB ring fans provide optimal airflow and stunning RGB lighting effects

Easy accessible design on top I/O ports
Convenient I/O layout design offers user’s great experience with 2 of USB 3.0 ports
Power, HDD / Power LED, Headphone Jack, Microphone Jack, USB 2.0 Port, USB 3.0 Port, Reset Button, LED Button for various LED lighting mods

Top magnetic dust filter
Protects your components and provides unobstructed airflow through dust filtration

Bottom dust filter
Protects your power supply from piling up dust

Maximum Airflow and Ventilation
Four pre-installed 120mm RGB fans (Front x 3, Rear x 1) provide quick
heat dissipation from the case and up to 6 fans can be supported

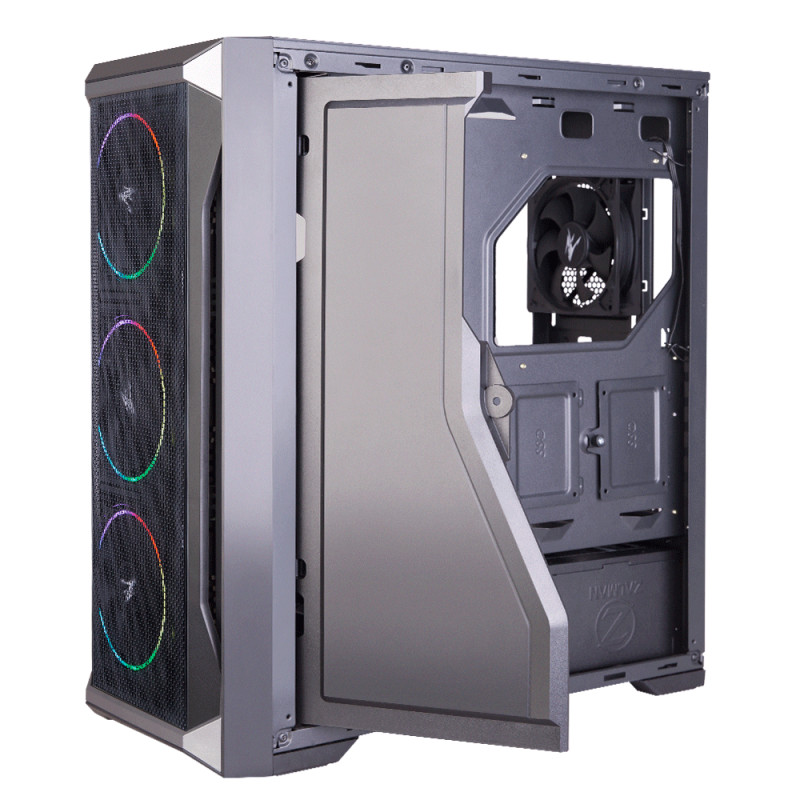

Inner Panel for neat cable management
Designated Inner panel simplifies the cable routing by concealing most of the cables and makes it perfect a cable less look

Addressable RGB LEDs Ready
※ How to control RGB LED
- LED colors & patterns can be changed by pressing the LED Button on I/O ports
- Long pressing on the LED Button for 3 seconds, RGB will be synchronized with motherboard after blinking once in white
Press the LED Button again to desynchronize with motherboard
- Long pressing on the LED Button for 6 seconds, RGB LED will be turn off after blinking twice in white

Excellent Expandability and Convenience
Spacious room available to support even up to E-ATX (~280mm) for high-end system build
Motherboard: E-ATX(~280mm) / ATX / mATX / Mini-ITX

Tool-free design allows easy removal of each part without tools for your convenience
CPU Cooler Max Height: 160mm
HDD/SSD: 2 x Combo (3.5” or 2.5”)
VGA Card Maximum Length: 350mm
PSU Max Length: 180mm
SSD: 4 x 2.5”

Fan Support (*Fans included)
Front: *120mm x 3 / 140mm x 3
Top: 120mm x 2 / 140mm x 2
Rear: *120mm x 1

Radiator Configuration
Front : 120mm
Top : 120mm / 240mm / 280mm
Rear : 120mm

Specifications
Model: Z8 MS
Case Form Factor: ATX Mid Tower
Dimensions: 460(D) x 212(W) x 493(H)mm
Weight: 6.3kg
Materials: Steel, Plastic, Tempered Glass
Motherboard Support: E-ATX(~280mm), ATX, mATX, Mini-ITX
Fans Support: Front 3 x 120mm / 3 x 140mm, Top 2 x 120mm / 2 x 140mm, Rear 1 x 120mm
Fan(s) Included: Front 3 x 120mm, Rear 1 x 120mm
Radiator Support: Front 120mm, Top 120mm / 240mm / 280mm, Rear 120mm
Max. VGA Length: 350mm
Max. CPU Cooler Height: 160mm
Max. PSU Length: 180mm
PCI Expansion Slots: 7
I/O Ports: 2 x USB3.0, 1 x USB2.0, 1 x Headphone Jack, 1 x Microphone Jack, Power Button, Reset Button, LED Button
Drive Bays: 2 x Combo (3.5” or 2.5”, Toolless), 4 x 2.5”
Productcode: Z8 MS
Design
Form factor: Midi Tower
Type: PC
Supported motherboard form factors: ATX, EATX, micro ATX, Mini-ITX
Number of 3.5" bays: 2
Material: Plastic, Steel, Tempered glass
Colour of product: Black
Number of 2.5" bays: 4
Side window: Y
Tempered glass panel(s): Y
Reset button: Y
On/off button: Y
Anti-dust filter: Y
Maximum CPU cooler height: 16 cm
Maximum PSU length: 18 cm
Maximum graphics card length: 35 cm
Power supply
Power supply included: N
Power supply location: Bottom
Ports & interfaces
USB 2.0 ports quantity: 1
Audio input: Y
Audio output: Y
USB 3.1 (3.1 Gen 2) Type-C ports quantity: 2
Cooling
Front fans diameters supported: 120,140 mm
Rear fans installed: 1x 120 mm
Top fans diameters supported: 120,140 mm
Maximum rear fans: 1
Front fans installed: 3x 120 mm
Rear fans diameters supported: 120 mm
Maximum front fans: 3
Maximum top fans: 3
Rear radiator fan sizes supported: 120 mm
Front radiator fan sizes supported: 120 mm
Top radiator fan sizes supported: 120,240,280 mm
Storage
Supported hard disk drive sizes: 2.5,3.5"
Weight & dimensions
Depth: 460 mm
Height: 493 mm
Weight: 6.3 g
Width: 212 mm
Packaging data
LED controller: Y

Product codes

EAN
8809213768583
Manufacturer code
Z8 MS
