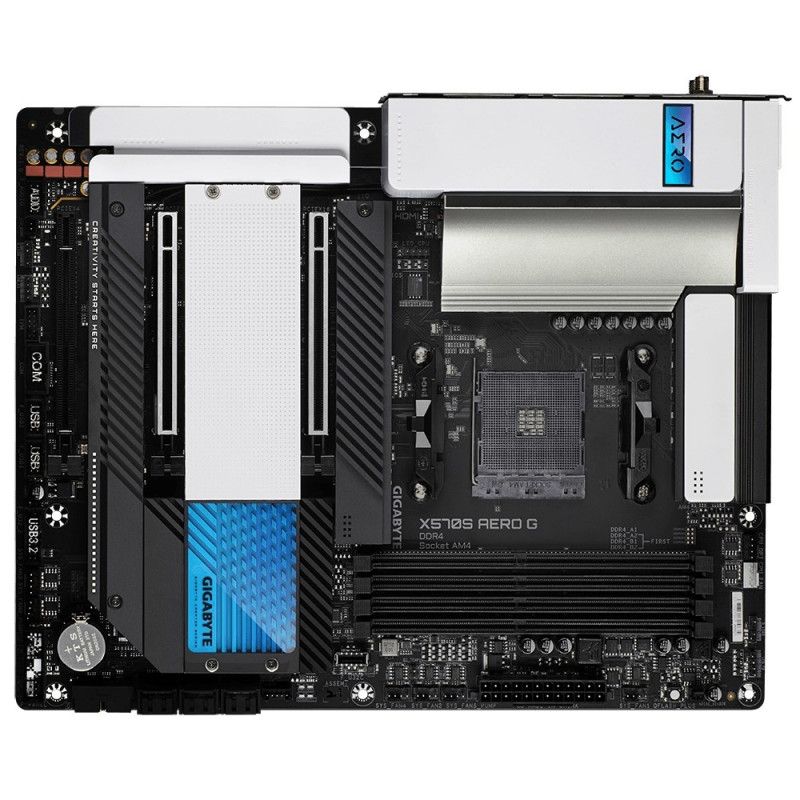

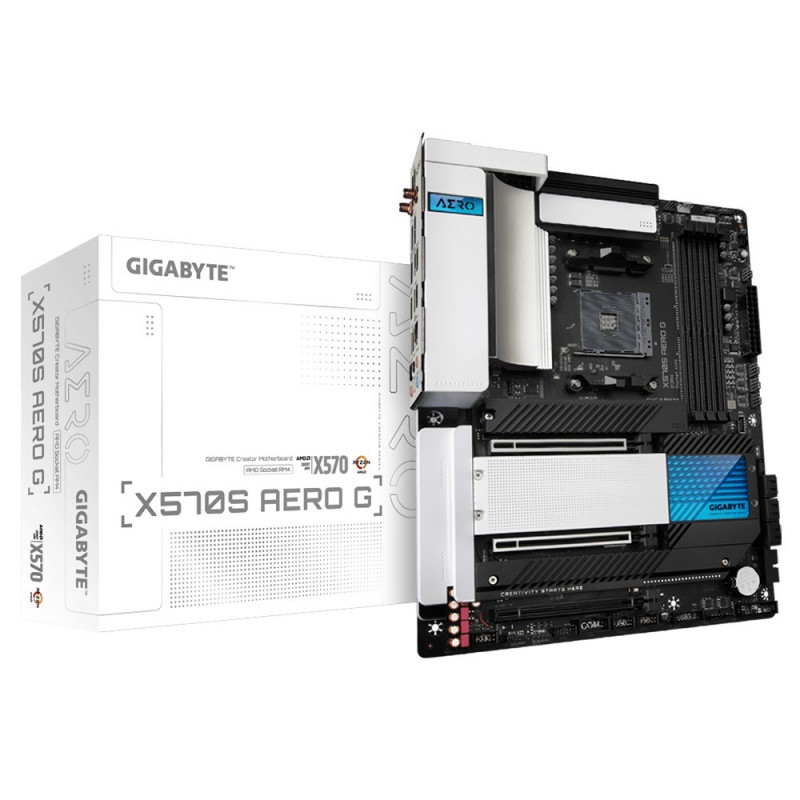

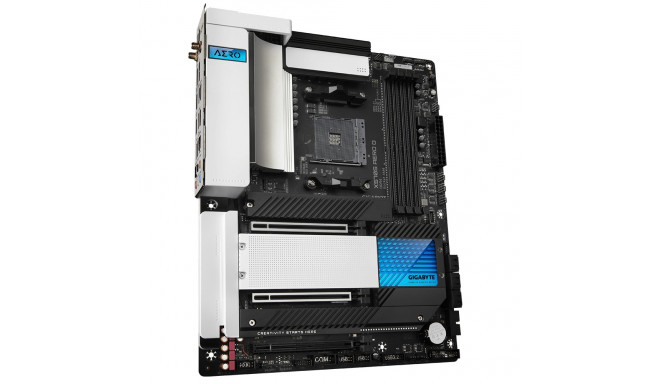

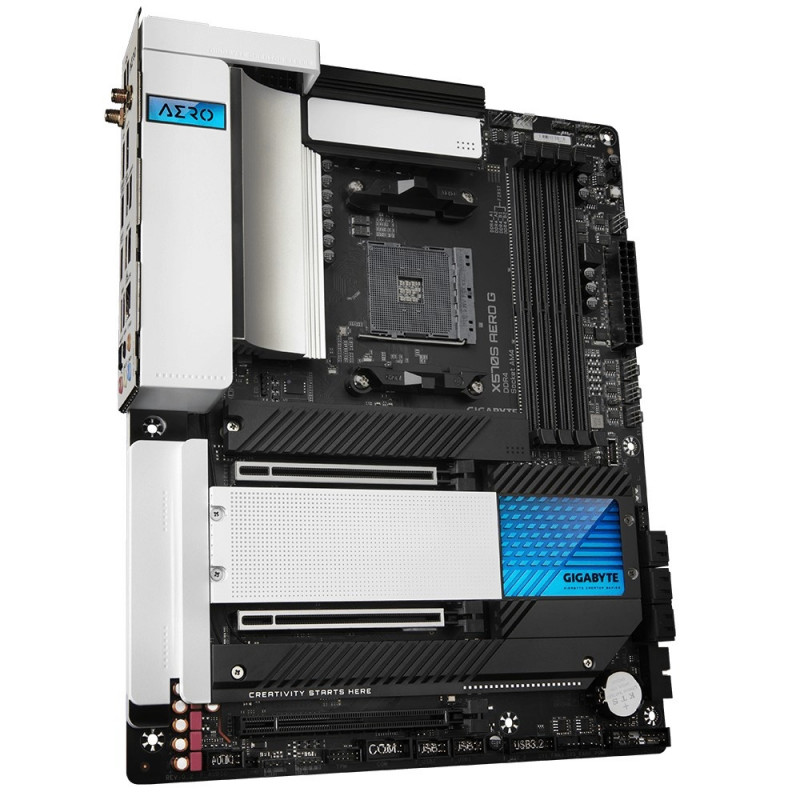

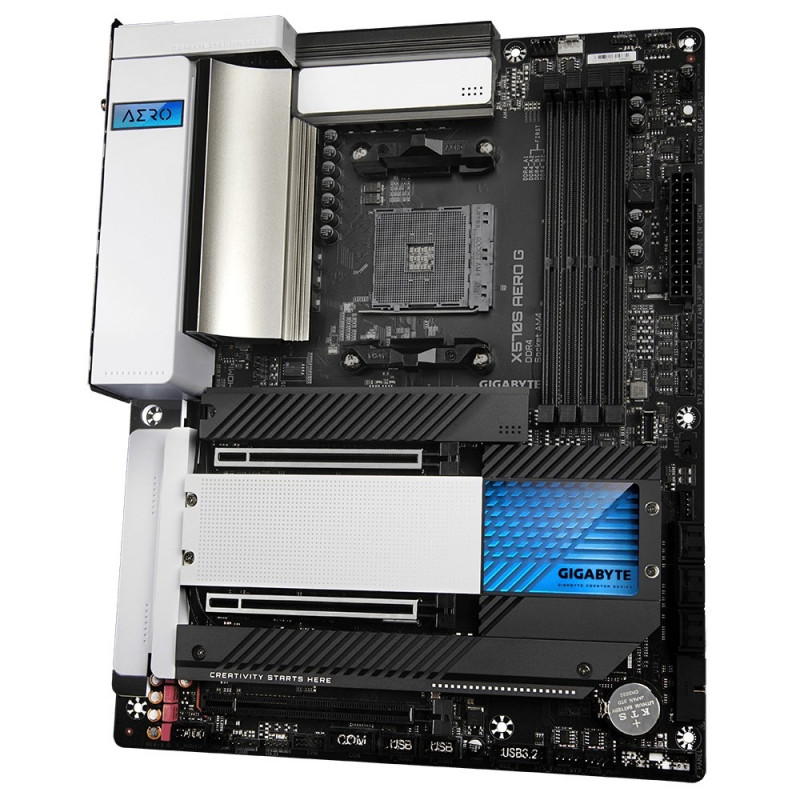

Gigabyte X570S AERO G motherboard AMD X570 Socket AM4 ATX

Main info

Bundled software Norton Internet Security, cFosSpeed Wi-Fi standards 802.11b

Product has been archived


Bundled software Norton Internet Security, cFosSpeed
Wi-Fi standards 802.11b
EPS power connector (8-pin) Y
Windows operating systems supported Windows 10 x64
Cables included SATA
Wi-Fi standards Wi-Fi 5 (802.11ac)
Number of memory slots 4
Number of chassis fan connectors 4
Supported processor sockets Socket AM4
12V power connector Y
Depth 244 mm
Ethernet LAN Y
Clear CMOS jumper Y
WiFi-AP antenna jack 2
WLAN controller model Intel Wi-Fi 6 AX200
TPM connector Y
Front panel connector Y
HDMI version 2.1
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11g
Memory channels Dual-channel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
HDMI ports quantity 1
Memory slots type DIMM
Ethernet interface type 2.5 Gigabit Ethernet
Supported memory types DDR4-SDRAM
Desktop Management Interface (DMI) version 2.7
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
Headphone outputs 5
Compatible processor series AMD Ryzen™ 5
Bluetooth version 5.1
Number of storage drives supported 10
Wi-Fi Y
Processor manufacturer AMD
Compatible processor series 3rd Generation AMD Ryzen™ 9
Compatible processor series AMD Ryzen™ 7
RGB LED pin header Y
Microphone in Y
Width 305 mm
Wi-Fi standards Wi-Fi 4 (802.11n)
Wi-Fi standards 802.11a
Wi-Fi standards Wi-Fi 6 (802.11ax)
Compatible processor series AMD Ryzen™ 3
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Drivers included Y
Compatible processor series AMD Ryzen 9 5th Gen
Processor socket Socket AM4
USB 3.2 Gen 2x2 Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Supported memory clock speeds 3200
Supported memory clock speeds 3466
USB 2.0 ports quantity 2
Supported memory clock speeds 3400
Supported memory clock speeds 3866
Maximum internal memory 128 GB
Bluetooth Y
Audio output channels 7.1 channels
RAID levels 0
Motherboard form factor ATX
Supported memory clock speeds 4133
Supported memory clock speeds 4000
Supported memory clock speeds 5200
RAID levels 1
Supported memory clock speeds 4600
Supported storage drive interfaces M.2, PCI Express 3.0, PCI Express 4.0, SATA III
PC health monitoring Voltage
Supported memory clock speeds 3800
Supported memory clock speeds 3333
ATX Power connector (24-pin) Y
RAID support Y
Ethernet LAN (RJ-45) ports 1
Supported memory clock speeds 2933
Supported memory clock speeds 3600
Supported memory clock speeds 5100 MHz
Supported memory clock speeds 3300
Supported storage drive types HDD & SSD
Supported memory clock speeds 4866 MHz
DisplayPorts quantity 1
Motherboard chipset AMD X570
Supported memory clock speeds 2667
Supported memory clock speeds 3733
Supported memory clock speeds 4300
Supported memory clock speeds 4400 MHz
Supported memory clock speeds 5000
RAID levels 10
S/PDIF out port Y
Maximum resolution 4096 x 2304 pixels
Number of SATA III connectors 6
Motherboard chipset family AMD
Front panel audio connector Y
Audio chip Realtek ALC1220-VB
CPU fan connector Y
USB connector type USB Type-A
PCI Express x16 slots 3
USB connector type USB Type-C
Serial port headers 1
DisplayPort version 1.4
Supported memory clock speeds 4266
Supported memory clock speeds 2400
BIOS type UEFI AMI
Thunderbolt headers 1
PC health monitoring Fan
HDCP Y
Number of M.2 (M) slots 4
PC health monitoring Temperature
Supported memory clock speeds 2133
Supported memory clock speeds 5400
Parallel processing technology support Quad-GPU CrossFireX
Unbuffered memory Y
Parallel processing technology support 2-Way CrossFireX
USB 2.0 connectors 2

Product codes

EAN
4719331823665
Manufacturer code
PLYGIGAM40068
