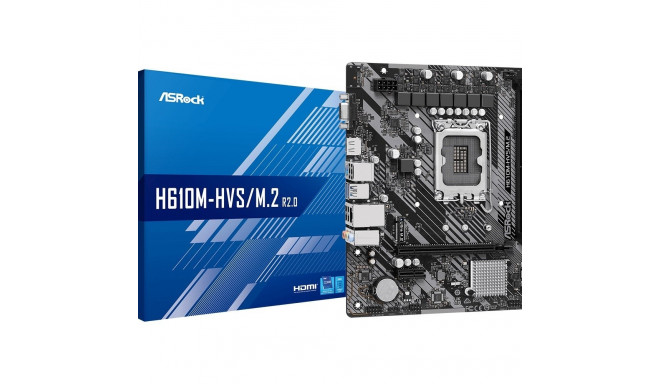

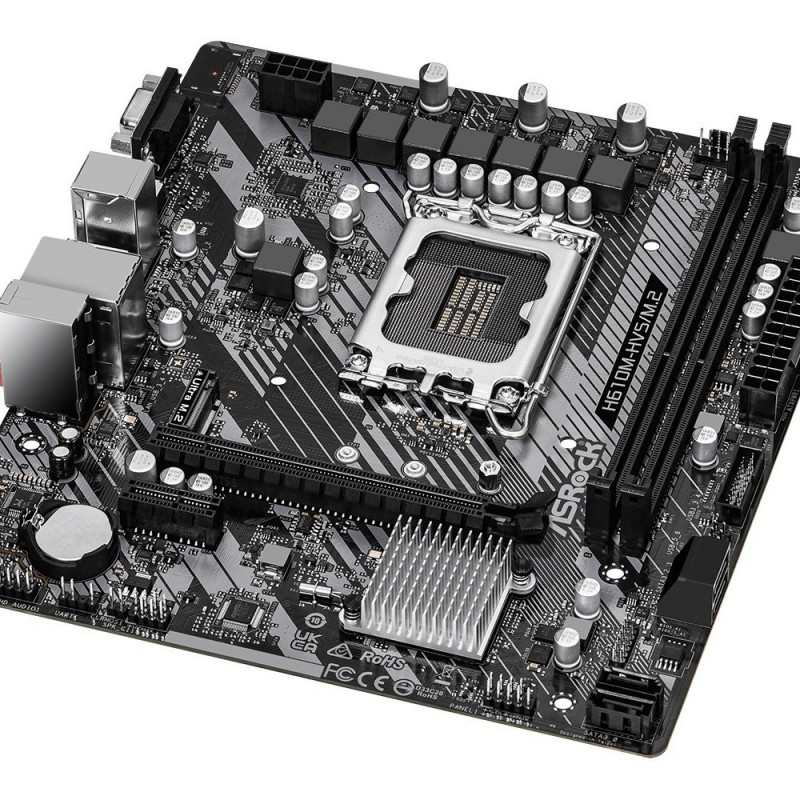

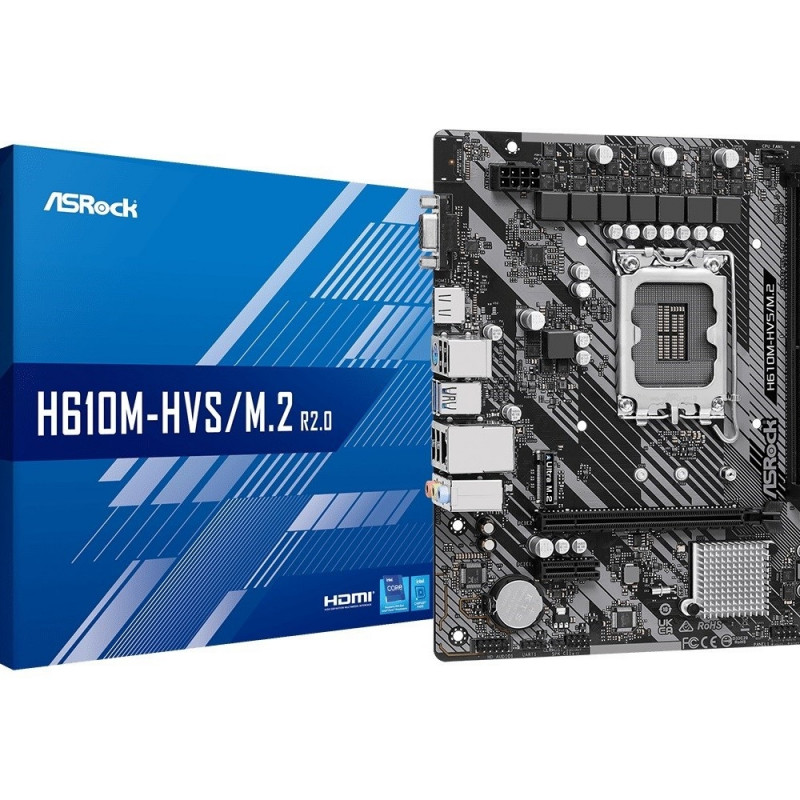

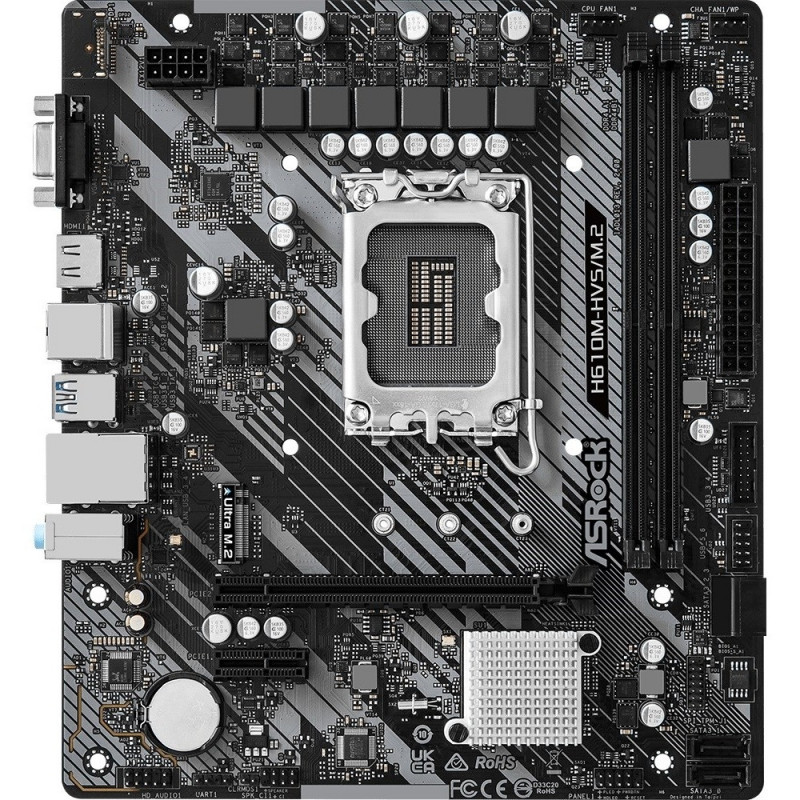

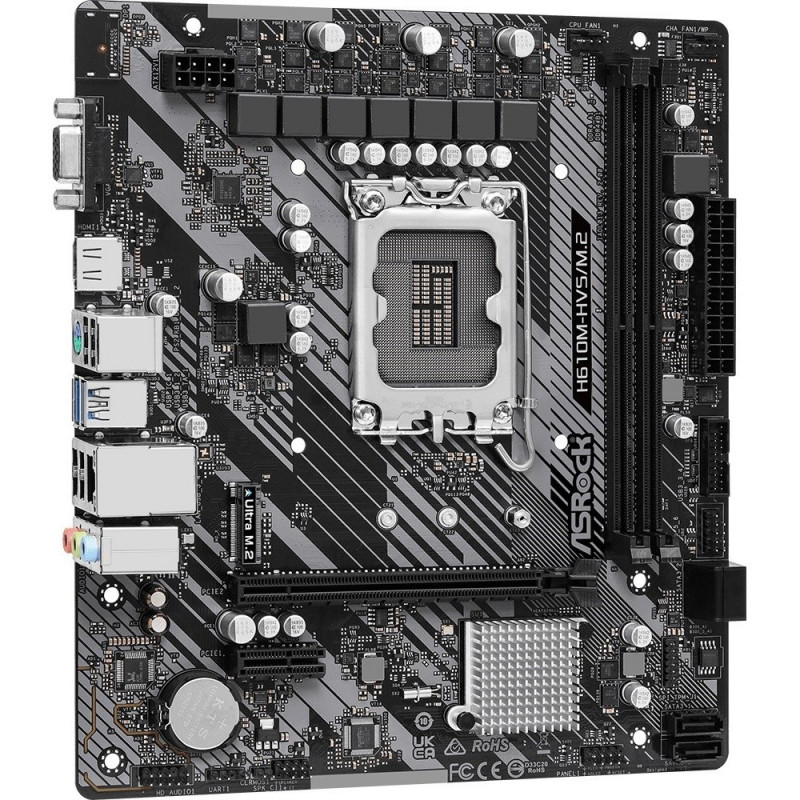

Asrock H610M-HVS/M.2 R2.0 Intel H610 LGA 1700 micro ATX

Main info

Product has been archived


Depth 188 mm
Number of memory slots 2
VGA (D-Sub) ports quantity 1
Ethernet LAN Yes
12V power connector Yes
Supported memory types DDR4-SDRAM
Maximum number of SMP processors 1
PS/2 ports quantity 1
Ethernet interface type Gigabit Ethernet
Processor manufacturer Intel
Processor socket LGA 1700
HDMI version 2.1
Wi-Fi No
PCI Express x16 (Gen 4.x) slots 1
Front panel audio connector Yes
Maximum internal memory 64 GB
Cables included SATA
Audio output channels 7.1 channels
Number of chassis fan connectors 1
BIOS type UEFI AMI
USB 2.0 connectors 1
Ethernet LAN (RJ-45) ports 1
Drivers included Yes
Number of M.2 (M) slots 1
Wake-on-LAN ready Yes
Supported storage drive types HDD & SSD
HDCP Yes
ATX Power connector (24-pin) Yes
Chassis intrusion connector Yes
HDMI ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Audio chip Realtek ALC887 / Realtek ALC897
LAN controller Realtek RTL8111H
Supported storage drive interfaces SATA III
Motherboard chipset Intel H610
PCI Express x1 (Gen 3.x) slots 1
Number of SATA III connectors 4
TPM connector Yes
Unbuffered memory Yes
Maximum resolution 4096 x 2160 pixels
Motherboard form factor micro ATX
Parallel processing technology support Not supported
Motherboard chipset family Intel
USB 2.0 ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Warranty 24 (G)
Width 197 mm
Windows operating systems supported Windows 11 x64
Supported memory clock speeds 3200
Compatible processor series Intel® Pentium®
PC health monitoring CPU

Dimensions and weights

Package width
270 cm
Package height
60 cm
Package length
250 cm

Product codes

EAN
4710483939914
Manufacturer code
H610M-HVS/M.2 R2.0
