Home page » Computers & IT»Computer components»Mainboards»Gigabyte mainboard X670E Aorus Master AM5 4DDR5 HDMI/DP EATX

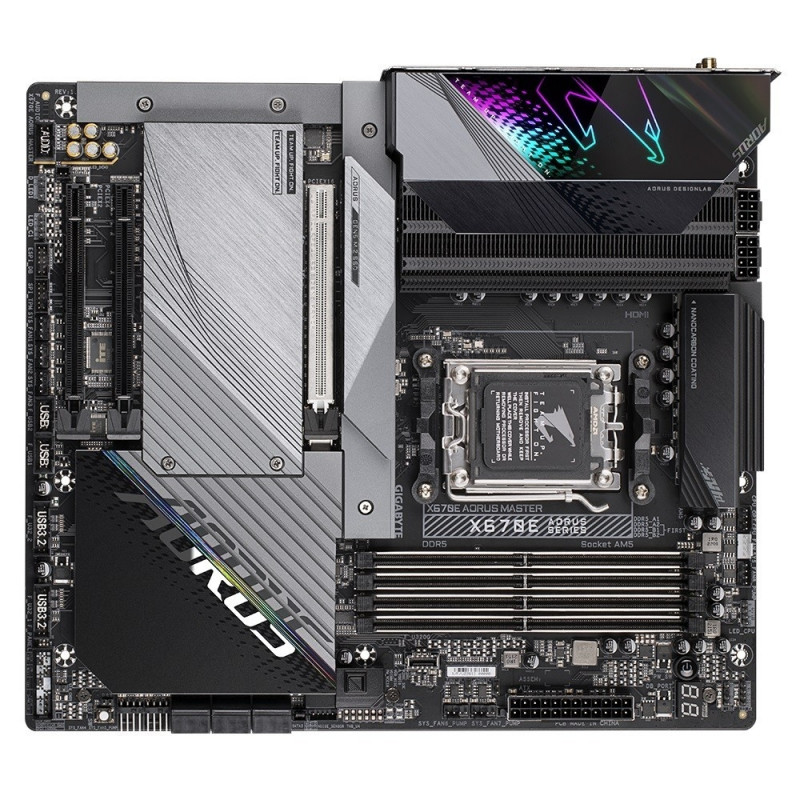

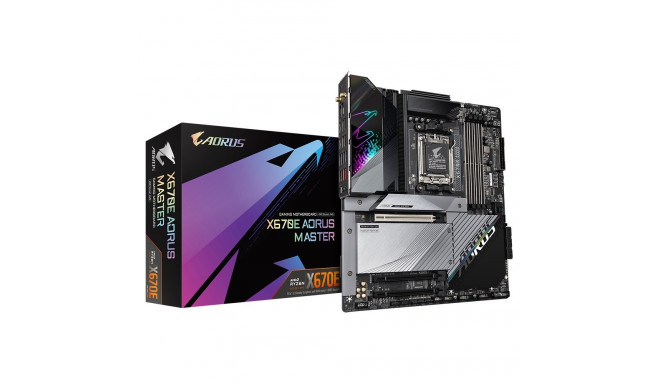

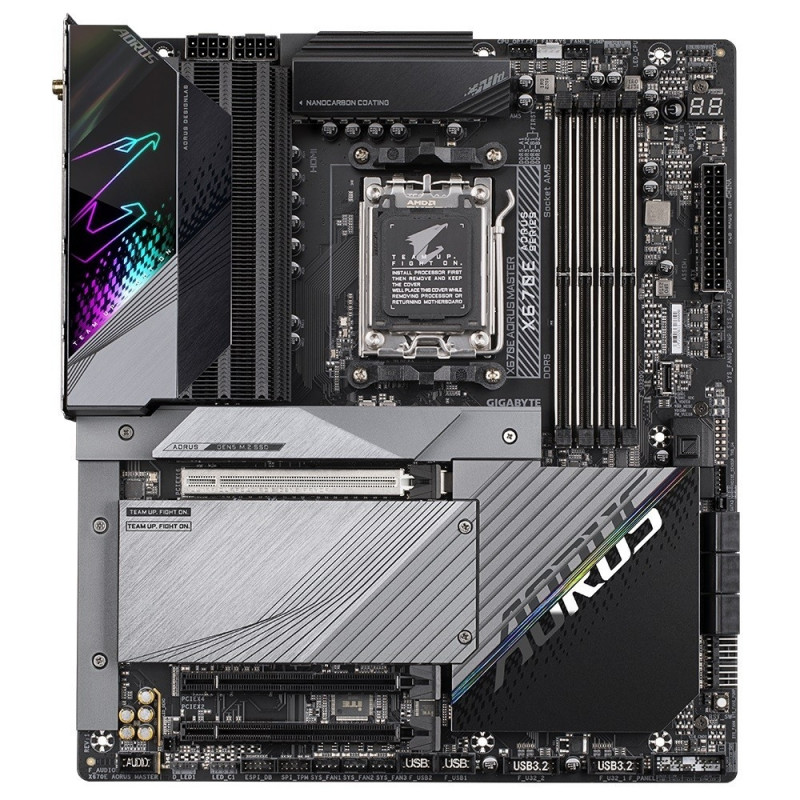

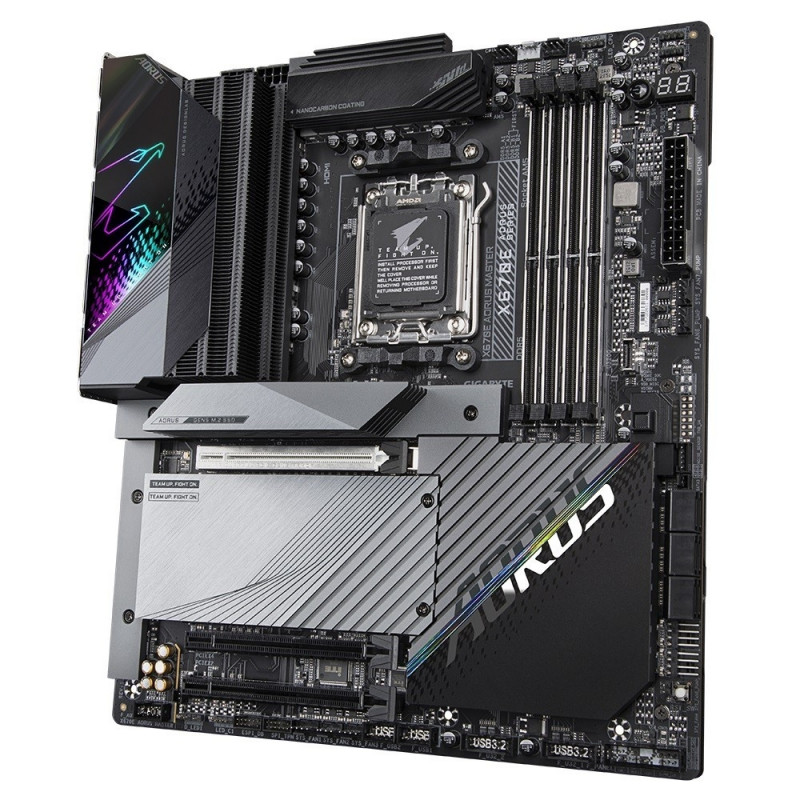

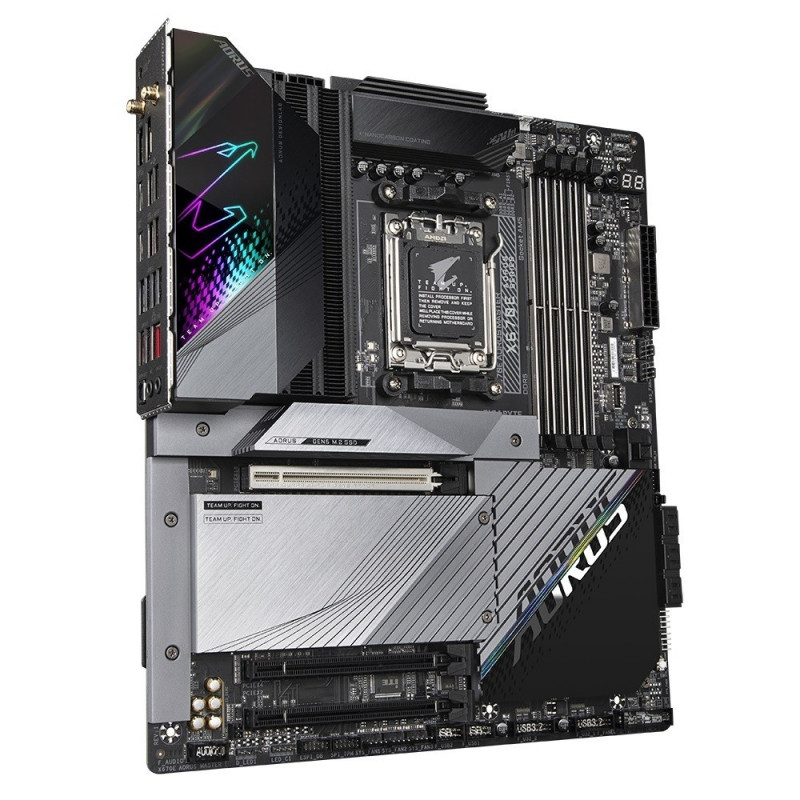

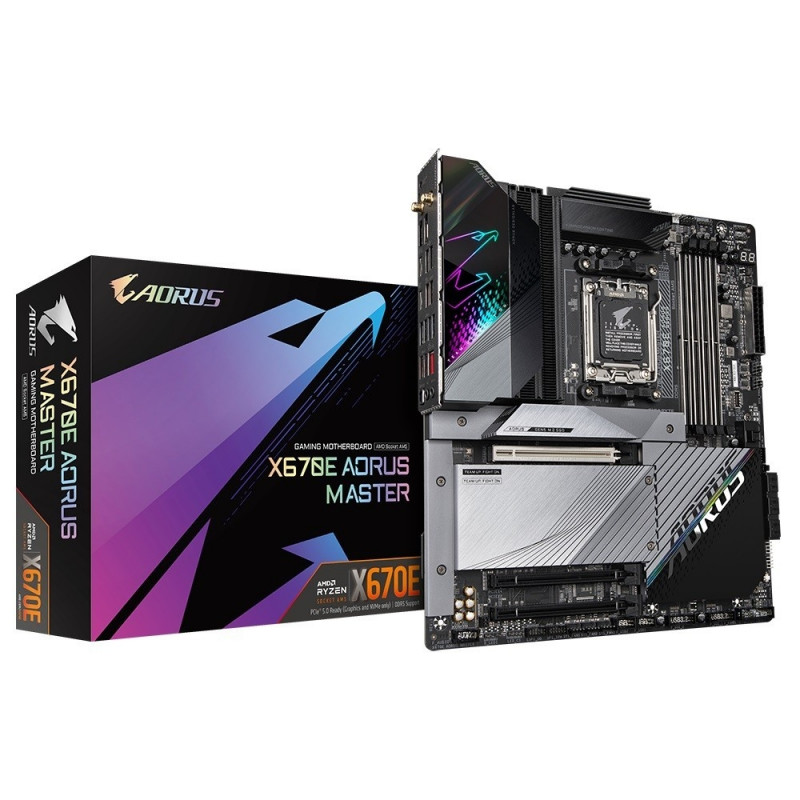

Gigabyte mainboard X670E Aorus Master AM5 4DDR5 HDMI/DP EATX

Main info

Enneolematu jõudlus TWIN digitaalne VRM disain PCIe 5.0 disain EXPO ja XMP tugi Aktiivne OC häälestaja Kiiresti muutuva tehnoloogiaga sammu pidamiseks järgib GIGABYTE alati uusimaid suundumusi ja pakub klientidele täiustatud funktsioone ja viimast

Product has been archived

Enneolematu jõudlus

  • TWIN digitaalne VRM disain
  • PCIe 5.0 disain
  • EXPO ja XMP tugi
  • Aktiivne OC häälestaja

Kiiresti muutuva tehnoloogiaga sammu pidamiseks järgib GIGABYTE alati uusimaid suundumusi ja pakub klientidele täiustatud funktsioone ja viimast tehnoloogiat. GIGABYTE emaplaadid on varustatud täiustatud toite lahendusega, uusimate salvestusstandarditega ja erakordse ühenduvusega, et tagada optimeeritud mängujõudlus.

Suurepärane termiline disain

  • Termiline disain
  • Flipper III paigutus
  • Thermal Guard III
  • Intelligentne ventilaator 6

GIGABYTE emaplaatide enneolematu jõudlus on tagatud uuendusliku ja optimeeritud termilise disainiga, et tagada parim CPU, kiibistik, SSD stabiilsus ja madal temperatuur täisrakenduse koormuse ja mängujõudluse all.

Ühenduvus

  • Wi-Fi 802.11ax 6E
  • 2.5GbE LAN
  • Tagumine ja esimene USB-C 20Gb/s port
  • USB-C 10 Gb/s alternatiivse DP režiimiga
  • Hi-Fi heli

GIGABYTE emaplaatidesse kuulub mitmeid kasulikke ja intuitiivseid programme, mis aitavad kasutajatel kontrollida emaplaadi igat aspekti ning pakkuda kohandatavaid valgusefekte, mis sobivad teie ainulaadse isiksusega.

Äärmiselt vastupidav

  • DIY-sõbralik
  • Q-Flash Plus

GIGABYTE Ultra Durable disain tagab toote vastupidavuse ja kõrgekvaliteedilise tootmisprotsessi. GIGABYTE emaplaadid kasutavad parimaid komponente ja tugevdavad iga pesa, et muuta need vastupidavaks ja vastupidavaks.


Model X670E AORUS MASTER
CPU socket Socket AM5
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD X670
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 4400 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 4800 MHz
Max memory size 128
Expansion slots 1 x PCIe 5.0 x 16
Expansion slots 1 x PCIe 3.0 x 2
Expansion slots 1 x PCIe 4.0 x 4
Max. number of SATA devices 6
RAID Yes
Detailed data on disk/drive interfaces RAID 0, RAID 1, RAID 10
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface Bluetooth
Network interface Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel Wi-Fi 6E AX210
USB ports at back panel 12
USB ports on motherboard 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 4

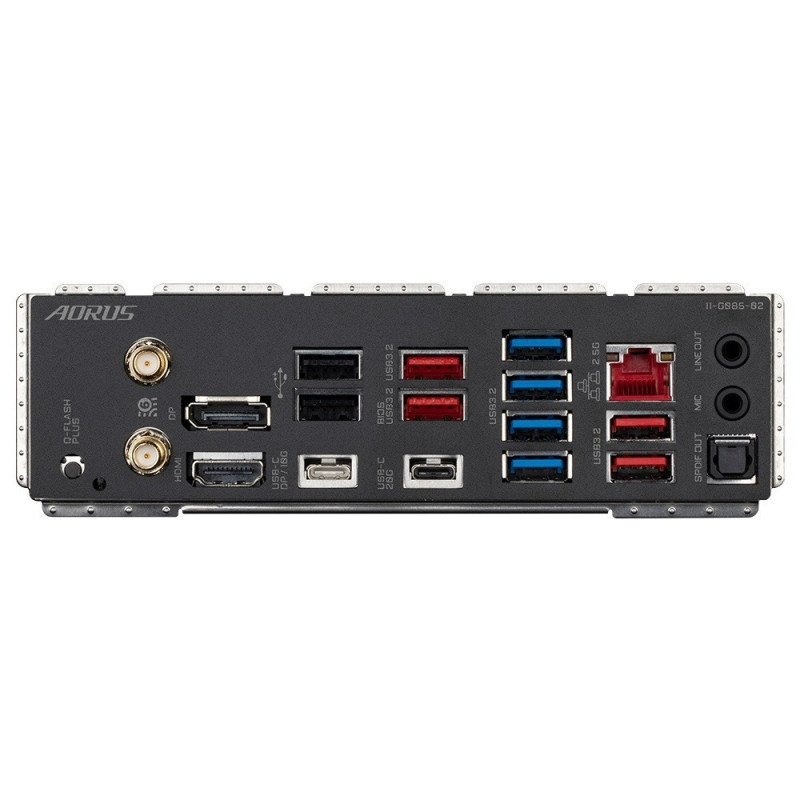

External connectors 1 x MIC (front)
External connectors 1 x HDMI
External connectors 1 x Line Out (front)
External connectors 1 x Q-Flash Plus button
External connectors 1 x RJ-45
External connectors 1 x S/PDIF
External connectors 2 x USB 2.0
External connectors 4 x USB 3.0
External connectors 4 x USB 3.1
External connectors 2 x SMA
External connectors 2 x USB 3.1 Type-C
External connectors 1 x DisplayPort
Onboard connectors 1 x Power button
Onboard connectors 1 x Power led header
Onboard connectors 1 x Clear CMOS jumper
Onboard connectors 1 x Front panel audio header
Onboard connectors 4 x M.2
Onboard connectors 6 x SATA III 6Gb/s
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 2 x USB 3.0 header
Onboard connectors 1 x USB C
Onboard connectors 1 x TPM header
Onboard connectors 1 x System panel header
Onboard connectors 1 x 4-pin water-pump-fan
Onboard connectors 2 x 8pin 12V
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 2 x temperature sensor
Onboard connectors 1 x Voltage measurement module
Onboard connectors 1 x Reset button
Onboard connectors 1 x 4pin Chassis fan
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor E-ATX
Dimensions  30.5 x 26.9 cm
Supported operating systems Windows 11
Supported operating systems Windows 10
Graphics Integrated graphics processor: 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz DisplayPort 1.4 and HDR support. 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video output and a maximum resolution of 3840x2160@144 Hz Dis
Special functions Support for GIGABYTE Control Center (GCC) The applications available in GCC may vary depending on the motherboard model. The supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-F

Dimensions and weights

Gross weight
2.97 kg
Package width
35 cm
Package height
30 cm
Package length
9 cm

Product codes

EAN
4719331844363
Manufacturer code
KBGBAAA8X670E01
