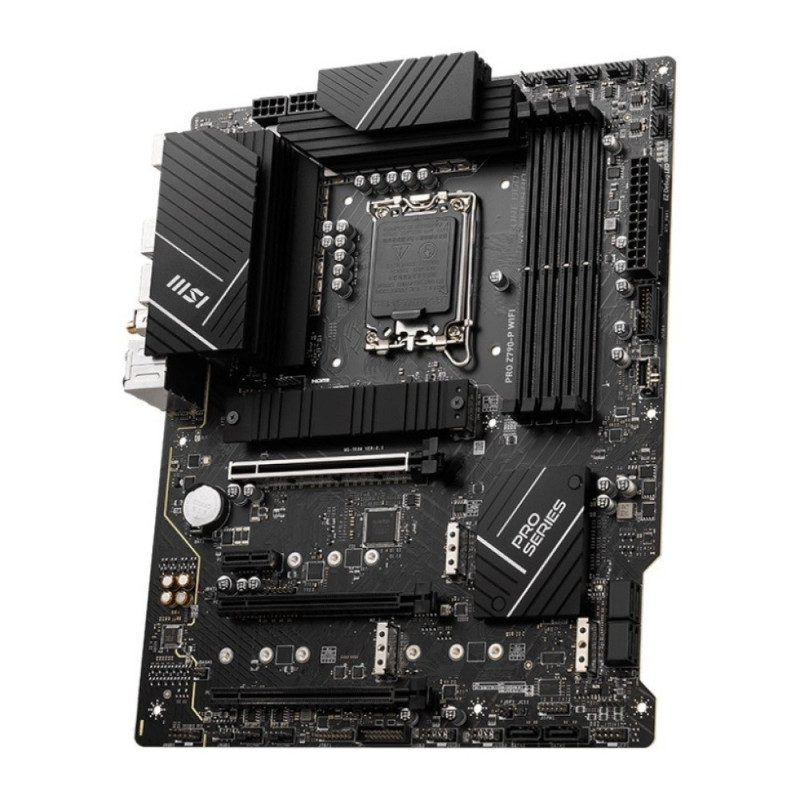

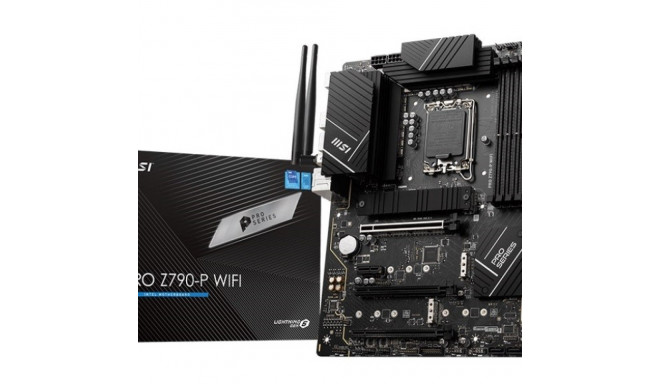

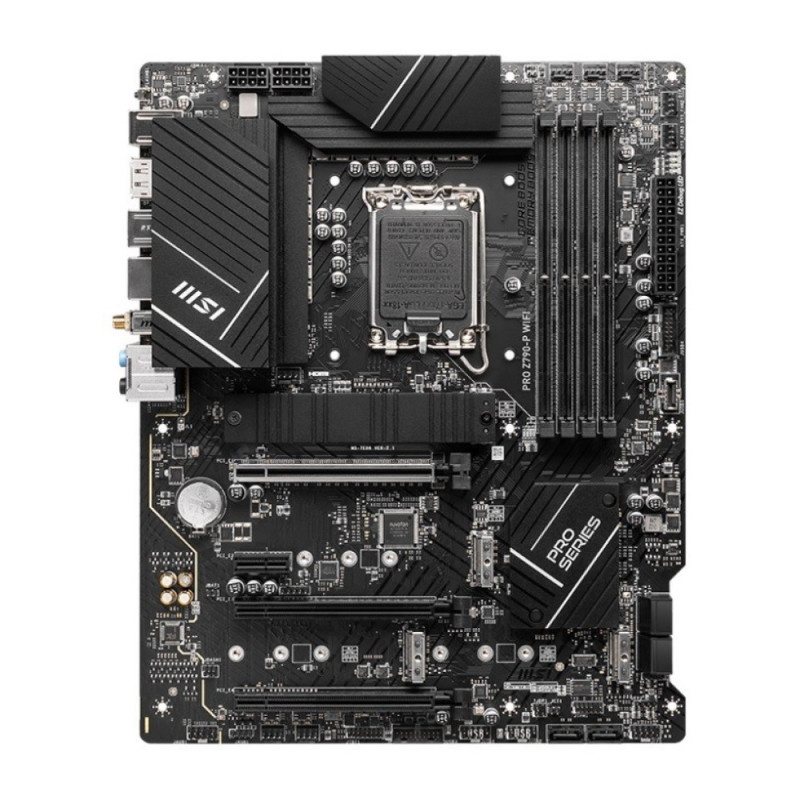

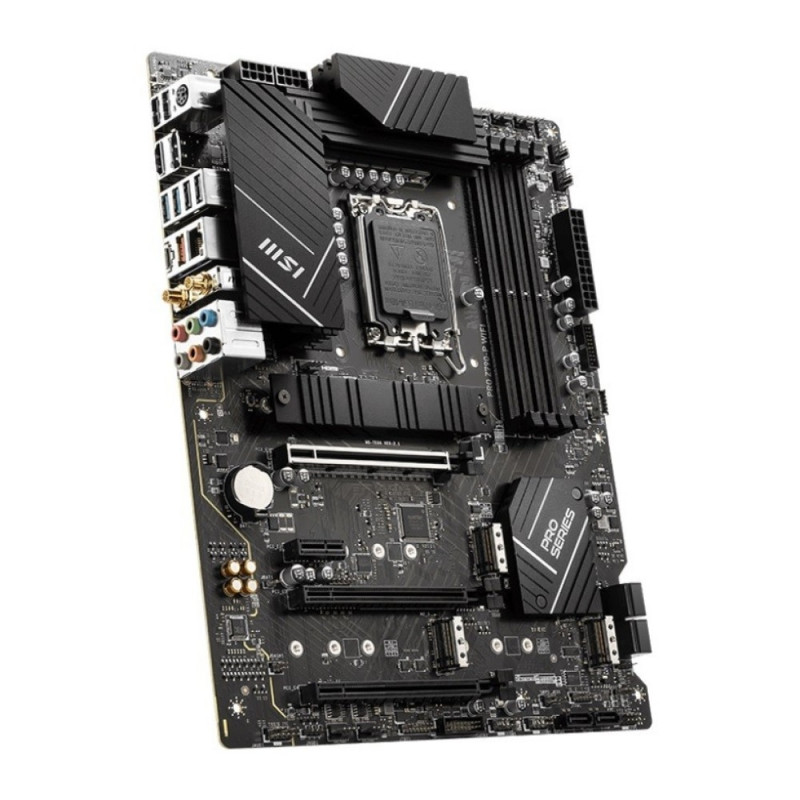

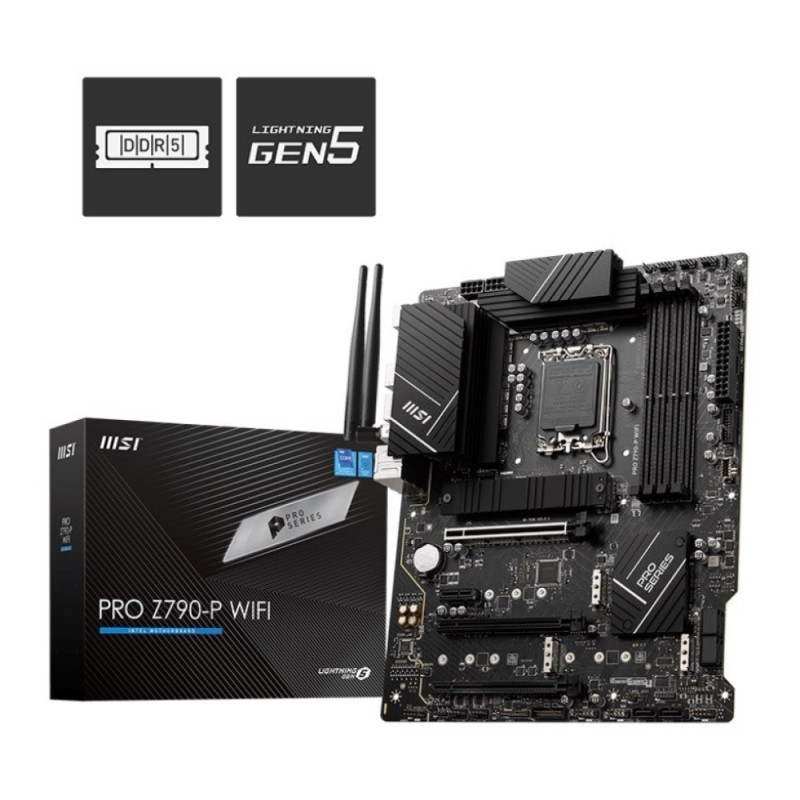

MSI mainboard PRO Z790-P WiFi s1700 4DDR5 HDMI/DP ATX

207,99 €

Monthly payment starting from 7,09 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

PRO Z790-P WIFI

PRO Z790-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
  • Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Model PRO Z790-P WIFI
CPU socket LGA1700
Processor family Intel Core i9
Processor family Intel Pentium Gold
Processor family Intel Celeron
Processor family Intel Core i3
Processor family Intel Core i5
Processor family Intel Core i7
Integrated CPU No
Chipset manufacturer Intel
Chipset type Intel Z790
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 5600 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 5400 MHz
Memory bus frequency 5000 MHz
Memory bus frequency 5800 MHz
Memory bus frequency 6000 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6800 MHz
Memory bus frequency 7000 MHz
Memory bus frequency 4800 MHz
Max memory size 128
Expansion slots 2 x PCIe 3.0 x 1
Expansion slots 1 x PCIe 5.0 x 16
Expansion slots 1 x PCIe 4.0 x 16
Max. number of SATA devices 6
RAID Yes
Graphics 1x HDMI 1x DisplayPort Support for HDMI 2.1 with HDR, maximum resolution of 4K 60Hz DP 1.4 support, maximum resolution of 4K 60Hz
Sound card Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface Bluetooth
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface Intel 2.5Gbps LAN Intel Wi-Fi 6E 802.11 a/ b/ g/ n/ ac/ ax Wireless module is pre-installed in M.2 socket (Key-E) MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps SBluetooth 5.3, FIPS, FISMA
USB ports at back panel 8
USB ports on motherboard 9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 3
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x USB 3.1 Type-C
External connectors 2 x SMA
External connectors 1 x Side Speaker
External connectors 1 x Central Speaker / Subwoofer
External connectors 1 x Rear Speaker
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 4 x USB 2.0
External connectors 2 x USB 3.0
External connectors 1 x HDMI
External connectors 1 x DisplayPort
External connectors 1 x USB 3.1
External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 1 x Flash BIOS Button
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 2 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Chassis intrusion header
Onboard connectors 1 x TPM header
Onboard connectors 4 x USB 3.0
Onboard connectors 1 x USB C
Onboard connectors 4 x M.2
Onboard connectors 6 x SATA III 6Gb/s
Onboard connectors 4 x USB 2.0/1.1
Onboard connectors 6 x 4pin chassis fan
Onboard connectors 2 x 8pin 12V
Onboard connectors 2 x Addressable LED
Onboard connectors 1 x RGB LED strip header
Onboard connectors 1 x 4pin CPU fan
Form factor ATX
Dimensions 243.84 x 304.8 mm
Supported operating systems Windows 10
Supported operating systems Windows 11
Designation
Detailed data on disk/drive interfaces 4x M.2 slot: M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2

Dimensions and weights

Gross weight
1.78 kg
Package width
38 cm
Package height
27 cm
Package length
7 cm

Product codes

EAN
4711377015738
Manufacturer code
KBMSIIIEZ790A04
