Home page » Computers & IT»Computer components»Mainboards»Motherboard PRIME Z790-P WIFI s1700 4DDR5 HDMI/DP ATX

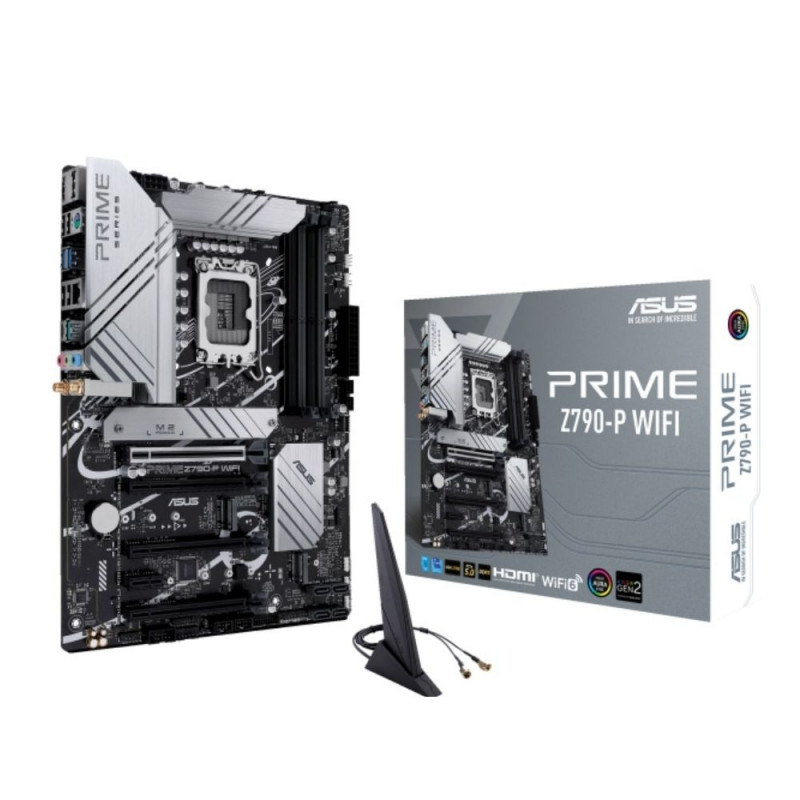

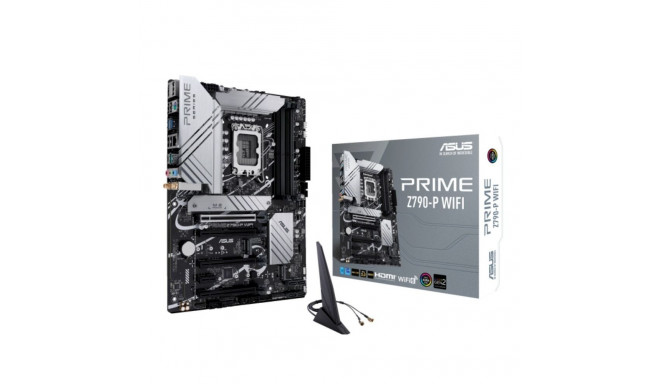

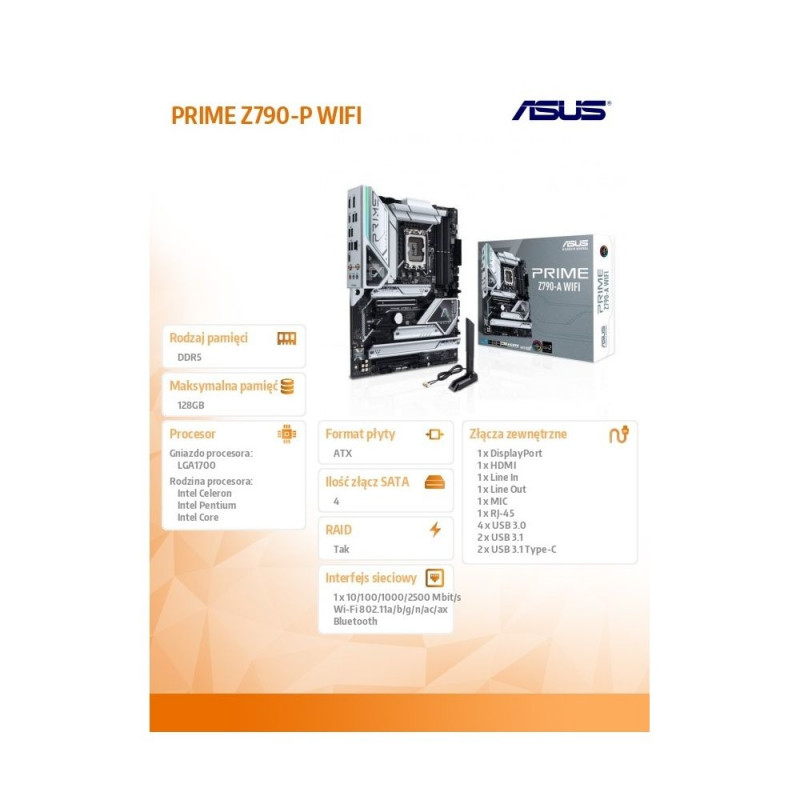

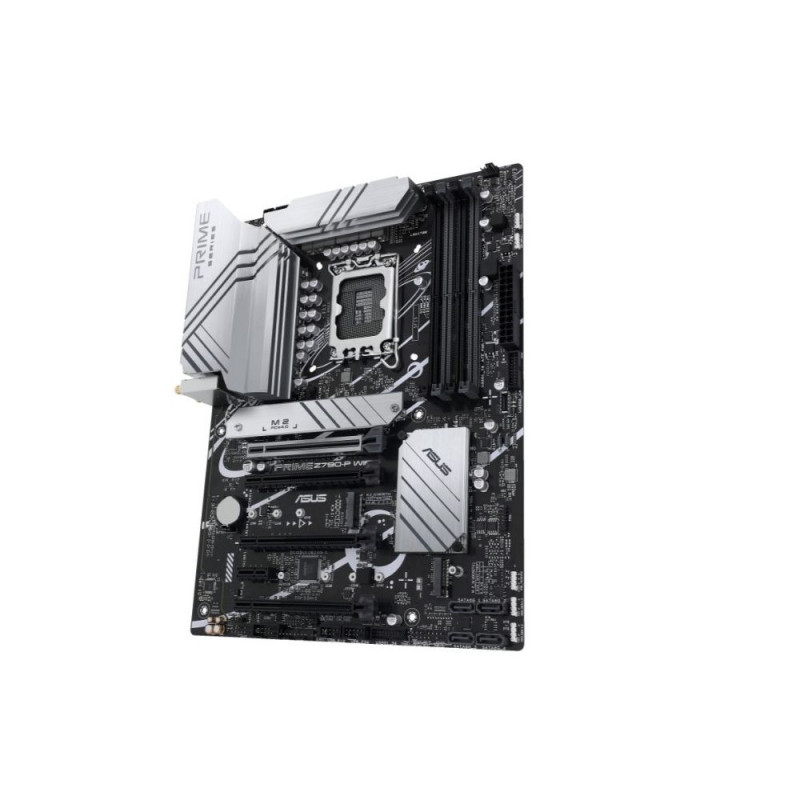

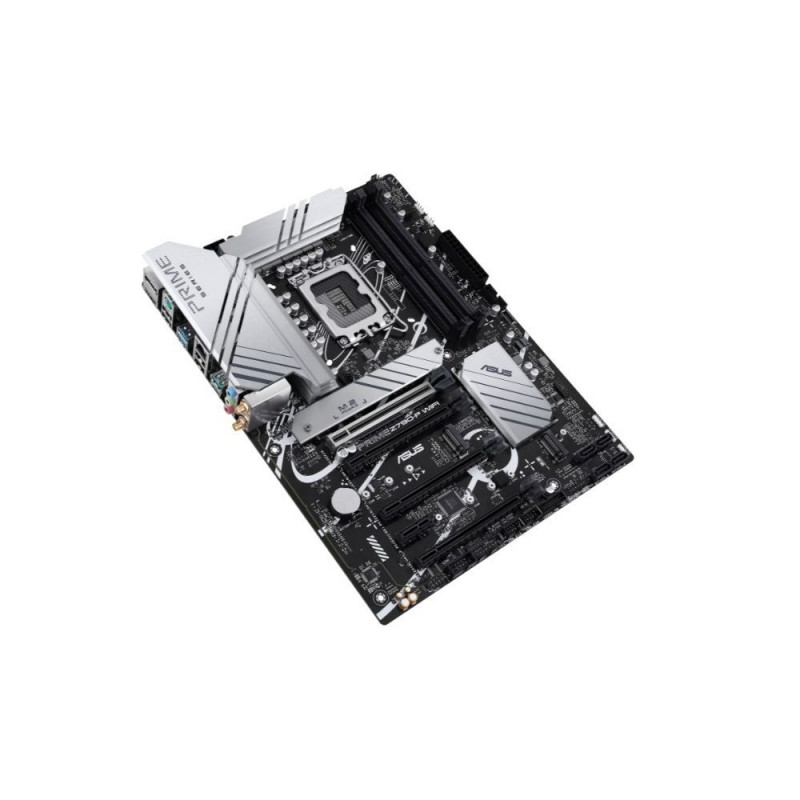

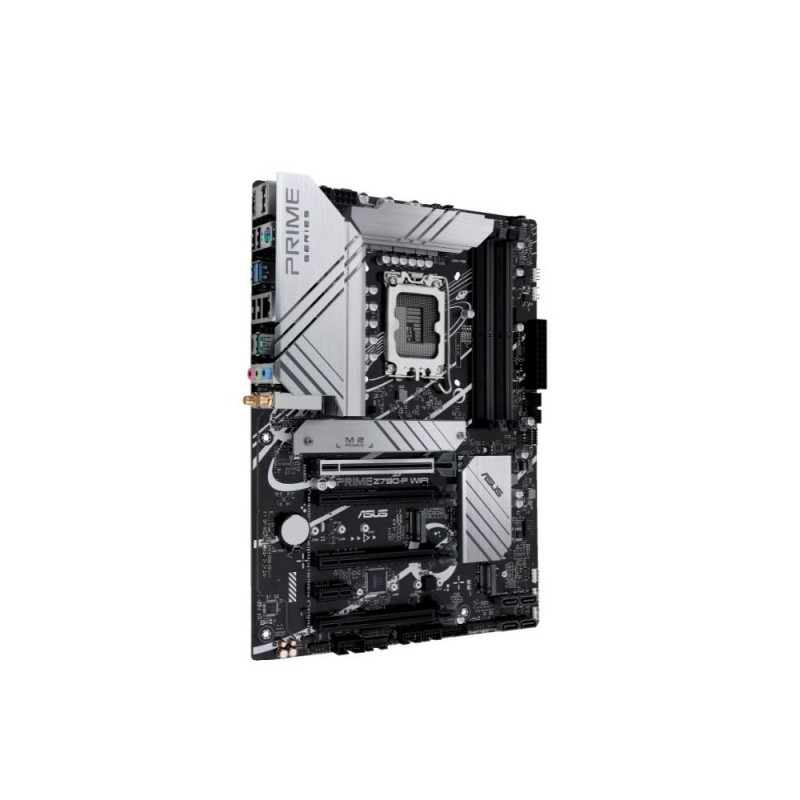

Motherboard PRIME Z790-P WIFI s1700 4DDR5 HDMI/DP ATX

232,99 €

Monthly payment starting from 7,94 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

  • Socket Intel LGA 1700: ready for Intel 12th and 13th generation processors.
  • Complex cooling: large VRM heatsinks, M. 2 heatsinks, hybrid fan bars and Xpert 4 fan
  • Next-Gen: DDR5 memory, PCIe 5. 0, Intel 2.5 Gb Ethernet, USB 3. 2 Gen2x2 Type-C, USB 3. 2 Gen 2 Type-C front panel, ThunderboltTM header support (USB4), 4 PCIe 4. 0 M. 2
  • PC DIY Design: PCIe Slot Q-Release, M. 2 Q-Latch, Q-LED Core and SafeSlot

Model PRIME Z790-P WIFI
CPU socket LGA1700
Processor family Intel Pentium
Processor family Intel Celeron
Processor family Intel Core
Integrated CPU No
Chipset manufacturer Intel
Chipset type Intel Z790 Chipset
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 7000 MHz
Memory bus frequency 4800 MHz
Memory bus frequency 5000 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 5400 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 5800 MHz
Memory bus frequency 6000 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6800 MHz
Max memory size 128
Expansion slots 1 x PCIe 4.0 x 4
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 1 x PCIe 5.0 x 16
Expansion slots 2 x PCIe 3.0 x 1
Max. number of SATA devices 4
RAID Yes
Graphics 1 x DisplayPort** 1 x HDMI*** connector **Supports up to 8K@60Hz as defined by DisplayPort 1. 4. ***Supports 4K@60Hz as defined in HDMI 2. 1.
Sound card Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface Bluetooth
USB ports at back panel 8
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 5
FireWire (IEEE 1394) No
COM connector / port Yes
LPT connector / port No
External connectors 2 x USB 3.1 Type-C
External connectors 2 x USB 3.1
External connectors 4 x USB 3.0
External connectors 1 x Line Out
External connectors 1 x Line In
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 1 x HDMI
External connectors 1 x DisplayPort
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x System panel header
Onboard connectors 2 x 8pin 12V
Onboard connectors 4 x M.2
Onboard connectors 1 x USB C
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 1 x Serial port header
Onboard connectors 4 x 4pin Chassis fan
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x Thunderbolt header
Onboard connectors 1 x Clear CMOS button
Onboard connectors 1 x USB 3.0 header
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form factor ATX
Dimensions 30.5 x 24.4 cm
Supported operating systems Windows 10
Supported operating systems Windows 11
Designation
Detailed data on disk/drive interfaces Supports a total of 4 x M. 2 slots and 4 x SATA 6Gb/s* ports 13th and 12th generation Intel processors M. 2_1 slot (M key), type 2242/2260/2280/22,110 (supports PCIe 4. 0 x4 mode) Intel Z790 chipset Slot M. 2_2 (Key M), type 2242/2260/2280 (supports PCIe
Network interface ASUS LANGuard Wi-Fi 6E 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3* *Regulations for 6E 6GHz Wi-Fi may vary by country. **Bluetooth version may vary, please refer to the latest specifications on the Wi-Fi module ma

Dimensions and weights

Gross weight
1.67 kg
Package width
27.5 cm
Package height
34 cm
Package length
7 cm

Product codes

EAN
4711081937227
Manufacturer code
KBASUIIEZ790A08
