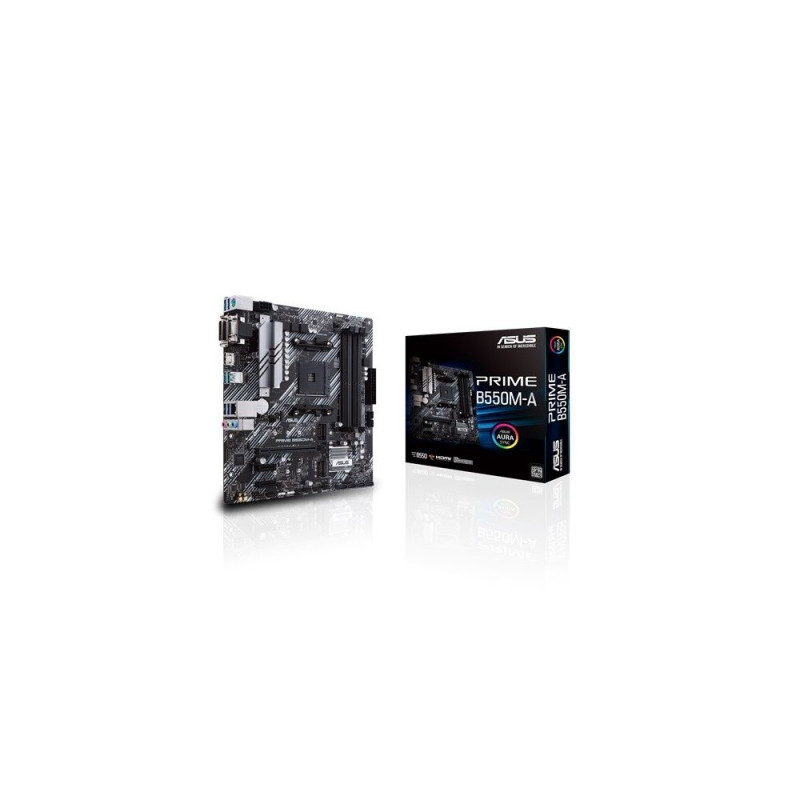

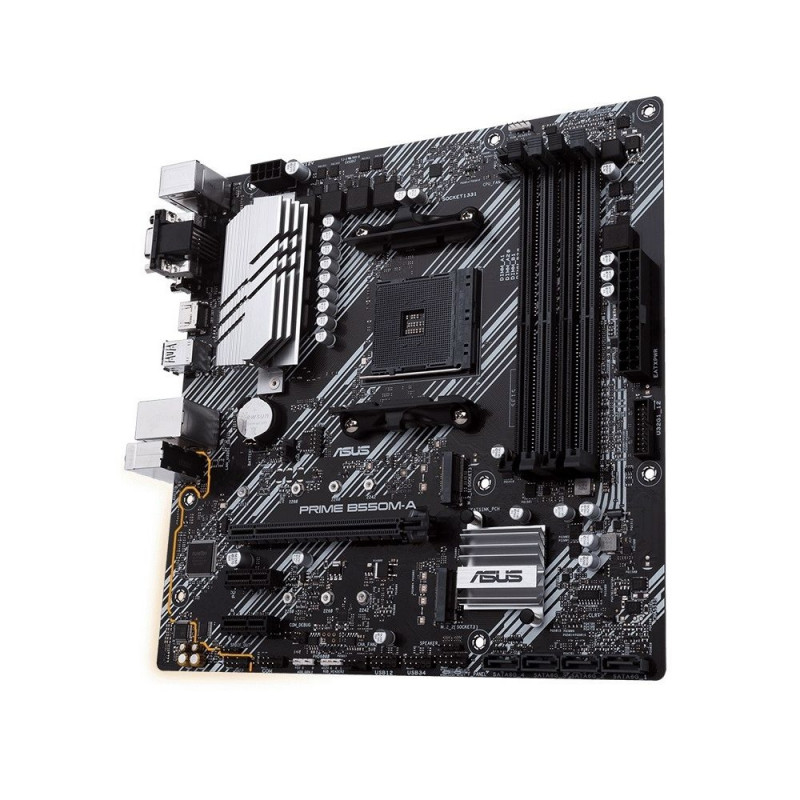

Asus mainboard Prime B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX

Addional discount of 5%
will be applied in shopping cart
(min. 10€ purchase)
126,99 €

Monthly payment starting from 4,33 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, 1GbE, HDMI/D-Sub/DVI, SATA 6Gb/s, USB 3.2 Gen 2 Type-A and connector support Aura Sync RGB

  • AMD AM4 Socket: Compatible with 3rd generation AMD Ryzen processors
  • Advanced cooling system: VRM heatsink, PCH heatsink and Fan Xpert 2+
  • Ultra-fast connections: dual M.2, PCIe 4.0, 1GbE, USB 3.2 Gen 2 Type-A
  • Aura Sync RGB: Integrated Gen 2 addressable header for RGB LED strips, easy sync with Aura Sync enabled devices

ASUS Prime Series motherboards are expertly engineered to unleash the full potential of 3rd Gen AMD Ryzen processors. With a solid power design, extensive cooling options, and smart tuning options, the Prime B550 Series motherboards provide daily PC users and builders with a host of customization options through intuitive software and firmware features.

Customize your system

A rich set of control options is the foundation of all ASUS Prime series motherboards. Prime B550 offers comprehensive tools to fine-tune every aspect of your system, allowing you to fine-tune the performance settings to perfectly suit the way you work - maximizing your productivity.

UEFI BIOS

The enhanced ASUS UEFI BIOS gives you everything you need to set up, customize and tune your system. It offers intelligently simplified options for people building a computer system for the first time, as well as advanced features for seasoned veterans.

Cooling to the core

Prime B550 series motherboards feature multiple integrated heatsinks and a set of hybrid fan headers to ensure your system stays cool and stable under heavy loads.

VRM heatsink and thermal pads

The VRM heatsink with the thermal pad underneath it increases the heat dissipation efficiency of the MOSFETs and chokes for better cooling performance.

Build the system on a solid foundation

Prime B550 offers all the essential features to accelerate your everyday productivity, keeping your system ready for action with consistent power, intuitive cooling controls, and flexible data transfer options.

PCIe 4.0 M.2 (Max 64Gbps)

Speed up with the built-in M.2 slot

The M.2 PCIe 4.0 slot is compatible with drives up to 22110 format and supports RAID configured with NVMe SSDs - for an amazing performance boost. RAID drives with up to PCIe 4.0 bandwidth to enjoy the fastest data transfer speeds on the 3rd Gen AMD Ryzen platform.

USB 3.2 Gen 2 Type-A

The availability of multiple USB sockets allows you to create a high-end system packed to the brim with various peripherals. These also include 2 USB Type-A ports on the rear panel along with fast connectivity via USB 3.2 Gen 2 when used with a compatible case.

Small details make a big difference

The Prime B550 series adds refined details that enhance the user experience in every aspect, from the exclusive codec that guarantees crystal-clear sound of the highest quality, to the intuitive RGB lighting control with which you can personalize your system and give it a unique character.

Perfect sound

All the integrated features together guarantee a great sound

Smart design and premium hardware components combine to deliver sound quality you've never experienced before.

Audio zone shielding

It separates the analog and digital signal zones, significantly reducing multilateral interference.

Separate zones for the left and right channels

They guarantee that crosstalk between audio paths will be minimal.

Premium grade capacitors made in Japan

The high-quality components used ensure intense timbre and exceptional sound fidelity.

Aura Sync Outshine the Competition

A perfectly tuned enthusiast system deserves an aesthetic to match. ASUS Aura gives you complete RGB lighting control with a range of practical presets to control the motherboard's integrated RGB LED lights, as well as strips and devices connected to the onboard RGB headers. All of this can be easily synchronized with Aura-enabled equipment, the range of which is constantly growing.

Gen 2 addressable RGB header

The Gen 2 Addressable RGB header can now detect the number of LEDs on Gen 2 addressable RGB devices, allowing the software to automatically match the lighting effects to the device's lighting. New the socket also offers backward compatibility with already available Aura RGB devices.

Armory Crate

Armory Crate is a new software utility designed to give you centralized control of your supported products through a single, intuitive interface. Armory Crate also allows you to control ASUS product settings, including keyboard and mouse settings. The software even offers a special product registration function and an overview of the latest developments and events, so you'll always be in touch with the ASUS community.


Model PRIME B550M-A
CPU socket Socket AM4
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD B550
Memory type DDR4
Number of DDR4 slots 4
Memory bus frequency 4200 MHz
Memory bus frequency 4266 MHz
Memory bus frequency 4333 MHz
Memory bus frequency 4400 MHz
Memory bus frequency 4600 MHz
Memory bus frequency 4133 MHz
Memory bus frequency 4000 MHz
Memory bus frequency 3866 MHz
Memory bus frequency 3600 MHz
Memory bus frequency 3733 MHz
Memory bus frequency 3466 MHz
Memory bus frequency 3400 MHz
Memory bus frequency 3333 MHz
Memory bus frequency 3200 MHz
Memory bus frequency 3000 MHz
Memory bus frequency 2933 MHz
Memory bus frequency 2800 MHz
Memory bus frequency 2133 MHz
Memory bus frequency 2400 MHz
Memory bus frequency 4800 MHz
Memory bus frequency 4466 MHz
Memory bus frequency 2666 MHz
Memory bus frequency 4866 MHz
Max memory size 128
Expansion slots 2 x PCIe 3.0 x 1
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 1 x PCIe 3.0 x 16
Max. number of SATA devices 4
RAID Yes
Graphics D-Sub DVI-D HDMI 2.1(4K@60HZ) *GPU specifications may vary by CPU type.
Network interface 1 x 10/100/1000 Mbit/s
Network interface Realtek RTL8111H 1Gb Ethernet
USB ports at back panel 6
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
FireWire (IEEE 1394) No
COM connector / port Yes
LPT connector / port No

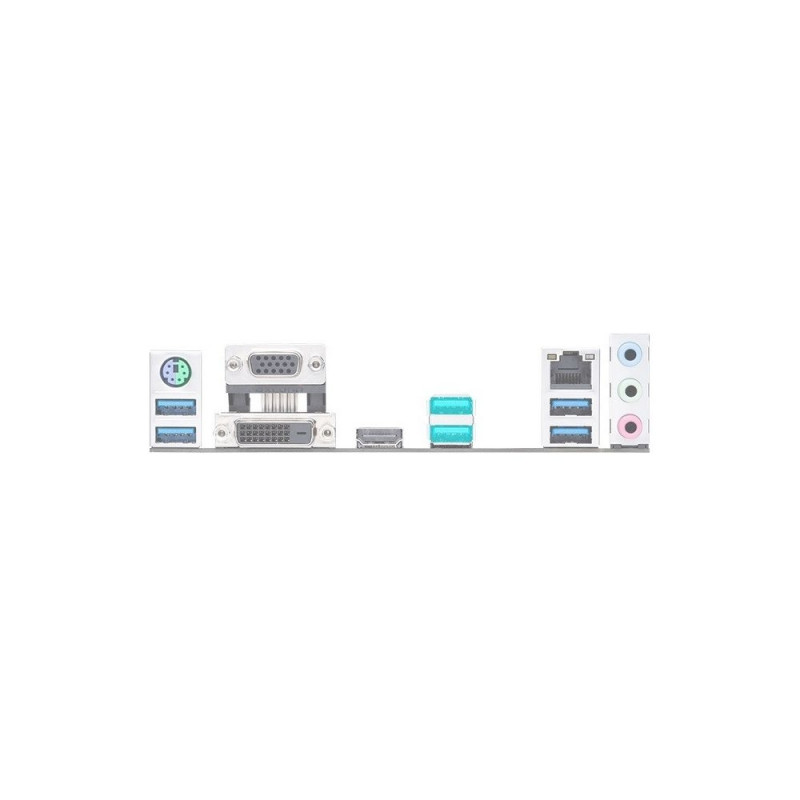

External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 4 x USB 3.0
External connectors 1 x DVI-D
External connectors 1 x HDMI
External connectors 1 x D-Sub
External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 2 x USB 3.1
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Clear CMOS jumper
Onboard connectors 1 x Serial port header
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 2 x 4pin Chassis fan
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 2 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 4 x USB 2.0/1.1
Onboard connectors 2 x USB 3.0 header
Onboard connectors 1 x S/PDIF Out header
Onboard connectors 1 x System panel header
Onboard connectors 1 x TPM header
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form factor micro ATX
Dimensions 24.4  x 24.4  cm
Accessories included 2 x Serial ATA 6.0Gb/s cables I/O cover DVD user manual M.2 SSD Screw Set
Supported operating systems Windows 10
Designation
Detailed data on disk/drive interfaces In total, it supports 2 M.2 slots and 4 SATA 6Gb/s slots AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 5000 G-Series/ 4000 G-
Sound card Realtek ALC887/897 7.1 Surround Sound High Definition Audio codec Operation: Jack-detection, plug-in detection, multiple streams, front panel jack reassignment Audio Options: Audio Shielding: Provides accurate analog/digital separation and greatly reduces
Special functions ASUS 5X PROTECTION III ASUS DIGI+ VRM ASUS LANGuard ASUS Overvoltage Protection ASUS SafeSlot Core ASUS Stainless-Steel Back I/O ASUS Q-Design ASUS Q-DIMM ASUS Q-Slot ASUS Thermal Solution Aluminum heatsink design AURA Sync Standard RGB headers Addressabl
Software ASUS Exclusive Software AI Suite 3: Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+: EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR Armoury Crate: Aura Creator Aura Sync

Dimensions and weights

Gross weight
0.99 kg
Package width
26.5 cm
Package height
27.5 cm
Package length
5.3 cm

Product codes

EAN
4718017755528
Manufacturer code
KBASUAA7B550U02
