ASRock mainboard A620M PRO RS WiFi AM5 4DDR5 HDMI/DP M.2 mATX

Main info

Product has been archived

A620M Pro RS WiFi

  • Supports AMD Socket AM5 Ryzen 7000 series processors
  • 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
  • DDR5 6000+MHz (OC)
  • 1 PCIe 4.0 x16
  • Graphics outputs: HDMI, DisplayPort
  • Realtek ALC897 7.1 channel HD audio codec
  • Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
  • 1 M.2 (PCIe Gen3x2)
  • 2 USB 3.2 Gen1 Type-C (1 rear, 1 front)
  • 5 USB 3.2 Gen1 Type-A (3 rear, 2 front)
  • Realtek Gigabit LAN
  • Wi-Fi 802.11ax 6E + Bluetooth
  • Supports ASRock Auto Driver Installer
  • BIOS flashback

Optimized VRM Design

Durable components and smooth power transfer to the processor translate into increased performance for gamers.

Reinforced Steel Slot [PCIe 4.0 Revision]

Reinforced steel slot along with next generation PCI Express 4.0 standard. List of benefits:

  • More soldering points
  • Stronger latch
  • It ensures the stability of signal transmission
  • It guarantees stable support for even the heaviest graphics cards

Nahimic Audio

Whether you use headphones, handsfree, external or internal speakers via USB, Wi-Fi, analog or HDMI output, Nahimic Audio offers the best sound experience, vivid and full of details.

Improved Communication Quality

Powerful algorithms for the best noise-free conversation, ensure a constant voice level regardless of the distance from the microphone. The Nahimic audio engine dynamically cleans the sound, removes noise and reduces voice variability. The result is better understanding and less fatigue.

  • Static Damping
  • Echo elimination
  • Side Sound Reduction
  • Voice stabilization

sound tracker

The Sound Tracker is a visual indicator that indicates the directions from which dominant sounds are coming. Every sound is properly positioned on the 360° radar for complete gaming immersion.

Works on all devices!

Enjoy vivid and high-quality surround sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favorite audio tools and gives you the best sound with all of them. Nahimic measures and refines to optimize our technology and deliver the best experience.

POLYCHROME RGB

In addition to the built-in RGB lighting, the board also has integrated regular and addressable RGB headers that allow you to connect compatible LED devices such as LED strips, CPU fans, fans, cases, etc. Users can synchronize RGB LED devices with Polychrome RGB Sync certified accessories, to create your own unique lighting style.

PCIe 4.0 High Speed M.2 solution

This motherboard is ready to accept multiple M.2 devices, including support for PCI Express 4.0 M.2 SSDs, ready to run at twice the speed of the previous 3rd generation, delivering blazing fast data transfer.

Wi-Fi 6E 802.11ax wireless network

WiFi 6E technology extends to the 6GHz frequency, providing more WiFi connectivity and faster Internet connectivity. In addition to higher bandwidths, WiFi 6E also means lower latency and services equivalent to 5G networks.

M.2 Key-E Module Cap

The SMA cable can easily come loose, this is unacceptable for any user. We fixed this problem with a small Key-E module cap.

Front USB 3.2 Gen1 Type-C

The front USB 3.2 Gen1 Type-C header enables data transfer speeds up to 5 Gbps, moreover, the next-generation reversible USB design is available on the front panel of the computer case.

EZ Settings

Automatic Driver Installation

You don't have to worry about missing drivers! The ASRock board comes with a pre-installed LAN driver, offering you a convenient option to install the rest of the drivers.

  • Step 1: Install Auto Driver Installer
  • Step 2: Update your drivers
  • Step 3: Done!

Flashback

Update BIOS with a simple click. Users can easily flash the latest BIOS with a USB flash drive and power adapter. No CPU, RAM or other components are needed.

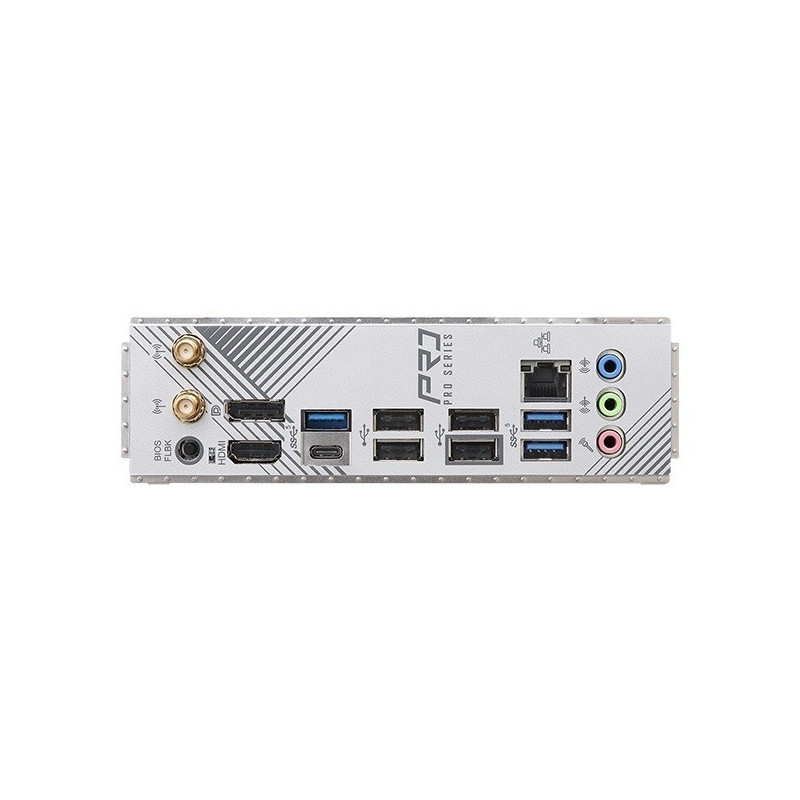

Factory Installed I/O Port Shield

ASRock strives to offer only cutting-edge technology with the most user-friendly design. The pre-installed I/O port cover ensures that the motherboard is precisely installed in the case, prevents any interference and speeds up the assembly process.


Model A620M PRO RS WIFI
CPU socket Socket AM5
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD A620
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 6000 MHz
Max memory size 128
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 1 x M.2
Max. number of SATA devices 4
RAID Yes
Graphics AMD RDNA 2 integrated graphics (Support may vary depending on CPU) HDMI 2.1 TMDS/FRL compatible Koy with 8G, supports HDR, HDCP 2.3 and up to 4K 120Hz macro resolution DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and up to 4K 120Hz resolution
Sound card 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface 1 x 10/100/1000 Mbit/s
USB ports at back panel 8
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x HDMI
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 4 x USB 2.0
External connectors 3 x USB 3.0
External connectors 1 x USB 3.1 Type-C
External connectors 2 x SMA
External connectors 1 x Flash BIOS Button
External connectors 1 x DisplayPort
External connectors 1 x Line In
Onboard connectors 1 x Power LED and Speaker Header
Onboard connectors 3 x Addressable LED
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 3 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 4 x USB 2.0/1.1
Onboard connectors 2 x USB 3.0 header
Onboard connectors 1 x USB C
Onboard connectors 1 x TPM header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x RGB LED strip header
Special functions Incredible Productivity Dual Channel DDR5 Solid as a Rock 6+2+1 Power Phase, 50A Dr.MOS Pre-Installed I/O Port Cover Ultrafast Connectivity 802.11ax Wi-Fi 6EModule EZ Updates   BIOS Flashback Button Automatic ASRock Driver Installer   EZ Troubleshooter
BIOS 256Mb AMI UEFI Legal BIOS z obsługą GUI
Form factor micro ATX
Dimensions 24.4 x 24.4 cm
Supported operating systems Windows 11
Supported operating systems Windows 10
Software Software: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock XFast LAN UEFI: ASRock Full HD UEFI ASRock Automatic Driver Installer ASRock Instant Flash
Designation
Detailed data on disk/drive interfaces CPU: 1 x Hyper M.2 slot (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)* 1 x Hyper M.2 slot (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)* Chipset: 1 x M.2 slot (M2_3, Key M), supports 2260/2280 mode PCIe Gen3x2 (16Gbps)* 4 SATA3
Network interface LAN: Gigabit LAN 10/100/1000Mbps Realtek 8111H Wireless communication: 802.11ax Wi-Fi 6E module IEEE 802.11a/b/g/n/ac/ax Dual-Band 2x2 support with extended support for the 6GHz band 2 antennas supporting Diversity Technology 2 (transmit) x 2 (receive) Su

Dimensions and weights

Gross weight
1.17 kg
Package width
28 cm
Package height
26 cm
Package length
6 cm

Product codes

EAN
4710483943065
Manufacturer code
KBASRAA8A620U01
