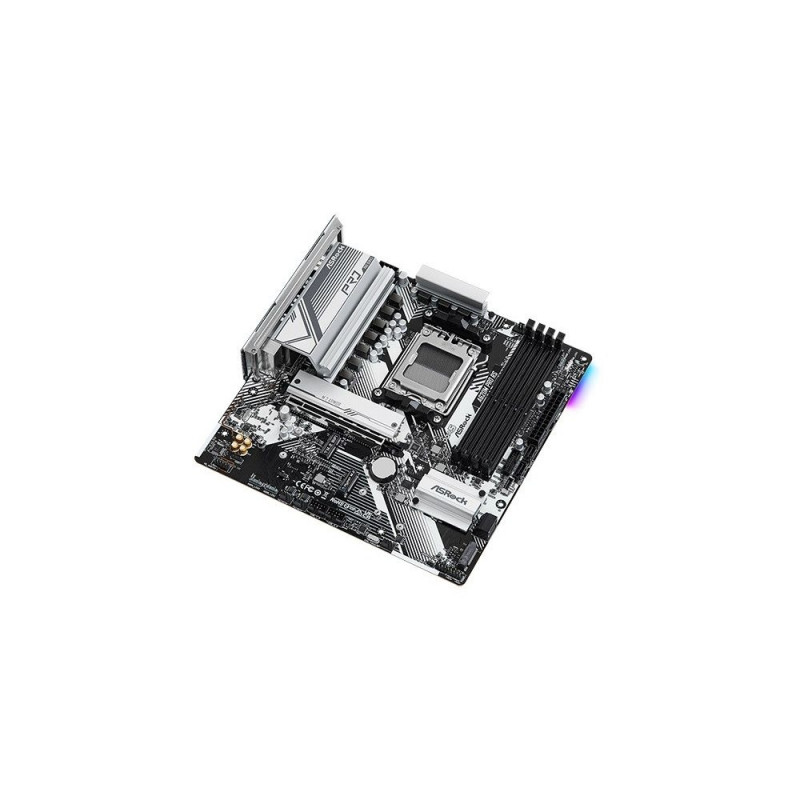

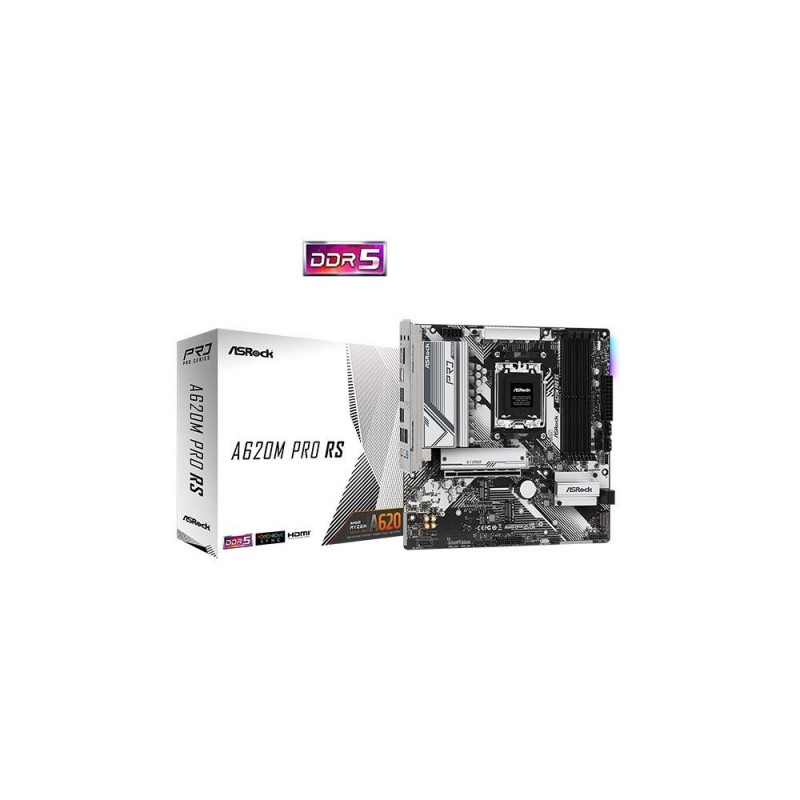

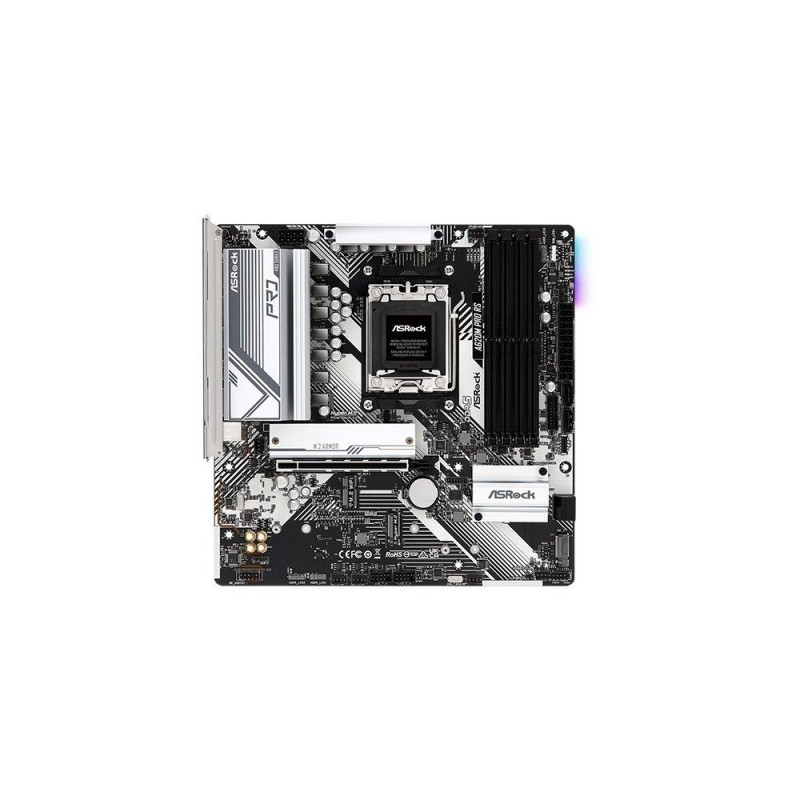

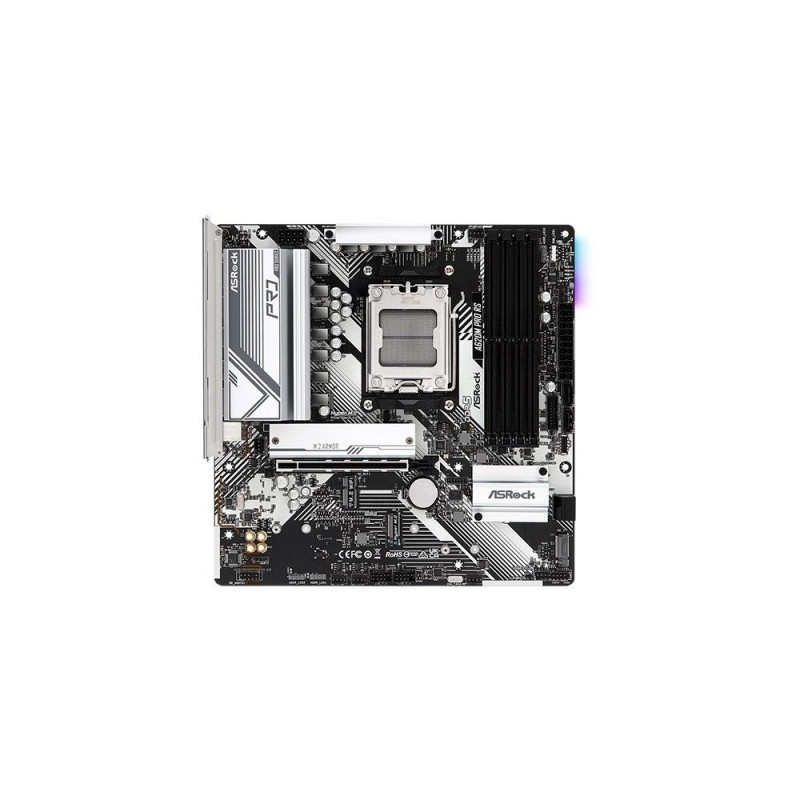

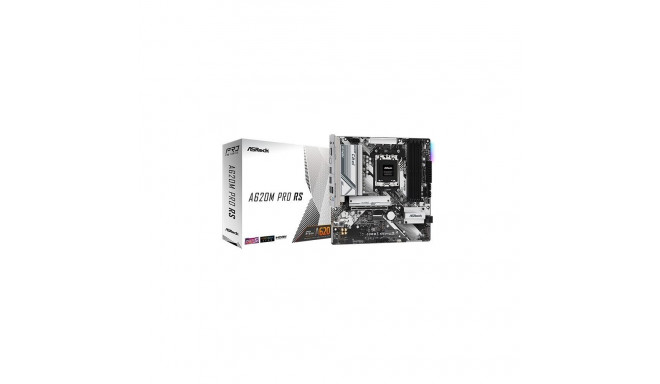

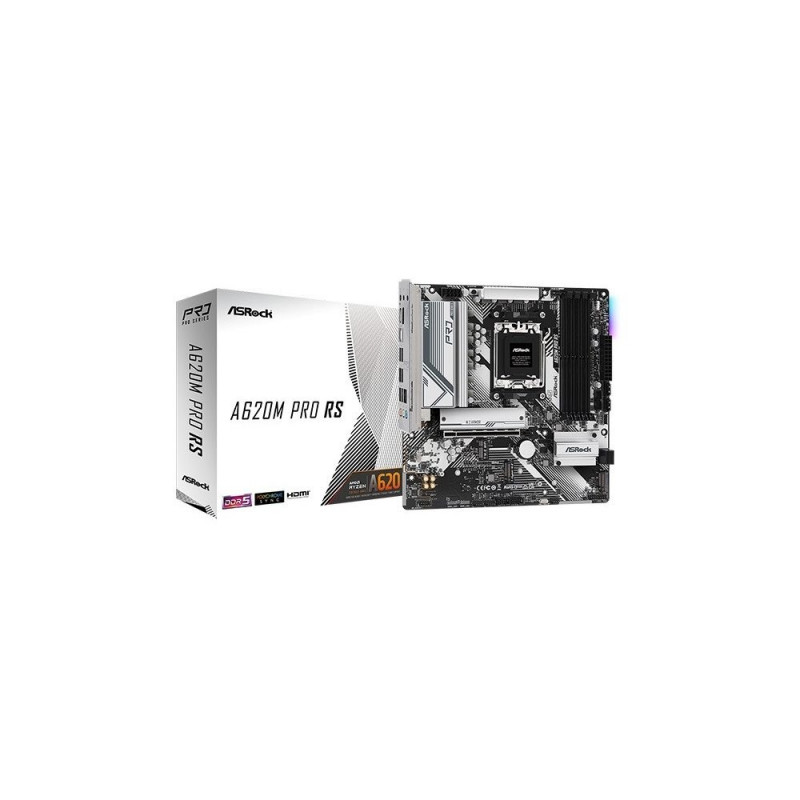

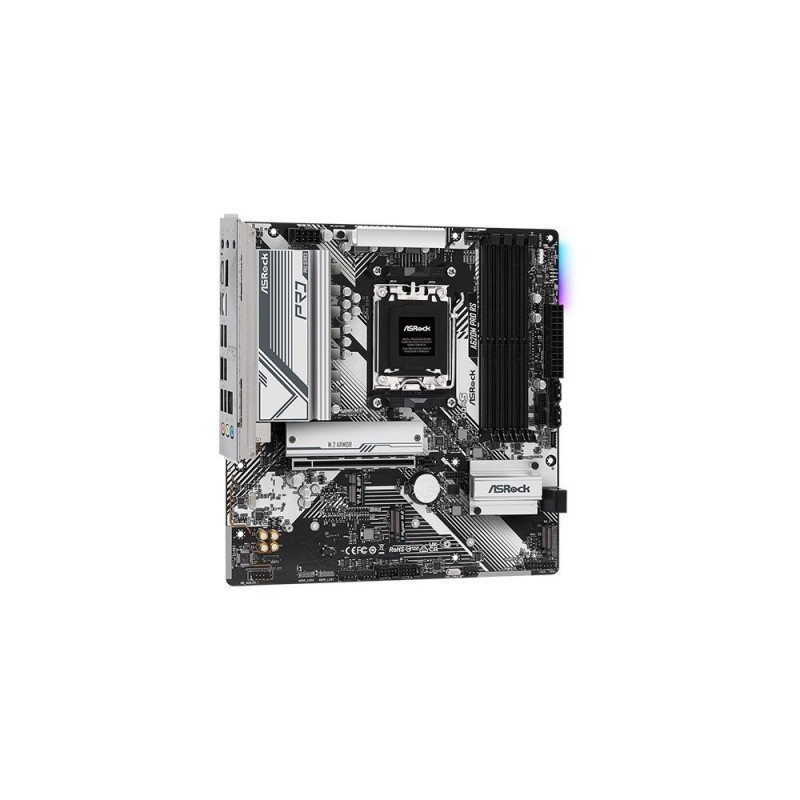

ASRock mainboard A620M PRO RS AM5 4DDR5 HDMI/DP M.2 mATX

106,99 €

Monthly payment starting from 3,20 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

A620M Pro RS

  • Supports AMD Socket AM5 Ryzen 7000 series processors
  • 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
  • Supports DDR5 6000+ MHz (OC)
  • 1 PCIe 4.0 x16, M.2 Key E for Wi-Fi
  • Graphics inputs: HDMI, DisplayPort
  • Realtek ALC897 7.1-channel HD audio codec
  • Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
  • 1 M.2 (PCIe Gen3x2)
  • 2 USB 3.2 Gen1 Type-C ports (1 rear, 1 front)
  • 5 USB 3.2 Gen1 Type-A ports (3 rear, 2 front)
  • Realtek Gigabit LAN
  • Supports ASRock Automatic Driver Installer
  • BIOS Flashback

Optimised VRM Design

Robust components and smooth power transfer to the CPU translate into enhanced performance for gamers.

Reinforced Steel Slot [PCIe 4.0 Version].

Reinforced steel slot along with the next generation PCI Express 4.0 standard. List of benefits:

  • More solder points
  • Stronger latch
  • Ensures stable signal transmission
  • Guarantees stable support for even the heaviest graphics cards

Audio That Matters

Whether you are using headphones, hands-free, external or internal speakers via USB, Wi-Fi, analogue output or HDMI, Nahimic Audio offers the best audio experience, vivid and full of detail.

Improved Communication Quality

Powerful algorithms for the best noise-free conversation, ensuring consistent voice levels regardless of the distance from the microphone. The Nahimic audio engine dynamically cleans the sound, removes noise and reduces voice variability. The result is better understanding and less fatigue.

  • Static suppression
  • Echo cancellation
  • Side sound reduction
  • Voice stabilisation

Sound Tracker

Sound Tracker is a visual indicator that shows the directions from which the dominant sounds are coming. Each sound is appropriately positioned on a 360° radar to ensure full immersion in the game.

Works on all devices!

Enjoy vivid and high quality surround sound on all your favourite audio devices: jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favourite audio tools and provides the best sound with each of them. Nahimic measures and improves to optimise our technology and provide the best experience.

POLYCHROMATIC RGB

In addition to the built-in RGB backlighting, the board also features integrated, regular and addressable RGB headers that allow compatible LED devices such as LED strips, CPU fans, fans, cases, etc. to be connected. Users can synchronise RGB LED devices with the certified Polychrome RGB Sync accessories to create their own unique backlighting style.

PCIe 4.0 High Speed M.2 solution

This motherboard is ready to accept a range of M.2 devices, including support for PCI Express 4.0 M.2 SSDs, ready to operate at twice the speed of the previous 3rd generation, delivering lightning fast data transfer rates.

Front USB 3.2 Gen1 Type-C

The USB 3.2 Gen1 Type-C front header enables data transfer speeds of up to 5 Gbps, what's more, the new generation reversible USB design is available on the front panel of the computer case.

Automatic Driver Installation

No need to worry about missing drivers! ASRock board comes with LAN driver pre-installed, offering you a convenient option to install the remaining drivers.

  • Step 1: Install Auto Driver Installer
  • Step 2: Update your drivers
  • Step 3: Done!

BIOS Flashback

Update the BIOS with a simple click. Users can easily upload the latest BIOS with a USB stick and power supply. No processor, RAM or other components are needed for this.

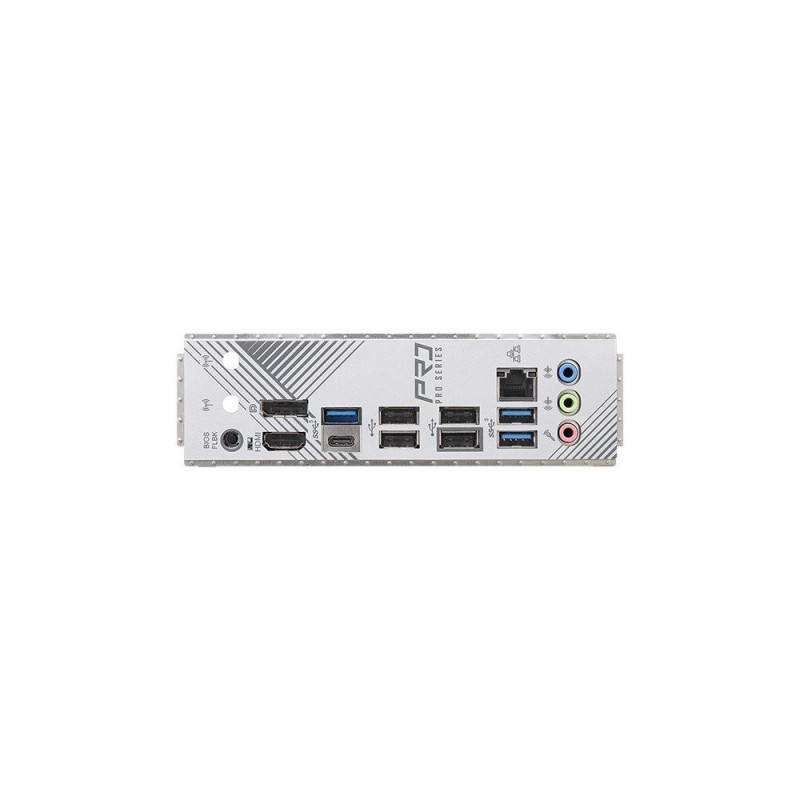

Pre-installed I/O Shield

ASRock strives to offer only the latest technology with the most user-friendly design. The pre-installed I/O port cover makes the motherboard precisely installed in the case, prevents any interference and speeds up the installation process.


Model A620M PRO RS
CPU socket Socket AM5
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD A620
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 6000 MHz
Max memory size 128
Expansion slots 1 x M.2
Expansion slots 1 x PCIe 4.0 x 16
Max. number of SATA devices 4
RAID Yes
Graphics AMD RDNA 2 Integrated Graphics (Support may vary by CPU) HDMI 2.1 TMDS/FRL compatible with 8G, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Sound card 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface 1 x 10/100/1000 Mbit/s
Network interface Gigabit LAN 10/100/1000Mbps Realtek 8111H
USB ports at back panel 8
USB ports on motherboard 7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x DisplayPort
External connectors 4 x USB 2.0
External connectors 1 x HDMI
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 1 x USB 3.1 Type-C
External connectors 1 x Flash BIOS Button
External connectors 3 x USB 3.0
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 3 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 4 x USB 2.0/1.1
Onboard connectors 2 x USB 3.0 header
Onboard connectors 1 x USB C
Onboard connectors 1 x TPM header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x RGB LED strip header
Onboard connectors 1 x Power LED and Speaker Header
Onboard connectors 3 x Addressable LED
Special functions Incredible Productivity Dual Channel DDR5 Solid as Rock 6+2+1 Power Phase, 50A Dr.MOS Pre-Installed I/O Shield EZ Upgrades BIOS Flashback Button ASRock Auto Driver Installer EZ Troubleshooter ASRock Post Status Checker
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Form factor micro ATX
Dimensions 24.4 x 24.4 cm
Accessories included User manual 2 x SATA data cable 4 x Screws for M.2 slots Spacer for M.2 slot
Supported operating systems Windows 10
Supported operating systems Windows 11
Software Software: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock XFast LAN UEFI: ASRock Full HD UEFI Automatic ASRock Driver Installer ASRock Instant Flash
Detailed data on disk/drive interfaces Processor: 1 x Hyper M.2 slot (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)* 1 x Hyper M.2 slot (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)* chipset: 1 x M.2 slot (M2_3, Key M), supports 2260/2280 mode PCIe Gen3x2 (16Gbps)* 4

Dimensions and weights

Gross weight
1.2 kg
Package width
28 cm
Package height
26 cm
Package length
6 cm

Product codes

EAN
4710483943072
Manufacturer code
KBASRAA8A620U02
