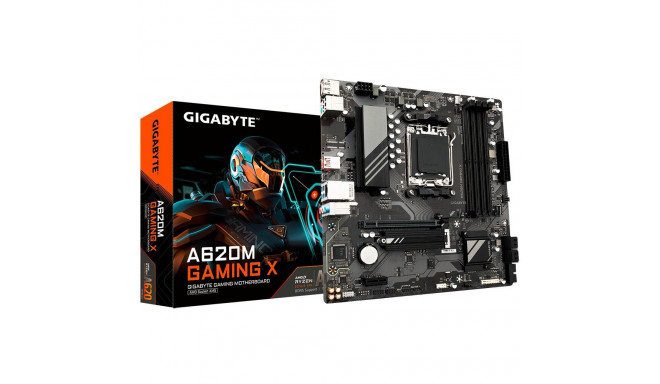

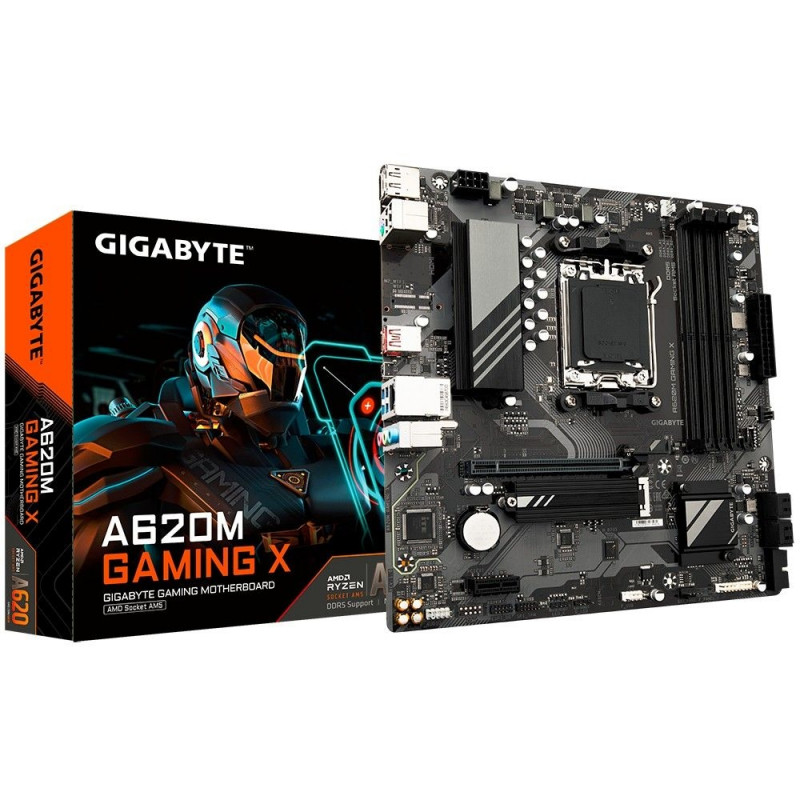

Gigabyte mainboard A620M Gaming X AM5 4DDR5 HDMI/DP M.2 mATX

114,99 €

Monthly payment starting from 3,44 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

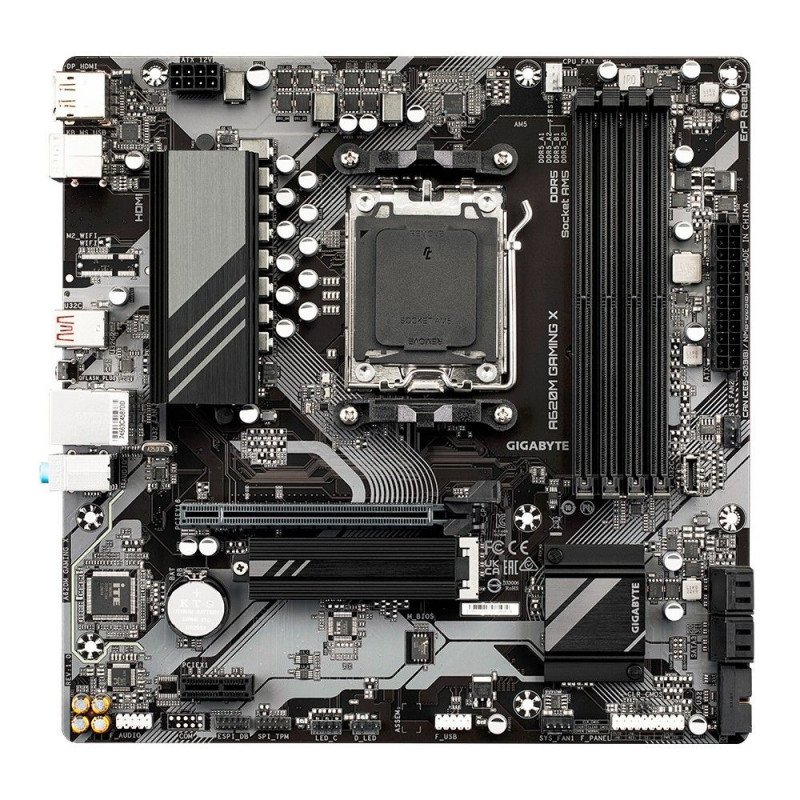

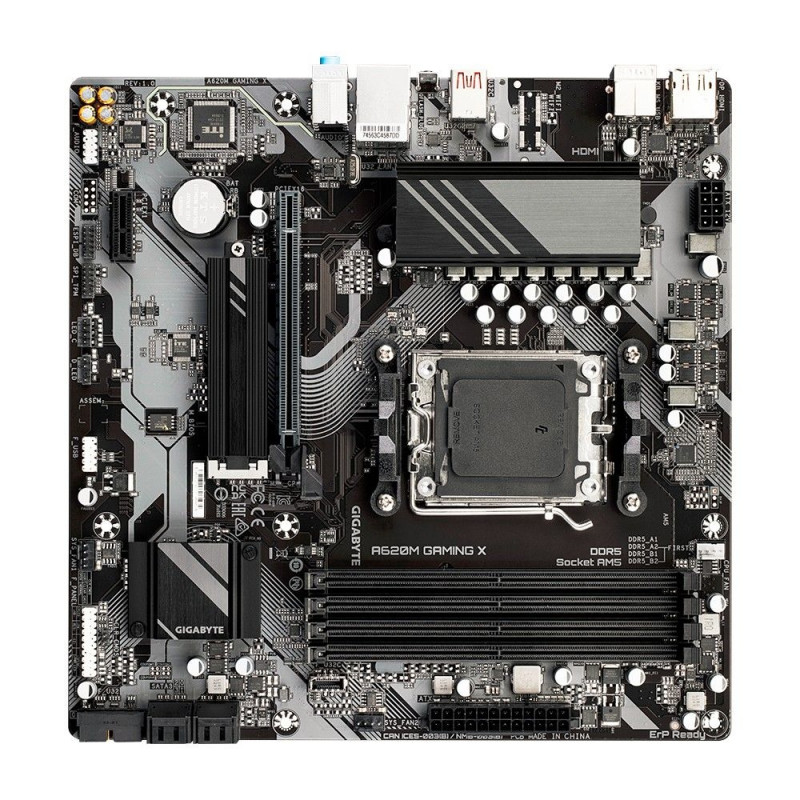

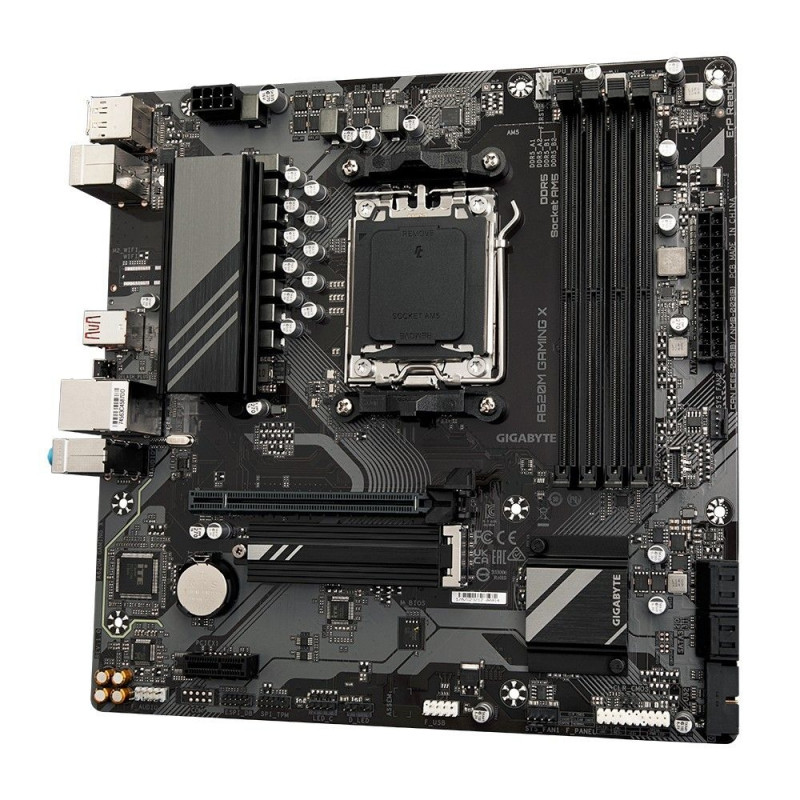

Motherboard A620M GAMING X (rev. 1.0)

  • AMD AM5 socket: Supports AMD Ryzen 7000 series processors
  • Unparalleled performance: 8+2+1 phases Digital VRM solution
  • Dual Channel DDR5:4*SMD DIMM with support for AMD EXPO and Intel XMP memory modules
  • Super-fast storage: PCIe 4.0 x4 M.2 slot
  • Advanced thermal design and M.2 heat shield: to ensure VRM power stability and M.2 SSD performance
  • PCIe x16 EZ latch with quick release and screwless design
  • Fast network: GbE LAN
  • Extended connectivity: DP, HDMI
  • Smart Fan 6: includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
  • Q-Flash Plus: BIOS update without installing a CPU, memory or graphics card

Model A620M GAMING X
CPU socket Socket AM5
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD A620
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 5200 MHz
Memory bus frequency 4400 MHz
Memory bus frequency 4800 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 6000 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 6400 MHz
Max memory size 192
Expansion slots 1 x PCIe 3.0 x 1
Expansion slots 1 x PCIe 4.0 x 16
Max. number of SATA devices 4
RAID Yes
Detailed data on disk/drive interfaces CPU: 1 x M.2 (Slot 3, Key M, support 2580 PCIe 4.0 x4/x2 SSD) Chipset: 4 x SATA 6Gb/s
Sound card Realtek audio codec Support for High Definition Audio Audio channels 2/4/5.1/7.1.
Network interface 1 x 10/100/1000 Mbit/s
Network interface Realtek GbE LAN chip (1 Gbps/100 Mbps)
USB ports at back panel 6
USB ports on motherboard 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 3
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No

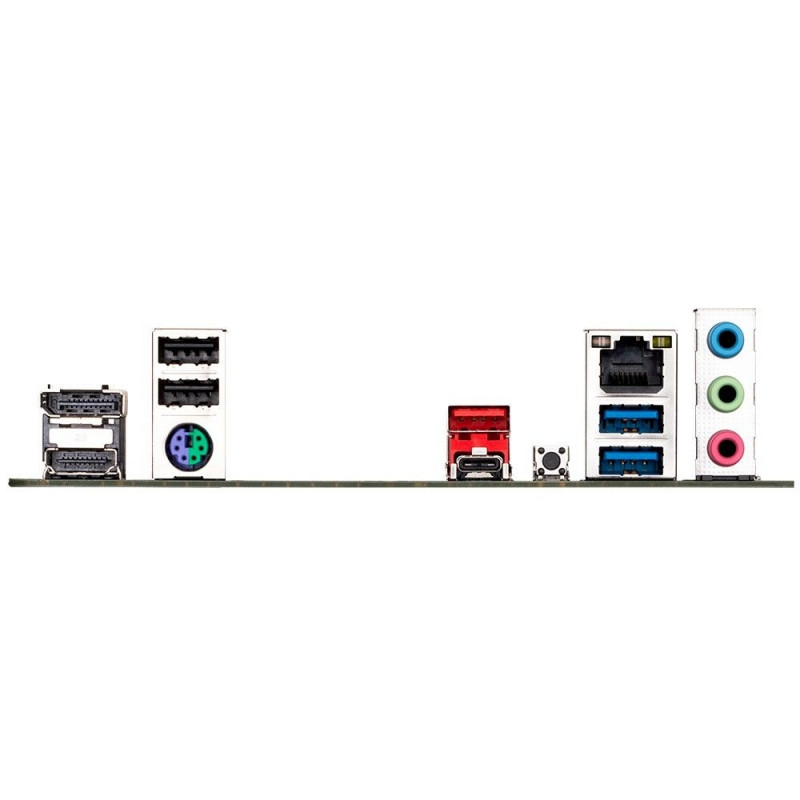

External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 1 x HDMI
External connectors 1 x DisplayPort
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 2 x USB 2.0
External connectors 2 x USB 3.0
External connectors 1 x USB 3.1
External connectors 1 x USB 3.1 Type-C
External connectors 1 x Q-Flash Plus button
Onboard connectors 1 x Addressable LED
Onboard connectors 1 x RGB LED strip header
Onboard connectors 1 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Clear CMOS button
Onboard connectors 1 x TPM header
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.0 header
Onboard connectors 1 x USB C
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 1 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 2 x 4pin Chassis fan
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 4pin CPU fan
Special functions GIGABYTE Control Center (GCC) support Support for Q-Flash Support for Q-Flash Plus
BIOS 1 x 256 Mbit flash Uses AMI UEFI BIOS license PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor micro ATX
Dimensions 24.4 x 17.4 cm
Supported operating systems Windows 11
Supported operating systems Windows 10
Software Norton Internet Security (OEM version) LAN bandwidth management software
Graphics DisplayPort port, supporting a maximum resolution of 3840x2160 @ 144 Hz - Support for DisplayPort version 1.4. HDMI port supporting a maximum resolution of 4096x2160 @ 60 Hz - Support for HDMI 2.1 and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible

Dimensions and weights

Gross weight
0.99 kg
Package width
26.5 cm
Package height
27 cm
Package length
5.5 cm

Product codes

EAN
4719331854096
Manufacturer code
KBGBAAA8A620U01
