MSI graphics card B760 Gaming Plus WiFi s1700 4DDR5 DP/HDMI ATX

Main info

Product has been archived

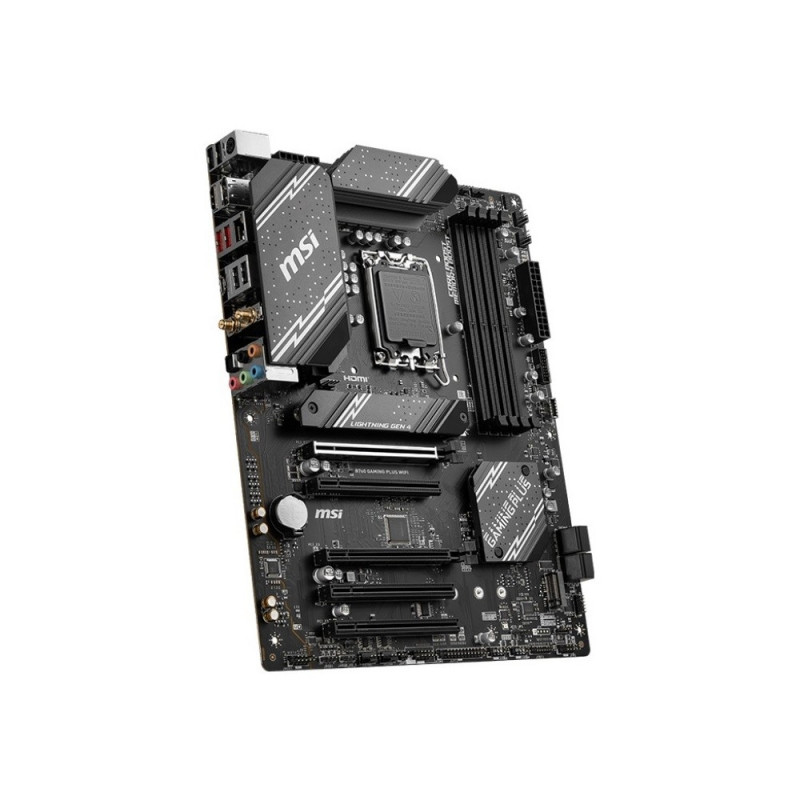

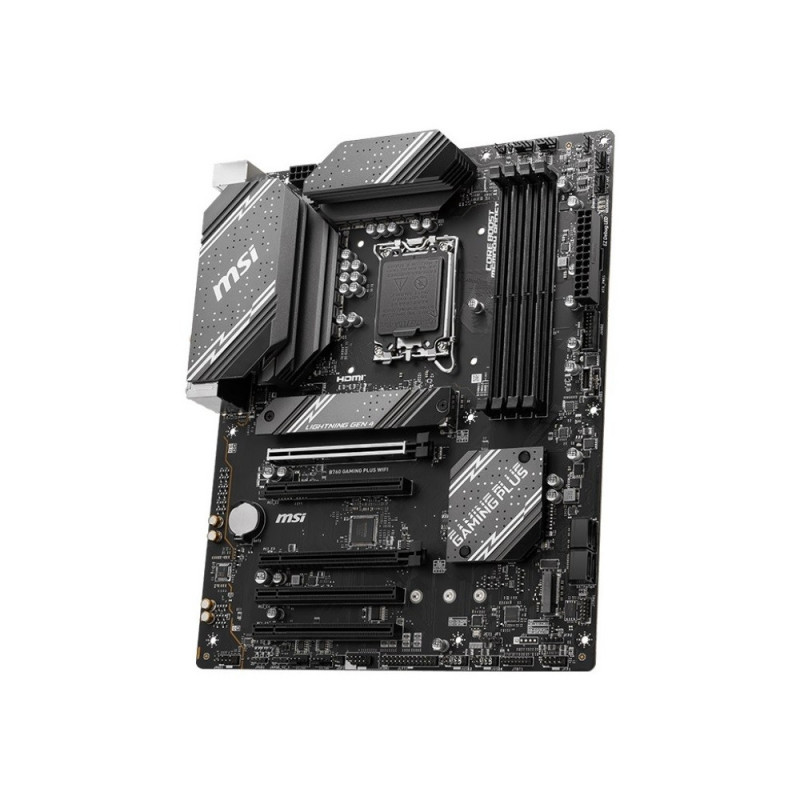

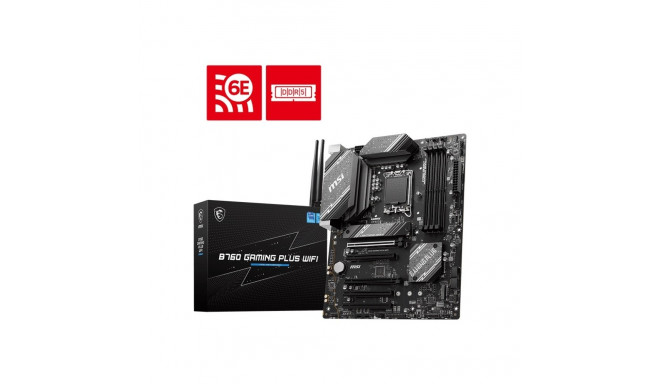

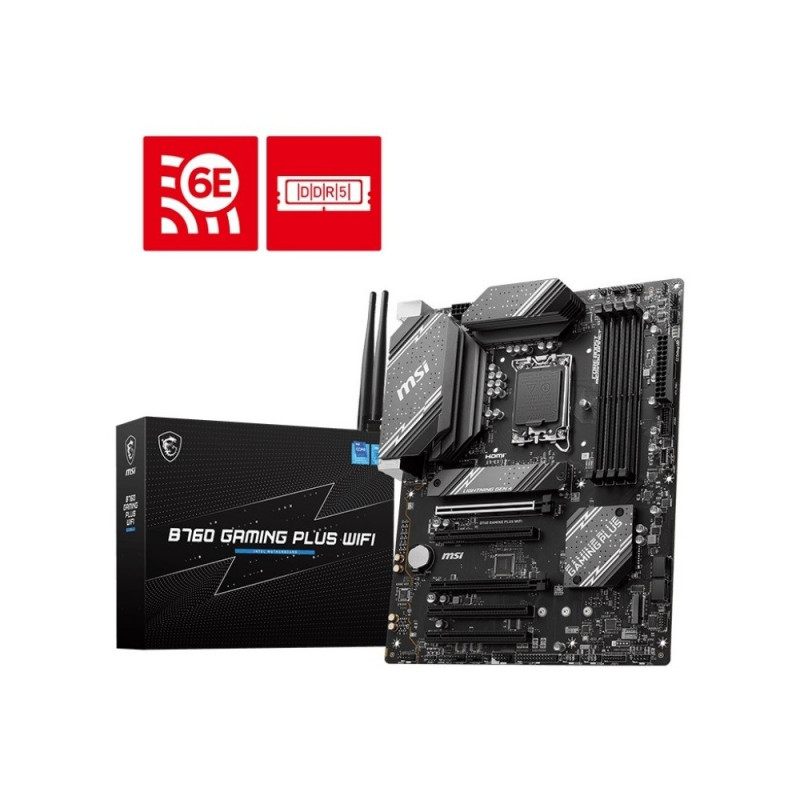

B760 GAMING PLUS WIFI motherboard

  • Supports 12th/13th Intel Core processors generation, Pentium Gold and Celeron for LGA 1700 socket
  • Supports DDR5 memory, dual channel DDR5 6800+MHz (OC)
  • Improved power design: 12+1 Duet Rail power system with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium thermal solution: extended heatsink, MOSFET thermal pads rated at 7W/mK, secondary choke thermal pads are built for high system performance and uninterrupted gameplay
  • Lightning-fast gaming: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
  • 2.5G LAN with Wi-Fi 6E solution: Enhanced networking solution for professional and multimedia use. It provides a secure, stable and fast network connection
  • High-quality PCB: 6-layer PCB made of thickened 2oz copper
  • Audio Enhancement: Reward your ears with studio-quality sound for the most immersive gaming experience

Model B760 GAMING PLUS WIFI
CPU socket LGA1700
Processor family Intel Core
Integrated CPU No
Chipset manufacturer Intel
Chipset type Intel B760
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 6000 MHz
Memory bus frequency 5800 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 5000 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 5400 MHz
Memory bus frequency 6800 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 4800 MHz
Max memory size 192
Expansion slots 3 x PCIe 3.0 x 1
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 1 x PCIe 4.0 x 4
Max. number of SATA devices 4
RAID Yes
Graphics 1 x HDMI Support HDMI 2.1 with HDR, max resolution 4K 60Hz 1x DisplayPort Support DP 1.4, max resolution 4K 60Hz
Sound card Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface Bluetooth
Network interface Intel WiFi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3, FIPS, FISMA
USB ports at back panel 6
USB ports on motherboard 14
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 3
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No

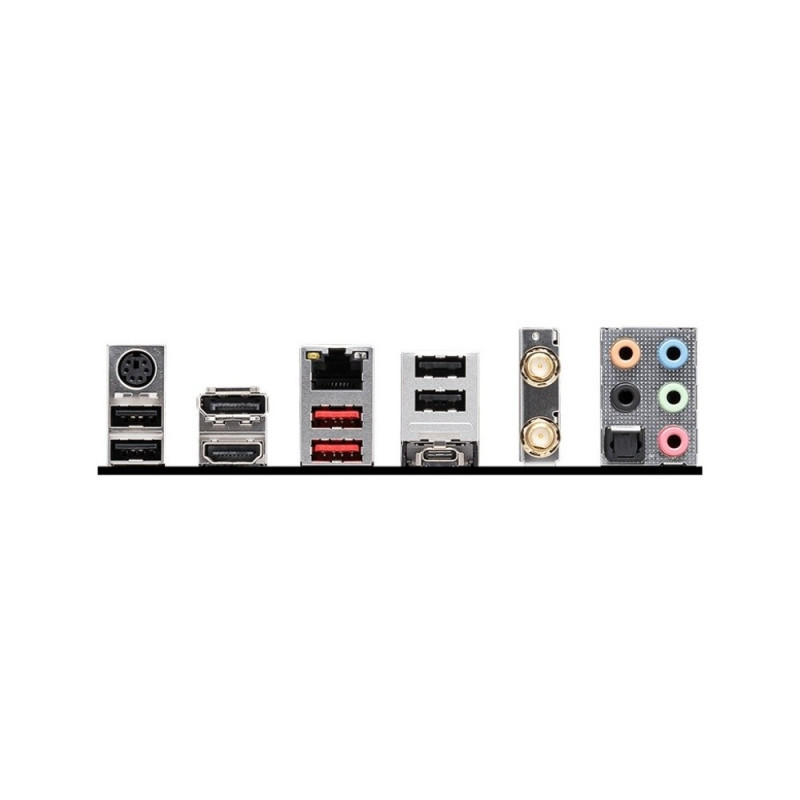

External connectors 2 x USB 3.1
External connectors 1 x HDMI
External connectors 1 x Central Speaker / Subwoofer
External connectors 1 x Rear Speaker
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 1 x S/PDIF
External connectors 4 x USB 2.0
External connectors 1 x USB 3.1 Type-C
External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 1 x DisplayPort
External connectors 2 x SMA
Onboard connectors 1 x Chassis intrusion header
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 4 x USB 2.0/1.1
Onboard connectors 2 x USB 3.0 header
Onboard connectors 1 x USB C
Onboard connectors 1 x Serial port header
Onboard connectors 2 x System panel header
Onboard connectors 1 x TPM header
Form factor ATX
Dimensions 243.84 x 304.8 mm
Supported operating systems Windows 10
Supported operating systems Windows 11
Designation
Detailed data on disk/drive interfaces 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4xSATA 6G * SATA8 will be unavailable when installing M.2

Dimensions and weights

Gross weight
1.45 kg
Package width
27 cm
Package height
35 cm
Package length
6.5 cm

Product codes

EAN
4711377086561
Manufacturer code
KBMSIIIEB760A04
