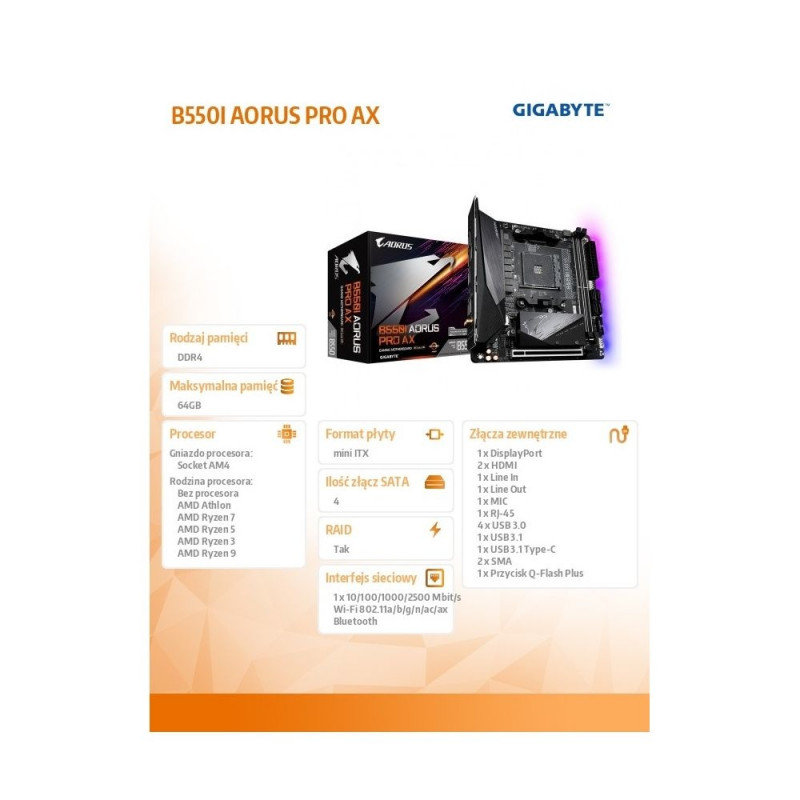

B550I AORUS PRO AX AM4 2DDR4 HDMI/DP mITX

Main info

Product has been archived

AMD B550 Mini-ITX AORUS motherboard with direct 8-phase digital VRM, advanced thermal design with extended VRM heatsink, thermal backplane, dual PCIe 4.0/3.0 M.2 slots with thermal shield, Intel WiFi 6 802.11ax, 2, 5 GbE LAN, RGB FUSION 2.0, Q-Flash Plus

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series processors
  • Dual-channel ECC/non-ECC unbuffered DDR4 memory, 2 DIMMs
  • Direct 8-phase digital VRM solution with 90A Smart Power Stage (SPS)
  • Advanced thermal design with extended and multi-layer heat sink and thermal base plate
  • x16 slot ready for Ultra Durable PCIe 4.0
  • Two ultra-fast NVMe PCIe 4.0/3.0 x4 M.2 with thermal shield
  • Built-in Intel WiFi 6 802.11ax 2T2R and BT5 with AORUS antenna
  • AMP-UP Audio with ALC1220-VB and Nichicon audio capacitors for rear 120dB SNR
  • Blazing fast 2.5GbE LAN with bandwidth management
  • USB 3.2 Gen2 Type-C and DisplayPort + Dual HDMI support
  • RGB FUSION 2.0 supports addressable LED and RGB LED strips
  • Smart Fan 5 includes multiple temperature sensors, hybrid fan headers with FAN STOP and noise detection
  • Q-Flash Plus Update BIOS without installing CPU, memory and graphics card
  • Pre-installed IO shield for easy and quick installation

Model B550I AORUS PRO AX
CPU socket Socket AM4
Processor family AMD Ryzen 5
Processor family AMD Ryzen 7
Processor family AMD Ryzen 9
Processor family AMD Athlon
Processor family AMD Ryzen 3
Processor family Non-CPU
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD B550
Memory type DDR4
Number of DDR4 slots 2
Memory bus frequency 3733 MHz
Memory bus frequency 3200 MHz
Memory bus frequency 3400 MHz
Memory bus frequency 2933 MHz
Memory bus frequency 3866 MHz
Memory bus frequency 4000 MHz
Memory bus frequency 4133 MHz
Memory bus frequency 4266 MHz
Memory bus frequency 4400 MHz
Memory bus frequency 4600 MHz
Memory bus frequency 4800 MHz
Memory bus frequency 3466 MHz
Memory bus frequency 3600 MHz
Memory bus frequency 2667 MHz
Memory bus frequency 2400 MHz
Memory bus frequency 2133 MHz
Memory bus frequency 5100 MHz
Memory bus frequency 5200 MHz
Max memory size 64
Expansion slots 1 x PCIe x 16
Expansion slots 2 x M.2
Max. number of SATA devices 4
RAID Yes
Sound card Realtek ALC1220-VB codec * The rear panel line out jack supports DSD audio. High resolution audio support 2/4/5.1/7.1 - channel sound card (to configure 7.1 audio channels, use the front panel audio connector and set the quality in the sound manager)
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface Bluetooth
USB ports at back panel 6
USB ports on motherboard 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 2
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x RJ-45
External connectors 4 x USB 3.0
External connectors 1 x USB 3.1
External connectors 1 x USB 3.1 Type-C
External connectors 2 x SMA
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 2 x HDMI
External connectors 1 x Line In
External connectors 1 x DisplayPort
External connectors 1 x Q-Flash Plus button
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 1 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.0 header
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 2 x M.2
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 2 x 4pin Chassis fan
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x TPM header
Onboard connectors 1 x Clear CMOS jumper
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor mini ITX
Dimensions 17 x 17 cm
Supported operating systems Windows 10
Supported operating systems Windows 11
Software Norton Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek 8125 Gaming LAN Bandwidth Control Utility
Other information Voltage detection Temperature detection Fan speed detection Overheating warning Fan failure warning Fan speed control *Whether fan speed control is supported depends on the installed cooler.
Designation
Detailed data on disk/drive interfaces 1 x PCI Express x16 slot, integrated in the CPU AMD Ryzen 5000 Series and Ryzen 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen Ryzen 5000 G-Series and Ryzen 4000 G-Series Processors support PCIe 3.0 x16 mode 1 x M.2 connector (M2A_CPU), integr
Graphics 1 x DisplayPort, supporting a maximum resolution of 5120x2880 at 60 Hz * Support for DisplayPort 1.4, HDCP 2.3 and HDR versions. 2 HDMI ports supporting a maximum resolution of 4096x2160 at 60 Hz * Support HDMI 2.1, HDCP 2.3 and HDR versions. Support for
Network interface Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Intel Wi-Fi 6 AX200. WIFI a, b, g, n, ac with wave 2, ax functions, dual-band 2.4/5 GHz support BLUETOOTH 5 Supports 11ax 160 MHz wireless standard and data rates up to 2.4 Gbps * Actual data transfer rat
Special functions Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS support EasyTune FastBoot GameBoost ON/OFF Charge support RGB

Dimensions and weights

Gross weight
1.24 kg
Package width
27 cm
Package height
23.7 cm
Package length
1 cm

Product codes

EAN
4719331809508
Manufacturer code
KBGBAAA7B550M01
