Home page » Computers & IT»Computer components»Mainboards»Gigabyte mainboard A620M DS3H AM5 4DDR5 HDMI/DP M.2 mATX

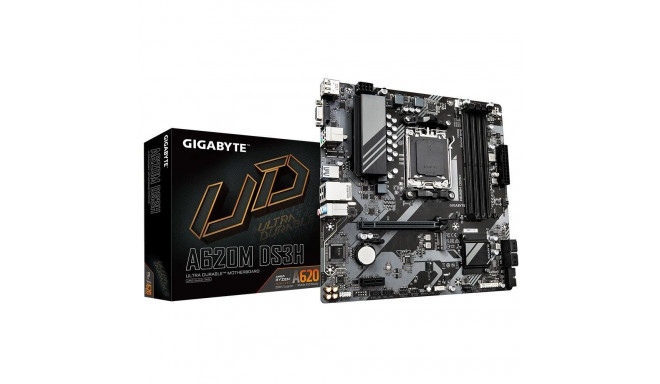

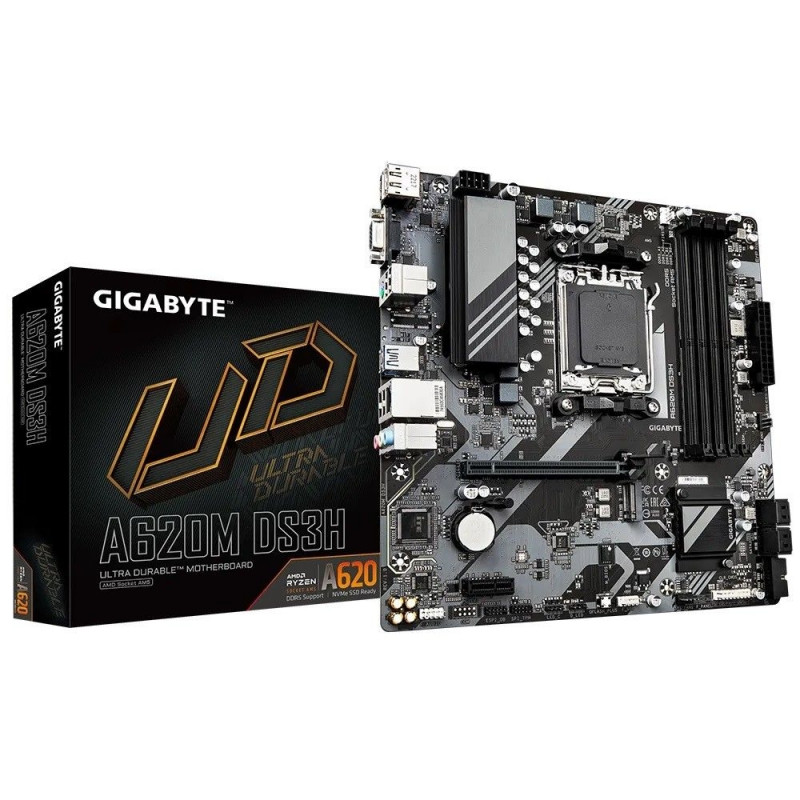

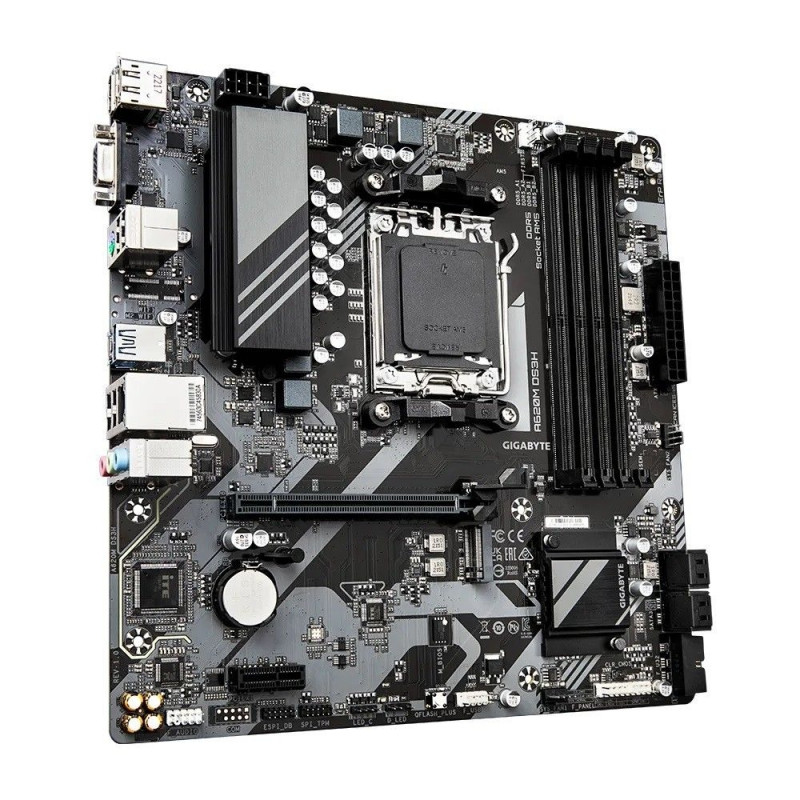

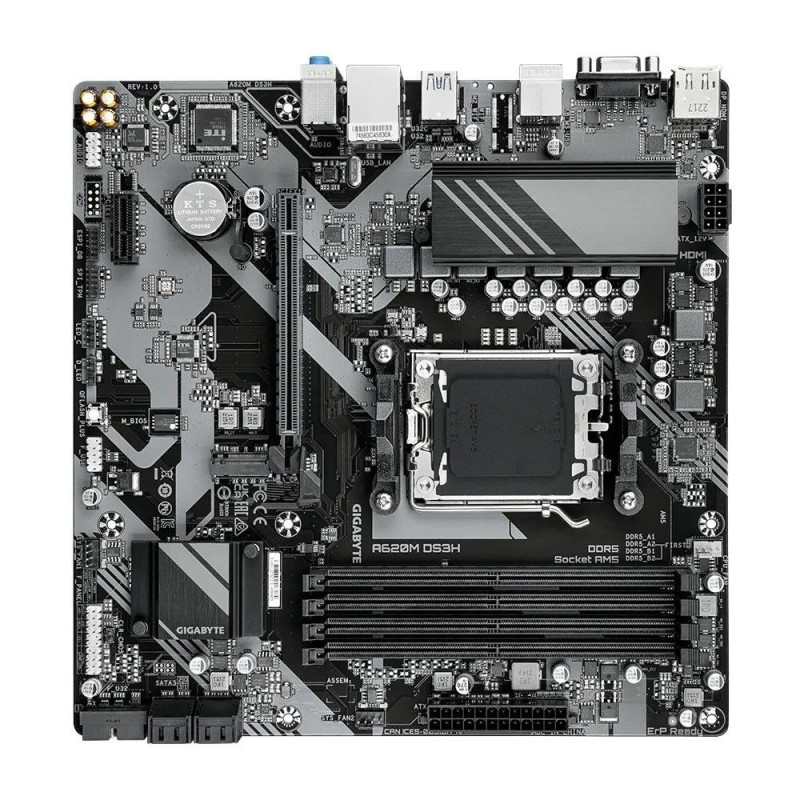

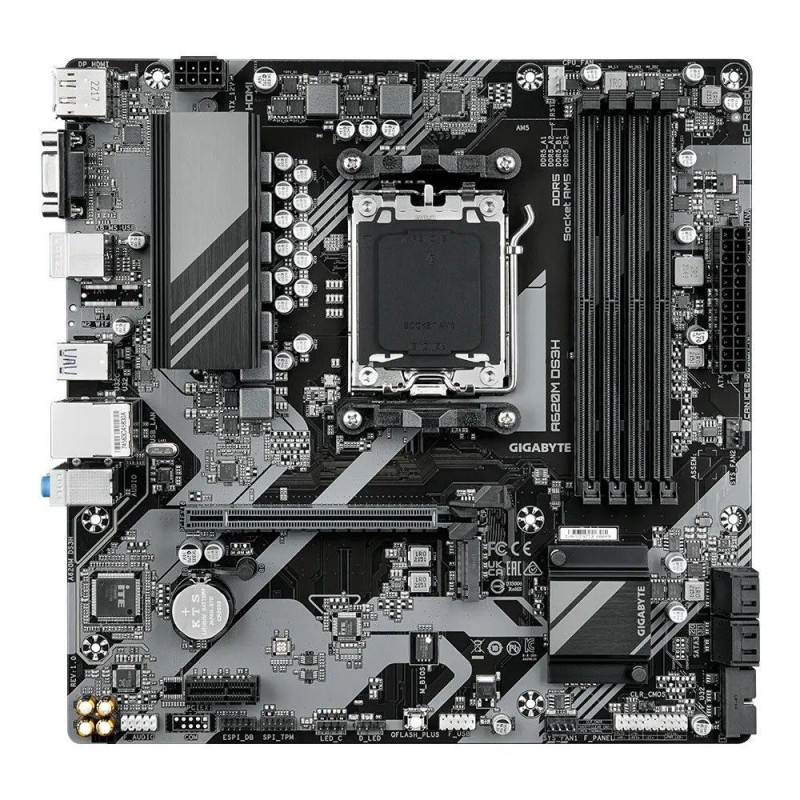

Gigabyte mainboard A620M DS3H AM5 4DDR5 HDMI/DP M.2 mATX

Main info

Product has been archived

A620M DS3H motherboard

  • AMD Socket AM5: Supports AMD Ryzen 7000 series processors
  • Unrivaled performance: 5+2+2 phase digital VRM solution
  • Dual-channel DDR5 memory: 4 x SMD DIMMs with support for AMD EXPO and Intel XMP memory modules
  • Superfast storage: PCIe 4.0 x4 M.2
  • EZ-Latch: PCIe x16 slot with Quick Release design
  • Fast networks: GbE LAN
  • Extended connectivity: DP, HDMI, D-Sub
  • Smart Fan 6: includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
  • Q-Flash Plus: BIOS update without installing CPU, memory and graphics card

Model A620M DS3H
CPU socket Socket AM5
Processor family AMD Ryzen
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD A620
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 5600 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 4400 MHz
Memory bus frequency 4800 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 6000 MHz
Memory bus frequency 6400 MHz
Max memory size 192
Expansion slots 1 x PCIe 4.0 x 4
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 1 x M.2
Max. number of SATA devices 4
RAID Yes
Detailed data on disk/drive interfaces CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Sound card Realtek audio codec High Definition Audio support Number of audio channels 2/4/5.1/7.1
Network interface 1 x 10/100/1000 Mbit/s
Network interface Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB ports at back panel 6
USB ports on motherboard 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 2
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No

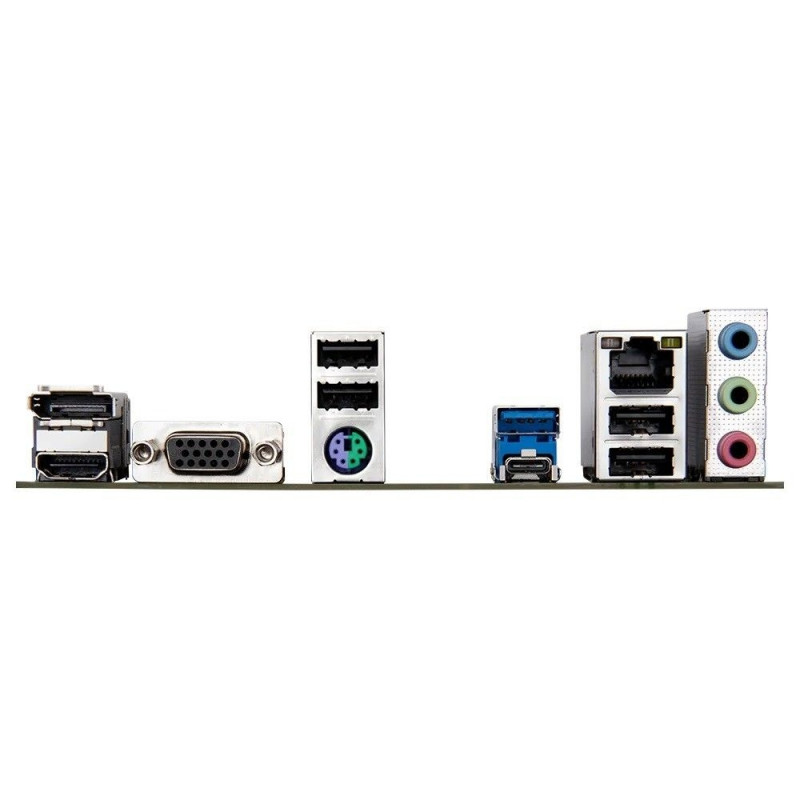

External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 1 x USB 3.1 Type-C
External connectors 1 x HDMI
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 4 x USB 2.0
External connectors 1 x USB 3.0
External connectors 1 x DisplayPort
External connectors 1 x D-Sub
Onboard connectors 1 x TPM header
Onboard connectors 1 x USB 3.0 header
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 1 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x Clear CMOS jumper
Special functions Gigabyte Control Center (GCC) Support Q-Flash support Support for Q-Flash Plus
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor micro ATX
Dimensions 24.4 x 17.4 cm
Supported operating systems Windows 11
Supported operating systems Windows 10
Graphics 1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 at 144 Hz Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz Support for HDMI 2.1 and HDCP 2.3 versions. Supports native HDMI 2.1 TMDS co

Dimensions and weights

Gross weight
0.96 kg
Package width
27 cm
Package height
27 cm
Package length
5.5 cm

Product codes

EAN
4719331855567
Manufacturer code
KBGBAAA8A620U03
