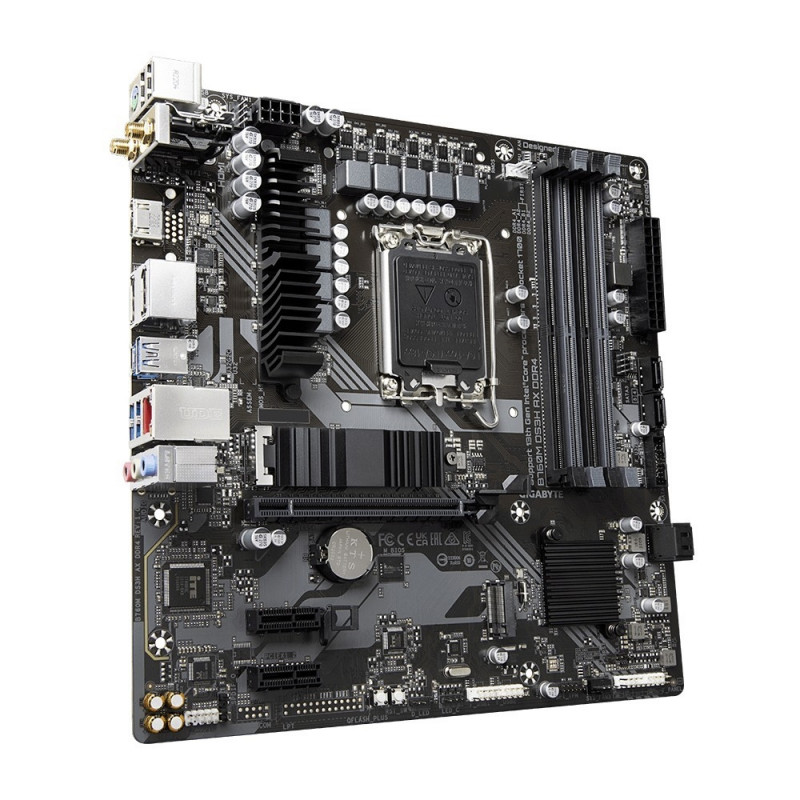

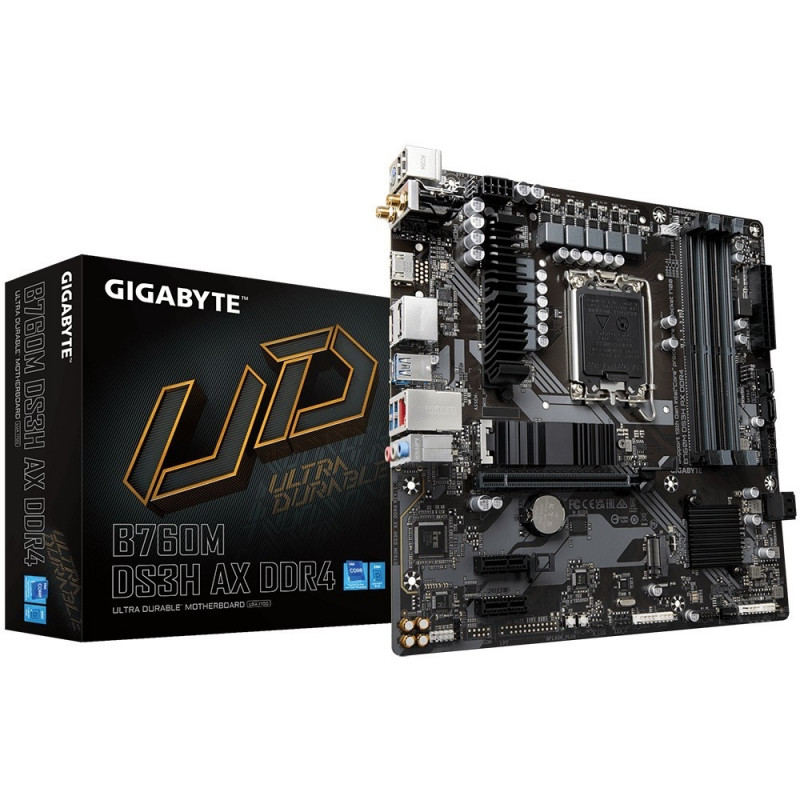

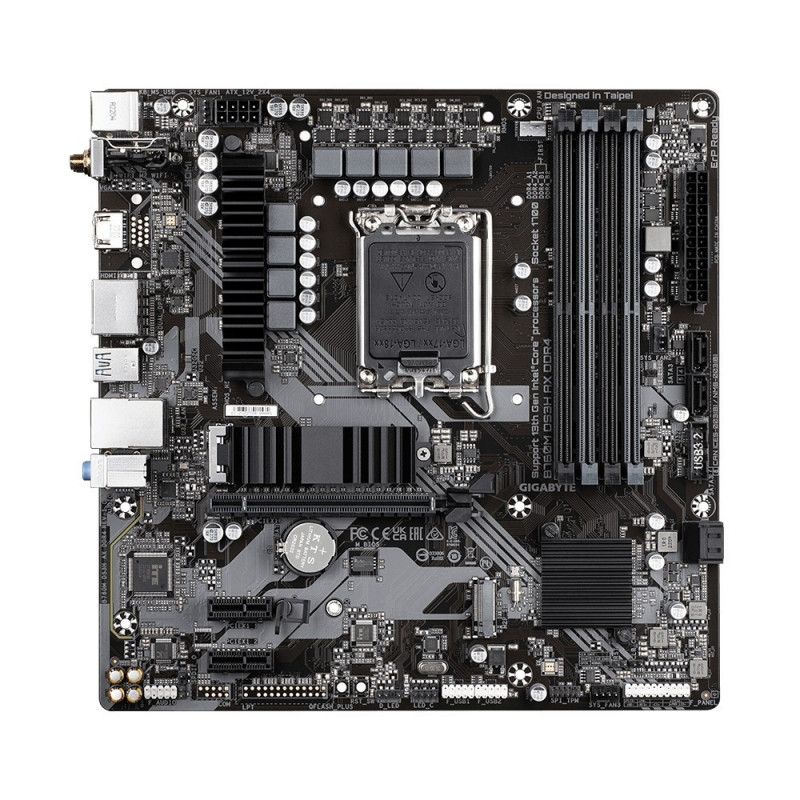

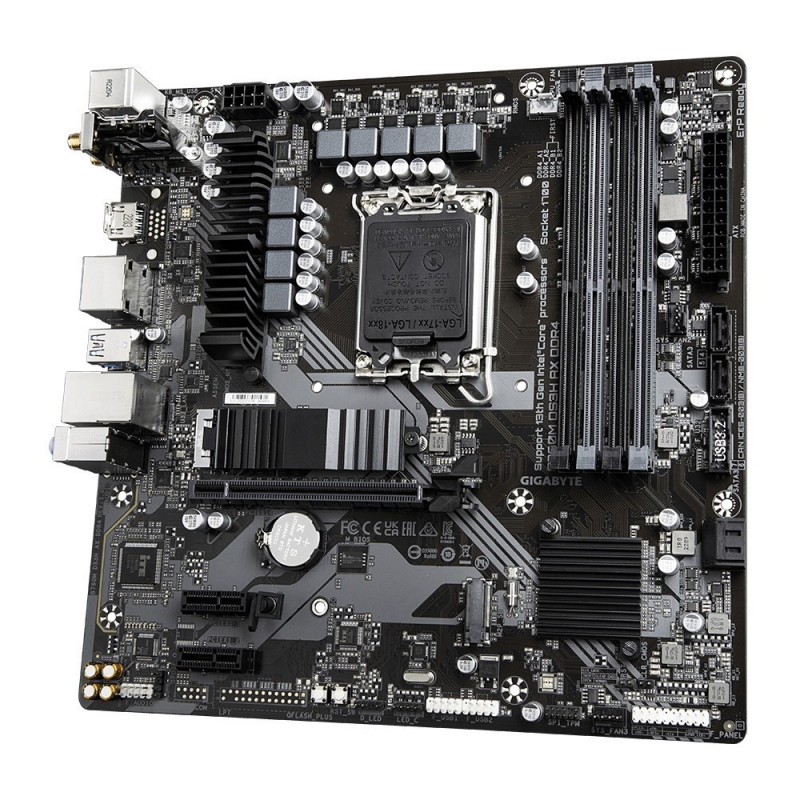

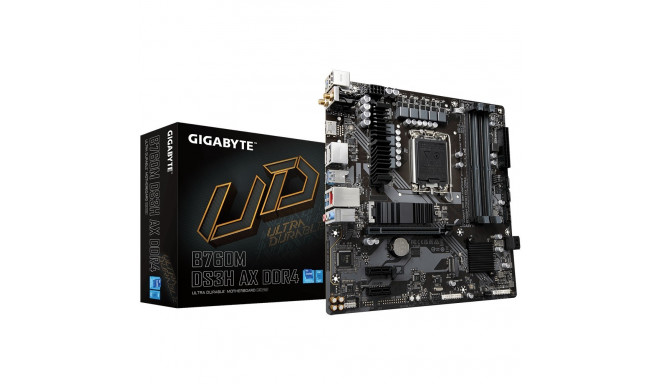

Gigabyte mainboard B760M DS3H AX DDR4 s1700 4DDR4 HDMI mATX

Addional discount of 4%
will be applied in shopping cart
(min. 10€ purchase)
125,99 €

Monthly payment starting from 4,29 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

  • Intel Socket LGA 1700: Support for 13th and 12th generation processors
  • Unmatched performance: Hybrid 6+2+1-phase digital VRM solution
  • Dual-channel DDR4 memory: 4*DIMM Support for XMP memory modules
  • Next-generation storage: 2 PCIe 4.0 x4 M.2
  • M.2 Thermal Shield: To ensure the performance of your M.2 SSD
  • EZ-Latch: PCIe 4.0x16 slot with Quick Release design
  • Fast networks: 2.5 GbE LAN and Wi-Fi 6E 802.11ax
  • Enhanced connectivity: Rear USB-C 10Gbps, DP, HDMI
  • Smart Fan 6: includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
  • Q-Flash Plus: BIOS update without installing CPU, memory and graphics card

Model B760M DS3H AX DDR4
CPU socket LGA1700
Processor family Intel Celeron
Processor family Intel Core
Processor family Intel Pentium Gold
Integrated CPU No
Chipset manufacturer Intel
Chipset type Intel B760 Express Chipset
Memory type DDR4
Number of DDR4 slots 4
Memory bus frequency 4800 MHz
Memory bus frequency 4700 MHz
Memory bus frequency 4500 MHz
Memory bus frequency 4600 MHz
Memory bus frequency 4400 MHz
Memory bus frequency 4300 MHz
Memory bus frequency 4266 MHz
Memory bus frequency 4133 MHz
Memory bus frequency 4000 MHz
Memory bus frequency 3866 MHz
Memory bus frequency 3800 MHz
Memory bus frequency 3733 MHz
Memory bus frequency 3300 MHz
Memory bus frequency 3333 MHz
Memory bus frequency 3666 MHz
Memory bus frequency 3600 MHz
Memory bus frequency 3400 MHz
Memory bus frequency 3466 MHz
Memory bus frequency 3000 MHz
Memory bus frequency 3200 MHz
Memory bus frequency 2933 MHz
Memory bus frequency 2666 MHz
Memory bus frequency 2400 MHz
Memory bus frequency 2133 MHz
Memory bus frequency 4933 MHz
Memory bus frequency 5000 MHz
Memory bus frequency 5133 MHz
Memory bus frequency 5333 MHz
Max memory size 128
Expansion slots 2 x PCIe 3.0 x 1
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 1 x M.2
Max. number of SATA devices 4
RAID Yes
Sound card Realtek audio codec High resolution audio support Number of audio channels 2/4/5.1/7.1 * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound. Support for S/PDIF output
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface Bluetooth
USB ports at back panel 6
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 1
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x Line Out
External connectors 1 x PS/2 Keyboard/MouseCombo
External connectors 2 x DisplayPort
External connectors 2 x USB 2.0
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 1 x HDMI
External connectors 1 x Line In
External connectors 3 x USB 3.0
External connectors 1 x USB 3.1 Type-C
External connectors 2 x SMA
Onboard connectors 1 x S/PDIF Out header
Onboard connectors 1 x System panel header
Onboard connectors 1 x Front panel audio header
Onboard connectors 3 x 4pin Chassis fan
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 2 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.0 header
Onboard connectors 1 x TPM header
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x Clear CMOS jumper
Onboard connectors 1 x Reset button
Onboard connectors 1 x Q-Flash Plus button
Special functions GIGABYTE Control Center (GCC) Support *Apps available on GCC may vary depending on motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Support for Q-Flash Plus Q-Flash support
BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor micro ATX
Dimensions 24.4 x 17.4cm
Supported operating systems Windows 11
Supported operating systems Windows 10
Software Norton Internet Security (OEM version) LAN bandwidth management software
Other information Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning Fan speed control *Whether fan speed control is supported depends on the installed cooler.
Designation
Detailed data on disk/drive interfaces CPU1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 CPU1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset1 x M.2 connector (Soc
Graphics Integrated graphics processor - Intel HD graphics support 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.0 and HDCP 2.3 versions. 1 x DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz * Support fo
Network interface Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate

Dimensions and weights

Gross weight
1.03 kg
Package width
27 cm
Package height
27 cm
Package length
7 cm

Product codes

EAN
4719331850869
Manufacturer code
KBGBAIIEB760U05
