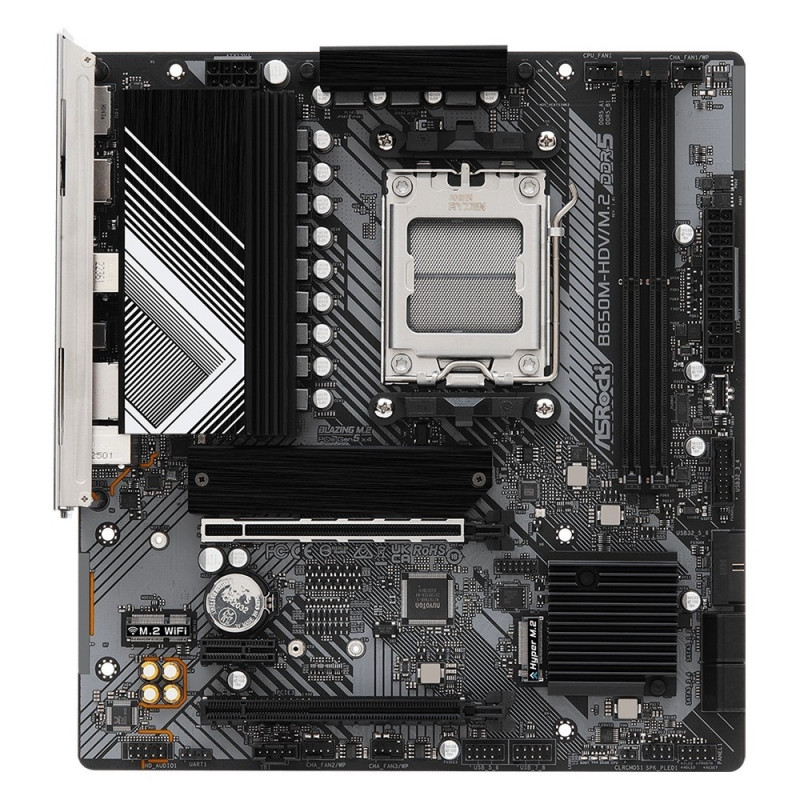

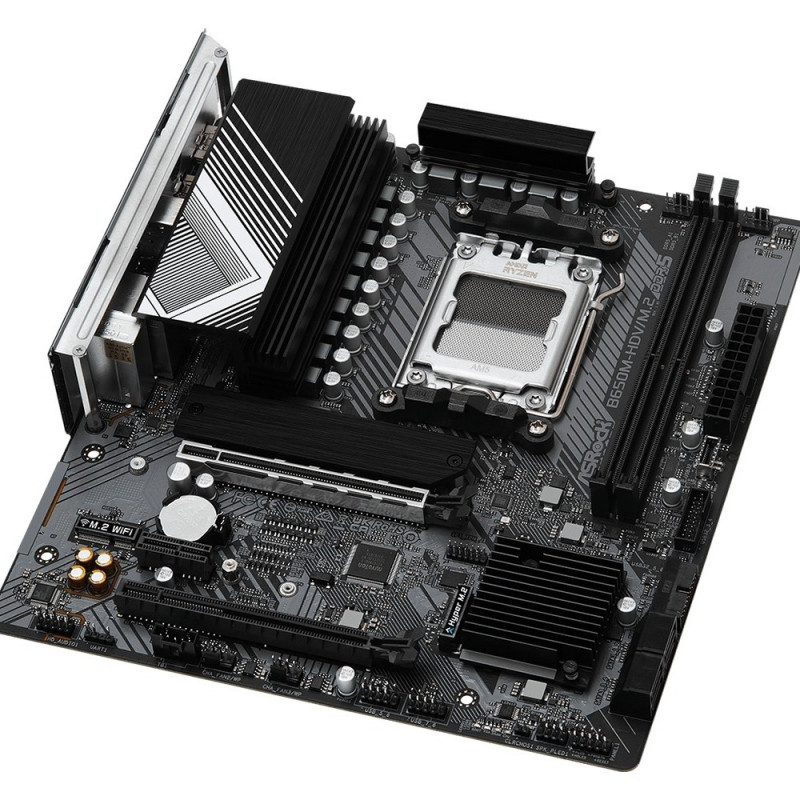

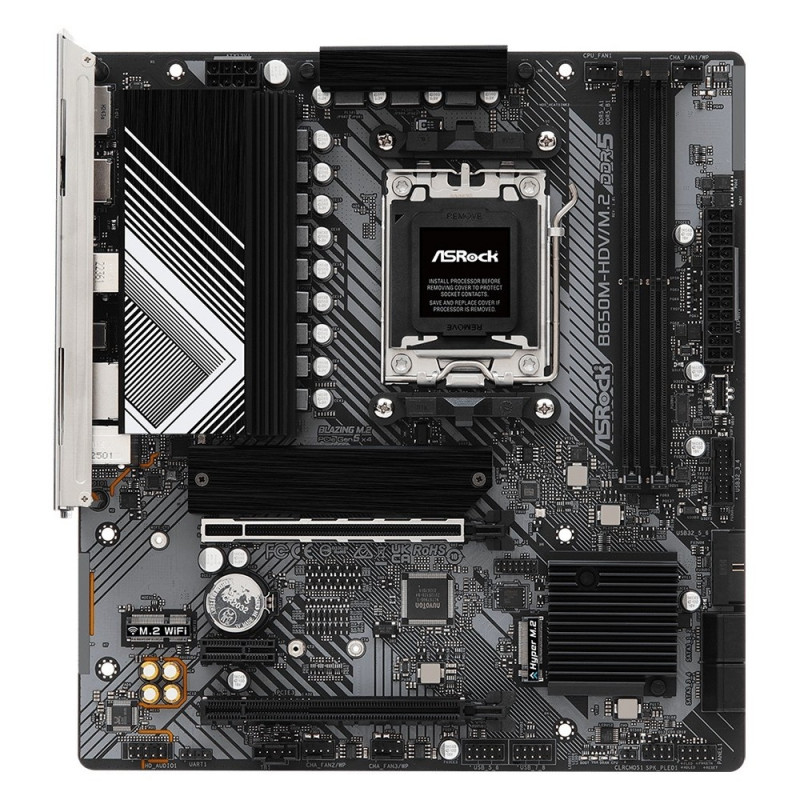

ASRock mainboard B650M-HDV/M.2 AM5 2DDR5 HDMI/DP mATX

Main info

Toetab AMD Socket AM5 Ryzen 7000 seeria protsessoreid Toitefaas 8+2+1, Dr.MOS Toetab DDR5 7200+ MHz (OC) 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E Wi-Fi jaoks Integreeritud AMD RDNA 2 graafika* Graafika väljundvalikud: HDMI, DisplayPort Realtek ALC

Product has been archived

  • Toetab AMD Socket AM5 Ryzen 7000 seeria protsessoreid
  • Toitefaas 8+2+1, Dr.MOS
  • Toetab DDR5 7200+ MHz (OC)
  • 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E Wi-Fi jaoks
  • Integreeritud AMD RDNA 2 graafika*
  • Graafika väljundvalikud: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD helikoodek, Nahimic heli
  • 4 SATA3, 1 kiire M.2 (PCIe Gen5x4)
  • 1 Hyper M.2 (PCIe Gen4x4)
  • 1 esipaneeli USB 3.2 Gen2 tüüp C port,
  • 7 USB 3.2 Gen1 porti (2 tagumine, 1 tagumine tüüp C, 4 esipaneelil)
  • Dragon 2.5G võrgukaart
  • Toetab ASRock automaatset draiveri installijat, BIOS Flashback
  • I/O kilp on eelnevalt paigaldatud

CPU socket Socket AM5
Processor family AMD Ryzen 5
Processor family AMD Ryzen 7
Processor family AMD Ryzen 9
Integrated CPU Yes
Chipset manufacturer AMD
Memory type DDR5
Number of DDR5 slots 2
Memory bus frequency 7200 MHz
Max memory size 96
Expansion slots 1 x M.2
Expansion slots 2 x PCIe 4.0 x 16
Expansion slots 1 x PCIe 4.0 x 1
Max. number of SATA devices 4
RAID Yes
Network interface 1 x 10/100/1000/2500 Mbit/s
USB ports at back panel 7
USB ports on motherboard 10
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 1
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No

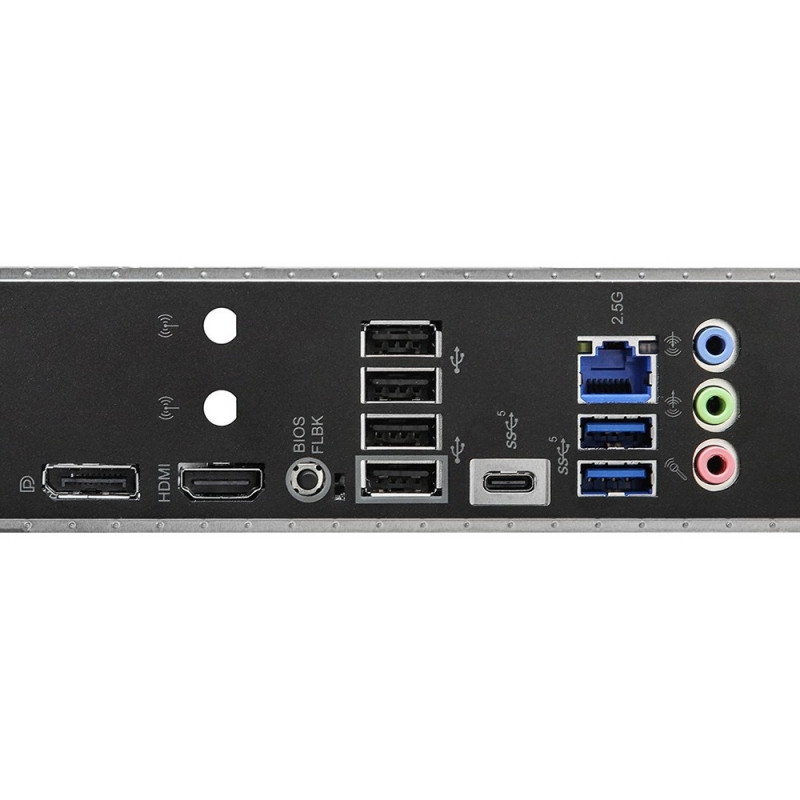

External connectors 1 x USB BIOS Flashback button
External connectors 1 x DisplayPort
External connectors 1 x HDMI
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 4 x USB 2.0
External connectors 2 x USB 3.0
External connectors 2 x SMA
External connectors 1 x USB 3.1 Type-C
Onboard connectors 1 x USB C
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 2 x USB 3.0 header
Onboard connectors 1 x Thunderbolt header
Onboard connectors 1 x TPM header
Onboard connectors 1 x Front panel audio header
Form factor ATX
Supported operating systems Windows 10
Supported operating systems Windows 11
Model B650M-HDV/M.2
Chipset type AMD B650
Sound card HD 7.1 CH audio (Realtek ALC897 audio codec) Nahimic Audio
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Dimensions 24.4 x 22.6 cm
Accessories included User manual2 x SATA data cables2 x M.2 screws
Software Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software* UEFI ASRock Full HD UEFI ASRock automatic driver installer ASRock Instant Flash
Other information Certificates FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Detailed data on disk/drive interfaces 1 x Blazing M.2 slot (M2_1, M key), supports 2280 PCIe Gen5x4 mode (128Gb/s)* Chipset: 1 x Hyper M.2 slot (M2_2, M key), supports 2260/2280 PCIe Gen4x4 mode (64Gb/s)* 4 SATA3 6.0 Gb/s connectors Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Graphics Integrated AMD RDNA 2 graphics (Actual support may vary by processor) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120 Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K
Network interface 2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN software Intelligent automatic bandwidth adjustment Visual, user-friendly user interface Visual network usage statistics Optimized defaults for game, browser and streaming mod

Dimensions and weights

Gross weight
1.22 kg
Package width
28 cm
Package height
26 cm
Package length
6 cm

Product codes

EAN
4710483942693
Manufacturer code
KBASRAA8B650U02
