Home page » Computers & IT»Computer components»Mainboards»B650M-H/M.2 + AM5 2DDR5 HDMI/DP mATX

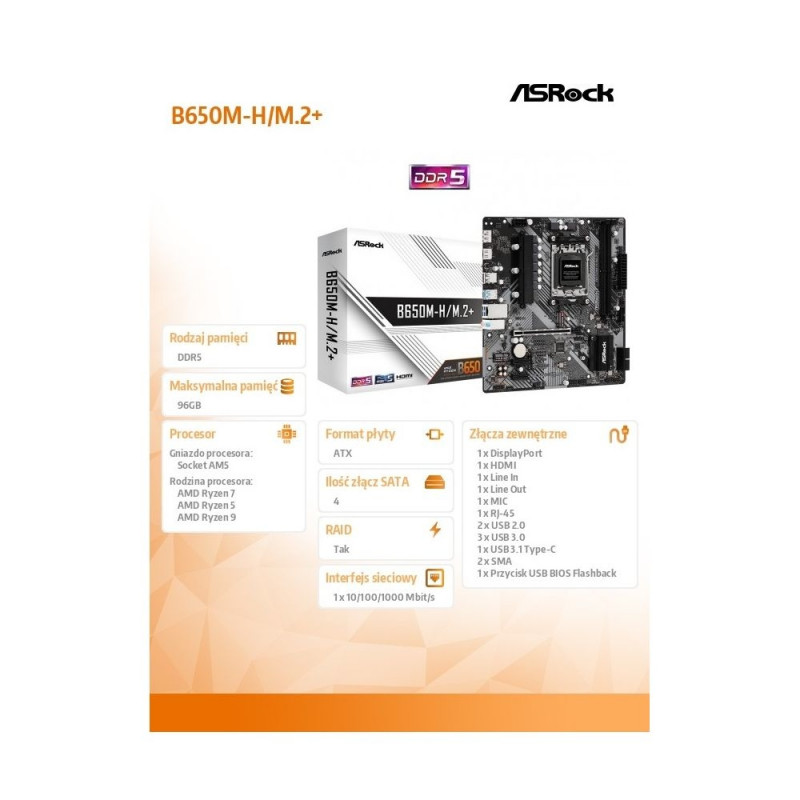

B650M-H/M.2 + AM5 2DDR5 HDMI/DP mATX

104,99 €

Monthly payment starting from 3,14 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

B650M-H/M.2+

  • Supports AMD Socket AM5 Ryzen 7000 series processors
  • 6+1+1 power phase design, Dr.MOS, 120W CPU standby
  • 2 x DDR5 DIMMs, support up to 6400+(OC)
  • 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for Wi-Fi
  • Integrated AMD RDNA 2 graphics*
  • Graphics output options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD audio codec, Nahimic sound
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
  • 6 USB 3.2 Gen1 ports (3 rear, 1 rear Type-C, 2 front)
  • Realtek gigabit network card
  • Supports ASRock automatic driver installer, BIOS Flashback

Model B650M-H/M.2+
CPU socket Socket AM5
Processor family AMD Ryzen 7
Processor family AMD Ryzen 5
Processor family AMD Ryzen 9
Integrated CPU No
Chipset manufacturer AMD
Chipset type AMD B650
Memory type DDR5
Number of DDR5 slots 2
Memory bus frequency 6400 MHz
Max memory size 96
Expansion slots 1 x M.2
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 2 x PCIe 4.0 x 1
Max. number of SATA devices 4
RAID Yes
Sound card 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface 1 x 10/100/1000 Mbit/s
Network interface Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H
USB ports at back panel 6
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 6
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No
External connectors 1 x USB BIOS Flashback button
External connectors 1 x DisplayPort
External connectors 1 x HDMI
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 2 x USB 2.0
External connectors 3 x USB 3.0
External connectors 2 x SMA
External connectors 1 x USB 3.1 Type-C
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors 1 x 8pin 12V power
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x USB 3.0 header
Onboard connectors 1 x TPM header
Onboard connectors 1 x Front panel audio header
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Form factor ATX
Dimensions 24.4 x 22.6 cm
Accessories included User manual I/O cover 2 x SATA data cables 3 x M.2 screws
Supported operating systems Windows 10
Supported operating systems Windows 11
Software Software ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI ASRock Full HD UEFI ASRock automatic driver installer ASRock Instant Flash
Other information Certificates FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Designation
Detailed data on disk/drive interfaces PROCESSOR: 1 x Blazing M.2 slot (M2_1, M key), supports 2280 PCIe Gen5x4 mode (128Gb/s)* 1 x Hyper M.2 slot (M2_2, M key), supports 2260/2280 PCIe Gen4x4 mode (64Gb/s)* Chipset: 4 SATA3 6.0 Gb/s connectors Supports RAID 0, RAID 1 and RAID 10 for SATA stor
Graphics Integrated AMD RDNA 2 graphics (Actual support may vary by processor) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120 Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K

Dimensions and weights

Gross weight
0.99 kg
Package width
28 cm
Package height
26 cm
Package length
6 cm

Product codes

EAN
4710483943768
Manufacturer code
KBASRAA8B650U03
