Home page » Computers & IT»Computer components»Mainboards»Motherboard PRO B760-P DDR4 II s1700 4DDR4 DP/HDMI ATX

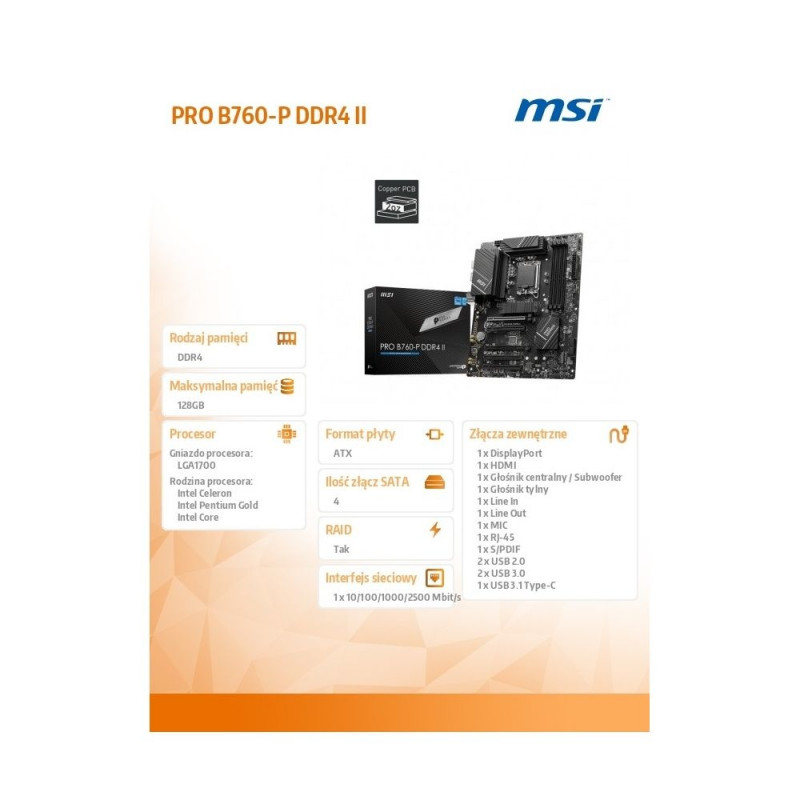

Motherboard PRO B760-P DDR4 II s1700 4DDR4 DP/HDMI ATX

Addional discount of 2%
will be applied in shopping cart
(min. 12€ purchase)
127,99 €

Monthly payment starting from 4,36 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Add to cart

Delivery in 7-10 working days

Free delivery

14 14 days return policy when purchasing online

PRO B760-P DDR4 II is designed with plenty of flexible tools in the DDR4 memory version.

BUSINESS ELEGANCE

The PRO series is intended for professionals from all walks of life. The series boasts impressive performance and high quality while aiming to provide users with an incredible experience. Users who care about productivity and efficiency can certainly count on the MSI PRO series to help you multitask and increase efficiency.

PRO B760-P DDR4 II

  • Support for Intel Core 14./13./12. generation, Intel Pentium Gold and Celeron processors for the LGA 1700 socket
  • Supports DDR4 memory, dual-channel DDR4 5333+MHz (OC)
  • Improved Power Design: Duet Rail 12+1 Power System with P-PAK, 8-Pin + 4-Pin CPU Power Connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended heatsink, 7W/mK MOSFET thermal pads, additional thermal pads with chokes, and M.2 Shield Frozr connector ensure high system performance and an uninterrupted gaming experience
  • High-quality PCB: 6-layer PCB made of 2-ounce copper and server-grade material
  • Lightning-fast gaming: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 connector
  • Intel Turbo USB 3.2 Gen 2: Powered by the Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with greater stability and the fastest USB speeds
  • 2.5G LAN: an enhanced networking solution for professional and multimedia applications. Provides a safe, stable and fast network connection
  • AUDIO ENHANCEMENT: Reward your ears with studio-quality audio for the most immersive gaming experience

Model PRO B760-P DDR4 II
CPU socket LGA1700
Processor family Intel Celeron
Processor family Intel Core
Processor family Intel Pentium Gold
Integrated CPU No
Chipset manufacturer Intel
Chipset type Intel B760
Memory type DDR4
Number of DDR4 slots 4
Memory bus frequency 5066 MHz
Memory bus frequency 5000 MHz
Memory bus frequency 4800 MHz
Memory bus frequency 4600 MHz
Memory bus frequency 4400 MHz
Memory bus frequency 4266 MHz
Memory bus frequency 4200 MHz
Memory bus frequency 4000 MHz
Memory bus frequency 3800 MHz
Memory bus frequency 3733 MHz
Memory bus frequency 3333 MHz
Memory bus frequency 3400 MHz
Memory bus frequency 3600 MHz
Memory bus frequency 3466 MHz
Memory bus frequency 3200 MHz
Memory bus frequency 2933 MHz
Memory bus frequency 2666 MHz
Memory bus frequency 2133 MHz
Memory bus frequency 2400 MHz
Memory bus frequency 5333 MHz
Memory bus frequency 5200 MHz
Max memory size 128
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 3 x PCIe 3.0 x 1
Expansion slots 1 x PCIe 4.0 x 4
Expansion slots 2 x M.2
Max. number of SATA devices 4
RAID Yes
Graphics 1x HDMI HDMI 2.1 support, maximum resolution 4K 60 Hz* 1x DisplayPort DP 1.4 support, maximum resolution 4K 60 Hz* *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
Sound card Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Network interface 1 x 10/100/1000/2500 Mbit/s
Network interface  Realtek RTL8125BG 2.5G LAN
USB ports at back panel 5
USB ports on motherboard 9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 1
FireWire (IEEE 1394) No
COM connector / port Yes
LPT connector / port No
External connectors 1 x MIC
External connectors 2 x USB 2.0
External connectors 1 x Rear Speaker
External connectors 1 x HDMI
External connectors 1 x Central Speaker / Subwoofer
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x S/PDIF
External connectors 1 x RJ-45
External connectors 1 x DisplayPort
External connectors 2 x USB 3.0
External connectors 1 x USB 3.1 Type-C
Onboard connectors 1 x Front panel audio header
Onboard connectors 2 x System panel header
Onboard connectors 1 x USB C
Onboard connectors 1 x Serial port header
Onboard connectors 1 x TPM header
Onboard connectors 1 x 4-pin water-pump-fan
Onboard connectors 1 x 4pin 12V power
Onboard connectors 2 x 8pin 12V
Onboard connectors 4 x USB 2.0/1.1
Onboard connectors 4 x USB 3.0
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 5 x 4pin Chassis fan
Onboard connectors 1 x Chassis intrusion header
Onboard connectors 2 x RGB LED Strip
Onboard connectors 2 x Addressable LED
Form factor ATX
Dimensions 243.84 x 304.8 mm
Supported operating systems Windows 11
Supported operating systems Windows 10
Designation
Detailed data on disk/drive interfaces 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports

Dimensions and weights

Gross weight
1.4 kg
Package width
34 cm
Package height
27 cm
Package length
7 cm

Product codes

EAN
4711377128889
Manufacturer code
KBMSIIIEB760A08
