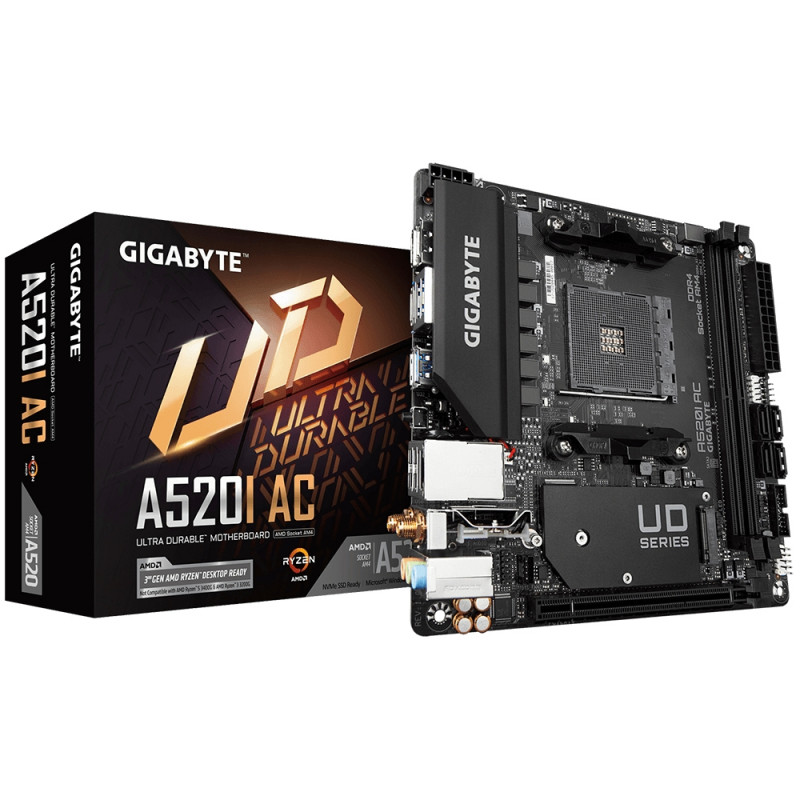

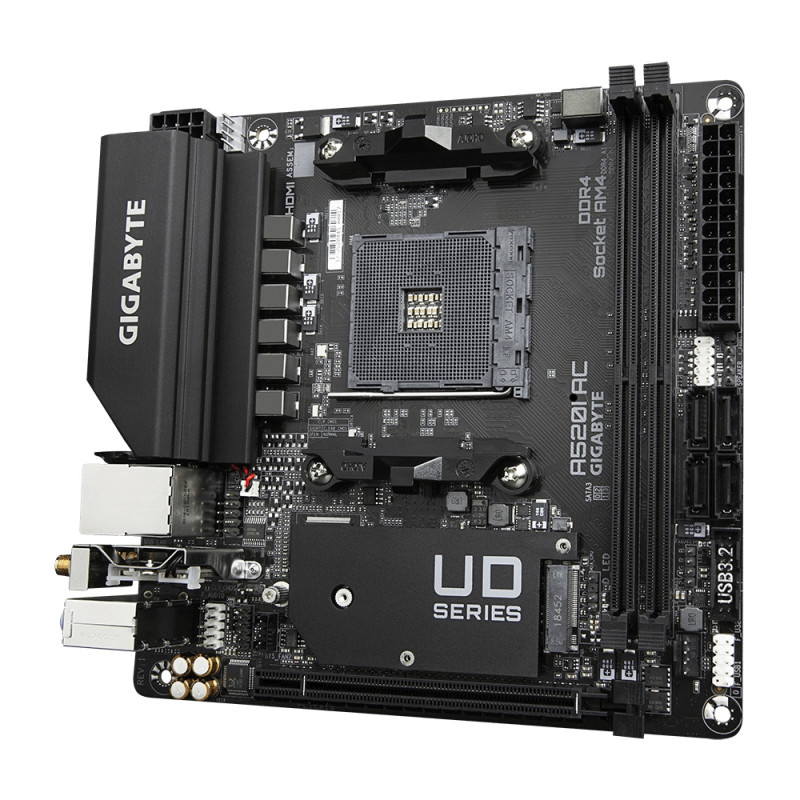

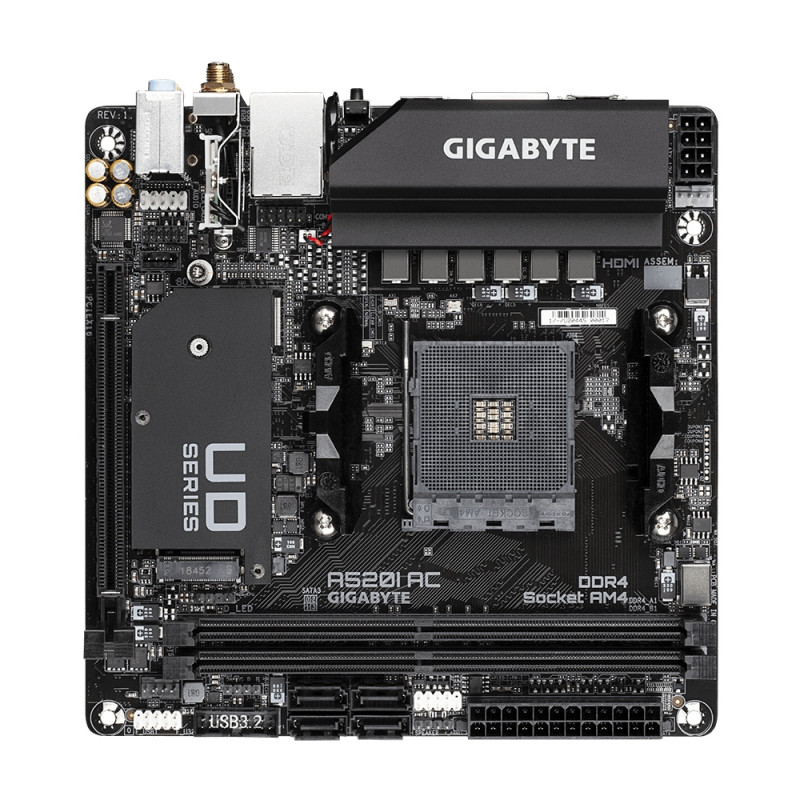

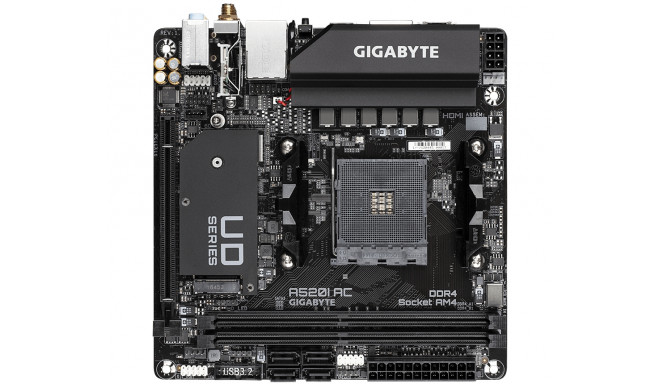

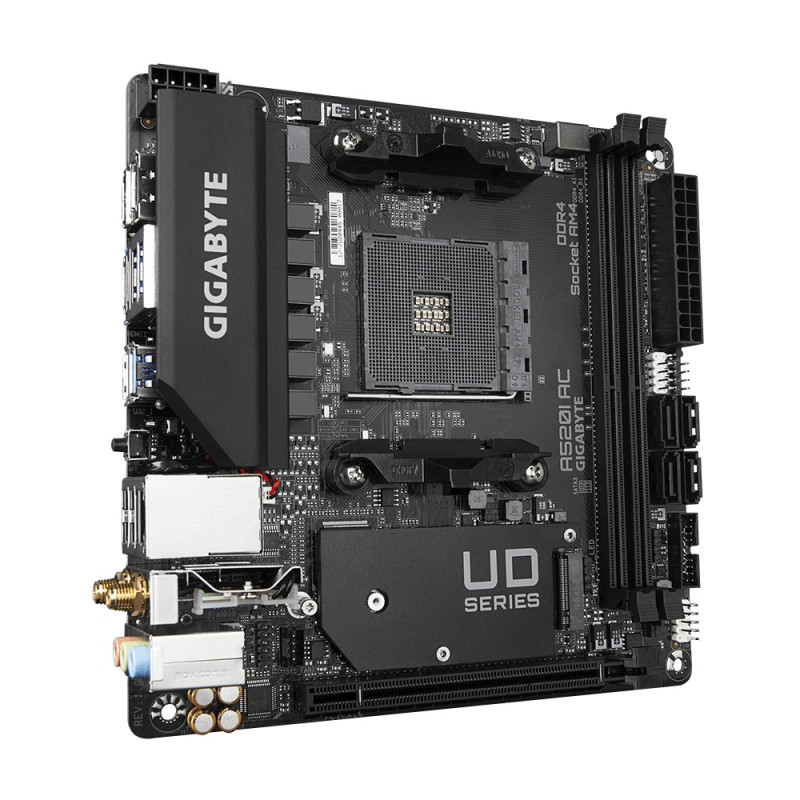

GIGABYTE A520I AC Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 6 Phases Digital VRM, up to

Main info

Product has been archived


Bundled software Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Audio output channels 7.1 channels
Supported storage drive interfaces M.2, SATA III
Bluetooth Yes
HDCP Yes
Motherboard chipset AMD A520
Country of origin China
Maximum internal memory 64 GB
Unbuffered memory Yes
USB 2.0 connectors 1
DisplayPort version 1.4
PCI Express x16 slots 1
Product colour Black
Motherboard chipset family AMD
Motherboard form factor mini ITX
DisplayPorts quantity 1
Audio chip Realtek ALC887
Maximum resolution 5120 x 2880 pixels
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
DirectX version 12.0
Wi-Fi Yes
Number of battery cells 1
Front panel connector Yes
TPM connector Yes
CPU fan connector Yes
Audio connector Yes
Memory slots type DIMM
Supported processor sockets Socket AM4
Serial port headers 1
Products per shipping (inner) case 1 pc(s)
Number of M.2 (M) slots 1
Batteries included Yes
Height 35 mm
Number of SATA III connectors 4
Front panel audio connector Yes
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports 1
Supported memory types DDR4-SDRAM
Width 170 mm
Number of displays supported 3
ATX Power connector (24-pin) Yes
HDMI ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Ethernet LAN Yes
WiFi-AP antenna jack 2
Battery weight 3 g
Clear CMOS jumper Yes
HDMI version 2.1
Number of memory slots 2
Headphone outputs 3
Power fan connector Yes
Parallel processing technology support Not supported
Ethernet interface type Gigabit Ethernet
Battery type CR2032
Maximum internal memory supported by processor 64 GB
Total number of SATA connectors 4
Depth 170 mm
BIOS type UEFI AMI
Number of storage drives supported 5
Bluetooth version 4.2
Number of HDDs supported 4
RGB LED pin header Yes
Processor socket Socket AM4
Desktop Management Interface (DMI) version 2.7
USB 2.0 ports quantity 2
Processor manufacturer AMD
Lithium weight per battery 0.07 g
Warranty period 3 year(s)
Supported memory clock speed (max) 5300 MHz
Warranty 36 (G)
RAID support Yes
On-board graphics card No
ECC сompatibility ECC & Non-ECC
Compatible processor series AMD Ryzen 3000 Series
Package depth 189 mm
Package width 222 mm
Package weight 800 g
Package height 78 mm
RAID levels 10
Windows operating systems supported Windows 11 x64
Supported memory clock speeds 2133 MHz
Supported memory module capacities 4GB
PC health monitoring Temperature
Wi-Fi standards Wi-Fi 4 (802.11n)
Warnings Avoid direct contact with sensitive electronic components.

Dimensions and weights

Package width
220 cm
Package height
180 cm
Package length
80 cm

Product codes

EAN
4719331809867
Manufacturer code
A520I AC
