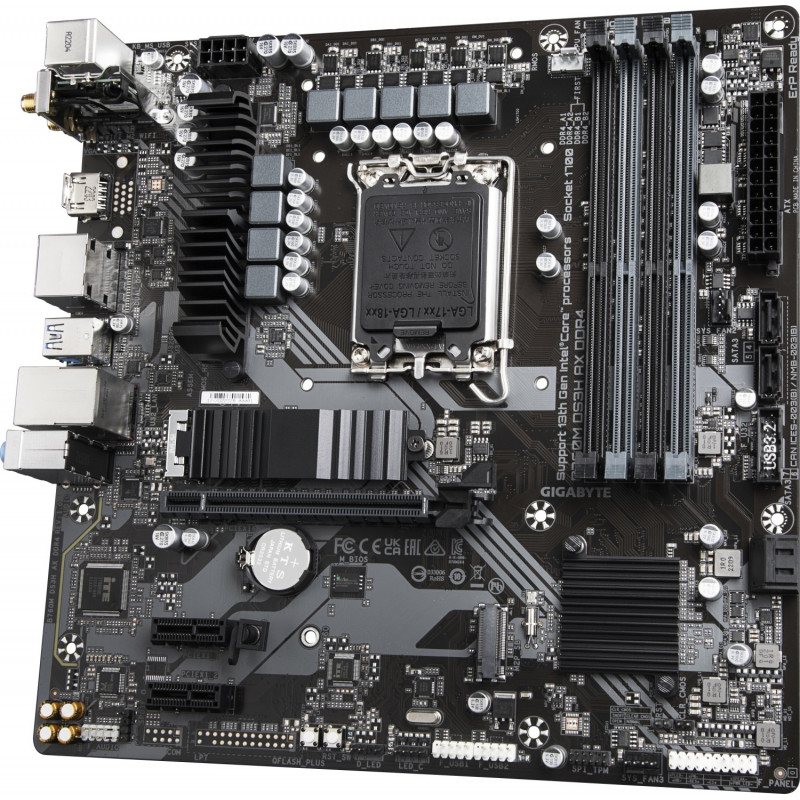

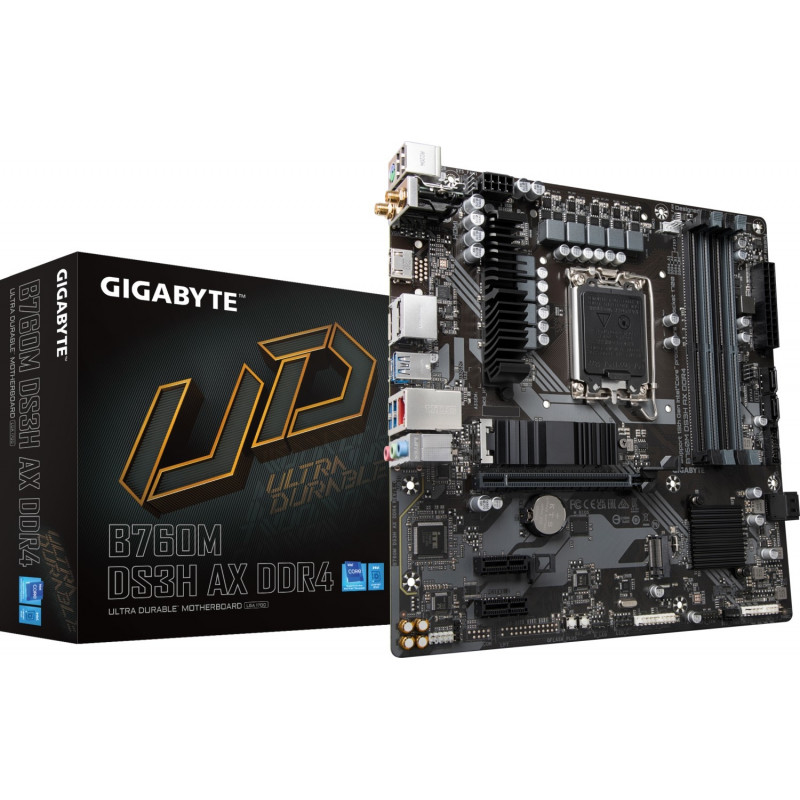

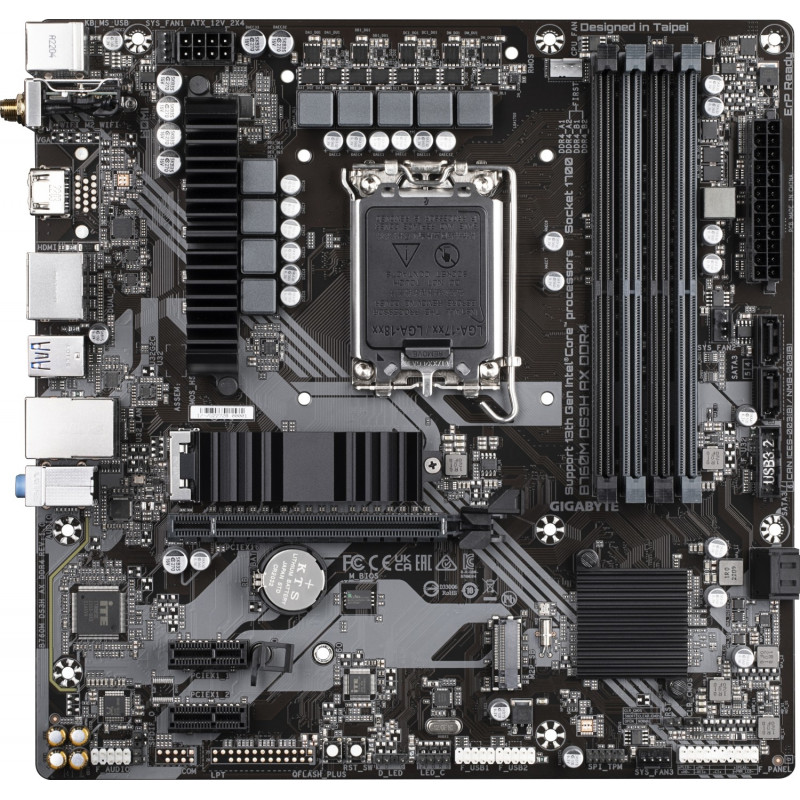

Gigabyte mainboard B760M DS3H AX DDR4 1700

Main info

Protsessori tootja Intel Protsessori pesa LGA 1700

Product has been archived


Protsessori tootja Intel
Protsessori pesa LGA 1700
Ühilduvad protsessoriseeriad Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Toetatud protsessoripesad LGA 1700
Toetatud mälutüübid DDR4-SDRAM
Mälukaardi pesade arv 4
Mälupesa tüüp DIMM
Mälukanalid Kahe kanaliga
ECC Jah
Mitte-ECC Jah
Toetatud mälu taktsagedused 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Maksimaalne sisemälu 128 GB
Puhverdamata mälu Jah
Toetatud ketaste tüübid HDD & SSD
Kõvaketta ühenduse tüüp M.2, PCI Express 4.0, SATA III
Toetatud ketaste arv 6
RAID-tugi Jah
RAID-tasemed 0, 1, 5, 10
Rööptöötlustehnoloogia tugi Ei ole toetatud
Maksimaalne resolutsioon 4096 x 2304 pikslit
HDCP Jah
USB 2.0 pistmikud 2
USB 3.2 Gen 1 (3.1 Gen 1) pistmikud 1
SATA III ühenduste arv 4
S/PDIF-väljundpistmik Jah
Esipaneeli audiopistik Jah
Esipaneeli konnektor Jah
ATX-toitepistmik (24 kontakti) Jah
CPU-ventilaatori pistmik Jah
EPS-toitepistmik (8 kontakti) Jah
TPM-ühenduspesa Jah
12V võimsuse konnektor Jah
RGB LED pin ots Jah
USB 2.0 portide arv 2
USB 3.2 Gen 1 (3.1 Gen 1) A-tüüpi portide hulk 3
USB 3.2 Gen 2 (3.1 Gen 2) C-tüüpi portide hulk 1
Ethernet LAN (RJ-45) pordid 1
PS/2-portide kogus 1
HDMI-portide arv 1
HDMI-versioon 2.0
DisplayPort arv 2
DisplayPort versioon 1.2
Kõrvaklapiväljundite arv 3
Mikrofonisisend Jah
WiFi-AP antennipesa 2
USB-pistmiku tüüp USB tüüp A, USB tüüp-C
Ethernet LAN Jah
Ethernet-liidese tüüp 2.5 Gigabit Ethernet
WiFi Jah
Wi-Fi standard Wi-Fi 6E (802.11ax)
WiFi-standardid 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN kontrolleri mudel RZ608
Bluetooth Jah
Bluetoothi versioon 5.2
Emaplaadi kiip Intel B760 Express
Audioväljundi kanalid 7.1 kanalid
PC tervise monitoorimine Ventilaator, Temperatuur, Pinge, Water cooling
Komponent PC
Emaplaadi kujutegur Mikro ATX
Emaplaadi kiibistik Intel
Toetatud Windowsi operatsioonisüsteemid Windows 10 x64, Windows 11 x64
PCI Expressi x1 pesad 2
PCI Expressi x16 pesad 1
M.2 (M) siinide arv 2
BIOS-i tüüp UEFI AMI
BIOS-i mälu suurus 128 Mbit
ACPI versioon 5.0
Kujutisesensori (CMOS) puhastamine Jah
Töölaua haldusliidese (DMI) versioon 2.7
System management BIOS (SMBIOS) versioon 2.7
Laius 244 mm
Sügavus 244 mm
Kaablid kaasa arvatud SATA
Komplektis sisalduv tarkvara Norton Internet Security

Specs Icecat

Dimensions and weights

Gross weight
1.04 kg

Product codes

EAN
4719331850869
Manufacturer code
B760M DS3H AX DDR4
