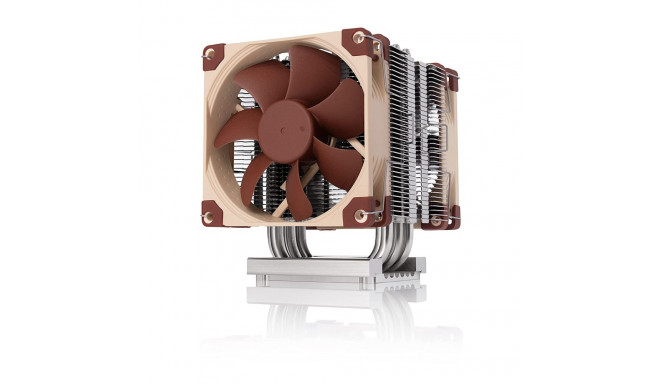

Noctua NH-U9 DX-4677, CPU cooler

Addional discount of 8%
will be applied in shopping cart
(min. 10€ purchase)
166,99 €

Monthly payment starting from 5,69 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Warning: Last items in stock!

Add to cart

Delivery in 12-17 working days

Free delivery

14 14 days return policy when purchasing online

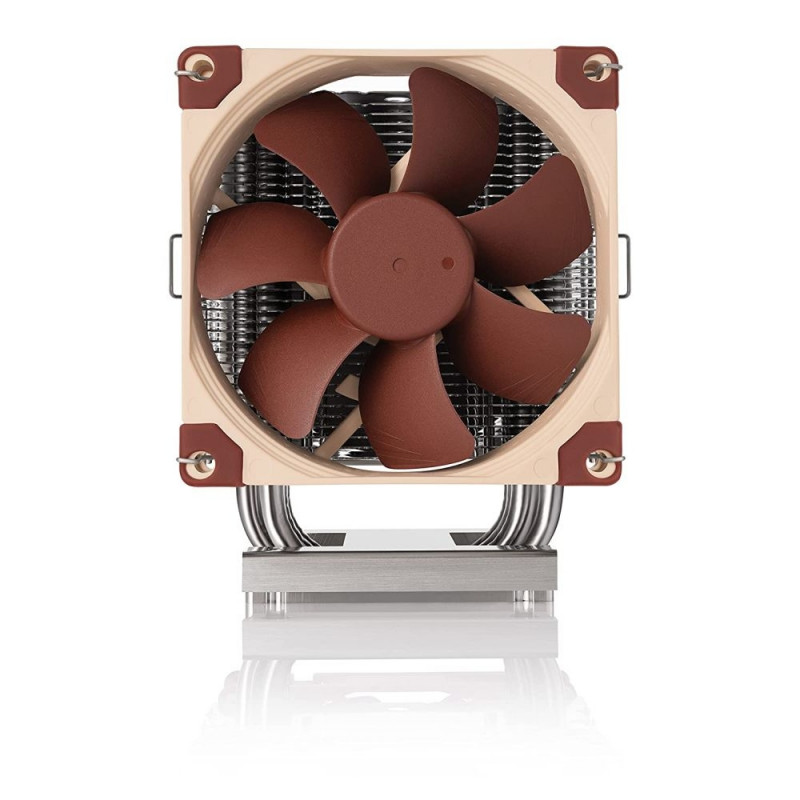

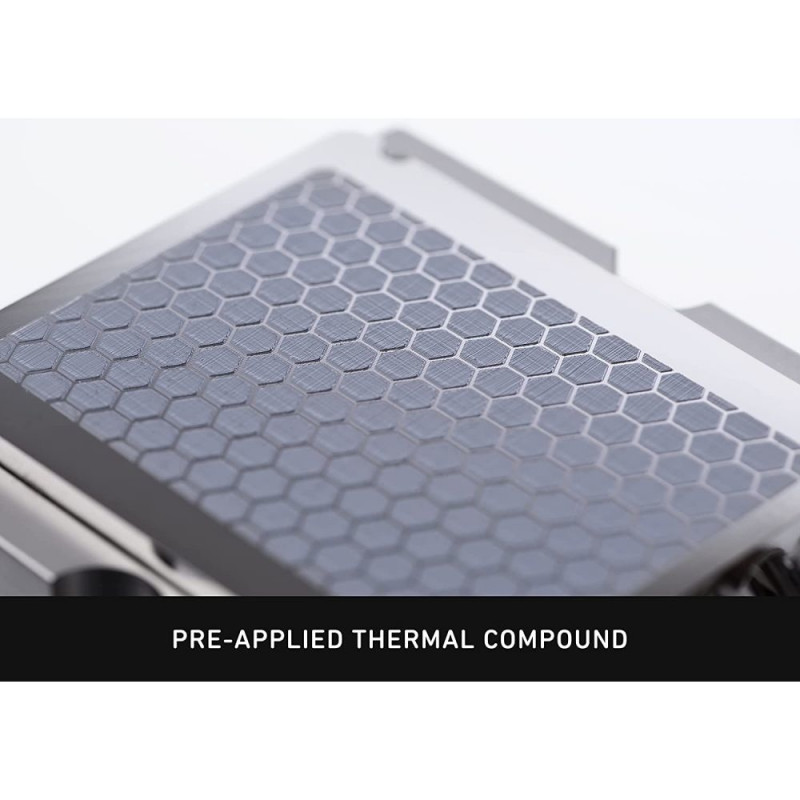

Noctua's DX series CPU coolers have been the first choice for years when it comes to quiet premium cooling solutions for Intel® Xeon processors. The NH-U9 DX-4677 features a larger, specially adapted contact area for LGA4677. With its 92 mm heatsink based on the proven NH-U9 and two of the award-winning, PWM-controlled NF-A9 92 mm fans (high-performance version with 2500 rpm), it combines strong cooling performance and excellent compatibility - perfect for 4U systems and other applications with limited space. The airflow of the NH-U9 is aligned perpendicular to the long axis of the LGA4677 socket, making the cooler ideal for systems where the exhaust case fans are positioned in this direction. The all-round high-quality package of the NH-U9 DX-4677 is completed by the professional SecuFirm2 mounting system and the pre-applied NT-H1 thermal paste - a real premium solution for the quiet cooling of LGA4677-based Xeon workstations and servers.Article no.: 1903287


Type processor cooler
EAN Code -9010018000368
Manufacturer part number: NH-U9 DX-4677
DX Series
Type CPU cooler with fan
Usage Suitable for servers
CPU cooler design single tower
Suitable sockets 4677
Fastening screwed
Volume 22.8 dB
Equipment thermal paste/pad
Speed 400 to 2,000 rpm
Material heat sink aluminum, copper
Fan bearing SSO 2
Volume flow 78.9 m3/h
Voltage range 12 volts
Power consumption 1.2 watts
Note Please note: The NH-U9S DX-4677 is a dedicated version for the Intel® LGA4677 socket. Due to the custom-designed, larger contact area, the cooler cannot be used on smaller sockets and is not compatible with Noctua's mounting systems for these sockets. Please note: To mount LGA4677 processors and coolers, a plastic CPU carrier frame is required. These carrier frames are supplied with Intel® boxed CPUs and are available for tray CPUs through Intel® resellers. Since different processors require different carrier frame types (E1A, E1B, E1C), please make sure to use the correct carrier frame for tray CPUs.

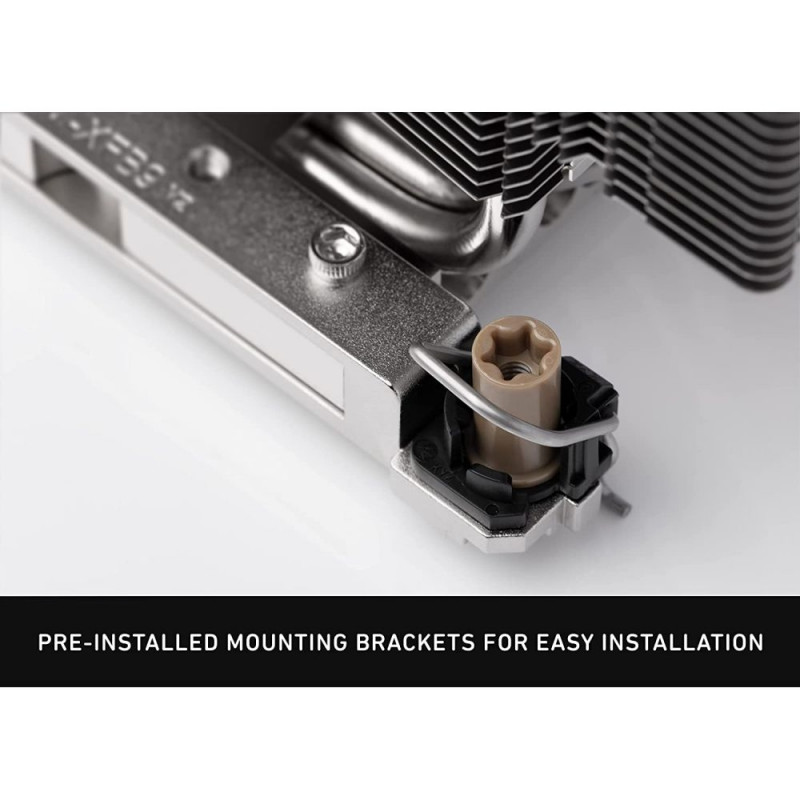

Accessories available NA-YC1 4-pin PWM Y-cable, NT-H1 high-end thermal paste (pre-applied), SecuFirm2 mounting kit for LGA4677, NM-SMT5 Torx T30 mounting tool, Noctua metal case badge
Dimensions Fan1 Quantity: 2 pieces, Width: 92 mm, Height: 92 mm, Depth: 25 mm
Total width: 95 mm x height: 125 mm x depth: 120 mm
Weight CPU cooler 895 grams

Dimensions and weights

Gross weight
1.21 kg

Product codes

EAN
9010018000368
Manufacturer code
NH-U9 DX-4677
