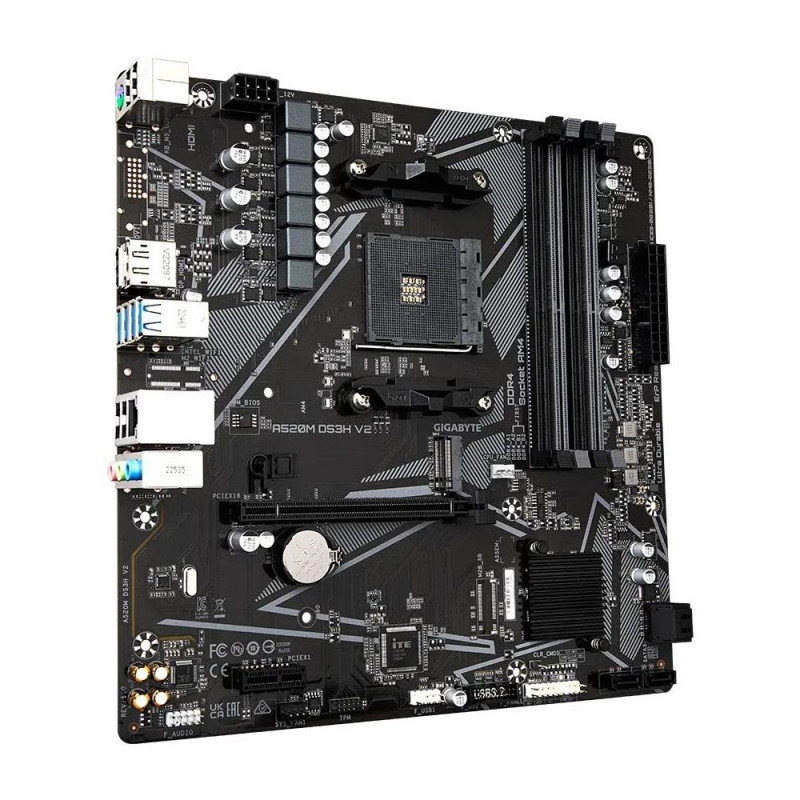

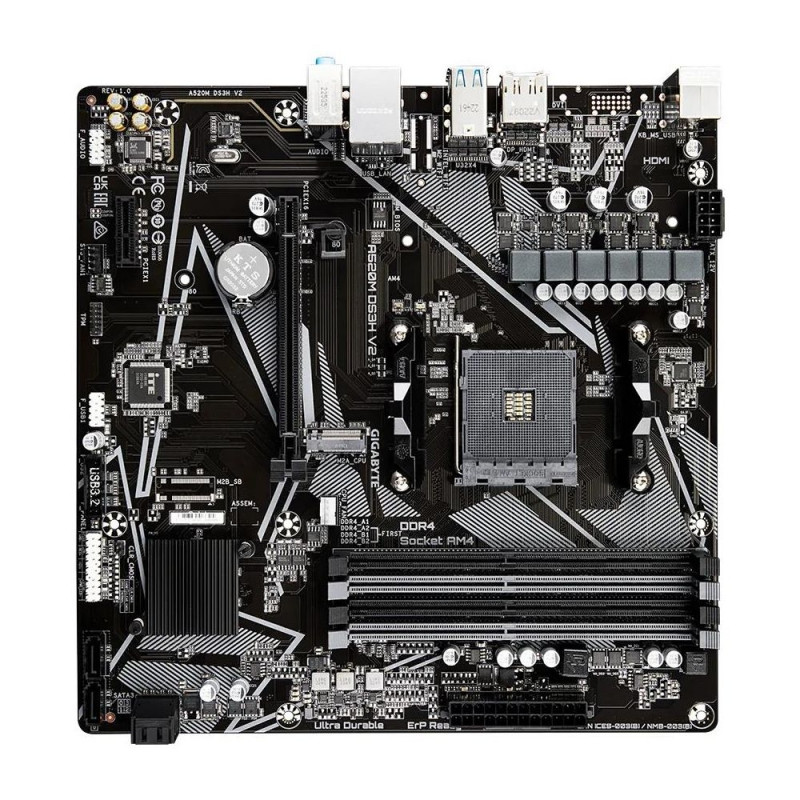

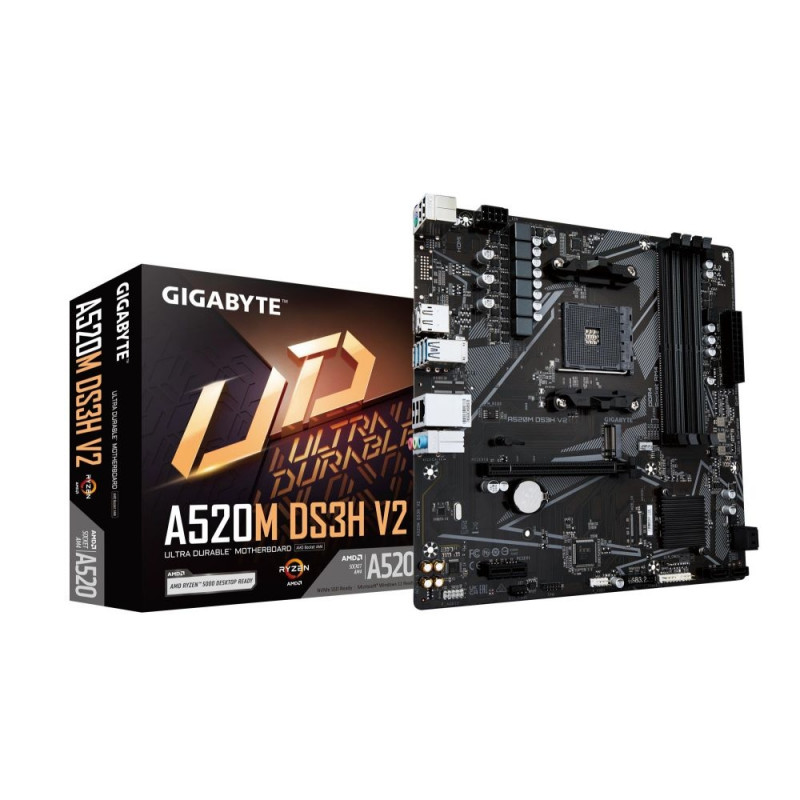

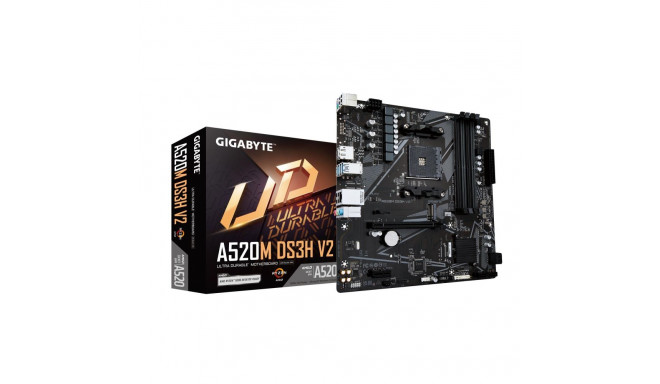

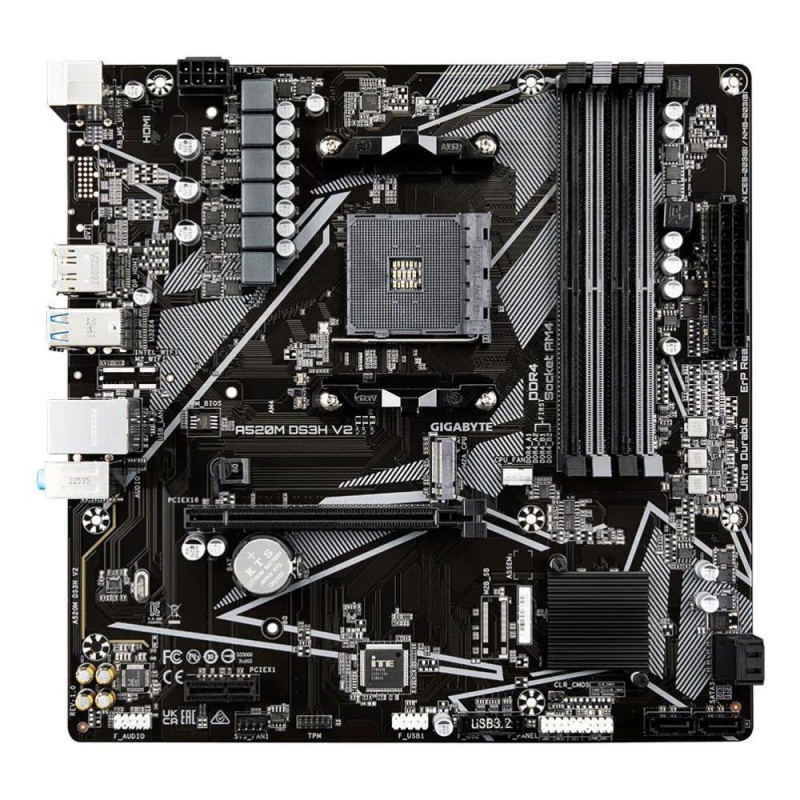

Mainboard|GIGABYTE|AMD A520|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|A520MDS3HV2

70,99 €

Monthly payment starting from 2,12 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content
Add to cart

Delivery in 2-4 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra Durable™ PCIe 3.0 x16 Slot
  • NVMe PCIe 3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GbE LAN with Bandwidth Management
  • Rear DisplayPort and HDMI for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design


Infot ka tootja kodulehelt.
Summary GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD
Features Audio chip - Realtek ALC887, Product colour - Black, PC health monitoring - CPU/LED/Power supply/Temperature/Voltage, Component for - PC, Motherboard form factor - micro ATX, Audio output channels - 7.1 channels, Cooling type - Active, Motherboard chipset
Processor Processor manufacturer - AMD, Processor socket - Socket AM4, Compatible processor series - AMD Ryzen 3000 Series/AMD Ryzen Threadripper 3000 Series/AMD Ryzen Threadripper PRO 3000 WX-Series, Maximum number of SMP processors - 1, Supported processor socket
Memory Supported memory types - DDR4-SDRAM, Number of memory slots - 4, Memory slots type - DIMM, Memory channels - Dual-channel, ECC сompatibility - ECC & Non-ECC, Supported memory clock speeds - 2133/2400/2667/2933/3200/3333/3600/4000/4400/4733 MHz, Maximum in
Storage controllers Supported storage drive types - HDD & SSD, Supported storage drive interfaces - M.2,SATA III, Number of HDDs supported - 4, Number of storage drives supported - 5, RAID support - Yes, RAID levels - 0/1/10
Graphics Maximum resolution - 5120 x 2880 pixels, HDCP - Yes, Discrete graphics support - Yes, Number of displays supported - 3
Internal I/O USB 2.0 connectors - 1, USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1, Number of SATA III connectors - 4, Total number of SATA connectors - 4, Front panel audio connector - Yes, Front panel connector - Yes, ATX Power connector (24-pin) - Yes, Number of EATX po
Rear panel I/O ports USB 2.0 ports quantity - 2, USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4, Ethernet LAN (RJ-45) ports - 1, PS/2 ports quantity - 1, HDMI ports quantity - 1, HDMI version - 2.1, DVI-D ports quantity - 1, DisplayPorts quantity - 1, DisplayPort version
Network Ethernet LAN - Yes, Ethernet interface type - Gigabit Ethernet, Wi-Fi - No
Expansion slots PCI Express x1 (Gen 3.x) slots - 2, PCI Express x16 (Gen 3.x) slots - 1, Number of M.2 (M) slots - 1
BIOS BIOS type - UEFI AMI, BIOS memory size - 128 Mbit, ACPI version - 5.0, Clear CMOS jumper - Yes, Clear CMOS button - Yes, Desktop Management Interface (DMI) version - 2.7, System Management BIOS (SMBIOS) version - 2.7
Logistics data Country of origin - China, Products per shipping (inner) case - 1 pc(s)
Battery Battery weight - 3 g, Lithium weight per battery - 0.07 g, Number of battery cells - 1, Battery technology - Lithium-Manganese Dioxide (LiMnO2), Battery type - CR2032
Packaging data Package width - 265 mm, Package depth - 265 mm, Package height - 54 mm, Package weight - 810 g
Packaging content Batteries included - Yes, Cables included - SATA, Drivers included - Yes, Bundled software - Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Technical details Warranty period - 3 year(s)
ELKO Logistics Data Unit Calculated Weight - 0.89 kg, Product Net Weight - 0.7 kg, Units per Shipping Box - 10, Unit Width - 26.5 cm, Unit Depth - 27 cm, Unit Height - 5.5 cm
ELKO Internal Logistics Data Unit Calculated Volume - 0.004711 cubm
Name MB AMD A520 SAM4 MATX/A520M DS3H V2 GIGABYTE
Model A520M DS3H V2

Dimensions and weights

Package width
28.5 cm
Package height
29 cm
Package length
57 cm

Product codes

EAN
4719331854690
Manufacturer code
A520MDS3HV2
