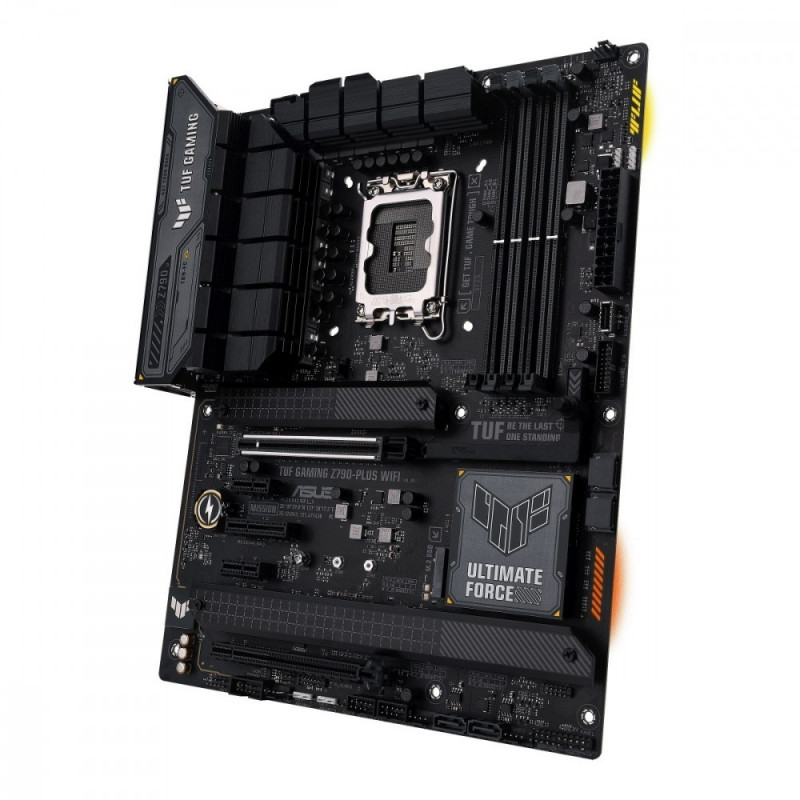

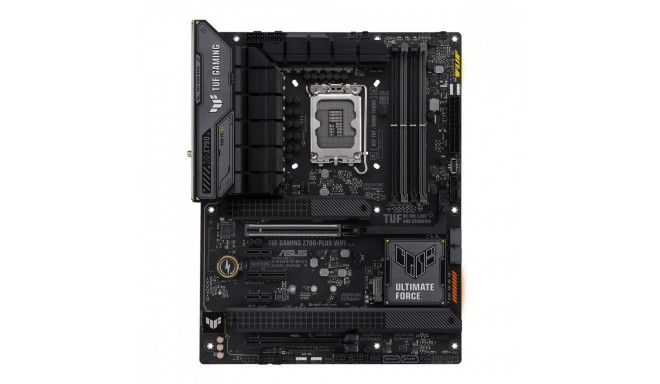

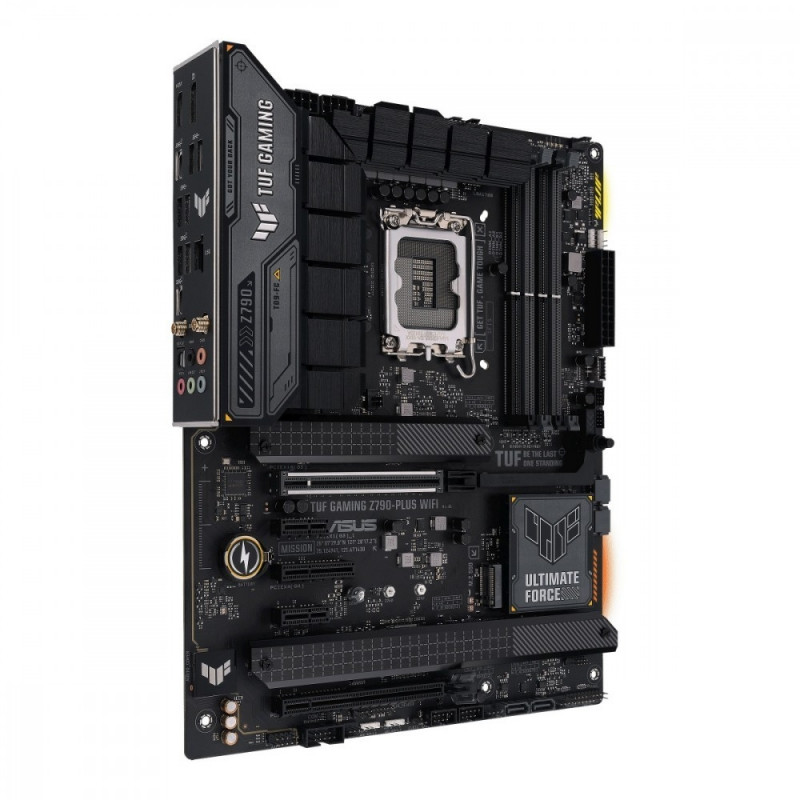

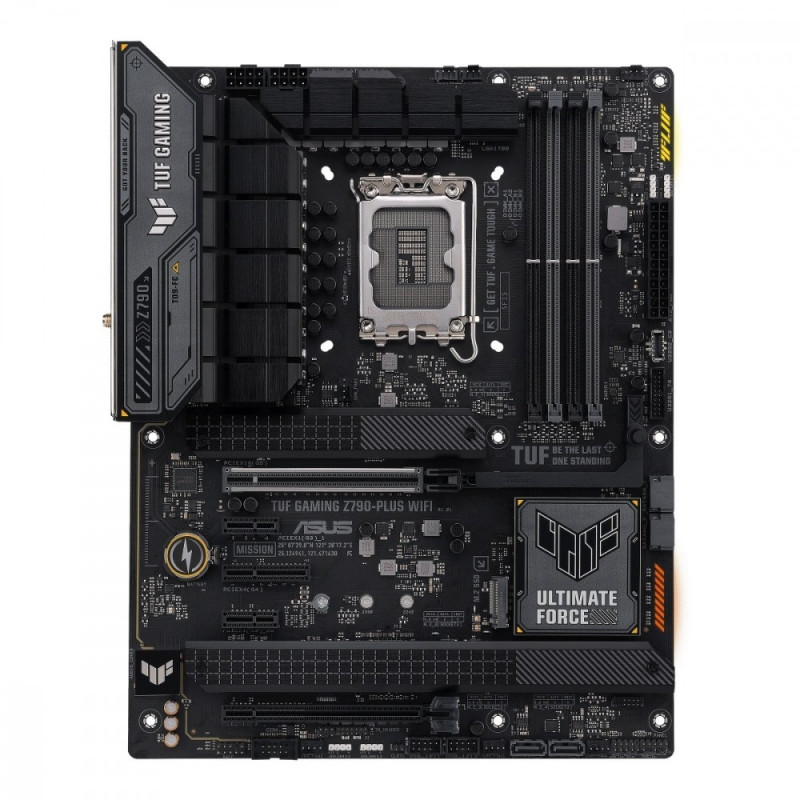

Asus mainboard TUF Gaming Z790-PLUS WiFi s1700 4DDR5 ATX

Main info

Product has been archived

Intel Z790 (LGA1700) ATX gaming motherboard, 16 + 1 DrMOS power stages, PCIe 5.0, DDR5 memory support, four M.2 slots, Wi-Fi 6E and Intel 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-C front panel connector, SATA 6 Gb/s, Thunderbolt 4 port and RGB lighting with Aura Sync

  • Intel LGA 1700 socket: LGA1151 socket compatible with 13th generation Intel Core processors.
  • Improved power design: 16+1 DrMOS power stages, six-layer PCB, ProCool headers, metal alloy chokes and heavy-duty capacitors for stable power delivery
  • Exclusive memory technologies: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Next-gen connectivity: PCIe 5.0, USB 3.2 Gen2x2 Type-C, USB 3.2 Gen 2 Type-C front panel, Thunderbolt 4 support
  • Built for online gaming: WiFi 6E, Intel Ethernet 2.5Gb and TUF LANGuard
  • Bi-directional AI-powered noise cancellation: reduces background noise for crystal-clear voice communication during gameplay and video conferencing
  • AI Cooling II: ensure balanced temperature and noise level of any system with one click
  • Advanced Cooling: Oversized VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers, and Fan Xpert 4 utility software in Armory Crate
  • Aura Sync RGB lighting effects: stylish edge lighting, addressable RGB lighting slots and support for connecting RGB light strips

Model TUF Gaming Z790-Plus
CPU socket LGA1700
Processor family Intel Celeron
Processor family Intel Pentium
Processor family Intel Core
Integrated CPU No
Chipset manufacturer Intel
Chipset type Intel Z790 Chipset
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 5800 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 5400 MHz
Memory bus frequency 5600 MHz
Memory bus frequency 5000 MHz
Memory bus frequency 6000 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6800 MHz
Memory bus frequency 7000 MHz
Memory bus frequency 7200 MHz
Memory bus frequency 4800 MHz
Memory bus frequency 133 MHz
Max memory size 192
Expansion slots 1 x PCIe 5.0 x 16
Expansion slots 1 x PCIe 4.0 x 4
Expansion slots 1 x PCIe 4.0 x 16
Expansion slots 2 x PCIe 3.0 x 1
Max. number of SATA devices 4
RAID Yes
Graphics 1 x DisplayPort 1 x HDMI port
Network interface Wi-Fi 802.11a/b/g/n/ac/ax
Network interface Bluetooth
Network interface Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 1 x Intel 2.5Gb Ethernet TUF LANGuard
USB ports at back panel 8
USB ports on motherboard 6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 5
FireWire (IEEE 1394) No
COM connector / port Yes
LPT connector / port No
External connectors 1 x DisplayPort
External connectors 1 x HDMI
External connectors 1 x Central Speaker / Subwoofer
External connectors 1 x Rear Speaker
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 1 x S/PDIF
External connectors 4 x USB 3.0
External connectors 2 x USB 3.1
External connectors 2 x USB 3.1 Type-C
Onboard connectors 1 x Front panel audio header
Onboard connectors 1 x USB 3.0 header
Onboard connectors 1 x USB 3.1
Onboard connectors 1 x Serial port header
Onboard connectors 4 x M.2
Onboard connectors 4 x SATA III 6Gb/s
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 1 x 4pin wentylator OPT CPU
Onboard connectors 2 x 8pin 12V
Onboard connectors 1 x 24pin ATX zasilanie
Onboard connectors 1 x Clear CMOS jumper
Onboard connectors 2 x USB 2.0/1.1 header
Onboard connectors 1 x Thunderbolt header
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form factor ATX
Dimensions 30.5 x 24.4 cm
Accessories included Wires: 2 SATA 6 Gb/s cables Other: 1 x ASUS Wi-Fi movable antenna 1 x TUF Gaming sticker 2 M.2 rubber packs 1 x M.2 SSD Screw Pack Documentation: 1 x TUF certification card 1 x User Manual
Supported operating systems Windows 10
Supported operating systems Windows 11
Designation
Detailed data on disk/drive interfaces Total supports 4 M.2 slots and 4 SATA 6 Gb/s ports* 13th and 12th generation Intel processors M.2_1 socket (M key), type 2242/2260/2280/22110 Intel 13th and 12th generation processors support PCIe 4.0 x4 mode Intel Z790 chipset M.2_2 slot (M Key), type 22
Sound card Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC: Impedance measurement for front and rear headphone outputs Internal audio amplifier improving the highest sound quality in headphones and speakers Supports: jack detection, multi-streaming, fr
Special functions Asus TUF Protection DIGI+ VRM (- Digital power design with DrMOS) ESD Guards TUF LANGuard Overvoltage Protection Safeslot Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Devi
Software Asus Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) Two-Way AI Noise Cancelation Power Saving AI Suite 3 TurboV EVO DIGI+ VRM PC Cleaner TUF GAMING CPU-ZDTS Audio ProcessingMyAsusNorton 360 for GamersWinRARUEFI Bi

Dimensions and weights

Gross weight
2.1 kg
Package width
27 cm
Package height
34 cm
Package length
50 cm

Product codes

EAN
4711387014509
Manufacturer code
KBASUIIEZ790A22
