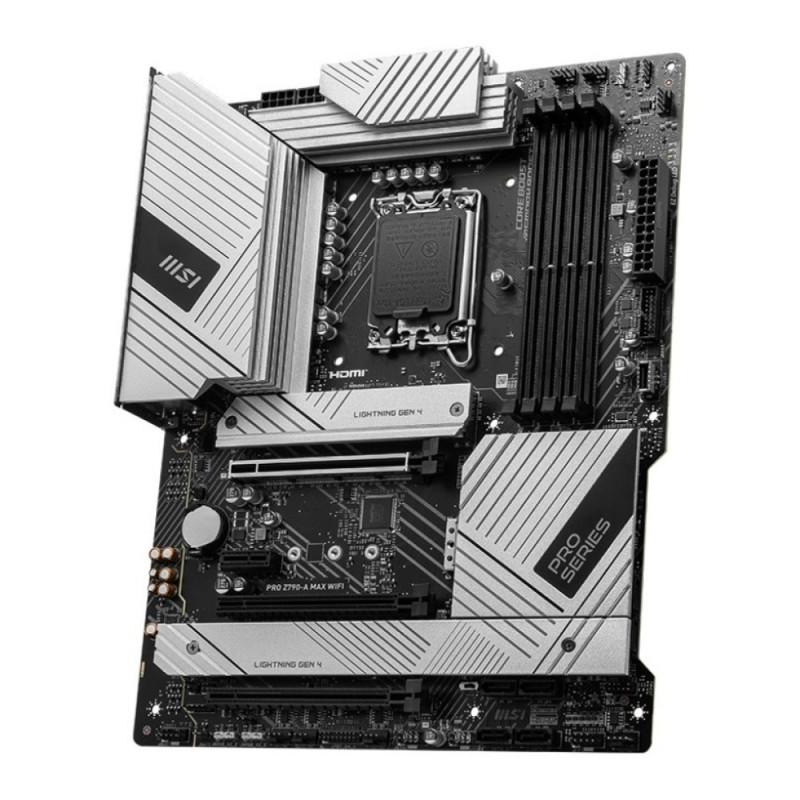

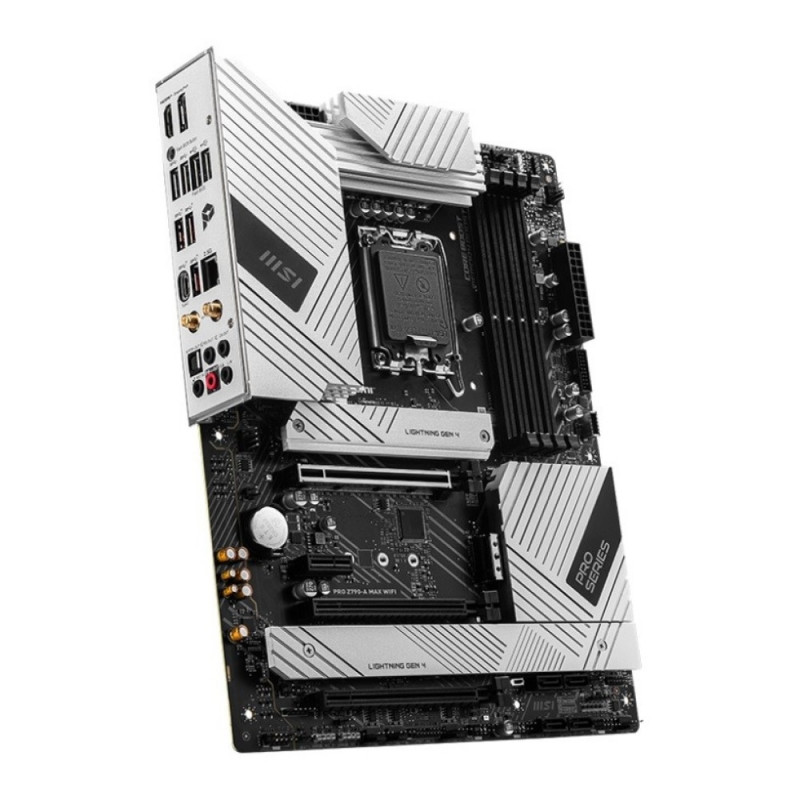

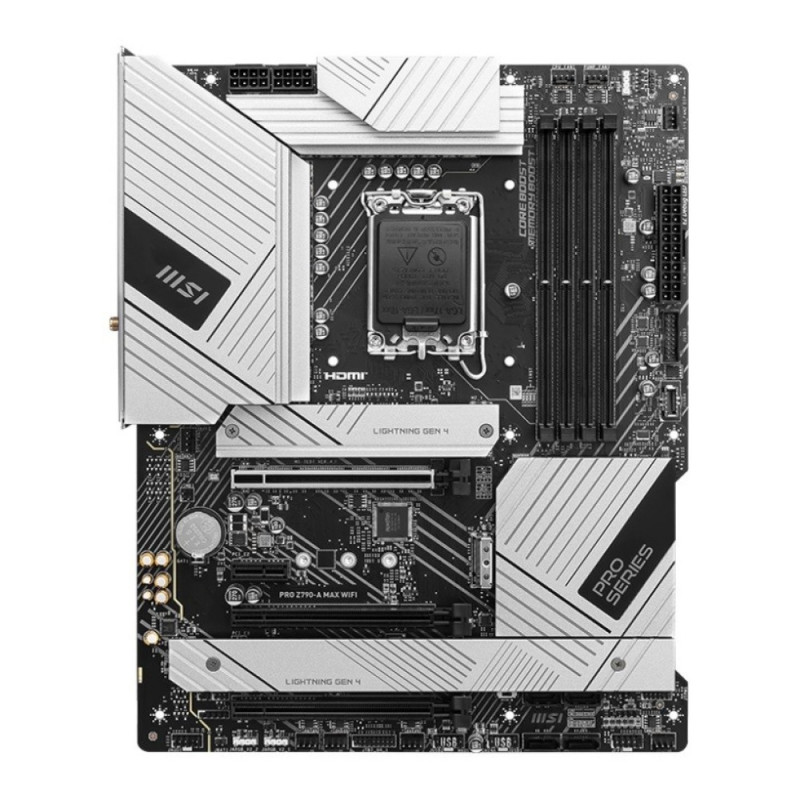

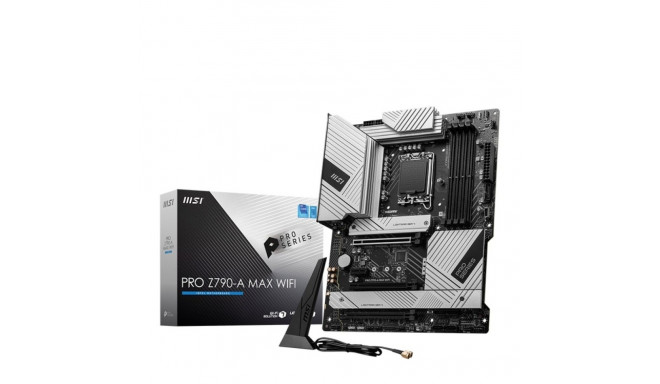

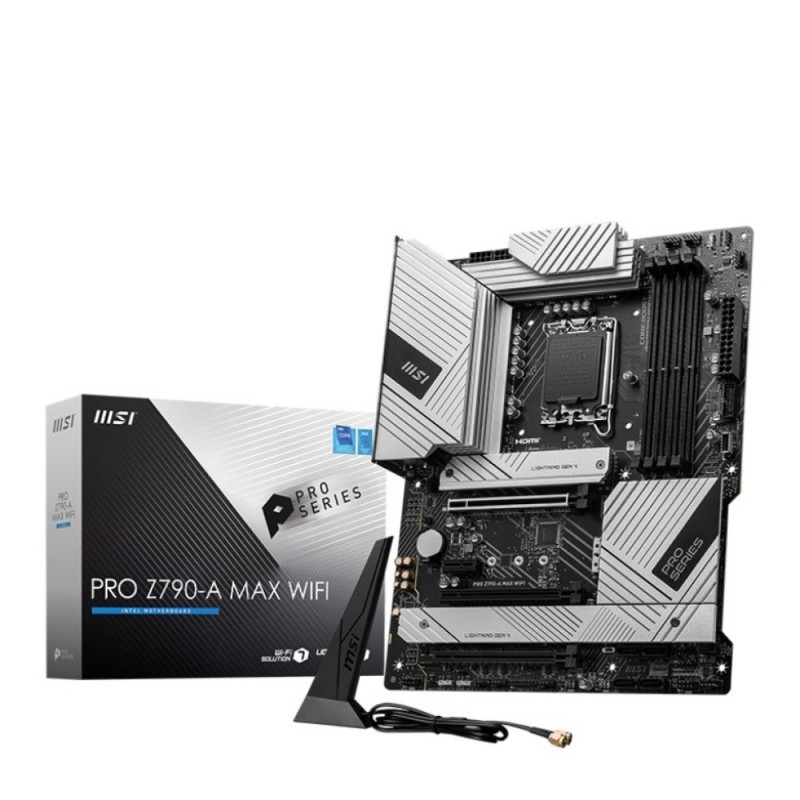

PRO Z790-A MAX WiFi motherboard

  • Support for Intel Core 14./13./12. generation, Intel Pentium Gold and Celeron processors for the LGA 1700 socket\
  • Supports DDR5 memory, dual-channel DDR5 7800+MHz (OC)
  • Improved power design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, core reinforcement, memory increase.
  • Premium thermal solution: extended heatsink, 7W/mK MOSFET thermal pads, additional thermal pads with chokes and M.2 Shield Frozr connector ensure high system performance and uninterrupted gameplay
  • High-quality PCB: 6-layer PCB made of 2-ounce copper and server-grade material
  • Lightning-fast gaming experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Intel Turbo USB 3.2 Gen 2: Powered by the Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with greater stability and the fastest USB speeds
  • 2.5G LAN solution with Wi-Fi 7: Enhanced networking solution for professional and multimedia applications. Provides a safe, stable and fast network connection
  • Audio Boost 5: Studio-quality audio for the most immersive gaming experience

Model Pro Z790-A
CPU socket LGA1700
Processor family Intel Celeron
Processor family Intel Pentium
Processor family Intel Core
Integrated CPU No
Chipset manufacturer Intel
Chipset type Intel Z790
Memory type DDR5
Number of DDR5 slots 4
Memory bus frequency 5600 MHz
Memory bus frequency 6200 MHz
Memory bus frequency 5400 MHz
Memory bus frequency 7800 MHz
Memory bus frequency 5200 MHz
Memory bus frequency 5000 MHz
Memory bus frequency 5800 MHz
Memory bus frequency 6400 MHz
Memory bus frequency 6600 MHz
Memory bus frequency 6800 MHz
Memory bus frequency 7000 MHz
Memory bus frequency 7200 MHz
Memory bus frequency 7400 MHz
Memory bus frequency 7600 MHz
Memory bus frequency 6000 MHz
Memory bus frequency 4800 MHz
Max memory size 192
Expansion slots 1 x PCIe 3.0 x 1
Expansion slots 1 x PCIe 4.0 x 4
Max. number of SATA devices 6
RAID Yes
Graphics 1xHDMI HDMI 2.1 support with HDR, maximum resolution 4K 60 Hz 1x DisplayPort Support DP 1.4, maximum resolution 8K 60Hz
Sound card Realtek ALC4080 codec 7.1-channel high-performance USB audio Supports S/PDIF output
Network interface Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface Bluetooth
Network interface Intel 2.5Gbps LAN WiFi 7 The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz (320 MHz) up to 5.8 Gbps Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth 5.4, MLO, 4KQAM
USB ports at back panel 8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports 5
FireWire (IEEE 1394) No
COM connector / port No
LPT connector / port No

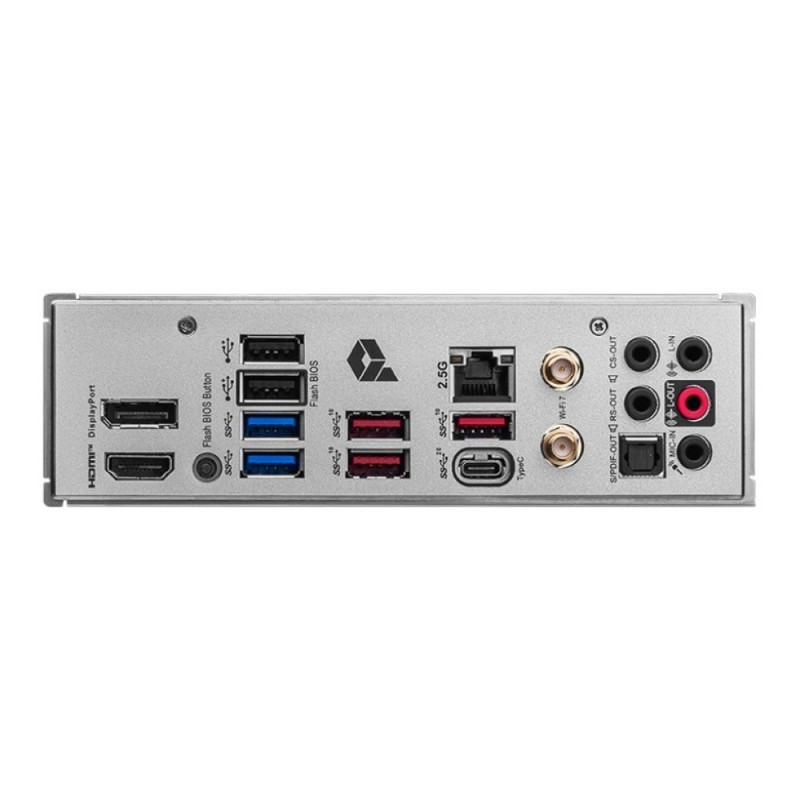

External connectors 1 x DisplayPort
External connectors 2 x SMA
External connectors 1 x Flash BIOS Button
External connectors 1 x USB 3.1 Type-C
External connectors 1 x Line In
External connectors 1 x Line Out
External connectors 1 x MIC
External connectors 1 x RJ-45
External connectors 1 x S/PDIF
External connectors 2 x USB 2.0
External connectors 2 x USB 3.0
External connectors 3 x USB 3.1
External connectors 1 x Central Speaker / Subwoofer
External connectors 1 x HDMI
External connectors 1 x Rear Speaker
Onboard connectors 1 x USB C
Onboard connectors 1 x Chassis intrusion header
Onboard connectors 1 x 4pin CPU fan
Onboard connectors 4 x USB 2.0/1.1
Onboard connectors 2 x USB 3.0 header
Onboard connectors 2 x System panel header
Onboard connectors 1 x TPM header
Form factor ATX
Dimensions 243.84 x 304.8 mm
Supported operating systems Windows 11
Designation
Detailed data on disk/drive interfaces 4x M.2 M.2_1 source (from CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 source (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 source (from chipset) supports PCIe 4.0 x4/SATA mode, supports 2

Dimensions and weights

Gross weight
2.03 kg
Package width
37.3 cm
Package height
27.3 cm
Package length
7.5 cm

Product codes

EAN
4711377139939
Manufacturer code
KBMSIIIEZ790A13
