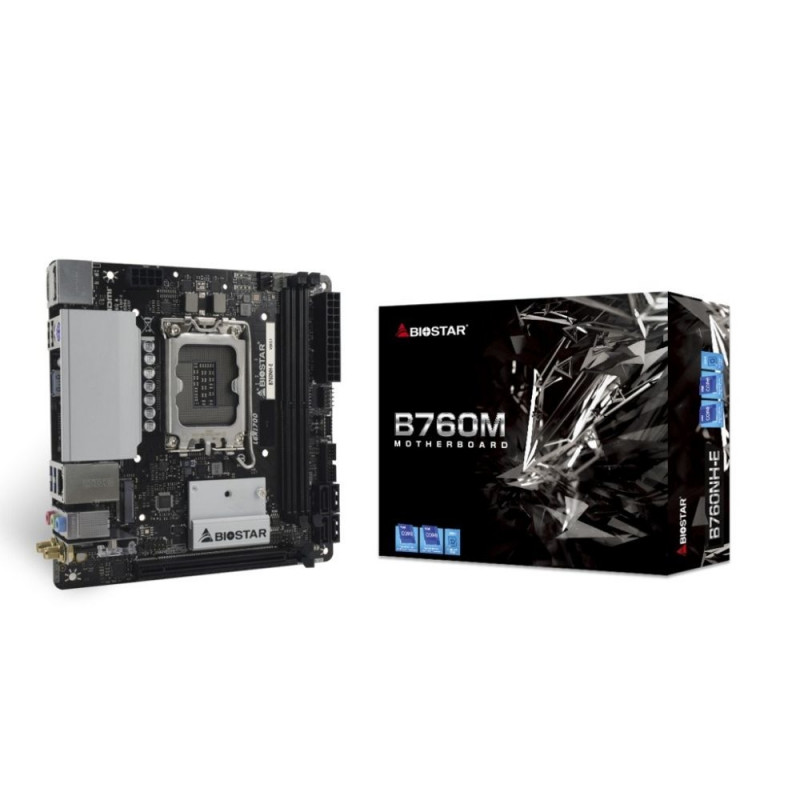

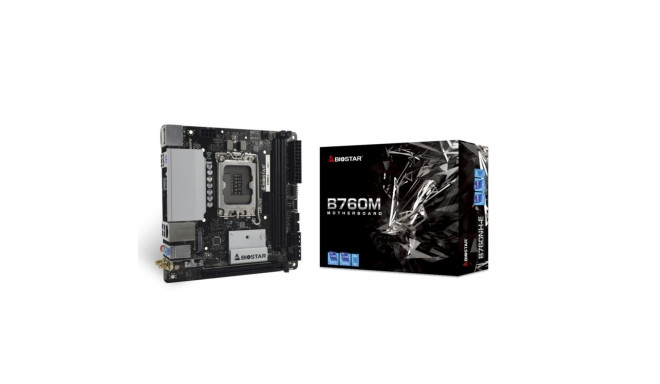

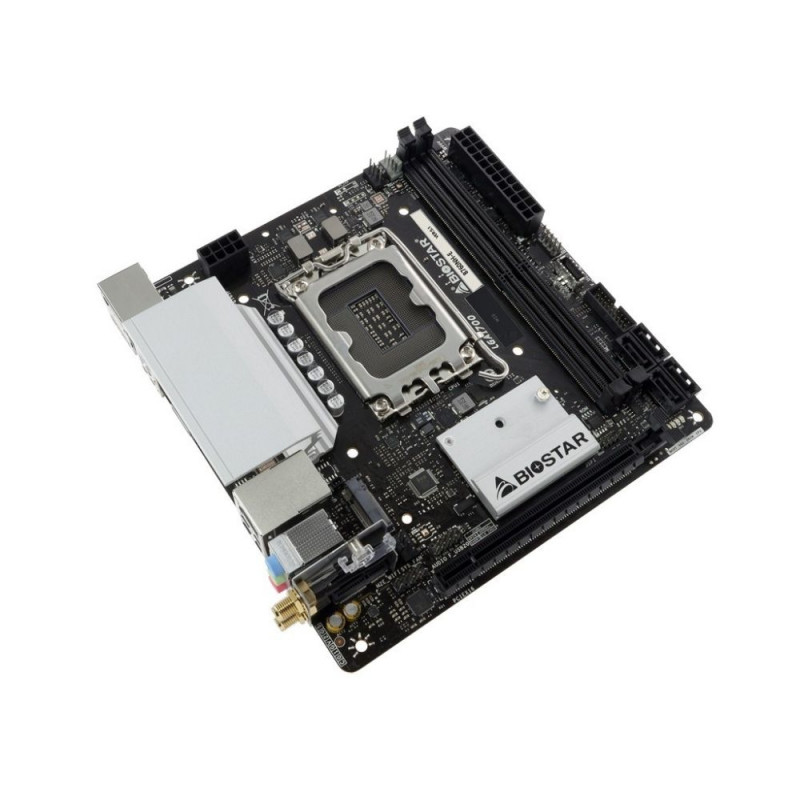

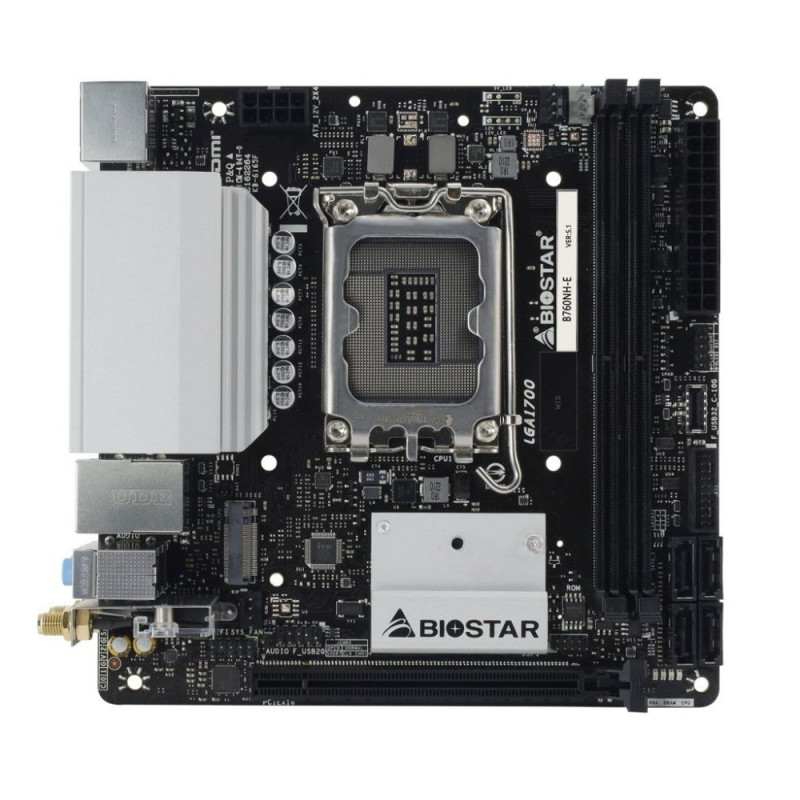

Biostar mainboard B760NH-E

Main info

Warranty 24 (G) Number of audio jack connectors 3

Product has been archived


Warranty 24 (G)
Number of audio jack connectors 3
Processor socket LGA 1700
PCI Express x16 (Gen 5.x) slots 1
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi Yes (Requires antenna)
Supported memory types DDR5-SDRAM
Ethernet LAN Yes
Depth 170 mm
Number of memory slots 2
Number of Wi-Fi antenna ports 2
Memory slots type DIMM
Maximum number of SMP processors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Cables included SATA
Motherboard form factor mini ITX
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Number of M.2 (M) slots 1
Front panel connector Yes
Front panel audio connector Yes
Width 170 mm
HDMI ports quantity 1
USB 2.0 connectors 1
Motherboard chipset Intel B760
Number of SATA III connectors 4
Audio output channels 7.1 channels
CPU fan connector Yes
Processor manufacturer Intel
LAN controller Realtek RTL8125B
USB 2.0 ports quantity 2
Motherboard chipset family Intel
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
ATX Power connector (24-pin) Yes
Audio chip Realtek ALC1220-VB
Maximum internal memory 96 GB
DisplayPorts quantity 1
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
PS/2 ports quantity 1
PC health monitoring Temperature
Windows operating systems supported Windows 10 x64
Supported memory clock speeds 6400
Compatible processor series Intel® Core™ i3

Dimensions and weights

Package width
220 cm
Package height
60 cm
Package length
270 cm

Product codes

EAN
4712960686984
Manufacturer code
B760NH-E
