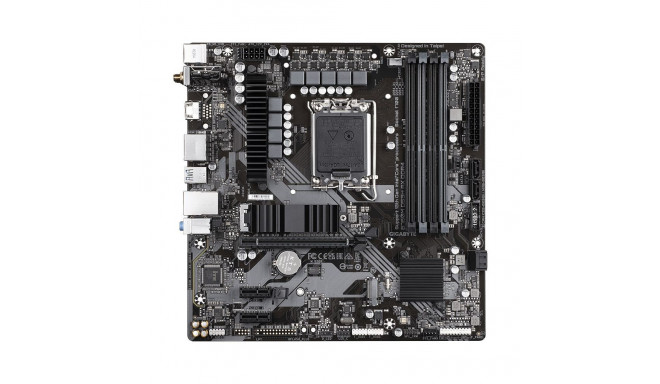

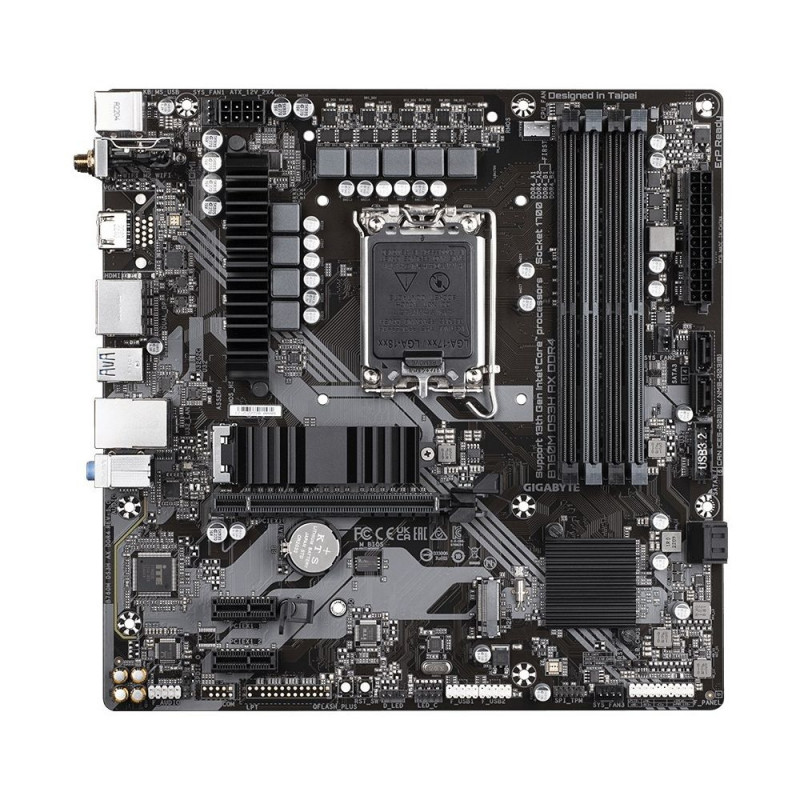

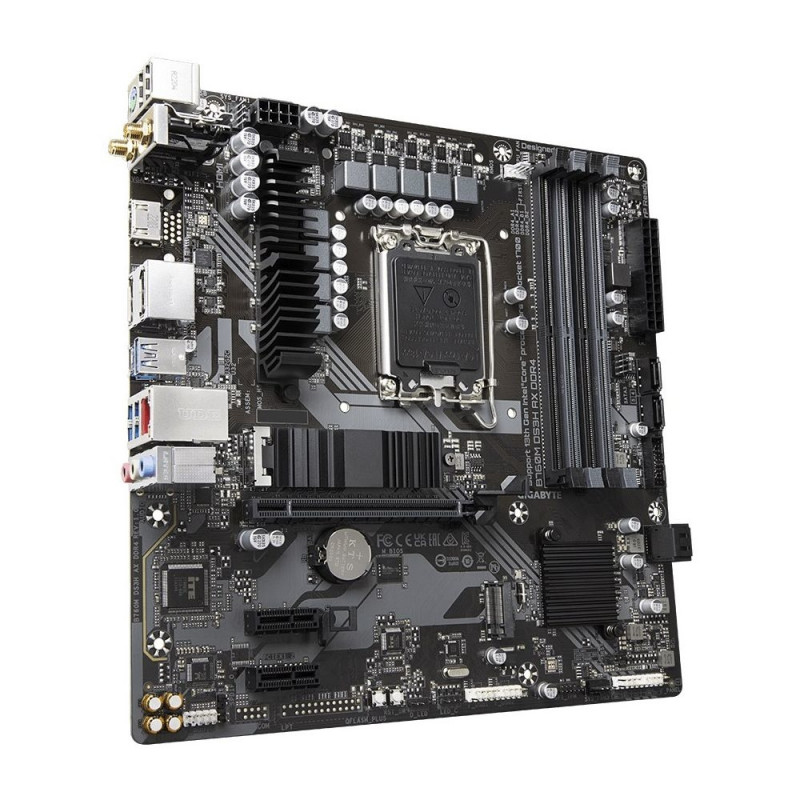

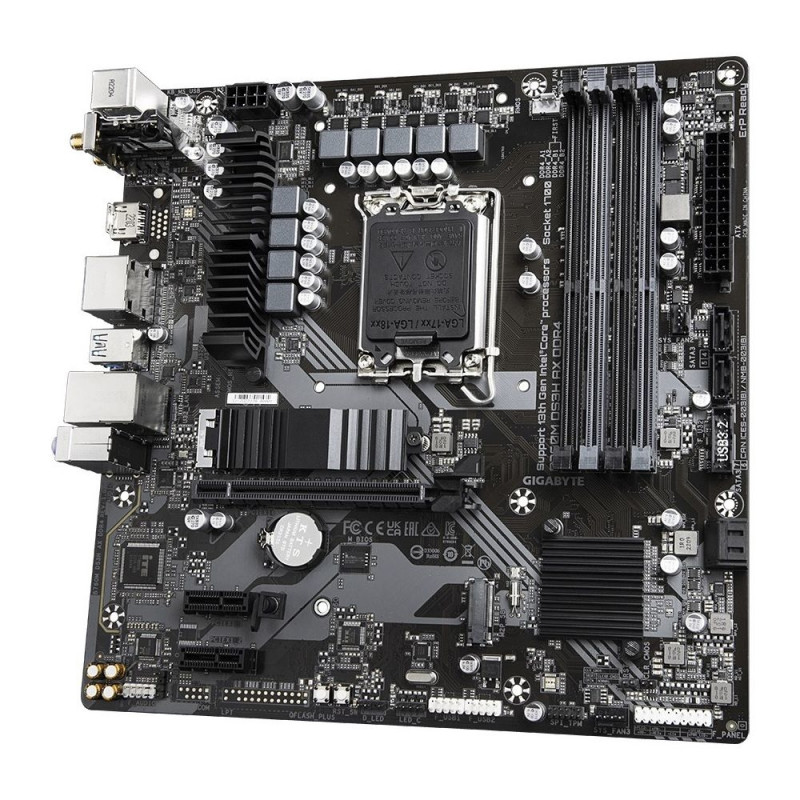

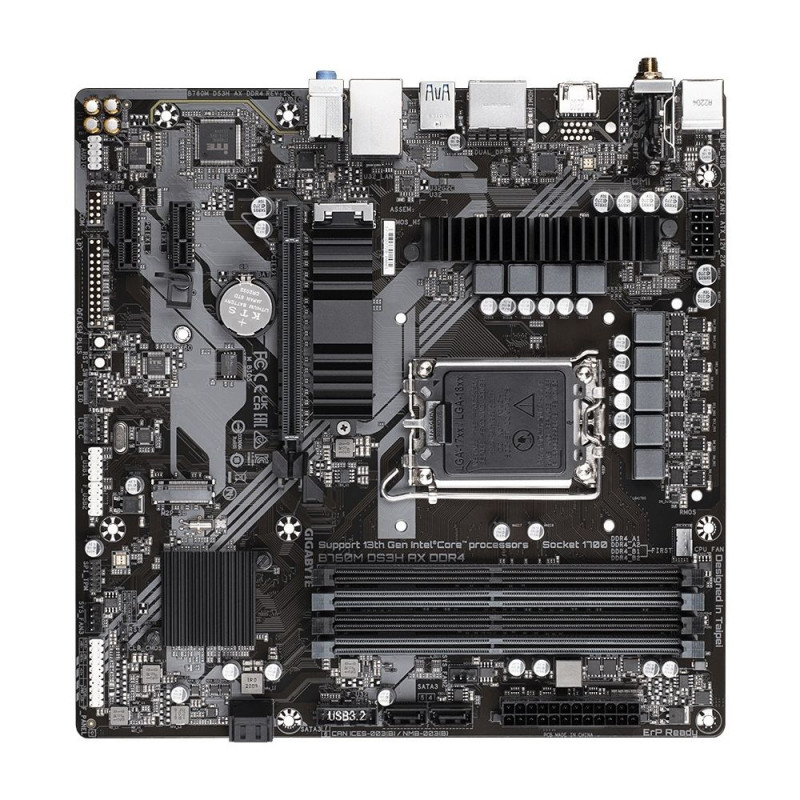

GIGABYTE B760M DS3H AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VR

Main info

Product has been archived


Bundled software Norton Internet Security
Lithium weight per battery 0.07 g
Supported storage drive types HDD & SSD
Bluetooth Yes
Unbuffered memory Yes
DisplayPort version 1.2
Motherboard chipset Intel B760 Express
Product colour Bronze
CPU fan connector Yes
Parallel processing technology support Not supported
HDCP Yes
USB 2.0 connectors 2
ATX Power connector (24-pin) Yes
S/PDIF out connector Yes
Motherboard chipset family Intel
Number of M.2 (M) slots 2
Audio output channels 7.1 channels
PCI Express x16 slots 1
Front panel audio connector Yes
Package weight 1.1 kg
Maximum internal memory 128 GB
Number of SATA III connectors 4
Maximum resolution 4096 x 2304 pixels
RAID support Yes
Country of origin China
BIOS type UEFI AMI
DisplayPorts quantity 2
Ethernet LAN (RJ-45) ports 1
Supported storage drive interfaces M.2, SATA III
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
DirectX version 12.0
Motherboard form factor micro ATX
Memory slots type DIMM
Front panel connector Yes
Package width 265 mm
Number of storage drives supported 6
Number of battery cells 1
Battery weight 3 g
Bluetooth version 5.2
Desktop Management Interface (DMI) version 2.7
PS/2 ports quantity 1
Height 35 mm
Package height 54 mm
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
12V power connector Yes
Batteries included Yes
Cables included SATA
Microphone in Yes
Supported memory types DDR4-SDRAM
WLAN controller model RZ608
WiFi-AP antenna jack 2
Wi-Fi Yes
Supported processor sockets LGA 1700
PCI Express x1 slots 2
Package depth 265 mm
Number of memory slots 4
HDMI version 2.0
Clear CMOS jumper Yes
Ethernet LAN Yes
Depth 244 mm
Total number of SATA connectors 4
EPS power connector (8-pin) Yes
Memory channels Dual-channel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Width 244 mm
Number of HDDs supported 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
HDMI ports quantity 1
Processor socket LGA 1700
Processor manufacturer Intel
Supported memory clock speed (max) 5333 MHz
RGB LED pin header Yes
Headphone outputs 3
Products per shipping (inner) case 1 pc(s)
TPM connector Yes
Warranty period 3 year(s)
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Warranty 36 (G)
ECC сompatibility ECC & Non-ECC
RAID levels 10
Compatible processor series Intel® Pentium® Gold
Supported memory clock speeds 2133
USB connector type USB Type-C
PC health monitoring Voltage
Wi-Fi standards Wi-Fi 6 (802.11ax)
Windows operating systems supported Windows 10 x64
Warnings Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

Dimensions and weights

Package width
274 cm
Package height
70 cm
Package length
270 cm

Product codes

EAN
4719331850869
Manufacturer code
B760M DS3H AX DDR4
