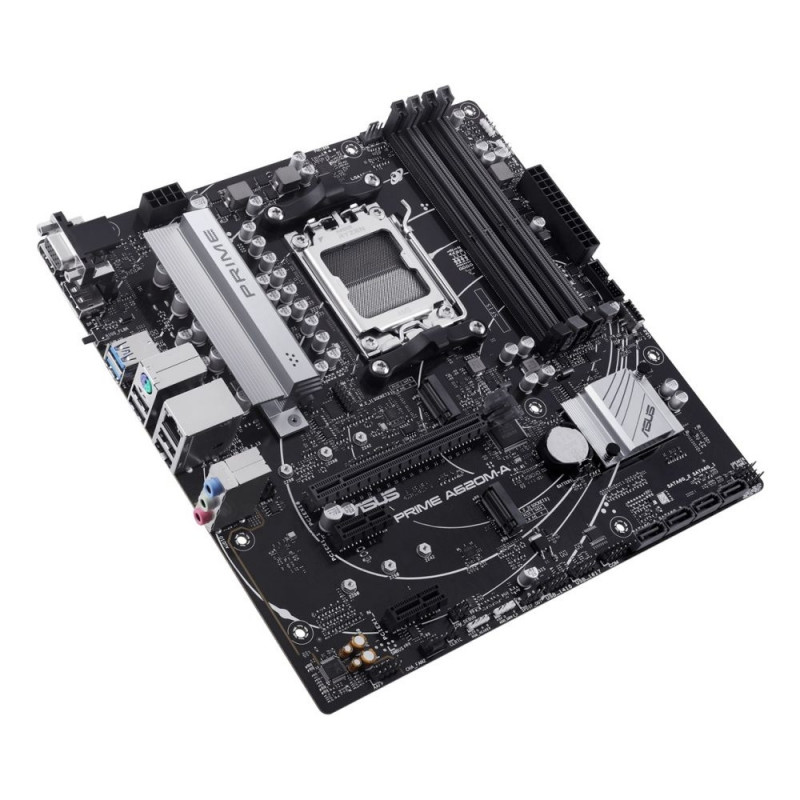

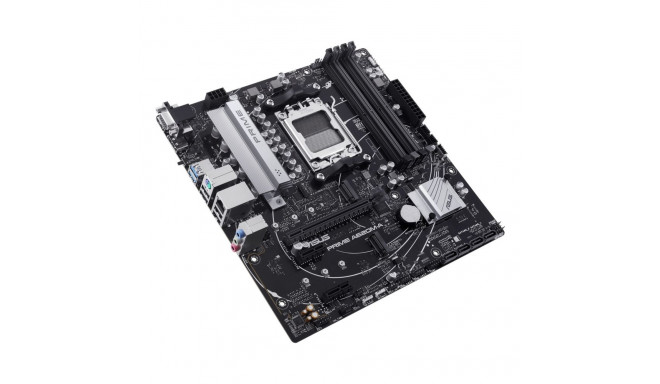

ASUS PRIME A620M-A-CSM AMD A620 Socket AM5 micro ATX

Main info

Product has been archived


USB 2.0 connectors 2
Unbuffered memory Yes
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 1
Number of COM connectors 1
RAID support Yes
Number of M.2 (M) slots 2
Wi-Fi No
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Width 244 mm
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Audio output channels 7.1 channels
Number of chassis fan connectors 2
S/PDIF out connector Yes
Supported processor sockets Socket AM5
Cables included SATA
Front panel audio connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
PCI Express x1 (Gen 3.x) slots 2
Depth 244 mm
DisplayPorts quantity 1
Motherboard chipset family AMD
Ethernet LAN Yes
Motherboard form factor micro ATX
HDMI ports quantity 1
Ethernet interface type Gigabit Ethernet
BIOS type UEFI AMI
Processor socket Socket AM5
TPM connector Yes
Front panel connector Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
USB 2.0 ports quantity 4
Processor manufacturer AMD
PS/2 ports quantity 1
PCI Express x16 (Gen 4.x) slots 1
RGB LED pin header Yes
Number of memory slots 4
12V power connector Yes
Supported memory types DDR5-SDRAM
Memory slots type DIMM
Warranty 36 (G)
Motherboard chipset AMD A620
ECC сompatibility Non-ECC
Compatible processor series AMD Ryzen 7000 Series
Number of SATA connectors 4
Supported storage drive interfaces M.2, Serial ATA
Maximum internal memory 192 GB
Supported storage drive types SSD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Number of 3.5 mm jack connectors 3
Windows operating systems supported Windows 11
Supported memory clock speeds 4800
RAID levels 0
Warnings Do not disassemble to avoid damage to internal components and loss of warranty.

Dimensions and weights

Package width
276 cm
Package height
68 cm
Package length
266 cm

Product codes

EAN
4711387176405
Manufacturer code
90MB1F10-M0EAYC
