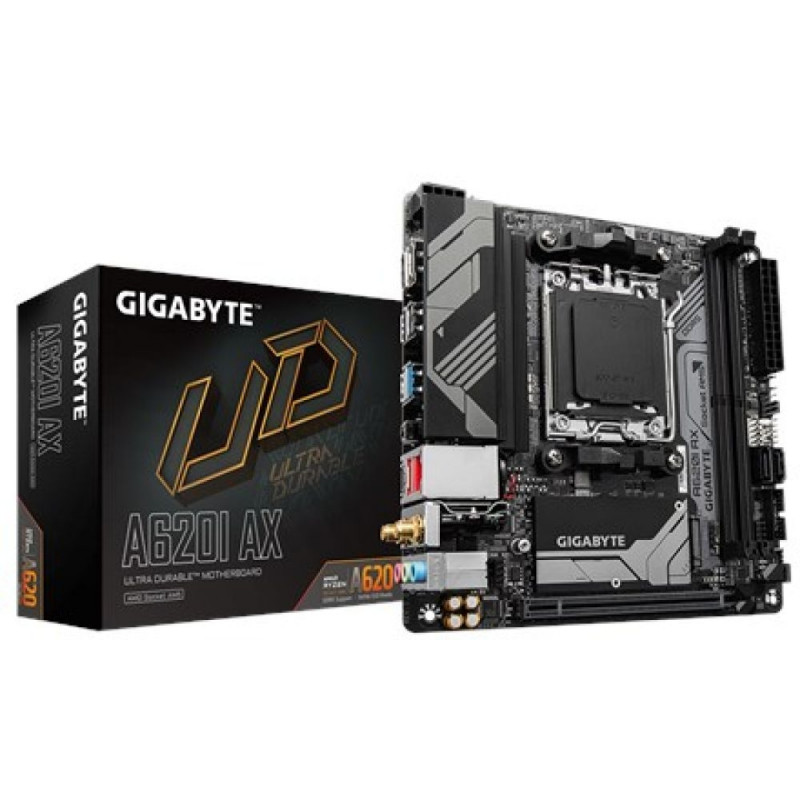

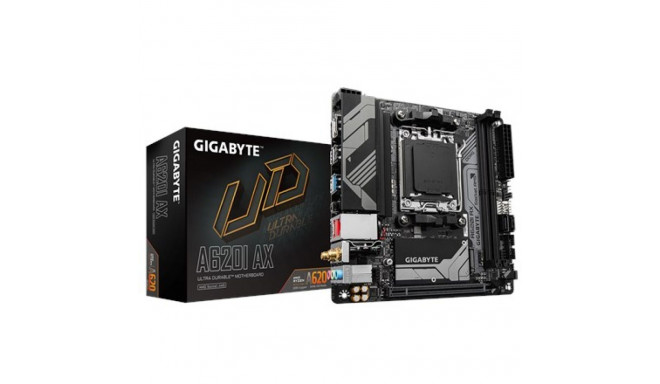

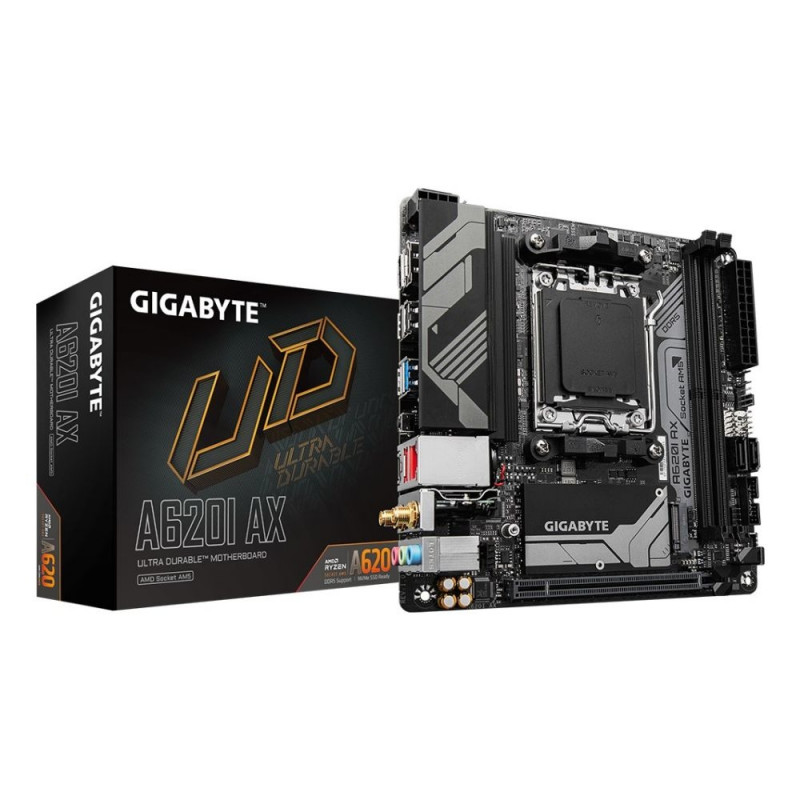

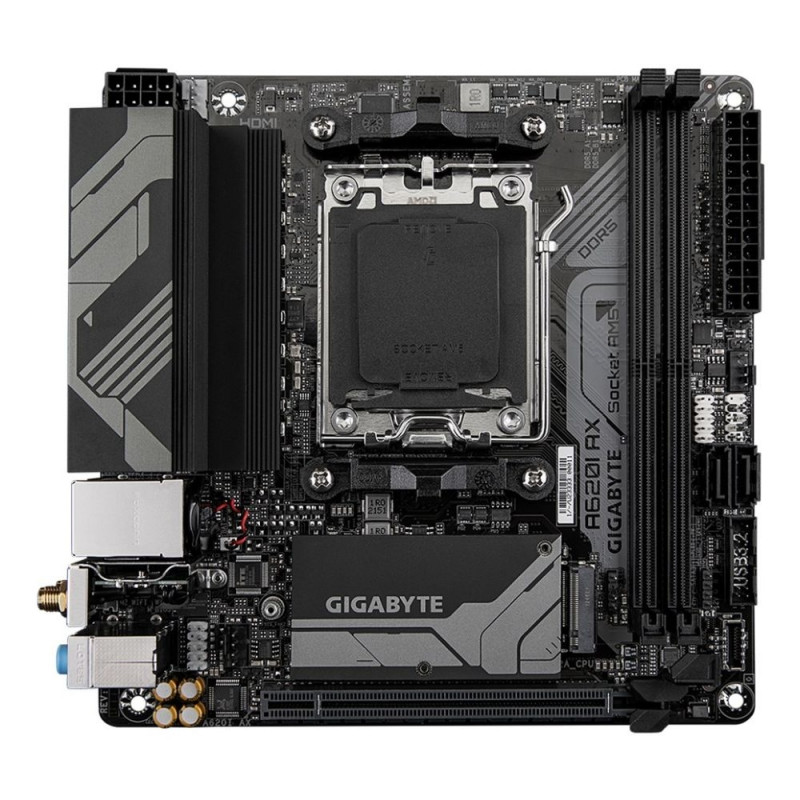

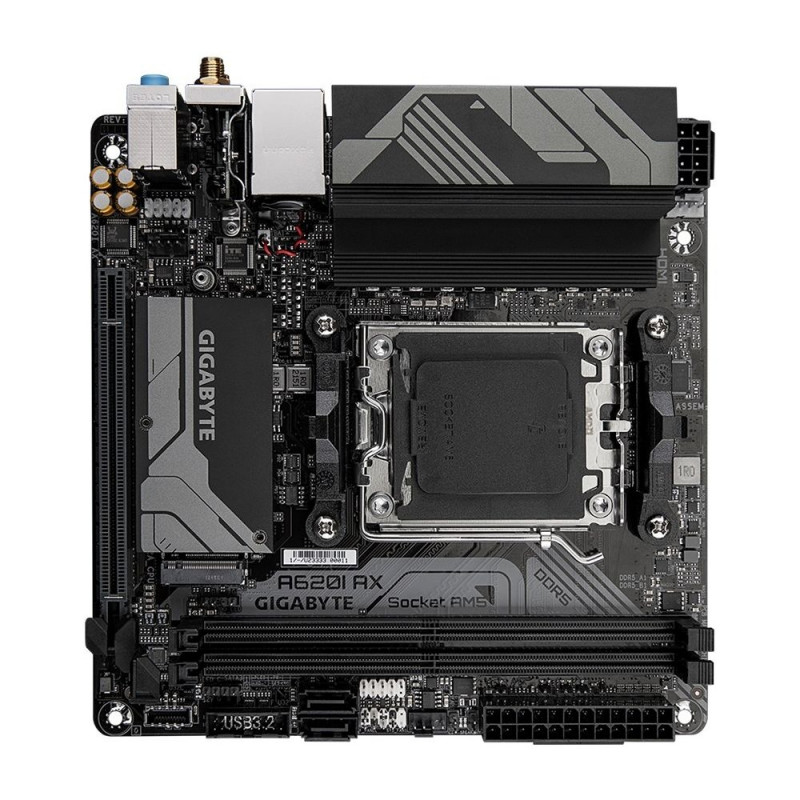

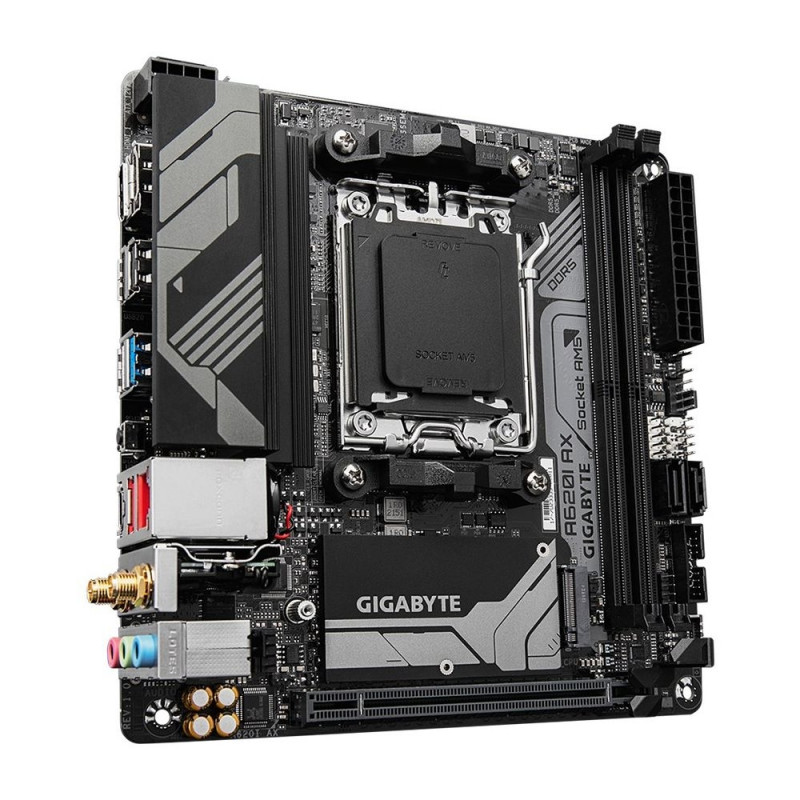

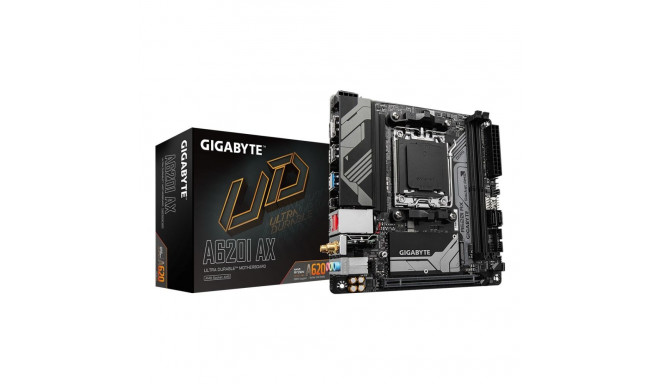

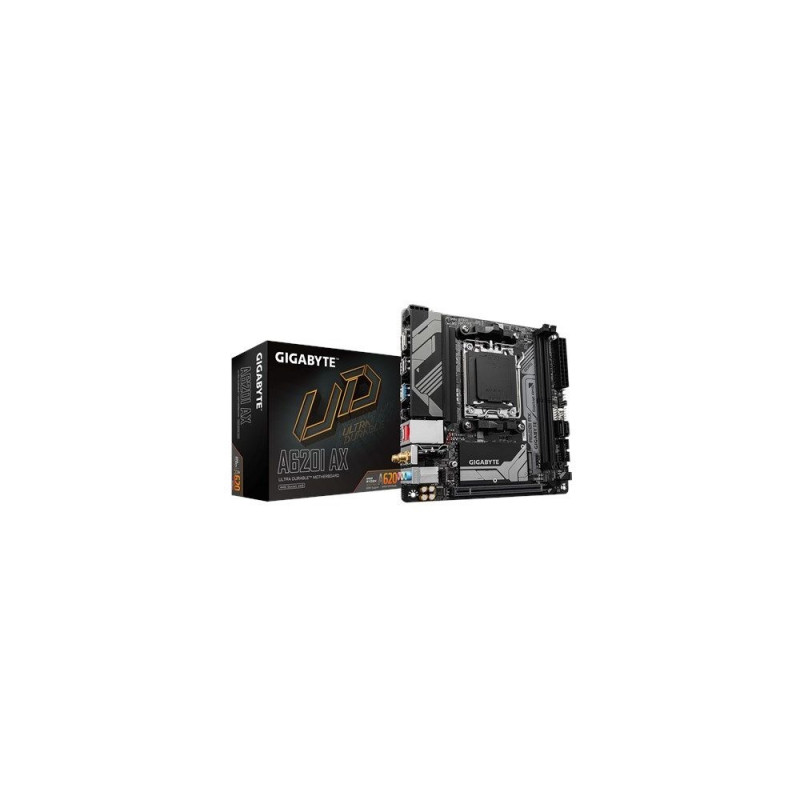

Gigabyte A620I AX 1.0 Processor family AMD Processor socket AM5 DDR5 DIMM Supported hard disk drive

Main info

Product has been archived


Bundled software Norton Internet Security
Bluetooth Yes
Supported memory types DDR5-SDRAM
Motherboard form factor mini ITX
DisplayPorts quantity 1
Clear CMOS jumper Yes
Ethernet LAN Yes
WLAN controller model Realtek RTL8852CE
HDCP Yes
WiFi-AP antenna jack 2
Depth 170 mm
Parallel processing technology support Not supported
Unbuffered memory Yes
Memory slots type DIMM
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Headphone outputs 3
USB 2.0 connectors 1
BIOS type UEFI AMI
Processor socket Socket AM5
Ethernet LAN (RJ-45) ports 1
Maximum internal memory 96 GB
Batteries included Yes
DisplayPort version 1.4
Number of M.2 (M) slots 1
HDMI version 2.1
Audio output channels 7.1 channels
Front panel audio connector Yes
PCI Express x16 slots 1
Compatible processor series AMD Ryzen 7000 Series
USB 2.0 ports quantity 3
Country of origin China
Maximum resolution 4096 x 2160 pixels
Number of SATA III connectors 2
Products per shipping (inner) case 1 pc(s)
Supported storage drive interfaces M.2, SATA III
Motherboard chipset family AMD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Package depth 180 mm
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
Desktop Management Interface (DMI) version 2.7
Package weight 860 g
CPU fan connector Yes
Front panel connector Yes
Product colour Bronze
Audio connector Yes
Processor manufacturer AMD
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
DirectX version 12.0
Battery type CR2032
Ethernet interface type 2.5 Gigabit Ethernet
Number of storage drives supported 3
Motherboard chipset AMD A620
ATX Power connector (24-pin) Yes
Chassis intrusion connector Yes
HDMI ports quantity 1
Number of HDDs supported 2
Cables included SATA
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Height 35 mm
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Package width 222 mm
Wi-Fi Yes
Width 170 mm
RGB LED pin header Yes
RAID support Yes
Supported memory clock speed (max) 6400 MHz
Supported storage drive types HDD & SSD
Maximum internal memory supported by processor 96 GB
Bluetooth version 5.3
Total number of SATA connectors 2
Number of battery cells 1
Battery weight 3 g
Microphone in Yes
Number of memory slots 2
Supported processor sockets Socket AM5
12V power connector Yes
Package height 65 mm
ECC сompatibility Non-ECC
Warranty period 3 year(s)
Lithium weight per battery 0.07 g
Warranty 24 (F)
Windows operating systems supported Windows 10 x64
Wi-Fi standards Wi-Fi 5 (802.11ac)
Supported memory clock speeds 4800
Supported memory module capacities 8GB
PC health monitoring Temperature
USB connector type USB Type-C
Warnings Avoid contact with liquids to prevent electronic damage.
RAID levels 1

Dimensions and weights

Package width
225 cm
Package height
71 cm
Package length
186 cm

Product codes

EAN
4719331855826
Manufacturer code
A620I AX
