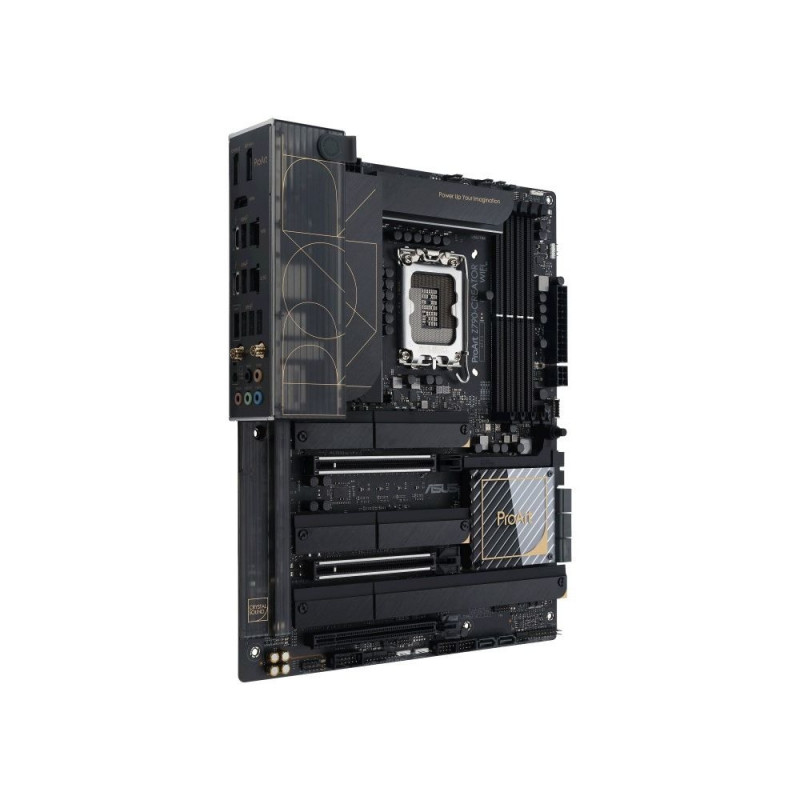

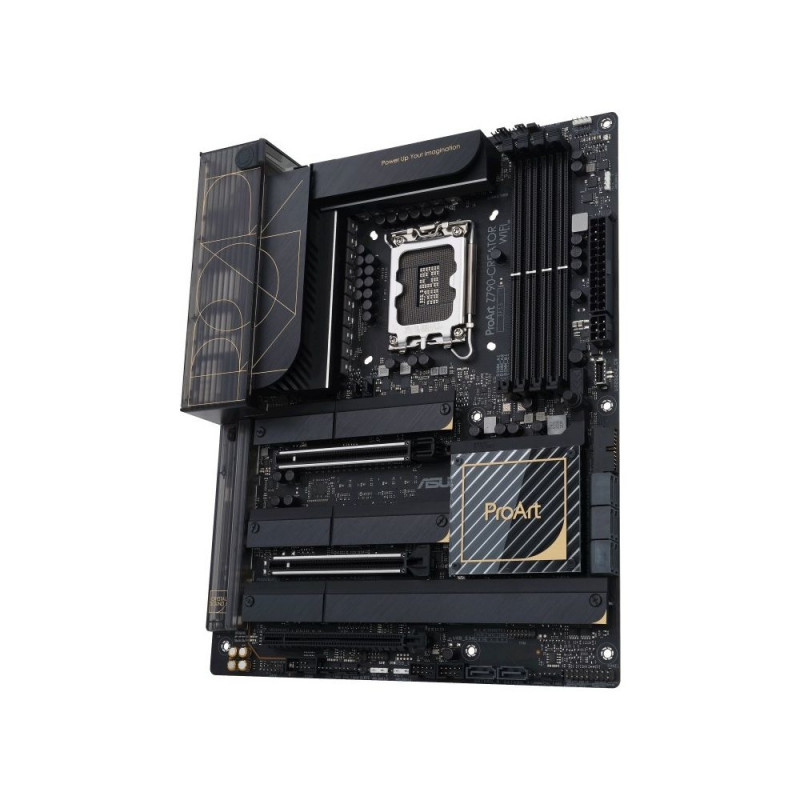

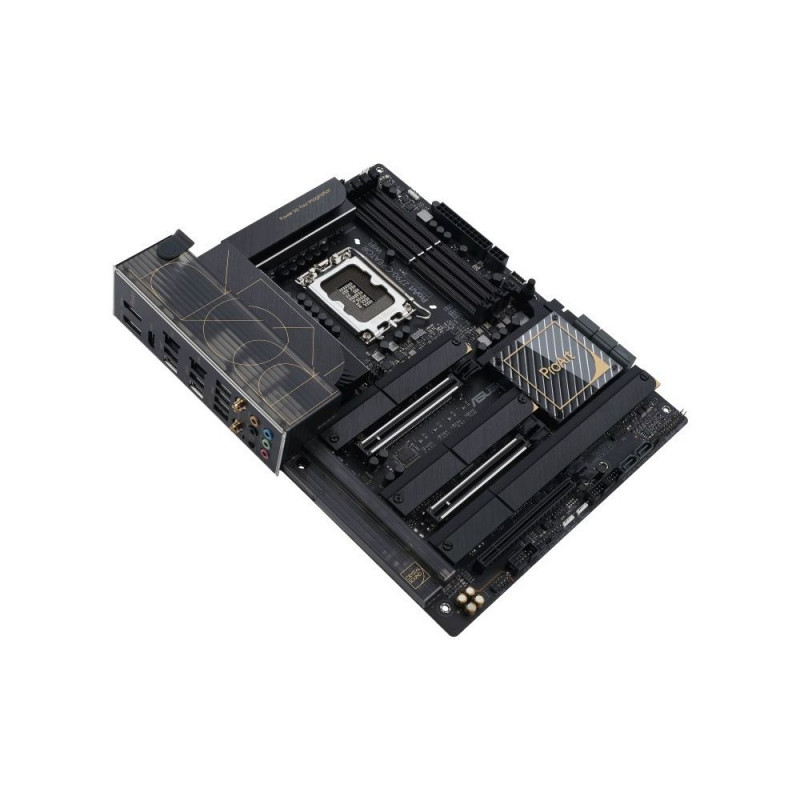

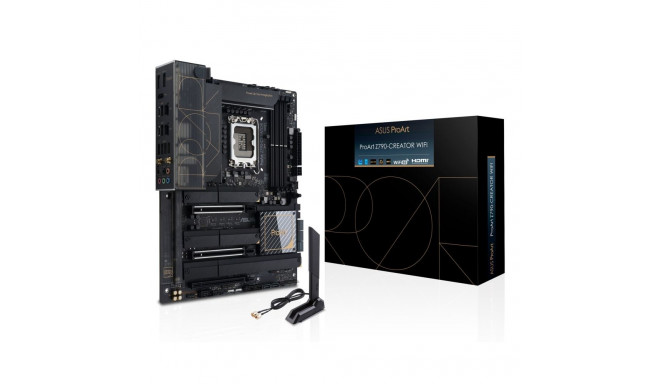

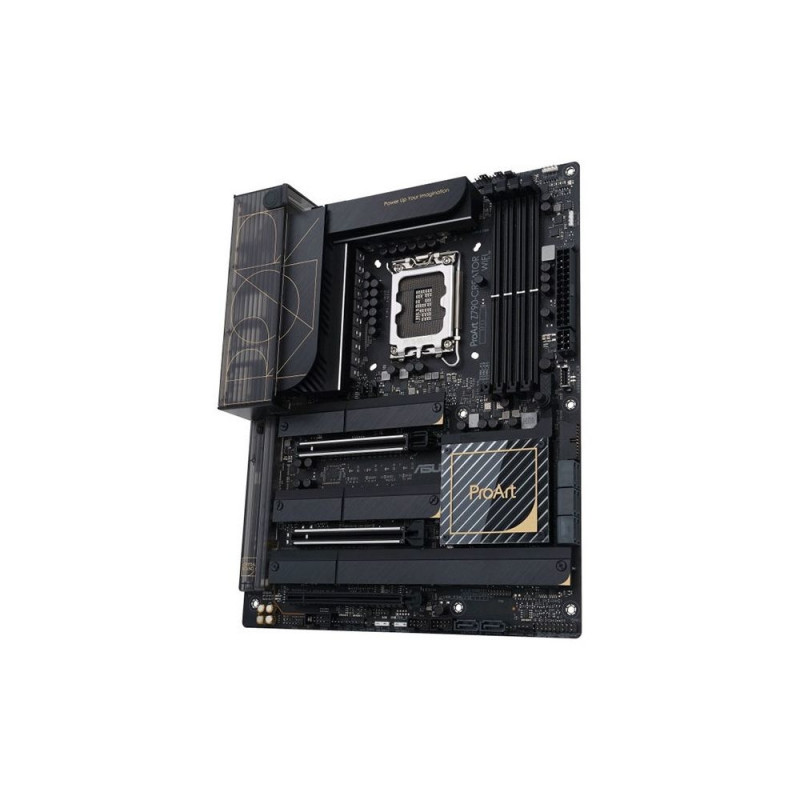

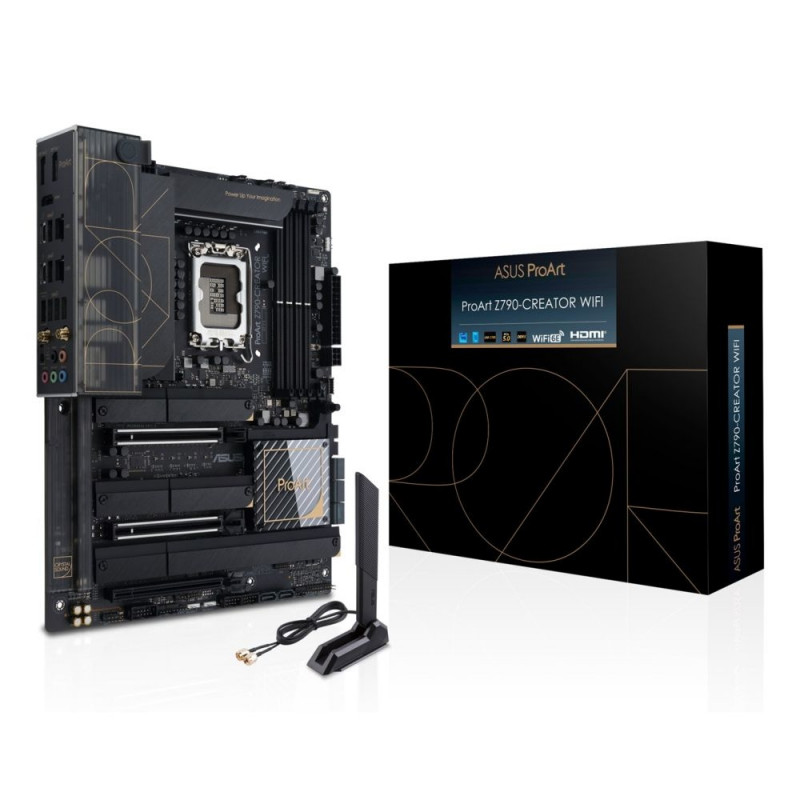

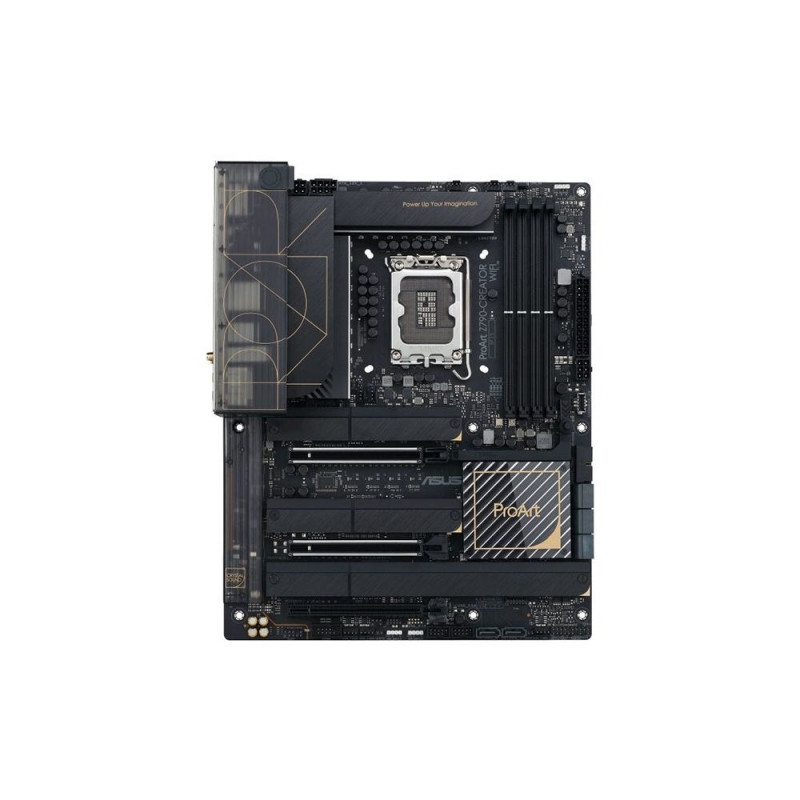

ASUS ProArt Z790-CREATOR WIFI - bundko

Main info

Product has been archived


Warranty 24 (F)
Bluetooth Yes
ECC сompatibility Non-ECC
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
USB 2.0 connectors 2
Peripheral (Molex) power connectors (4-pin) 1
HDMI version 2.1
Audio chip Realtek S1220A
Front panel audio connector Yes
Microphone in Yes
Depth 244 mm
Number of COM connectors 1
DisplayPorts quantity 2
Motherboard form factor ATX
Cooling type Passive
Package height 76 mm
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Number of chassis fan connectors 5
Ethernet LAN (RJ-45) ports 2
Supported processor sockets LGA 1700
Product colour Black
HDMI ports quantity 1
Ethernet LAN Yes
Motherboard chipset family Intel
TPM connector Yes
Wi-Fi Yes
Motherboard chipset Intel Z790
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Power source type ATX
Processor socket LGA 1700
Supported storage drive types HDD & SSD
Number of SATA III connectors 8
Package weight 2.43 kg
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Parallel processing technology support Not supported
Unbuffered memory Yes
DisplayPort version 1.4
Supported storage drive interfaces M.2, SATA III
Headphone outputs 1
Package width 331 mm
On-board graphics card No
Processor manufacturer AMD
CPU fan connector Yes
12V power connector Yes
Maximum internal memory 128 GB
Number of M.2 (E) slots 1
Number of memory slots 4
Supported memory types DDR5-SDRAM
Bluetooth version 5.3
Package depth 266 mm
ATX Power connector (24-pin) Yes
RAID support Yes
Maximum number of SMP processors 1
Thunderbolt ports quantity 2
Width 305 mm
RGB LED pin header Yes
Audio output channels 7.1 channels
Number of M.2 (M) slots 4
PCI Express x16 (Gen 4.x) slots 1
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Ethernet interface type 2.5 Gigabit Ethernet
Memory slots type DIMM
Back-to-BIOS button Yes
PCI Express x16 (Gen 5.x) slots 2
Line-in Yes
WiFi-AP antenna jack 2
Supported memory clock speed (max) 7200 MHz
Warnings Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
Windows operating systems supported Windows 10
Supported memory clock speeds 6600
Wi-Fi standards Wi-Fi 6 (802.11ax)
RAID levels 0
Compatible processor series Intel® Pentium® Gold

Dimensions and weights

Package width
331 cm
Package height
76 cm
Package length
266 cm

Product codes

EAN
4711081988984
Manufacturer code
PROARTZ790-CREATORWIFI
