be quiet! Pure Wings 3 140mm PWM High Speed Case Fans

Main info

Product has been archived

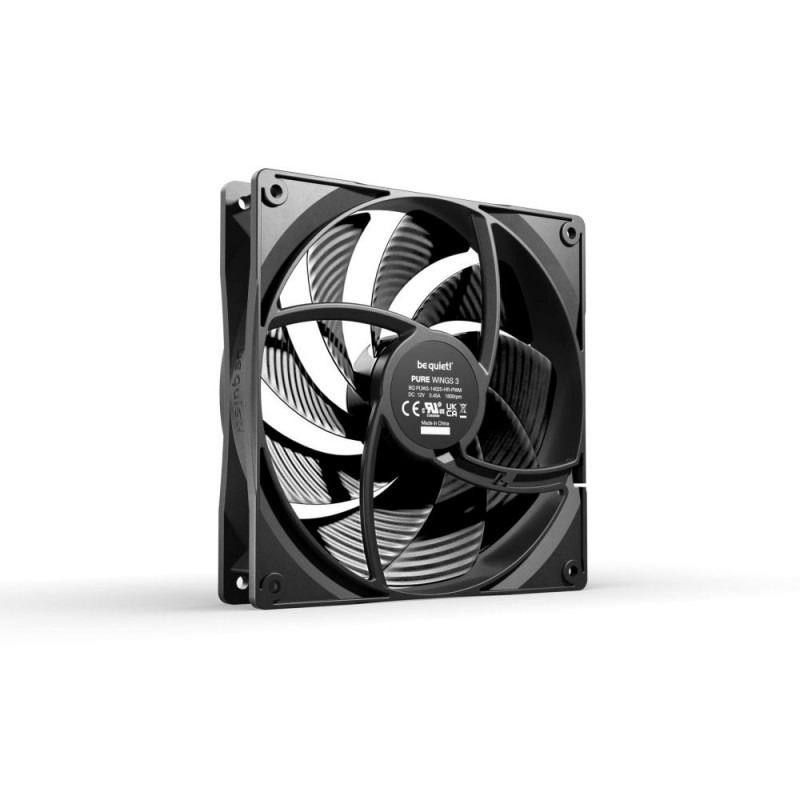

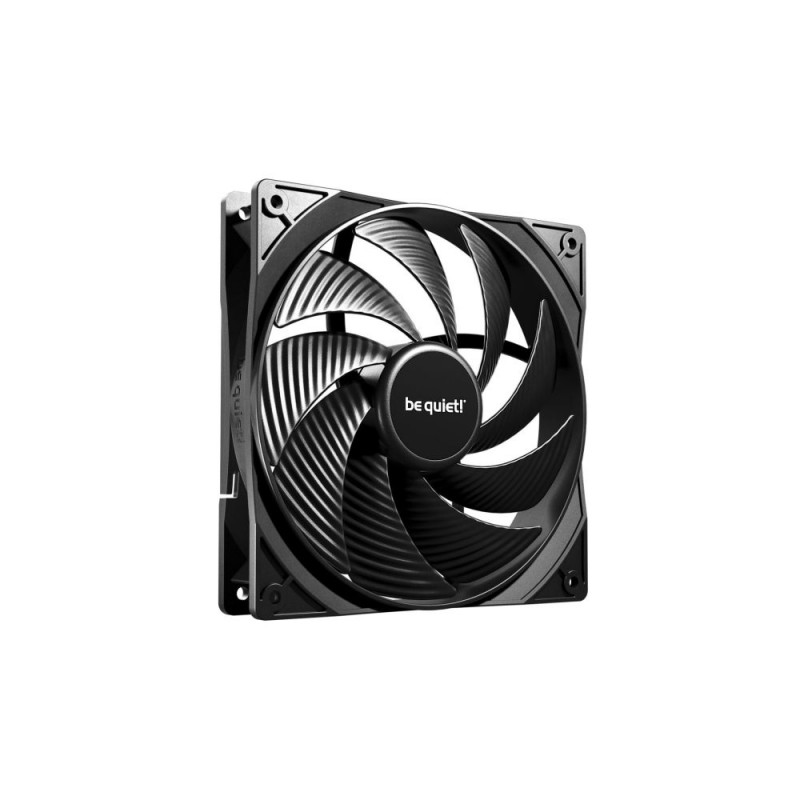

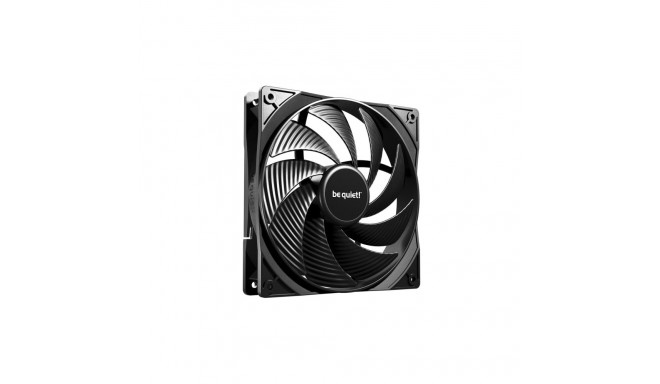

be quiet! Pure Wings 3 140mm PWM high-speed case fans

Pure Wings 3 140mm PWM high-speed are the perfect complement for demanding PCs with exceptionally high performance and advanced features such as a closed-loop motor for speed control.

Pure Wings 3 140mm PWM high-speed has a closed-loop motor. This technology is comparable to cruise control in cars. If the fan works against a resistance, for example against a fan grille or a radiator, it rotates more slowly. A closed control loop constantly monitors the current fan speed and increases it to the target speed if necessary. As a result, the Pure Wings 3 140mm PWM high-speed always operates at the desired speed, regardless of the resistance.

For radiators and heat sinks
With a remarkably high air pressure of up to 2.44 mm / H2O, the Pure Wings 3 140 mm PWM high-speed is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimised fan blades provide enough air pressure for this fan to deliver outstanding performance even in demanding configurations.

Features:

  • Innovative motor with closed-loop technology keeps the speed constant regardless of resistance
  • Optimised fan frame for excellent performance on radiators
  • Specially designed fan blades and optimised angle for exceptional air pressure
  • Pure Wings 3 140mm PWM high-speed enables a very low minimum speed for very quiet operation
  • Durable Rifle bearing with an operating life of 80,000 hours

Technical data:

  • Dimensions (L x W x H): 140 x 140 x 25 mm
  • Weight incl. connection cable: 188 g
  • Bearing technology: Rifle
  • Connection: 4-pin
  • Cable length: 460 mm
  • Speed: 1800 rpm
  • Delivery volume at 100%: 72.2 / 122.6 CFM / m3/h
  • Air pressure at 100% PWM / 12V: 2.44 mm H2O
  • Noise level at 100% PWM / 12V: 30.5 dB(A)
  • Life expectancy @ 25 °C: 80000 hours
  • Nominal voltage: 12 V
  • Operating voltage range: 5 - 13.2 V
  • Nominal current: 0.12 V
  • Maximum current: 0.5 A
  • Power consumption: 6.0 W
  • Illumination: No
  • Colour: black

Fan (Number) 1
Fan Diameter (mm) 140
Max. Fan Speed (RPM) 1800
Max. Air Flow (CFM) 122,6
Max. Air Pressure (mm-H2O) 2,44
Max. Noise Level (dB) 30,5
Cable Length (cm) 46
Colour Black
Type Air Cooling System
Cooling Type Radiator Fan
Connection 4 PIN

Dimensions and weights

Gross weight
0.19 kg
Package width
14 cm
Package height
14 cm
Package length
2.5 cm

Product codes

EAN
4260052190814
Manufacturer code
BL109
