Home page » Computers & IT»Computer components»Mainboards»Gigabyte B760M DS3H 1.0 M/B Processor family Intel Processor socket LGA1700 DDR4 DIMM Memory slots 4

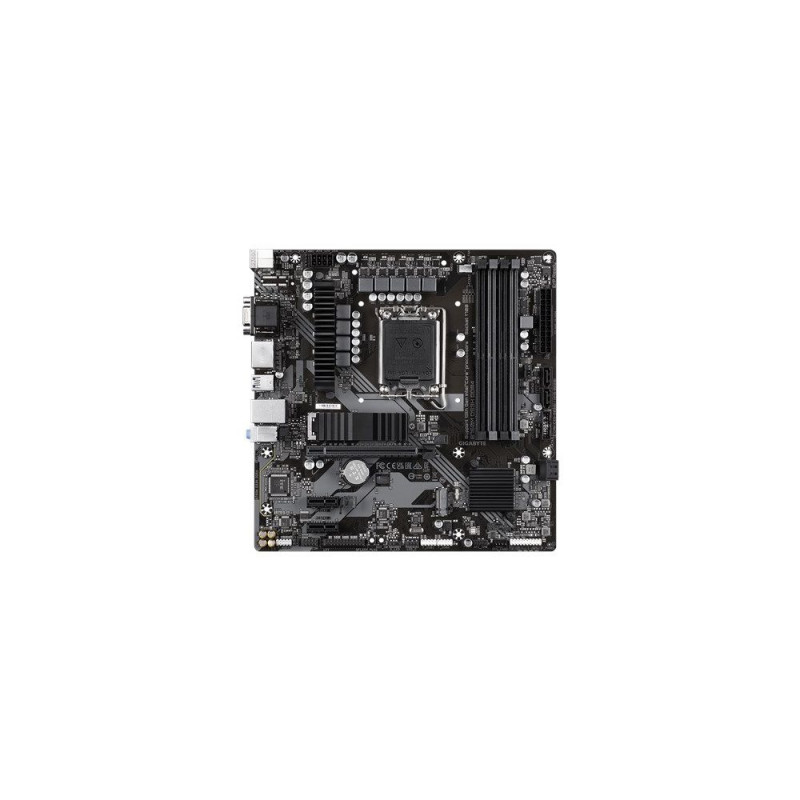

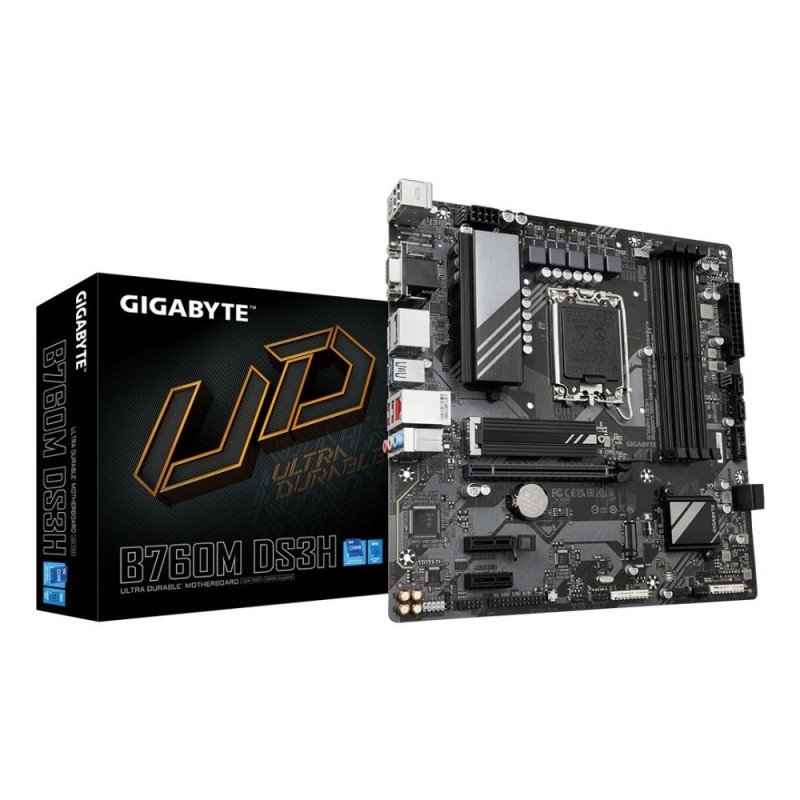

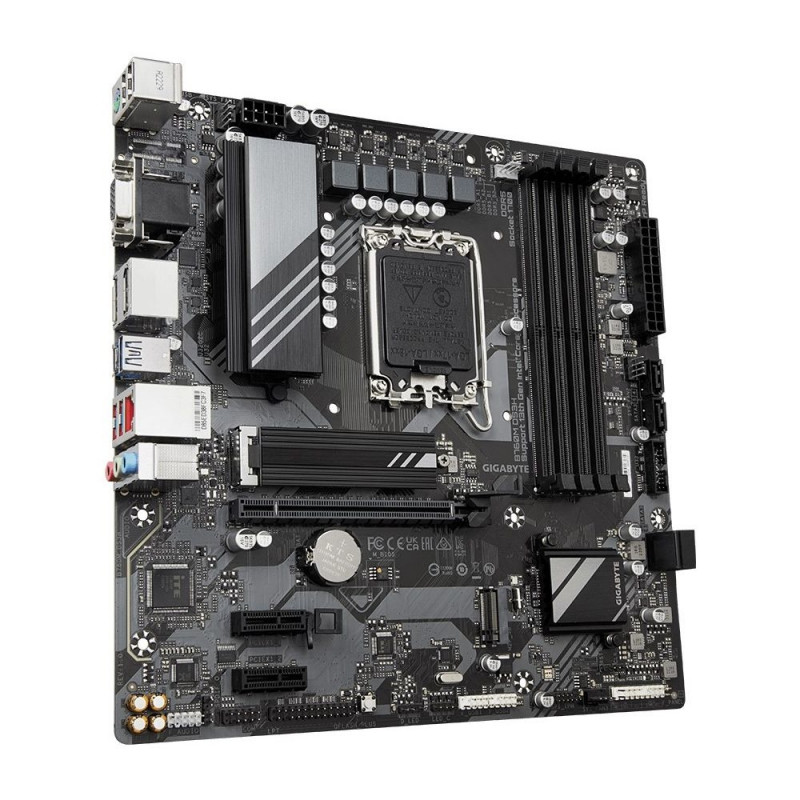

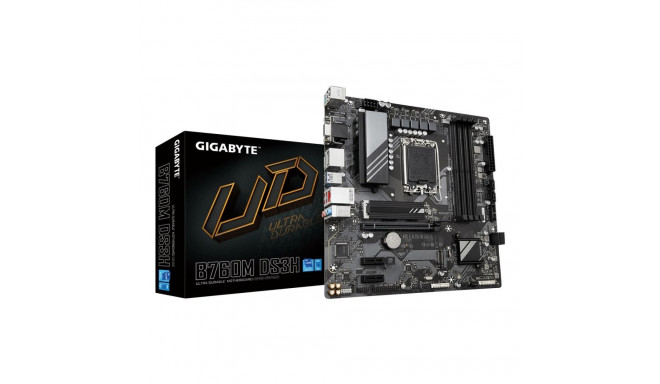

Gigabyte B760M DS3H 1.0 M/B Processor family Intel Processor socket LGA1700 DDR4 DIMM Memory slots 4

Main info

Product has been archived


Bundled software Norton Internet Security
Ethernet interface type 2.5 Gigabit Ethernet
PCI Express x1 slots 2
Battery weight 3 g
Headphone outputs 3
Depth 244 mm
Products per shipping (inner) case 1 pc(s)
Number of battery cells 1
Desktop Management Interface (DMI) version 2.7
Width 244 mm
Number of HDDs supported 4
Memory slots type DIMM
VGA (D-Sub) ports quantity 1
Number of memory slots 4
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Microphone in Yes
Number of storage drives supported 6
Processor manufacturer Intel
Warranty period 3 year(s)
Wi-Fi No
12V power connector Yes
Supported memory types DDR5-SDRAM
Processor socket LGA 1700
Height 35 mm
RGB LED pin header Yes
Supported memory clock speed (max) 7600 MHz
Ethernet LAN Yes
PS/2 ports quantity 1
Audio output channels 7.1 channels
Motherboard chipset Intel B760 Express
Front panel audio connector Yes
Maximum resolution 4096 x 2304 pixels
Package width 265 mm
Supported storage drive types HDD & SSD
S/PDIF out connector Yes
Ethernet LAN (RJ-45) ports 1
Number of SATA III connectors 4
PCI Express x16 slots 1
DisplayPorts quantity 2
USB connector type USB Type-A
HDCP Yes
Cables included SATA
DisplayPort version 1.2
Warnings Avoid direct contact with electronics to prevent electrostatic damage.
USB 2.0 ports quantity 2
DirectX version 12.0
Package height 54 mm
Product colour Bronze
2nd M.2 highest PCI Express generation 4.0
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
CPU fan connector Yes
Package depth 265 mm
TPM connector Yes
EPS power connector (8-pin) Yes
Memory channels Dual-channel
Parallel connector Yes
Number of M.2 (M) slots 2
Supported storage drive interfaces M.2, SATA III
Front panel connector Yes
Unbuffered memory Yes
Parallel processing technology support Not supported
1st M.2 highest PCI Express generation 4.0
Motherboard chipset family Intel
Serial port headers 1
ECC сompatibility ECC & Non-ECC
Clear CMOS jumper Yes
Motherboard form factor micro ATX
2nd M.2 largest key size 2280
Battery type CR2032
Maximum internal memory 256 GB
Supported processor sockets LGA 1700
Country of origin China
BIOS type UEFI AMI
1st M.2 largest key size 2280
USB 2.0 connectors 2
Package weight 1.03 kg
HDMI ports quantity 1
Total number of SATA connectors 4
RAID support Yes
ATX Power connector (24-pin) Yes
HDMI version 2.0
Lithium weight per battery 0.07 g
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Warranty 24 (G)
Compatible processor series Intel® Pentium® Gold
RAID levels 1
Supported memory clock speeds 6400
PC health monitoring Voltage
Windows operating systems supported Windows 11 x64

Dimensions and weights

Package width
265 cm
Package height
54 cm
Package length
265 cm

Product codes

EAN
4719331851736
Manufacturer code
B760M DS3H
